COOKTOPS
SAI4954D
90CM INDUCTION COOKTOP
User Manual
TOUCH CONTROLS
For precise cooking control, the zones are operated by an ergonomic slide control where you can choose to touch directly or finger-swipe up and down the 1 to 9 power levels with no ‘tapping’ required.
BOOST FUNCTION
Boost provides an additional surge of power for even more intense heat and is ideal for heating large quantities of water rapidly.
TIMER FUNCTION
The timer function can be used as an independent minute minder or as a switch-off timer for all zones each zone to ensure economical power usage. The timer can be set between 1 minute – 99 minutes.
RESIDUAL HEAT INDICATOR
If the induction cooktop surface is still hot a [H] is indicated on the control panel. Once the temperature falls to a safe level the indicator will go out and the cooktop can be easily cleaned.
EAN 8017709302559
| Dimensions | 900mmw x 53mmH x 510mmD |
| Finish | Black ceramic |
| Installation | Topmount |
| Cutout | 840mmW x 478-482mmD |
| Capacity | 5 zones Front left: 218 x 180 mm, 2100W – boost 2500W – double boost 3000W Rear left: 218 x 180 mm, 2100W – boost 2500W – double boost 3000W Centre: Ø 250mm, 2300W – boost 3000W Rear right: Ø 210mm, 2300W – boost 3000W Front right: Ø 160mm, 1400W – boost 2100W Multizone left: 360 x 218 mm, 1500W – boost 1850W |
| Functions | Rapid heating Grill function Keep warm function Pause function Cleaning function Auto-Vent 2.0 function |
| Timer | End of cooking acoustic alarm Independent timer |
| Ignition | Automatic electronic |
| Controls | Slider control |
| Safety | Pan detection Automatic cut-off 3-stage residual heat indicator Control lock Child safety |
| Power | 220 – 240V, 50/60Hz 32Amp Connection |
| Pan size | Automatic pan size recognition |
| Warranty | Two years of parts and labor |
SAI4954D
90CM INDUCTION COOKTOP

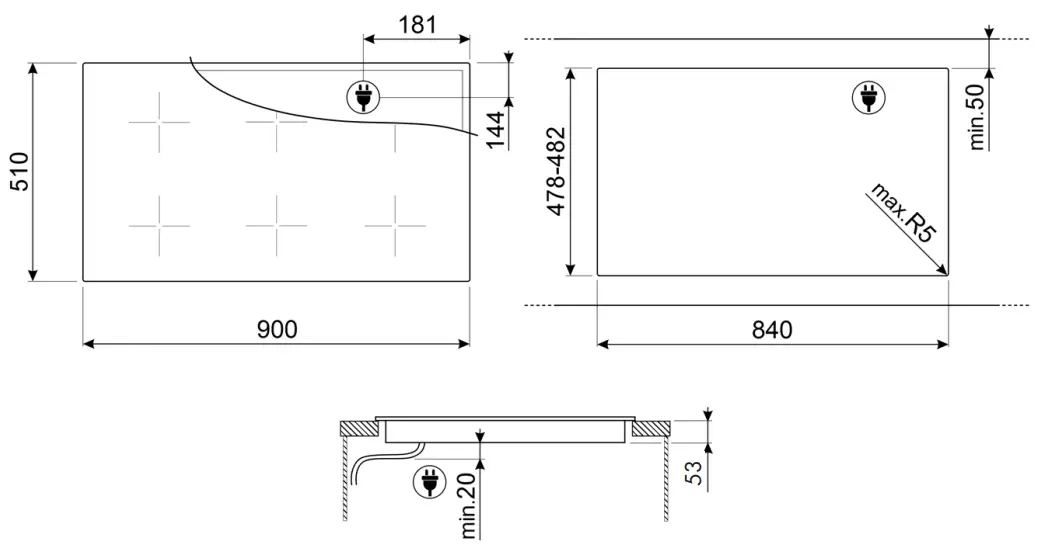

PLEASE NOTE: drawings are not to scale. They are to assist only.
WARNING: technical specifications and product sizes can be varied by the manufacturer without notice.
Cutouts for appliances should only be by physical product measurements. The above information is indicative only.
