Valid for Modelyear 2022
Instructions Manual
Modelyear 2022
The variation of the system weight is caused by the weight restrictions of the installed components
| max. Bike Weight and Rider Weight | max. Carrier Load // max. Trailer Vertical Load | max. Trailer Load | ||||
 |  |  |  |  |  |  |
| Product Line | Type | Category | Bike Weight and Rider Weight | Carrier // Trailer Vertical Load | Trailer | Structural Weight |
| Kid | Cubie 120 Cubie 160 Cubie 180 Reaction / Acid / Ella 200 Reaction/ Acid / Ella 240 Elite 240 C:62 Acid 260 Elite C:62 Rookie Stereo 240 Stereo 140 Rookie / 120 Rookie | 0 0 0 0 0 3 3 3 4 4 | 30 kg 30 kg 40 kg 40 kg 80 kg 80 kg 80 kg 80 kg 80 kg 80 kg | – – – 10 kg // – 10 kg // – – 10 kg // – – – – | – – – – – – – – – – | 30 kg 40 kg 30 kg 40 kg 80 kg 80 kg 80 kg 80 kg 80 kg 80 kg |
| Hardtail | Elite C:68X / C:62 Reaction C:62 Reaction TM Reaction Pro Race One Acid Attention Analog Aim SL Aim SL Allroad Aim /Pro/Race/EX Aim /Race Allroad Flying Circus Access WS C:62 Access WS Pro/Race/SL Access WS Pro Allroad Access WS/EAZ/EXC Access WS Allroad | 3 3 4 3 3 3 3 3 3 2 3 2 6 3 3 2 3 2 | 115 kg 115 kg 115 kg 115 kg 115 kg 115 kg 115 kg 115 kg 115 kg 115 kg 115 kg 115 kg 115 kg 115 kg 115 kg 115 kg 115 kg 115 kg | – – 25 kg // inkl. max. 8 kg 25 kg // inkl. max. 8 kg 25 kg // inkl. max. 8 kg 25 kg // inkl. max. 8 kg 25 kg // inkl. max. 8 kg 25 kg // inkl. max. 8 kg 25 kg // inkl. max. 8 kg 25 kg // inkl. max. 8 kg 25 kg // inkl. max. 8 kg 25 kg // inkl. max. 8 kg – – 25 kg // inkl. max. 8 kg 25 kg // inkl. max. 8 kg 25 kg // inkl. max. 8 kg 25 kg // inkl. max. 8 kg | – – 60 kg 60 kg 60 kg 60 kg 60 kg 60 kg 60 kg 60 kg 60 kg 60 kg – – 60 kg 60 kg 60 kg 60 kg | 115 kg 115 kg 150 kg 150 kg 150 kg 150 kg 150 kg 150 kg 150 kg 150 kg 140 kg 140 kg 115 kg 115 kg 150 kg 150 kg 140 kg 140 kg |
| Fullsuspension | AMS ZERO99 / ONE11 Stereo 120 Stereo 140 Stereo 150 Stereo ONE77 TWO 15 | 4 4 4 4 5 6 | 115 kg 115 kg 115 kg 115 kg 115 kg 115 kg | – – – – – – | – – – – – – | 115 kg 115 kg 115 kg 115 kg 115 kg 115 kg |
| Road Race | Litening Agree Attain Cross Race Nuroad SL Road C:62 SL Road Pro/Race/SL (inkl. FE) SL Road Pro/Race FE SL Road Axial WS/WS GTC/WS C:62 Nuroad WS / WS C:62 | 1 1 1 2 2 2 2 2 1 1 2 | 115 kg 115 kg 115 kg 115 kg 115 kg 115 kg 115 kg 115 kg 115 kg 115 kg 115 kg | – – – – 25 kg *// – 25 kg *// – 25 kg *// – 25 kg *// – 25 kg *// – – 25 kg *// -K15 | – – – – – – – – – – – | 115 kg 115 kg 115 kg 115 kg 115 kg 115 kg 115 kg 115 kg 115 kg 115 kg 115 kg |
| Triathlon | Aerium C:68 | 1 | 115 kg | – | – | 115 kg |
| Tour | Editor Hyde Ella Kathmandu PRO/EXC Kathmandu SL Touring Nature Travel | 1 1 2 2 2 2 2 2 | 115 kg 115 kg 115 kg 115 kg 115 kg 115 kg 115 kg 115 kg | 25 kg * // inkl. max. 8 kg 25 kg * // inkl. max. 8 kg 25 kg // inkl. max. 8 kg 25 kg // inkl. max. 8 kg 25 kg // inkl. max. 8 kg 25 kg // inkl. max. 8 kg 25 kg // inkl. max. 8 kg 25 kg * // inkl. max. 8 kg | 60 kg 60 kg 60 kg 60 kg 60 kg 60 kg 60 kg 60 kg | 140 kg 140 kg 140 kg 140 kg 150 kg 140 kg 140 kg 140 kg |
| The bike weight contains the weight of the bike including attached accessories. Additional luggage which is not placed on the carrier is also part of the bike weight. The rider weight describes the weight of the rider with his or her equipment. |
 | The maximum carrier load applies only to bicycles where a carrier has been fitted by a certified dealer. The maximum carrier load is further limited by the use of a trailer. |
 | The vertical load describes the load acting on the rear axle of the bicycle. The maximum vertical load is 8 kg. The permitted load on the carrier is further limited by the vertical load. Accordingly, the vertical load of the trailer is subtracted from the maximum load of the carrier. * Lowrider, only Tubus Tara released, max. 10 kg, evenly distributed (left/right). Please note: Total load front + rear 25 kg |
| 60 kg is the maximum permissible total mass of the trailer incl. load, taking into account the specifications for the maximum payload of the trailer manufacturer. The vertical load of the trailer (2-8 kg) has to be subtracted from the carrier load. For futher information visit: https://www.cube.eu/uk/service/helpdesk/faq-technical/can-i-mount-a-child-trailer-on-my-cube-bike/ |
| Maximum System Weight | The system weight describes the maximum permitted total mass which must never be exceeded. |
| Bike Category | Attention: Please note when using rear stands, mudguards, carrier and bicycle trailers the range of use of the model always changes to category 2 |
 | Kids Bikes Kids Mountainbikes tire size 12” – 24” |
 | Road Bike s Triathlon & Timetrail Bikes Fitness & Urban Bikes |
 | Cross & Trekking Bikes Cyclocross Bikes Gravel Bikes Fitness Bikes |
 | Mountainbikes Frontsuspension max. 100mm Kids Mountainbikes tire size 26”/27,5”/29” Kids Mountainbikes with carbon frame Tire size 24″ |
 | Mountainbikes Fullsuspension max. 160mm Mountainbikes Frontsuspension max. 130mm |
 | Mountainbikes Fullsuspension max. 170 / 190mm |
 | Dirt Bike & Downhill Bikes Downhill Bikes Fullsuspension ≥ 200 mm |
Here you will find detailed information about the bike category and its intended use.
https://www.cube.eu/en/service/bike-classification/
Manuals
https://www.cube.eu/en/service/manuals/
Examples Systemweight
| | | | | |
| Type | Category | Bike Weight and Rider Weight | Carrier // Trailer Vertical Load | Trailer | Structural Weight |
| Touring | 2 | 115 kg | 25 kg | 60 kg | 140 kg |

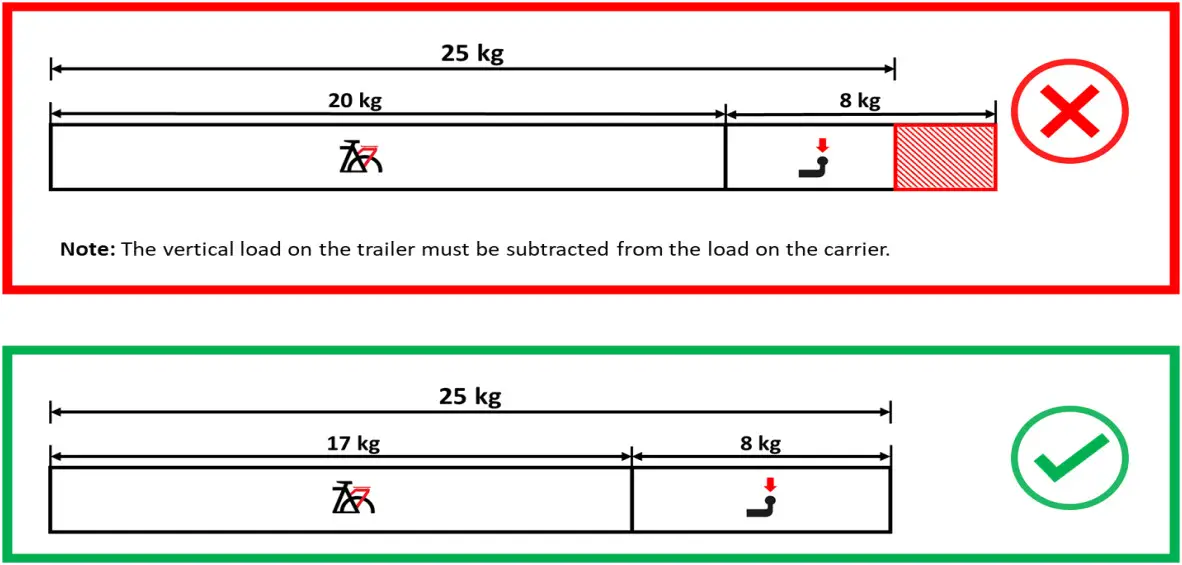

Examples Trailer Vertical Load
