FORTE F15TFRESWW Counter Depth Top Freezer Refrigerator Installation Guide
Product Overview

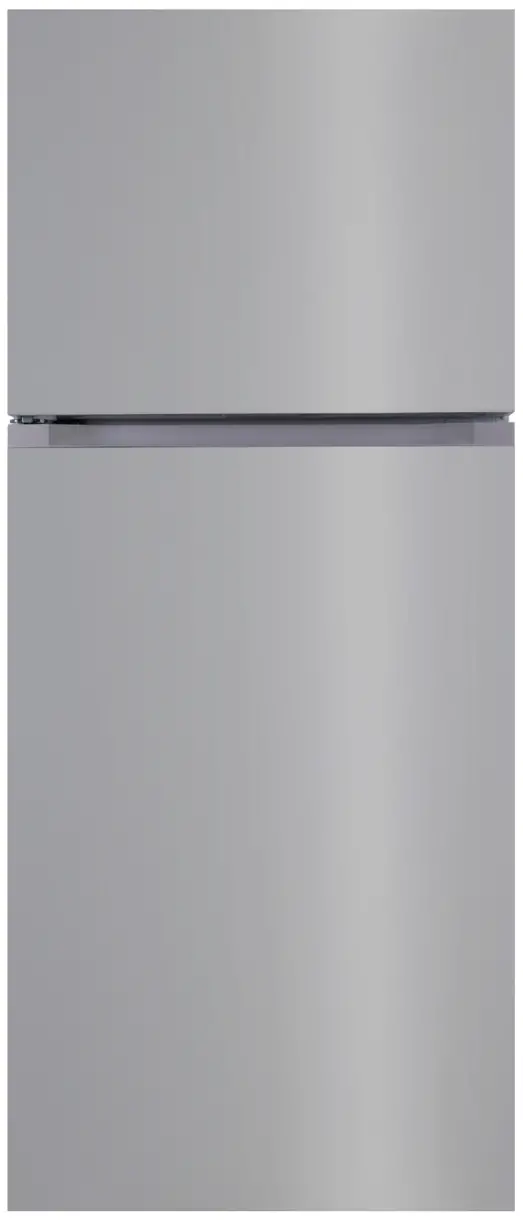

FRONT

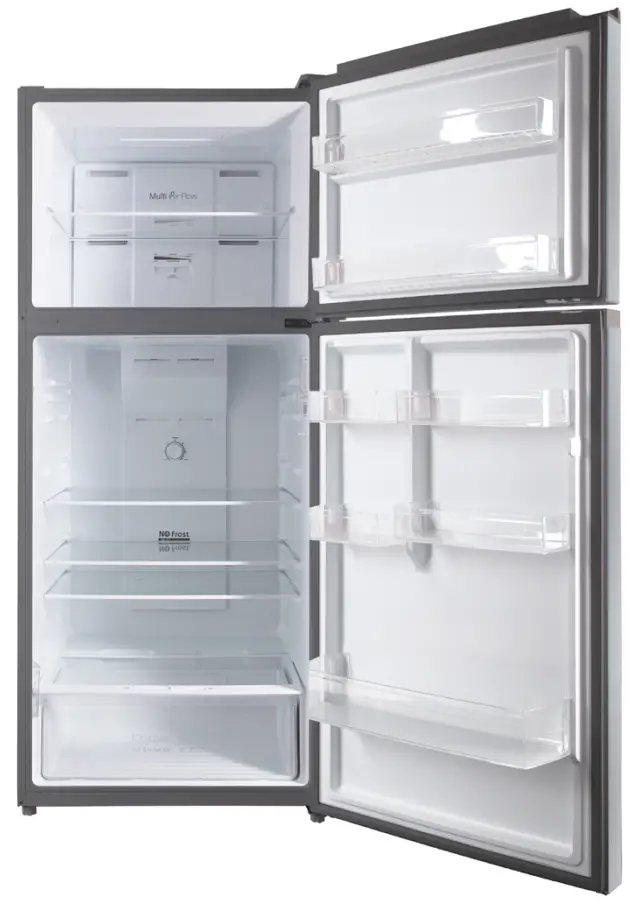

OPEN

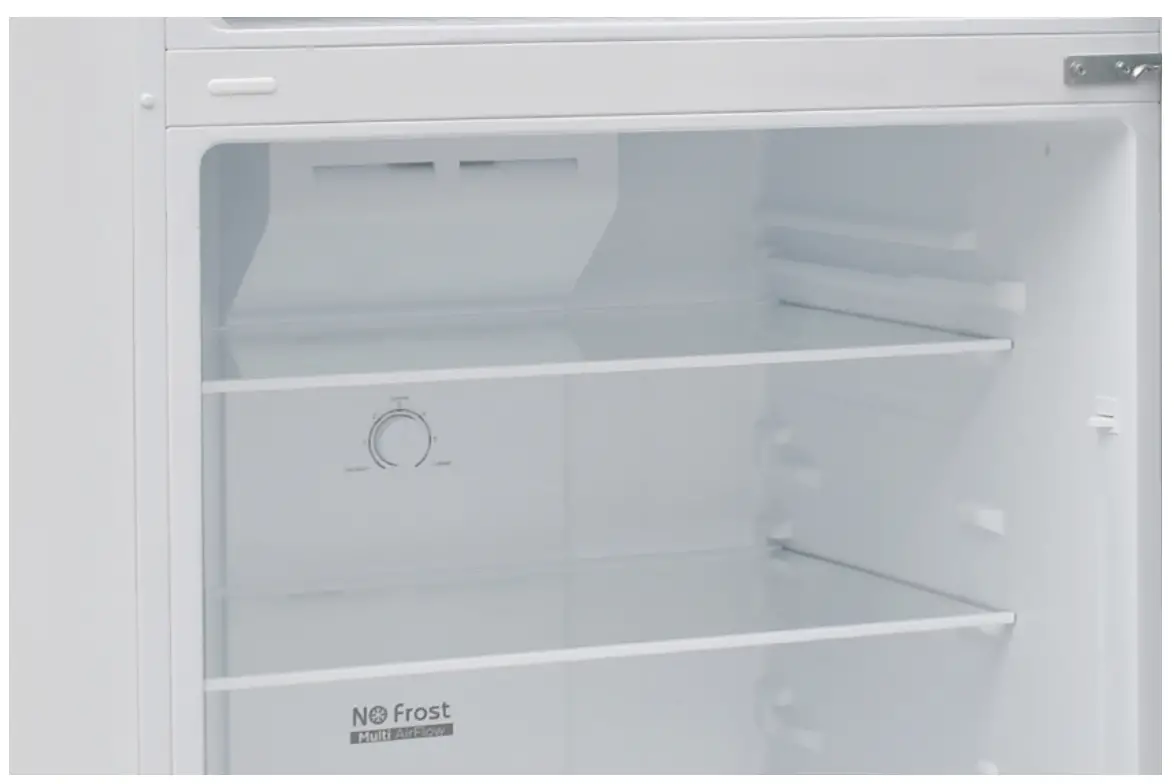

DETAIL
PRODUCT DIMENSIONS
| Width | 27 9/16 in. | 70cm |
| Height | 66 2/16 in. | 167.9cm |
| Depth | 27 8/16 in. | 70cm |
| Height Excluding Hinge | 65 3/16 in. | 165.5cm |
| Depth Excluding Doors | 24 7/16 in. | 62cm |
| Depth With Doors Open 90° | 53 6/16 in. | 135.5cm |
| Weight | 187 lbs. | 84.8 Kg |
| Capacity | 14.5 Cu. | Ft. 410.5L |
ADDITIONAL SPECS
| Refrigeration Capacity | 11 Cu. Ft. |
| Freezer Capacity | 3.5 Cu. Ft. |
| No. of Shelves | 2 Glass Shelves |
| Freestanding | Yes |
| Rated Voltage | 115V-60Hz |
| Reversible Hinge | Yes |
| Warranty Terms | 1 Year |
| Energy Star | Yes |
| Certfication | UL |
| ADA Compliant | No |
FEATURES
MULTI-AIR FLOW
Maintain humidity and temperature control, and keep your food crisp.
REVERSIBLE HINGE
Allows the door to open from the left or right depending on your needs.
LED LIGHTING
White LED provides a more aesthetic look inside your fridge and limited energy consumption.
NO FROST DESIGN
Prevents frost build-up on the inner walls eliminating the need for periodic manual defrosting.
INSTALLATION GUIDE

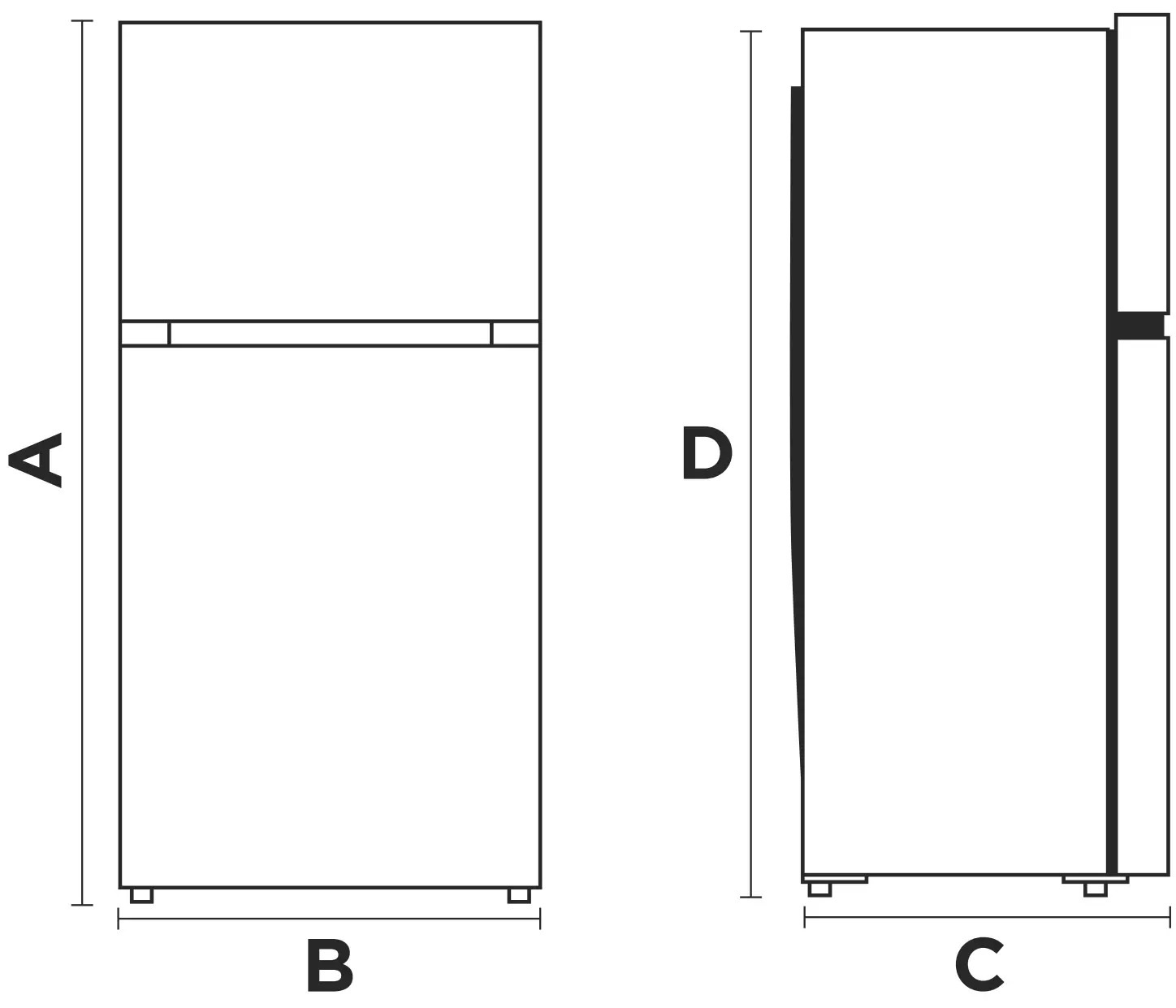

PRODUCT DIMENSIONS

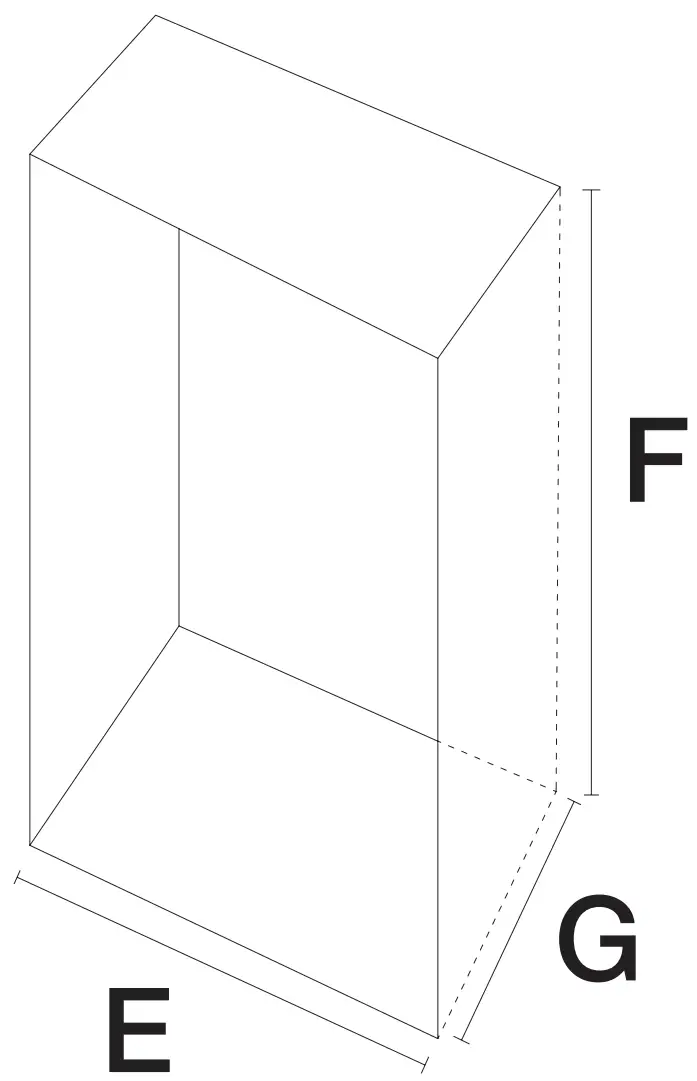

CUT-OUT DIMENSIONS

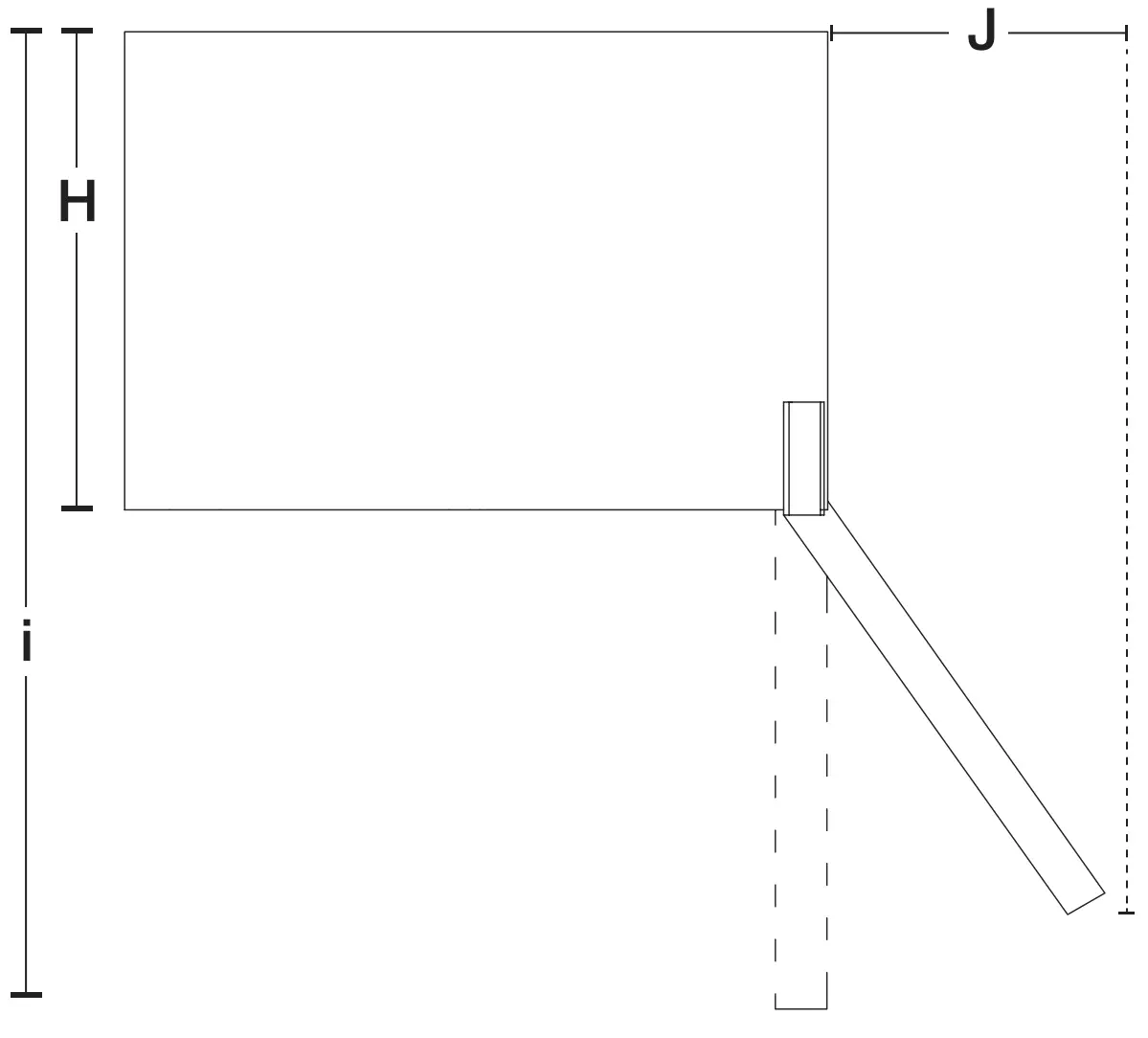

PLANNED DIMENSIONS
| POINT | DESCRIPTION | INCHES | CM |
| A | Actual Height | 66 2/16 | 167.9 |
| B | Actual Width | 27 9/16 | 70 |
| C | Actual Depth | 27 8/16 | 78.5 |
| D | Height Excluding Hinge | 65 3/16 | 165.5 |
| E | Cut-Out Width | 28 | 71.1 |
| F | Cut-Out Height | 66 6/16 | 168.5 |
| G | Cut-Out Depth | 27 12/16 | 70.2 |
| H | Depth Excluding Doors | 24 7/16 | 62 |
| I | Depth with Doors Open 90° | 53 6/16 | 135.5 |
