SCOSCHE Motormouth III V2 Handsfree Bluetooth Car Kit
DEVICE SETUP

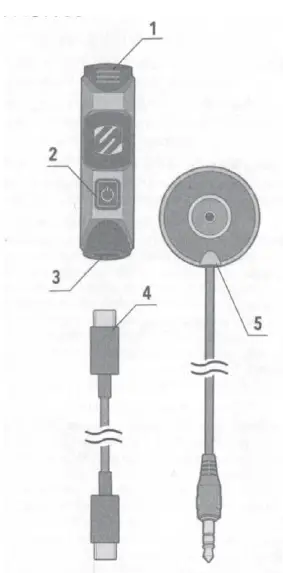

SECTION A Overview
- Microphone
- Multifunction Button (MFB)
- USB-C Charging Input
- USB-C Charge Cable
- Relocation Mount
SECTION B

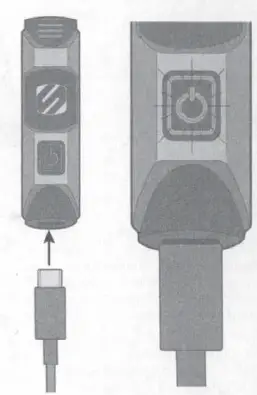

Charging
Use the included USB-C cable to connect the MotorMouth Ill to a compatible power source (not included). The LED on the Multifunction Button will flash red while charging and will tum off when charge is complete.
SECTION C

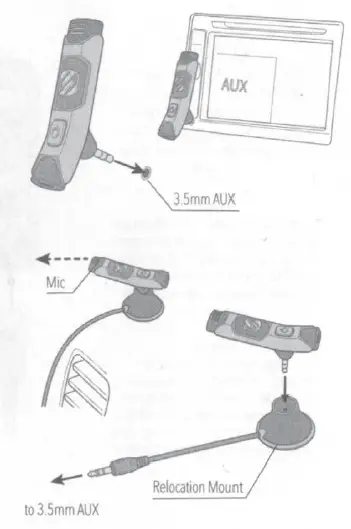

Installation Options
- Option 1: Plug the 3.5 m jac o the MotorMou h Ill directly into the AUX input on your vehicle’s head unit.
- Option 2: Use the Relocation Mount to connect the MotorMouth Ill to your vehicle’s console AUX i pu . Moun the adhesive ase horizontally on our dash op it he mic end of the uni
poined toward you
SECTION D

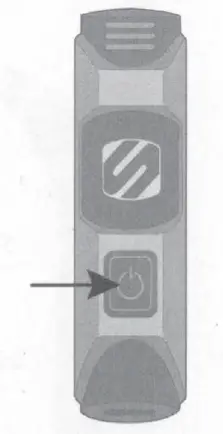

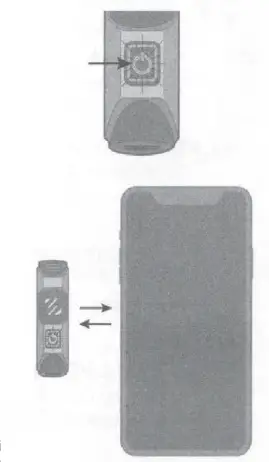

Power On/Off & Pairing
- Power On: Press & Hold MFB (Blue LED will flash) By default, pairing mode 1s initiated when MotorMouth Ill is first powered on.
- Power Off: Press & Hold MFB (4 sec.). Blue LED will flash
3X to confirm MotorMouth Ill will power off automatically after 5 min. when your phone is out of range of the unit. - Pairing Mode: Press & Hold MFB (5 sec) Blue LED will flash rapidly.
Note: The MotorMouth Ill will connect to the last connected device. For optimum performance, the first time the device connects, the volume on your mobile phone should be set to maximum.
SECTION E
Audio Playback & Calling
- Play/Pause Music: Press MFB 1x
- Answer/End/Cancel Call: Press MFB 1 x
- Reject Incoming Call: Press & Hold MFB, 2 sec
- Redial last Number Press MFB 2x
- Voice Assistant. Press & hold MFB, 3 sec.
- Reset: Press & Hold MFB (8 sec.)
SPECIFICATIONS
- Music/Talk: up to 6 hrs
- Standby: 180 hrs
- Charge Time:~ 2 hrs
- Range: Class II, up to 33 ft (10 m)
- Battery: 110 mAh
- Charge Input: 5 V=O.SA
- BluetoothvS.1, HFP, A2DP, AVRCP
Scosche 1ndustnes
1550 Pacific Avenue
Oxnard, California 93030
Phone. 800-363 1.1qn v1 I 805-486•4450 x1
www.scosche.com
© Scoscne industries 2021
