605046 Noclip Evo Installation Guide

r sistex 605046 Noclip Evo

Installation Instructions

Safety notes

Electric Warning Icon -Never work when voltage is present on the luminaire.
warning 2-The installation must be performed by a professional installer in compliance with the standards and regulations relating to electrical installations
r sistex 605046 Noclip Evo - icon 2 -Risk of electrostatic discharges. (ESD Norm). Handle with precautions.
-Please observe the notes and steps described in the mounting instructions.

Maintenance instructions

r sistex 605046 Noclip Evo - icon 3 -Do not use chemicals or abrasives products to clean the fixture.
r sistex 605046 Noclip Evo - icon 4 -Keep these instructions for dismantling or future maintenance. You can consult additional information about RESISTEX luminaires on the website www.resistex-sa.com RESISTEX cannot be responsible for any misuse of the product.

r sistex 605046 Noclip Evo - icon 1

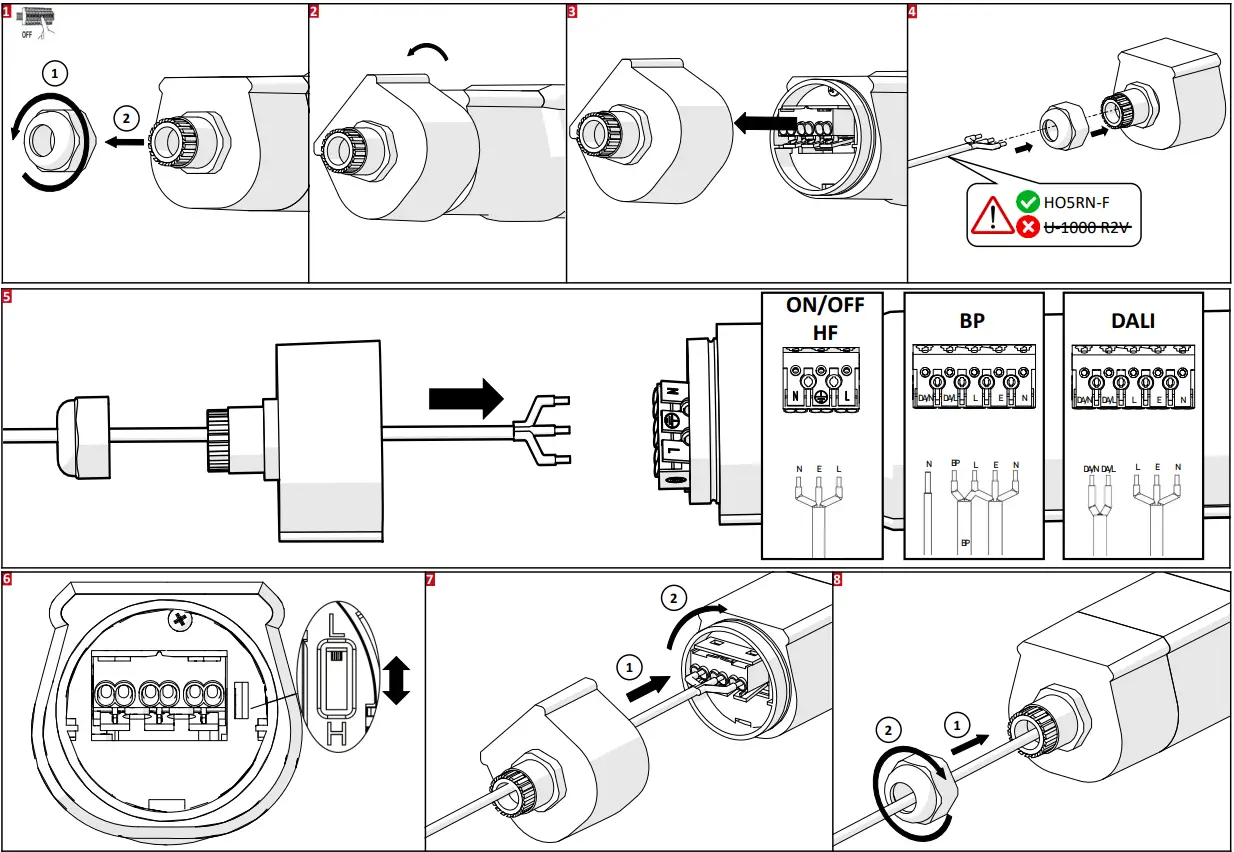

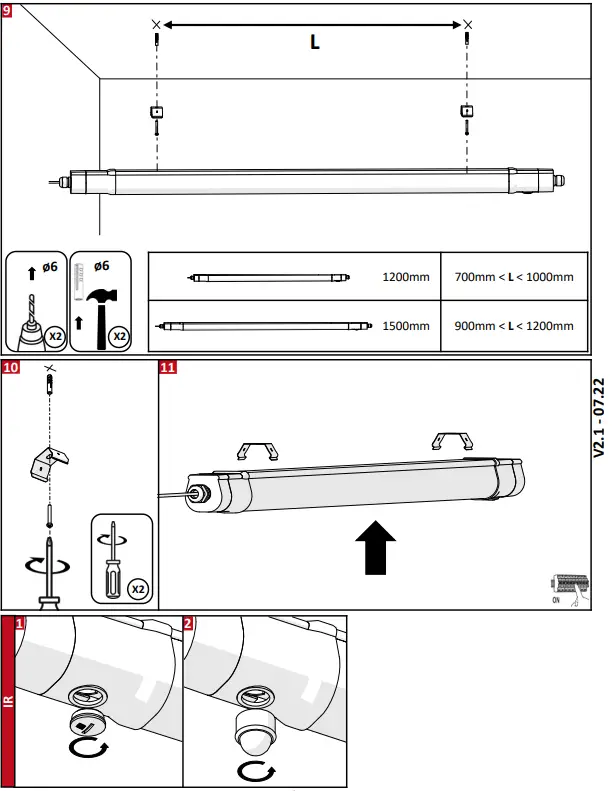

INSTALLATION

r sistex 605046 Noclip Evo - fig 2

r sistex 605046 Noclip Evo - fig 1

  www.resistex-sa.com
RESISTEX EXPLOITATION, 11 Quai de la Banquière CS 80010, 06730 Saint-André-de-la-Roche – France
Tél. 04 93 276 276 – Fax 04 93 276 280 – [email protected]
APE 2740Z – Siret 487 593 477 00010 – SAS CAPITAL 649979 € – T.V.A. F.R. 73 487 593 477
