Proled L6op6xx2g Flex Strip Installation Guide

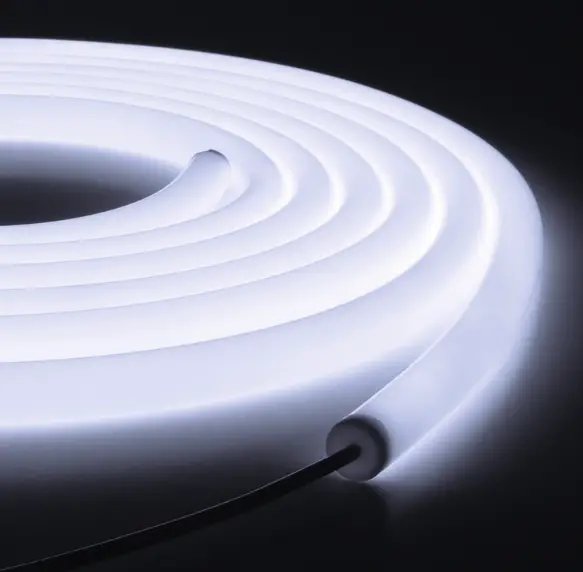

PROLED L6OP6xx2G Flex Strip

Characteristics

• SMD CHIP MONO (white, neutral white, warm white, super warm white).
• Power supply 24 VDC.
• Homogenous light. No single points visible.
• Safety class IP54. Suitable for wet room.
• Operating temperature range -10° C till +45° C.
• CE compliant with applicable European directives.

Warning:

1. For indoor use only.
2. Please ensure that the packaging is disposed of in a safe environment.
3. We do recommend that a qualified electrician should be used to install the products.
4. Do not look at the lighted lamp directly.

Safety indices

Be sure to have a qualified electrician complete installation. The customer is not entitled to claim for any lights installed without observing European safety directives. The manufacturer is then discharged from liability when damage is caused by improper use or installation. For indoor use only. Protection class IP54.

Preinstallation:
Please follow the sequence of installation step by step. Non-observance can lead to damage of the flex strip.

1. Switch off the electricity at the mains before commencing installation or lamp change and (if a fuse box is installed) remove the appropriate circuit fuse to avoid accidental switching on of the mains supply.
2. Connect the flex strip to the power supply 24 VDC output (secondary side).
3. Connect connector (primary side) of power supply to mains (220-240VAC).
4. If a dimmer is used, than it must be placed between power supply and the flex strip.

Installation possibilites

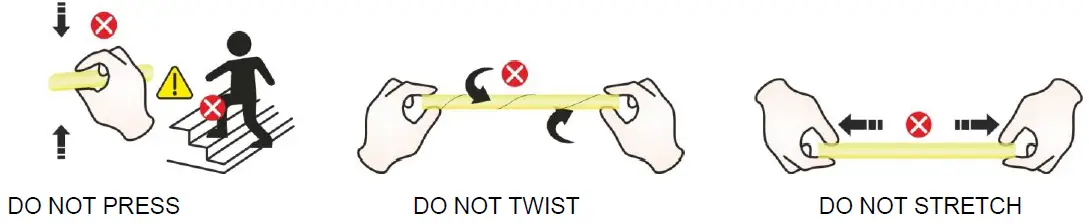

1. Please keep in mind, that following strain is not allowed:
2. Minimum bending diameter at FLEX STRIP OPAL 360 / 360 2G

Installation:

1. Installation of a single line
   Fix the bracket to the wall or ceiling
   Place the Tube at the desired position
   Turn the bracket
   Clip in the bracket
   Mechanics of the bracket

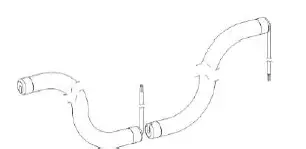

2. Installation of several lines, Beginning to the end
   Connect the beginning with the end
   Place the connection into connector
   Turn the connection to stabilize
   Clip in the connector
   Mechanics of the connector

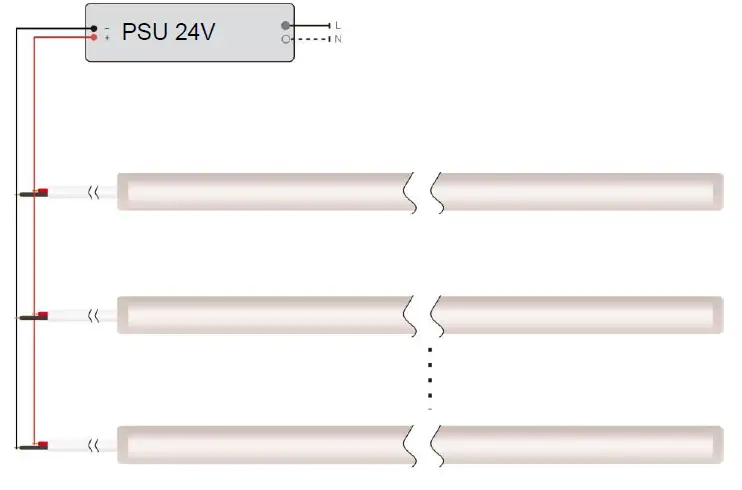

3. Connection diagramm

Energy efficiency class of the light source:
Products listed in this manual contain a light source of following efficiency class, listed according to the item codes:

Item code               Efficiency class of light source

L6OP6xx               G
L6OP6042G         E
L6OP6062G         F
L6OP6082G         F
L6OP6262G         F

ATTENTION:
Installation and commissioning may only be performed by qualified persons.
National installation regulations must be observed.
Luminaires must be disconnected from mains before any work.
The product is a “containing product” according to directive (EU) 2019/2020 and (EU) 2019/2015.

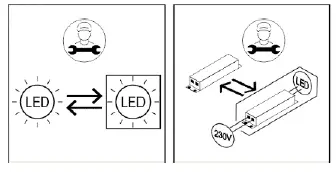

Exchange of the light source with commonly available tools is possible for this product.

The installed light source can be removed for testing purpose.

10.21 Technical amendments reserved

MBN GmbH, Balthasar-Schaller-Str. 3, 86316 Friedberg – Germany
www.proled.com
