Ctronics Ptz Wireless Camera Instruction Manual (+ PDF)

Operation Manual
PTZ Wireless Camera

Contents hide

1 Red and blue light alarm

2 Set up guard position human tracking

3 Set presets and cruise

4 Documents / Resources

4.1 References

5 Related Posts

Red and blue light alarm

When the camera detects a person, the red and blue lights are on and flashing alternately to serve as a warning. This function is turned on by default.

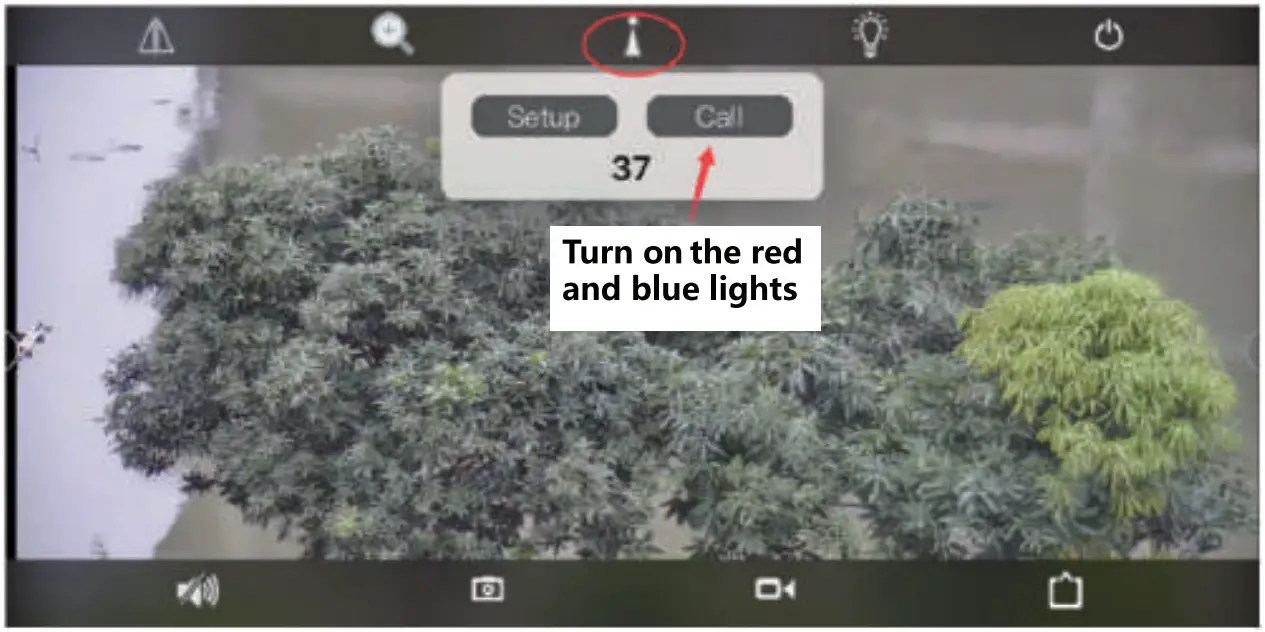

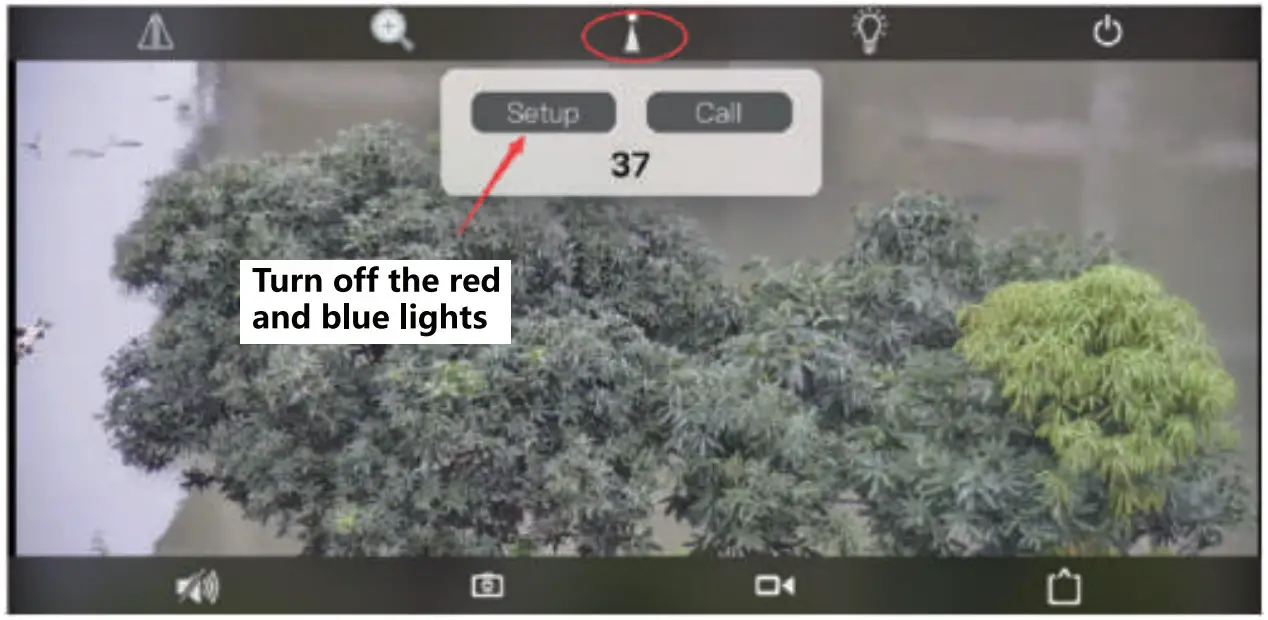

If you need to turn off, please enter 37 in the mobile phone APP as shown below and click Setup. To reopen, enter 37 and click Call

Set up guard position human tracking

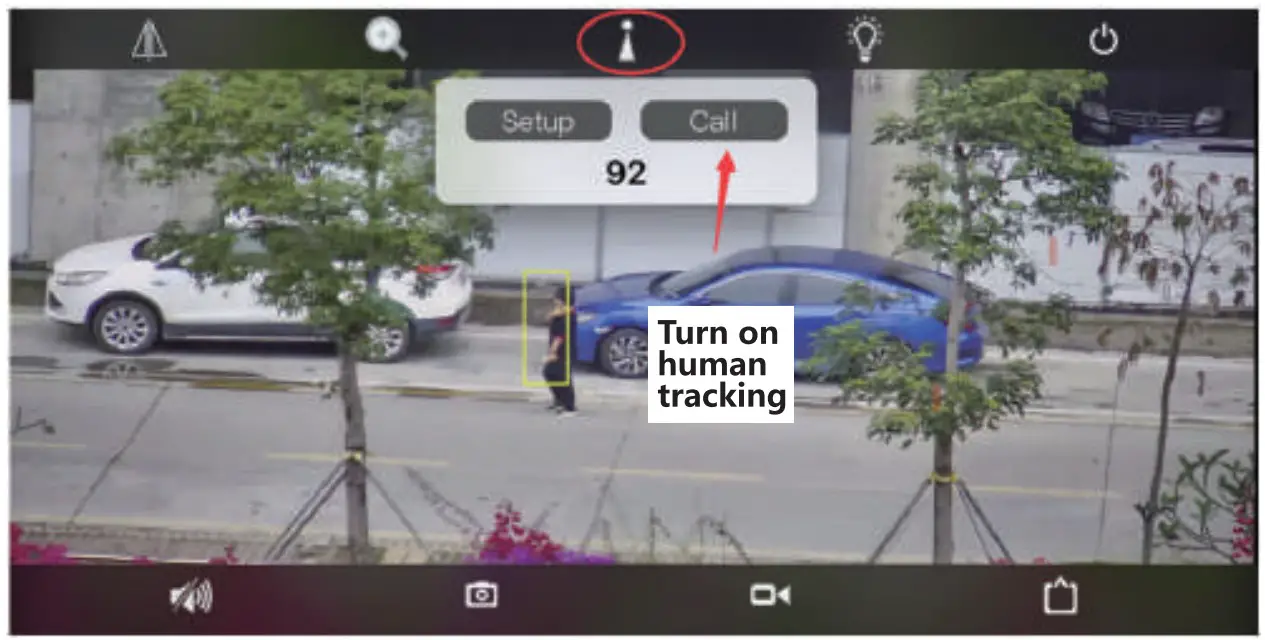

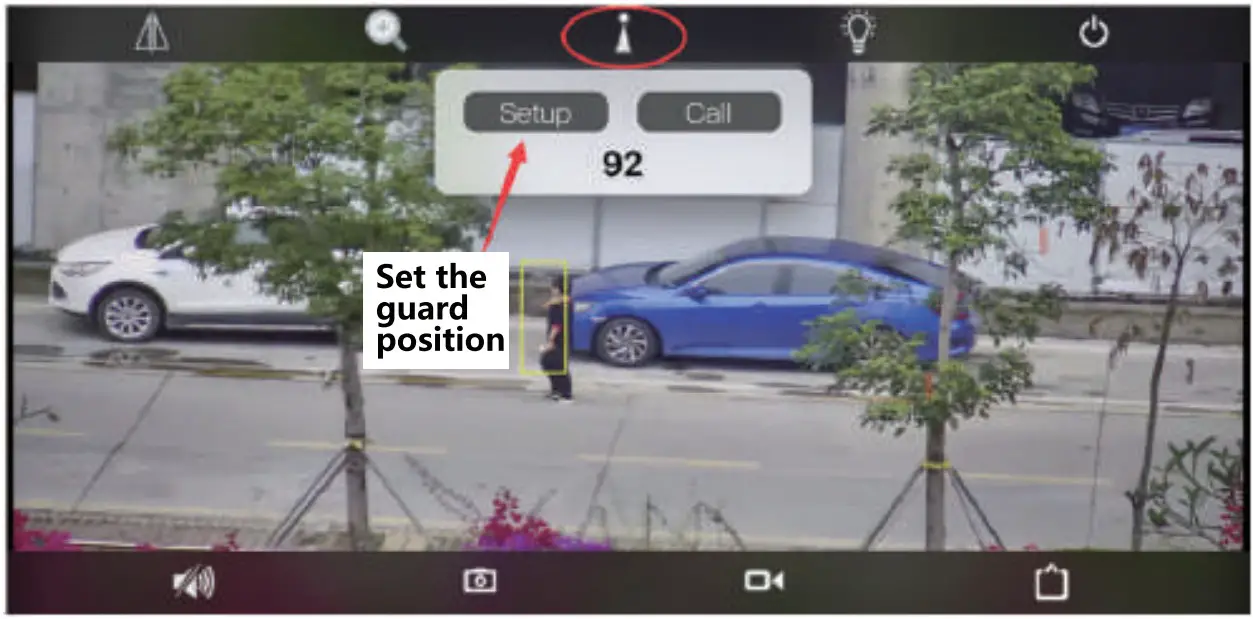

First select a position to be monitored, defined as a guard position. After tracking is completed, the camera will automatically return to here, enter 92, and click Setup Enter 92 and click call to turn on the humanoid tracking.

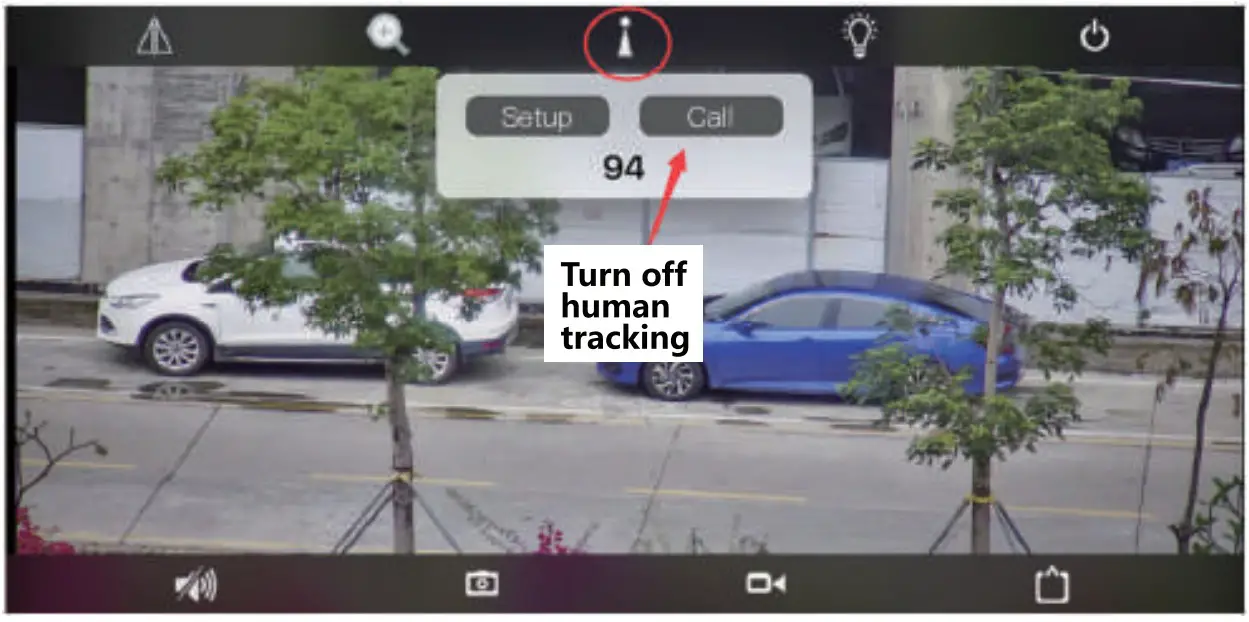

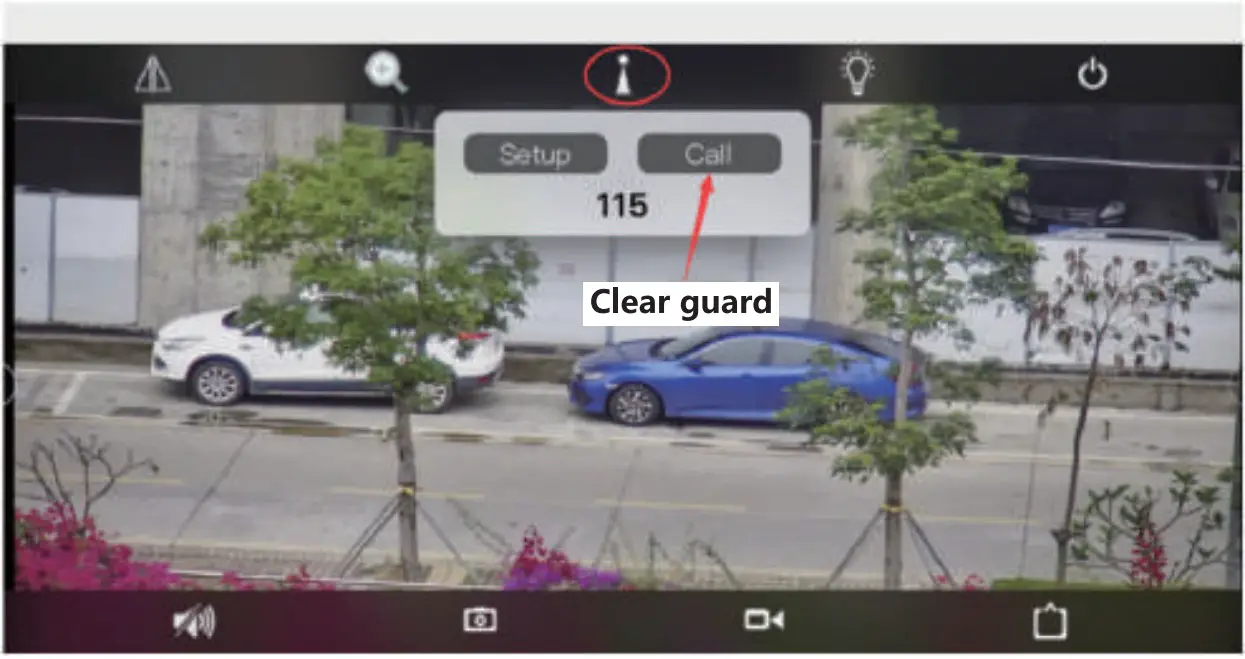

At this time, the camera finds that someone is passing by in the monitoring screen. It will automatically track the movement of the person until the person leaves the entire monitoring range of the camera. 2: If you need to turn off human tracking, enter 94 and click call.If you need to clear the guard position and set a new guard position, you need to reset the gimbal to factory settings, enter 115, and click call Note: The human tracking function is based on the track of the person’s activity captured on the camera screen.
If there are more people on the monitoring screen, the camera tracking function may lose track of the object due to more targets and mistracking due to different activity tracks. normal phenomenon. After the camera is zoomed in to a larger magnification, the slight camera movement will cause a larger displacement of the screen. Therefore, the camera should not use this function after zooming in with ZOOM +

Set presets and cruise

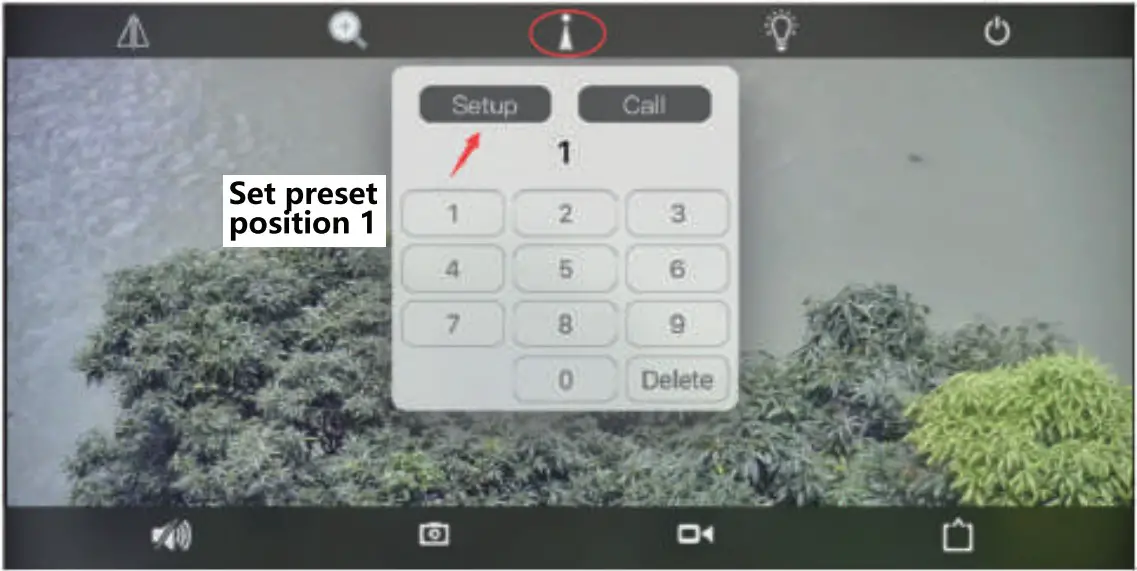

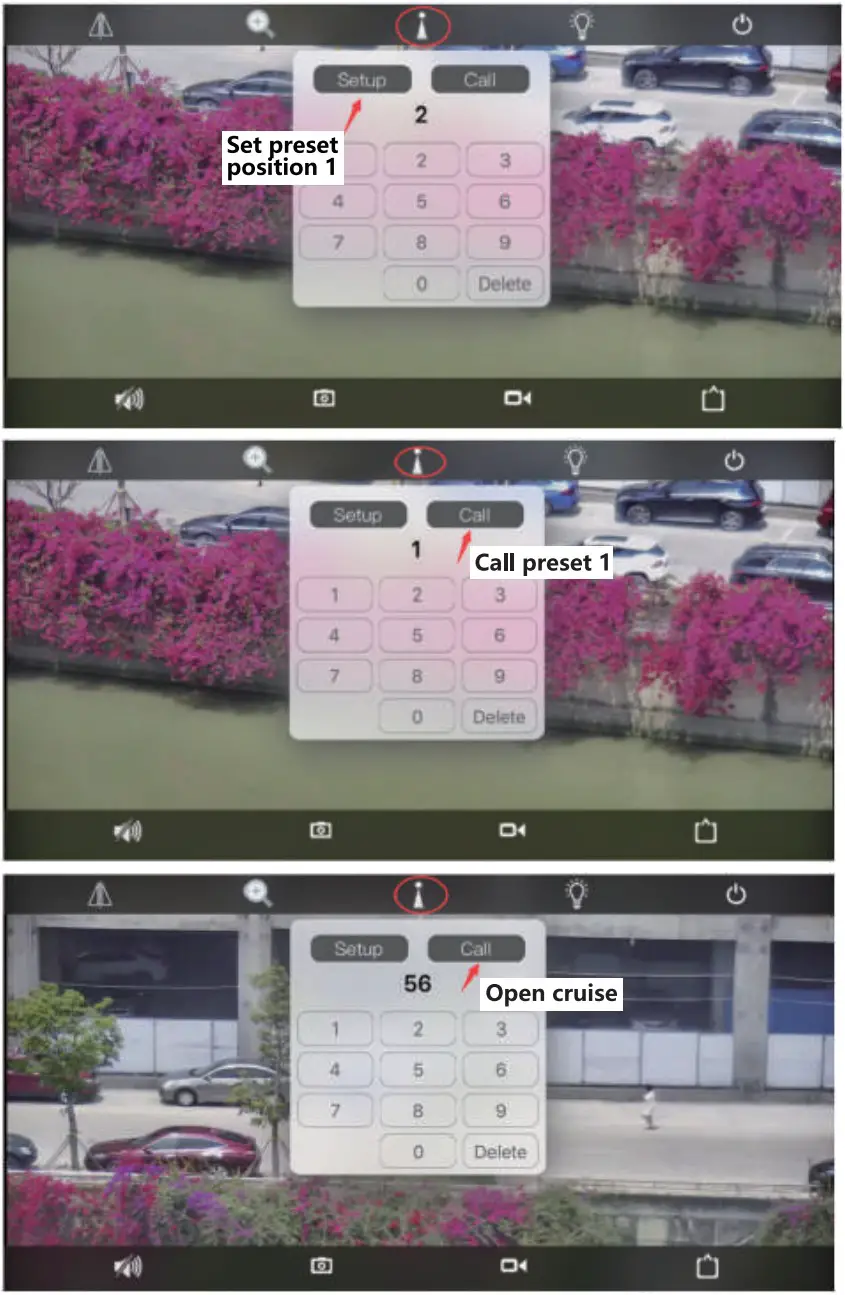

Set one or several points to be monitored as presets 1, 2, …. (up to 30). When you want to see a certain point, directly call one of the preset positions, the camera will automatically turn to the preset position. When the cruise command is called, the camera will turn in turn according to the preset positions 1,2, .. and slide the APP screen to stop cruise.
