Macwheel Ess2 Electric Scooter Instruction Manual

Macwheel Ess2 Electric Scooter Instruction Manual

ESS2

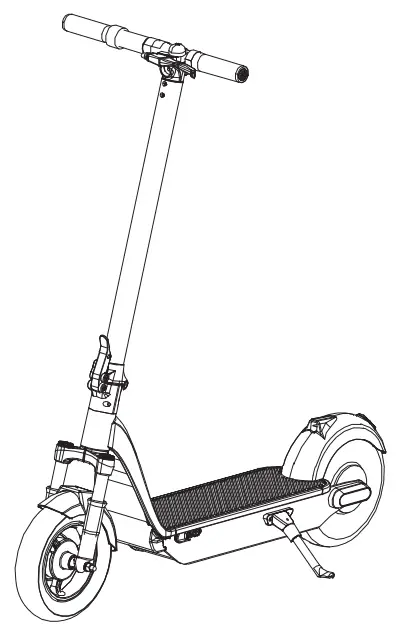

MACWHeeL ESS2 Electric Scooter -

Thank you for purchasing
Thank you for purchasing the Mac wheel Electric Scooter. It is a sports and recreational vehicle with style.

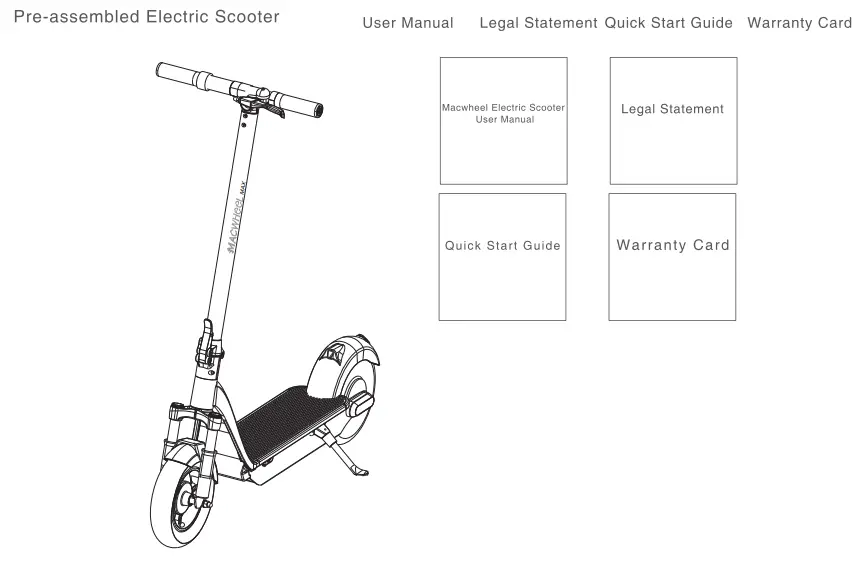

Package Contents

MACWHeeL ESS2 Electric Scooter - package contance

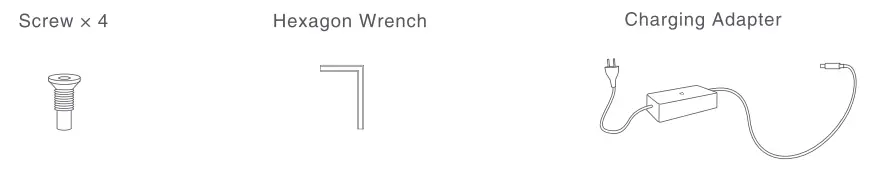

Accessories

MACWHeeL ESS2 Electric Scooter - access

Carefully check package contents, if anything is missing or damaged, please contact online customer service for support.

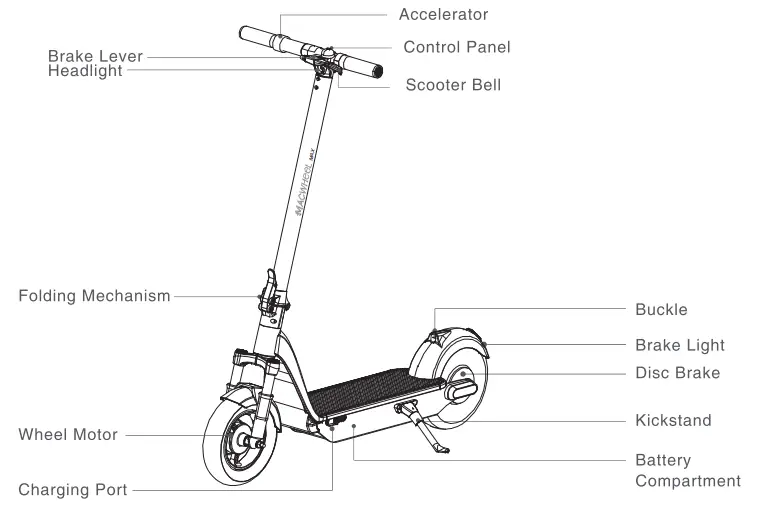

Product Overview

MACWHeeL ESS2 Electric Scooter - product overview

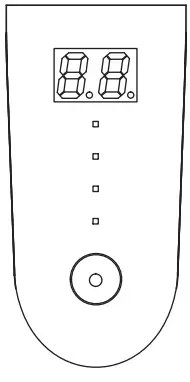

Control Panel

MACWHeeL ESS2 Electric Scooter - control pnal

Battery level display
The power level is indicated by five power lights on the control panel. As power is consumed, the lights will change from solid to flashing, and finally, turn off from up to down. When the bottom power light flashes, it indicates low power. Please recharge soon for further use. After running out of power, all lights will turn off, and the scooter will coast until it comes to a complete stop.
Power button
Press and hold the power button for 2s to turn on/off the scooter. Press the power button once to turn on/off the front light. Quick press the power button twice to change the gear station. Long press the power button for 5s to enter into the cruise control mode.

Assembly and Set-Up

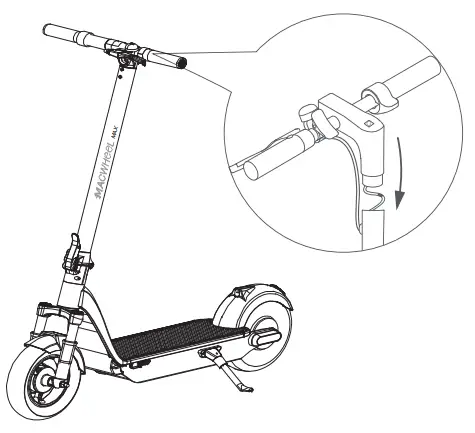

1. Fasten the handlebar stem on the headset, and put the kickstand down2. Attach the handlebar to the stem
MACWHeeL ESS2 Electric Scooter - assembleyMACWHeeL ESS2 Electric Scooter - hendle ber

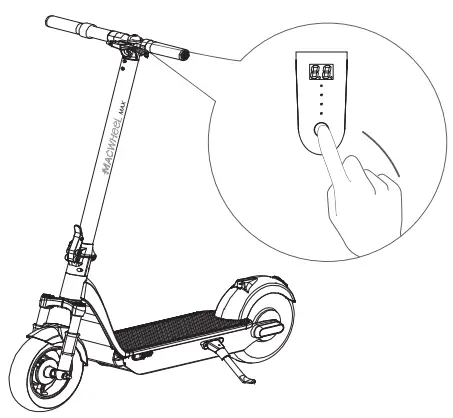

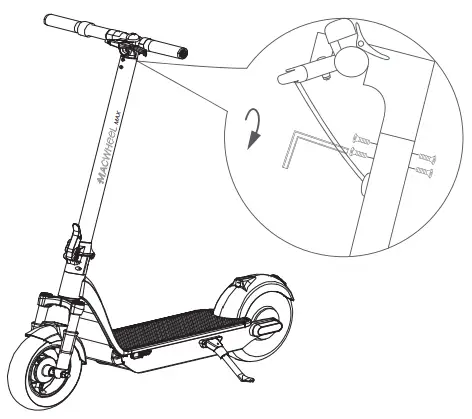

3. Tighten the screws onto both sides of the stem with the hexagon wrench 4. After the assembly, press the power button to check if it’s working properly
MACWHeeL ESS2 Electric Scooter - hexagonMACWHeeL ESS2 Electric Scooter - working

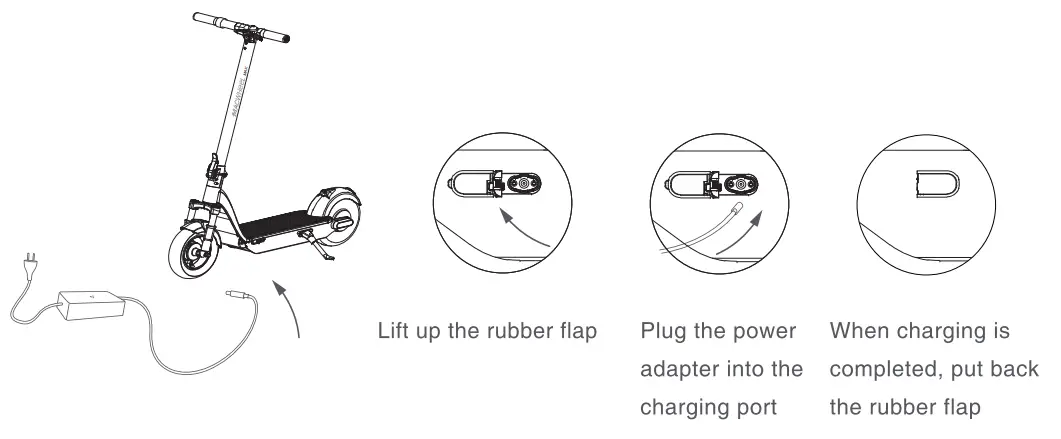

Charge Your Scooter

MACWHeeL ESS2 Electric Scooter - charging

How To Ride

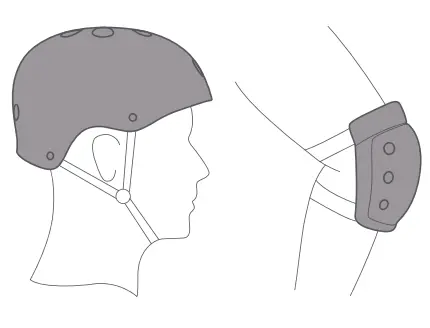

Wear helmets and knee pads in case of falls and injuries when you learn to ride the scooter

MACWHeeL ESS2 Electric Scooter - sefty

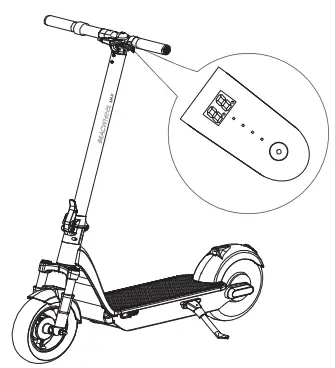

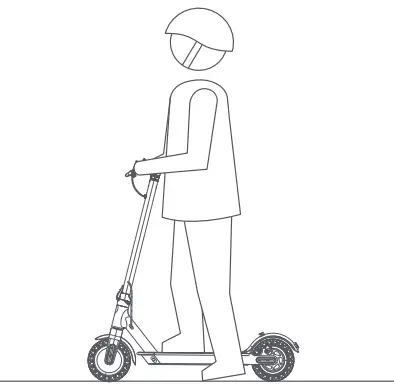

1. Turn on the scooter, and check the power indicator2. Step on the deck with one foot, and slowly kicks off the other on the ground
MACWHeeL ESS2 Electric Scooter - indicoterMACWHeeL ESS2 Electric Scooter - ground

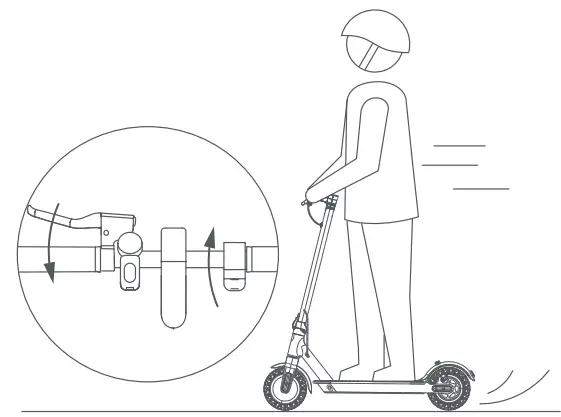

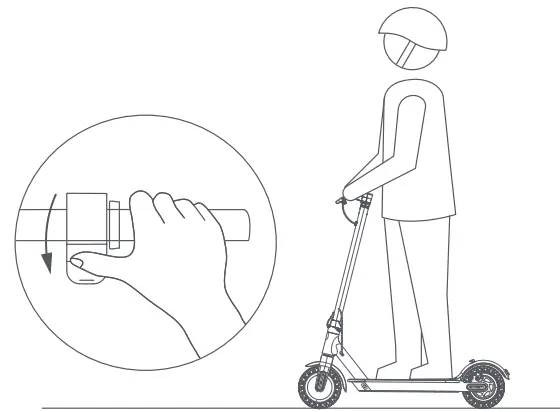

3. When the scooter starts to coast, put both feet on the deck and press the accelerator (the accelerator initiates once the coasting speed exceeds 3.1 mph)4. Release the accelerator and the kinetic energy recovery system (KERS) initiates automatically to brake slowly; And squeeze the brake lever for a sudden brake
MACWHeeL ESS2 Electric Scooter - coastingMACWHeeL ESS2 Electric Scooter - automaticly brack

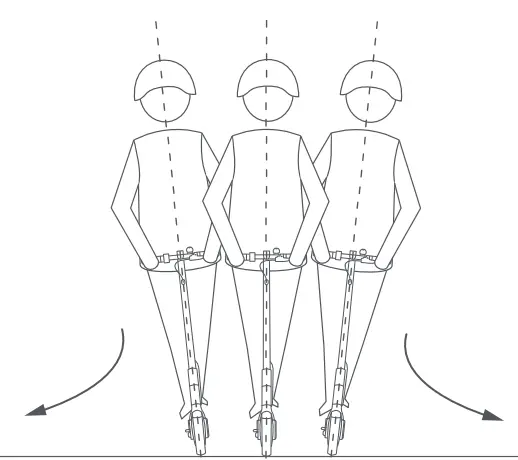

5. Tilt your body in the steering direction as you turn, and slowly turn the handlebar
MACWHeeL ESS2 Electric Scooter - direction

Safety Instructions

Watch out for safety risks

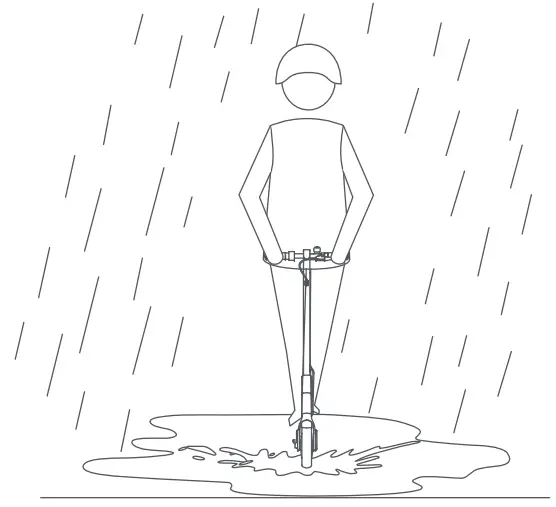

MACWHeeL ESS2 Electric Scooter - warning 2 Do not ride in the rainMACWHeeL ESS2 Electric Scooter - warning 2 Keep your speed between 3.1-and 6.2 mph when you ride through speed bumps, elevator door sills, bumpy roads, or other uneven surfaces. Slightly bend your knee to better adjust mentioned surfaces
MACWHeeL ESS2 Electric Scooter - safety risksMACWHeeL ESS2 Electric Scooter - speed between

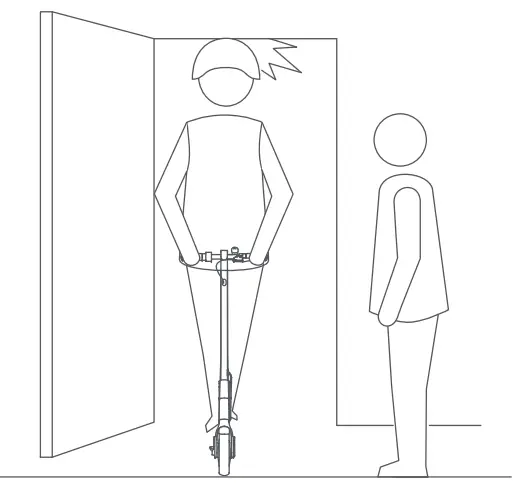

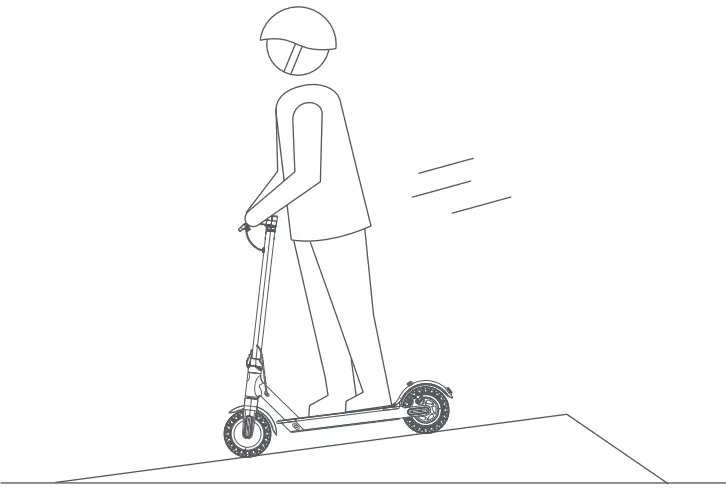

MACWHeeL ESS2 Electric Scooter - warning 2 Look out for doors, elevators, and other overhead obstaclesMACWHeeL ESS2 Electric Scooter - warning 2 Do not accelerate when you go downhill
MACWHeeL ESS2 Electric Scooter - overhead obstaclesMACWHeeL ESS2 Electric Scooter - downhill

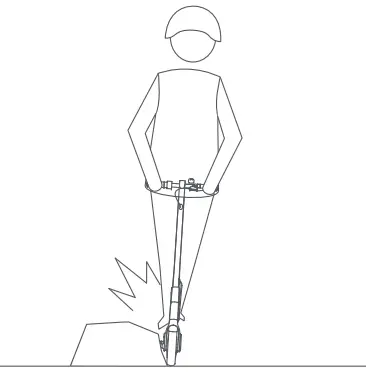

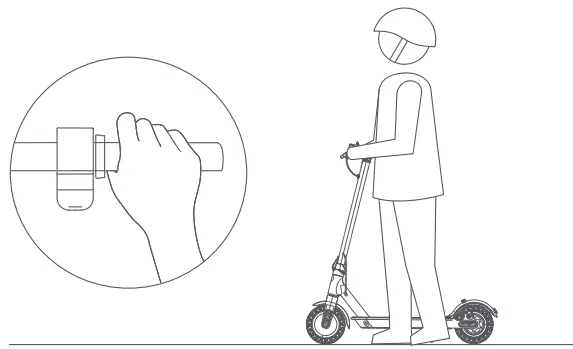

MACWHeeL ESS2 Electric Scooter - warning 2 Do not press the accelerator when you’re walking alongside the scooterMACWHeeL ESS2 Electric Scooter - warning 2 Always steer clear of obstacles
MACWHeeL ESS2 Electric Scooter - scooterMACWHeeL ESS2 Electric Scooter - obstacles

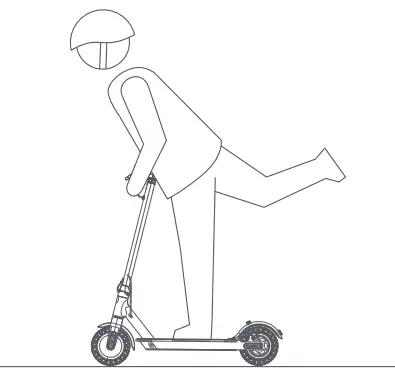

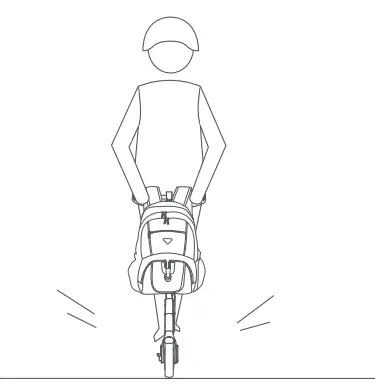

MACWHeeL ESS2 Electric Scooter - warning 2 Do not hang bags or other heavy stuff on the handlebarMACWHeeL ESS2 Electric Scooter - warning 2 Keep both feet on the deck all time.
MACWHeeL ESS2 Electric Scooter - handlebarMACWHeeL ESS2 Electric Scooter - deck all time

Do not try following dangerous actions

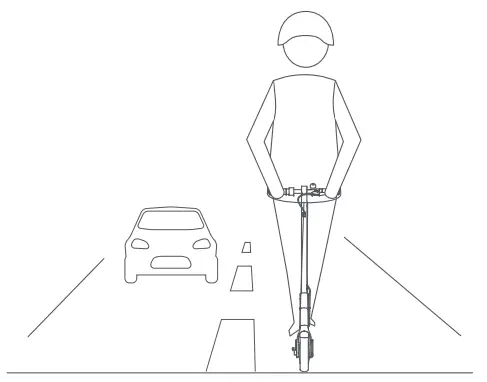

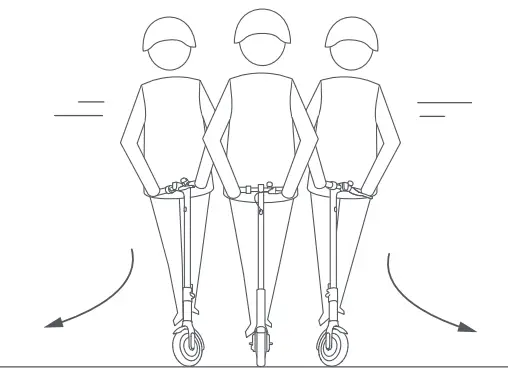

MACWHeeL ESS2 Electric Scooter - warning Do not ride in traffic lanes or residential areas where vehicles and pedestrians are both allowedMACWHeeL ESS2 Electric Scooter - warning Do not turn the handlebar violently during high-speed riding
MACWHeeL ESS2 Electric Scooter - dangerous actionsMACWHeeL ESS2 Electric Scooter - handlebar violently

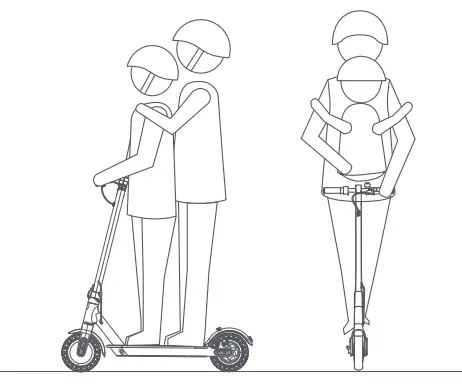

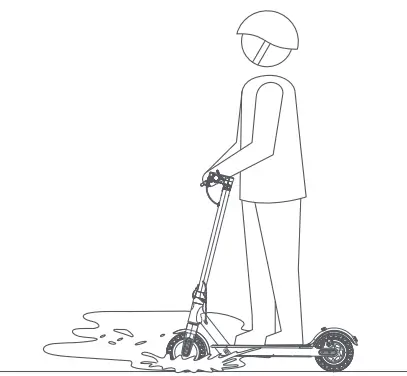

MACWHeeL ESS2 Electric Scooter - warning Do not ride in a ponding that is higher than 0.78 inchesMACWHeeL ESS2 Electric Scooter - warning Do not ride with anyone else, including children
MACWHeeL ESS2 Electric Scooter - ponding thatMACWHeeL ESS2 Electric Scooter - including children

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
