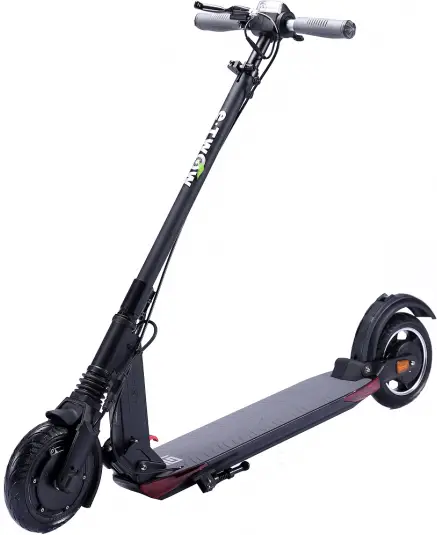

e-TWOW GT2020 Electric Scooter
INTRODUCTION
Thank you for buying the GT2020. Please check the main user manual for safety and use instructions.
PARTS

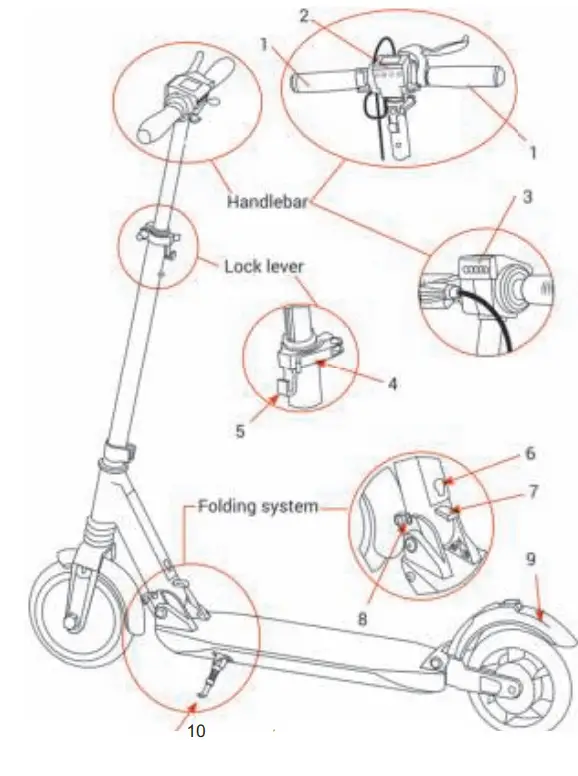

MAIN PARTS
- Handlebar
- Display
- LED headlight
- Folding hock
- Folding hock
- Battery charging port
- Folding lever
- Folding axle
- Rear brake
- Kickstand

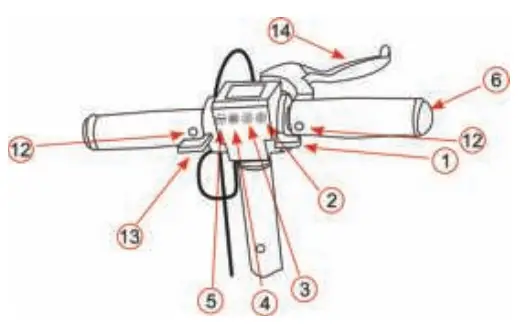

SCOOTER PARTS DIAGRAM
- Acceleration lever
- Power button
- Settings button
- On/Off light button
- Horn button
- Handlebar
- Controller
- Folding bar
- Fornt fender
- Kickstand
- Protection cover
- Folding buttons
- Electromagnetic brake lever
- Drum brake lever
TECHNICAL SPECIFICATIONS
|
Specifications | GT 2020 | |
| Overall Expand Size | 1132*1075*382mm | |
| Overall Fold Size | 1060*324*150mm | |
| Scooter Weight | 13 Kg | |
| Wheel diameter | 8” / 20 cm | |
|
Capability | Maximum load | 125 Kg |
| Top Speed | 40 km/h* | |
| Grade Ability | 25 degree slope | |
| Range (with fully charged battery) | max. 50 Km | |
| Can vary according to the weight of the passenger, speed, slope degree, wind speed, road conditions, temperature and other factors. Under 10 degrees Celsius autonomy decreases by up to 30% | ||
| Power Consumption | 7.7Wh / Km | |
| Battery parameters | Type | Li-ion Battery with Samsung cells |
| Capacity | 48V; 10.5 Ah | |
| Motor parameters | Motor type | Brushless DC Motor |
| Rated Output Max. Power | 700 W | |
|
Charger parameters | Input Voltage 110 V / 220 V Output: DC 54.6V-3 A | |
| Load end Voltage 54.6V Load Voltage high limit 54.6V | ||
| Charging time (charger) | 4 – 4.5 hr (3 A) | |
| *Factory speed limit acording to the legislation of each country Germany 20km/h, France 25km/h, Spain 25km/h | ||
