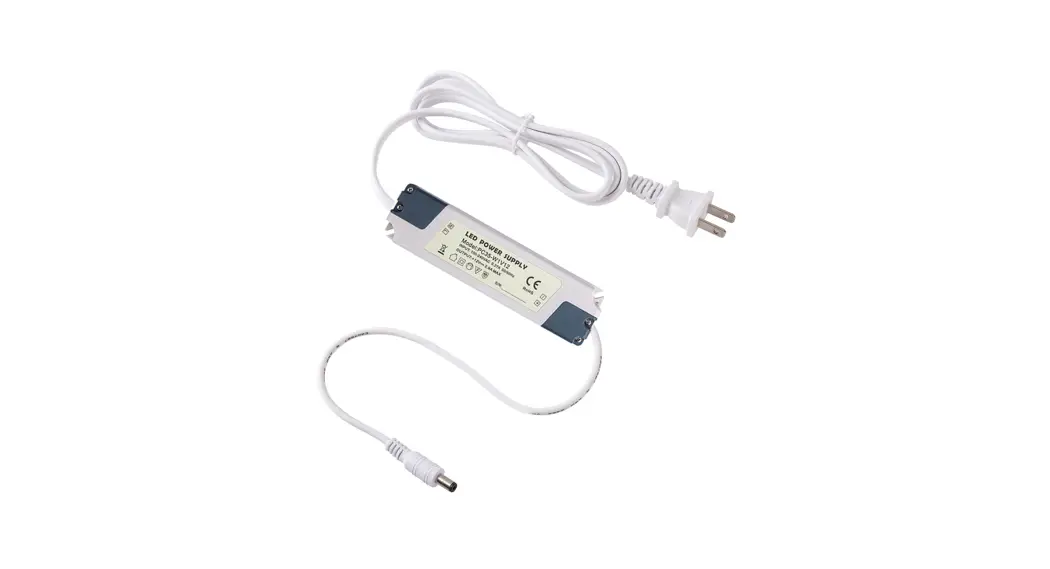

Professional DC Power Supplies for LED Tape and Low Voltage Lighting
User Manual
Introduction
These power supplies are designed to be used by qualified installers for low-voltage LED tape and lighting. Various models are available to suit the power demands of the connected equipment.
Features:
- 1 or 2 outputs for loop output connection
- Short circuit and overload protection
- IP65 rated for outdoor use
- Terminated with bare wires for direct electrical installation
Caution:
- Do not use in enclosed areas – ensure adequate ventilation
- Do not stack power supplies or place them close to a heat source or in direct sunlight
- Ensure that the output voltage is correct for the connected equipment
- Do not exceed the stated power rating
Specification
| 153.754U K | 153.753UK | 153.744UK | 153.755UK | 153.756UK | |
| Power input | 170-250Vac, 50/60Hz | ||||
| Output Voltage | 12Vdc | ||||
| IP rating | I P67 | ||||
| Power output | 30W | 45W | 60W | 100W | 150W |
| Output feeds | 1 | 1 | 1 | 1 | 2 |
| Current | 2.5A | 3.75A | 5A | 8.3A | 12.5A |
| 153.757UK | 153.758UK | 153.759UK | 153.760UK | 153.761UK | 153.762UK | 153.763UK | 153.764UK | |
| Power input | 170-250Vac, 50/60Hz | |||||||
| Output Voltage | 24Vdc | |||||||
| IP rating | IP67 | |||||||
| Power output | 30W | 45W | 60W | 100W | 150W | 200W | 250W | 300W |
| Current | 1.25A | 1.87A | 2.5A | 4.16A | 6.25A | 8.33A | 10.42A | 12.5A |
NOTE: These power supplies are for use by qualified installers. Please take all the necessary precautions when using these products.
This product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.
Errors and omissions excepted.
