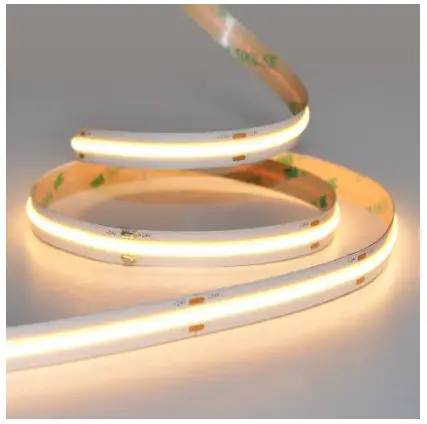

BLT-SQ528LC1 LED Tape Light
User Guide

BLT-SQ528LC1 LED Tape Light

Nothing But LEDS Micron Tape Light is an energy efficient, reliable, compact, and long-lasting product suitable for indoor applications. It is easy to install and operate, as its peel and stick adhesive backing simplifies its mounting and usage. It offers spotless soti light with instant start eliminating shadows and humming. Micron tape light that has a max run of 16 Feet. It is an ideal solution for all indoor applications particularly offices, cabinets, displays, and decorative and creative projects for residential and commercial applications.

Product Features

• Operating temperature: -25°C to 45°C
• Peel and stick adhesive backing simplifies mounting
• 176 LEDs per FT
• 16FT total length per strip
• Integral LED driver, eliminates the need for an external driver or ballast
• Complies with UL safety regulations
• This product is IP20 rated, therefore, it is best suited for indoor applications
• Spotless soti light without shadow
• Environment friendly with no mercury
• Easy to install and operate, with instant and no humming
• Energy saving, long lifespan with 50,000 hour life rating

Specifications

Specifications

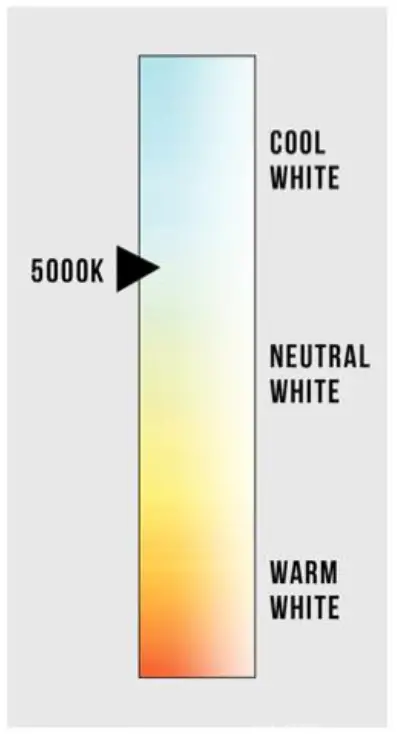

Correlated Color Temperature (CCT)

Dimensions

Photometric Data for 3.28FT Led Tape Light at 10W

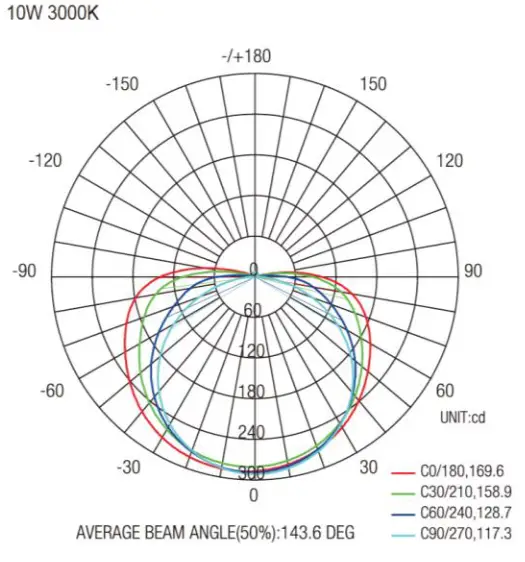

Luminous Intensity Distribution Curve

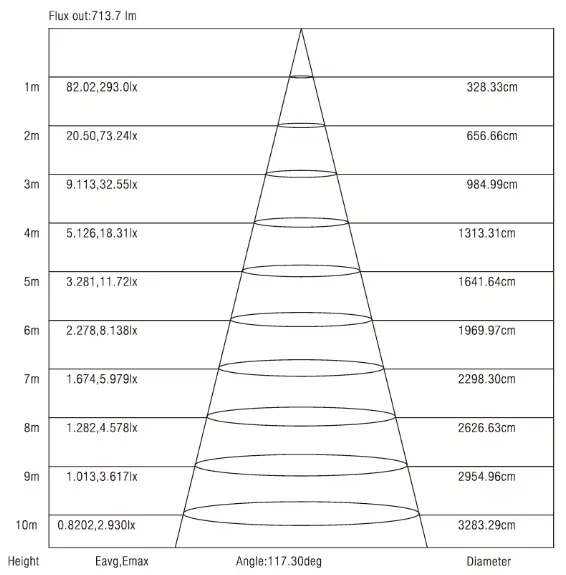

Illuminance at a Distance

Product Connections

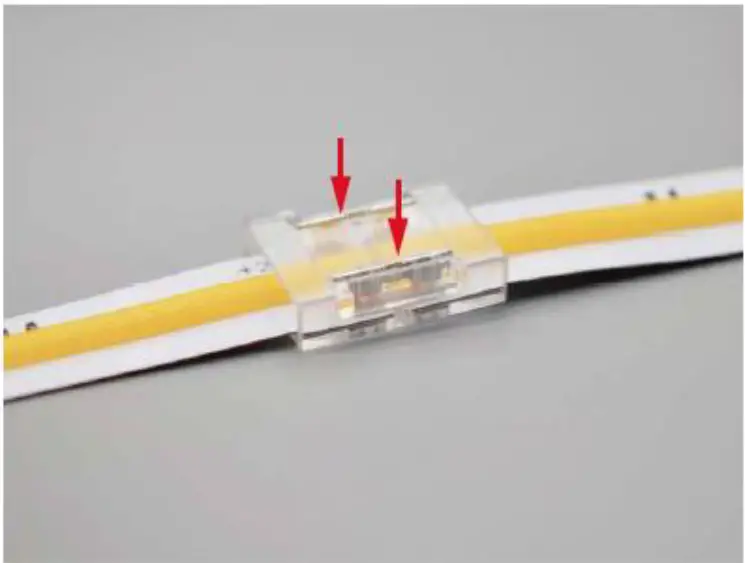

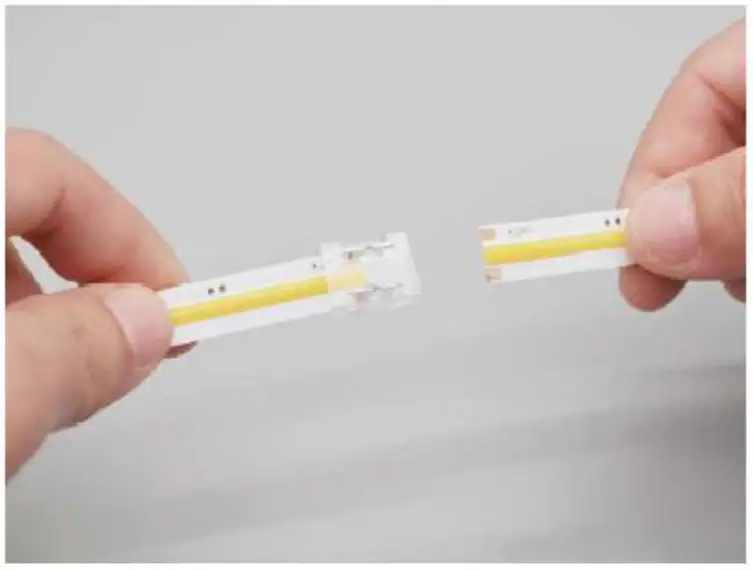

Insert each end of led strips into the end of the connection terminal respectively, make sure the metal clip is in same side as the metal solder pad of led strip.

After completing the insertion, make sure both ends of led strip are tightly connected.

Press the metal clip down with the appropriate force using pliers to ensure that the metal clip is inserted into the appropriate position to complete the connection.

Wiring Connections

Gel Coating

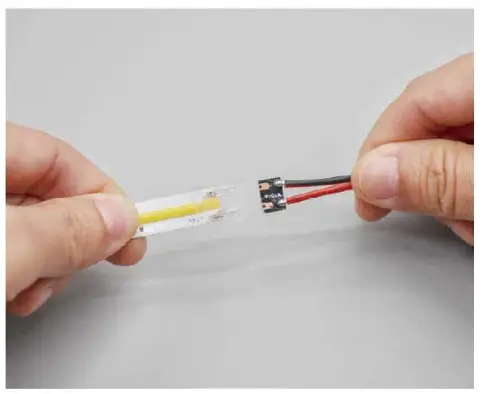

Insert one end of led strip and wire connector into both ends of the connection terminal respectively to ensure that the metal clip is on the same side as the metal solder pad of led strip.

Meanwhile make sure both ends are closely connected, press the metal clip down with the appropriate force using pliers to ensure that the clip is inserted into the appropriate position to compete the connection.

Caution

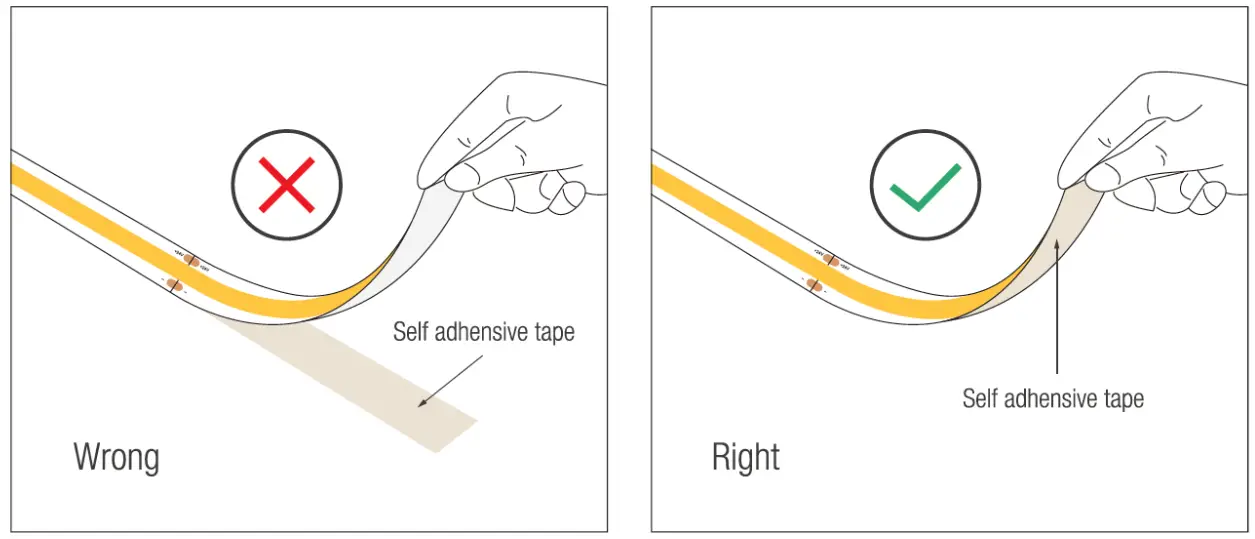

If the led strip needs to be torn upwards, please make sure that the self adhesive tape is torn with the led strip, else the led strip would be damaged.
Distortion (Wrong)

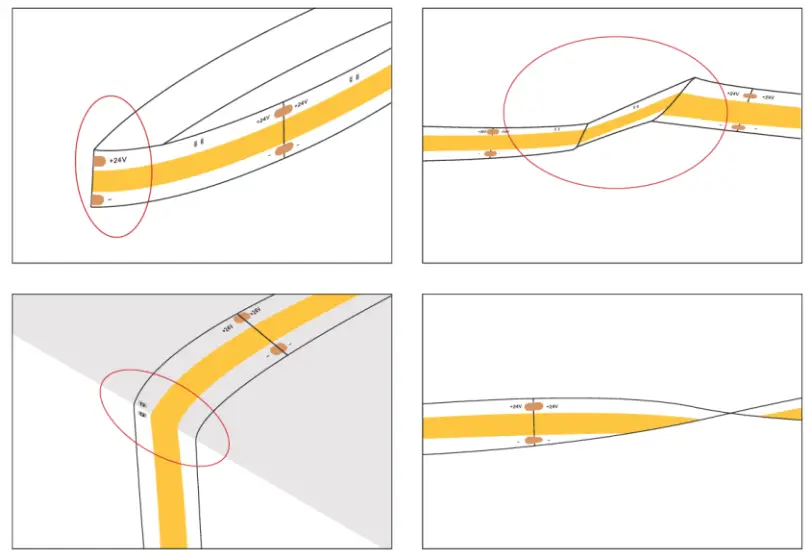

Note: The led strip can be bent, but not distorted.
LED strips are low voltage products, you must use the power supply (transformer). Please do not connect the led strip directly to the AC 100V or AC 220V, else it would burn out the LED strip.

Bend (Right)
Clean up the installation surface, it will ensure the reliability of the adhesive, the electrical connection process must be operated by a professional person.

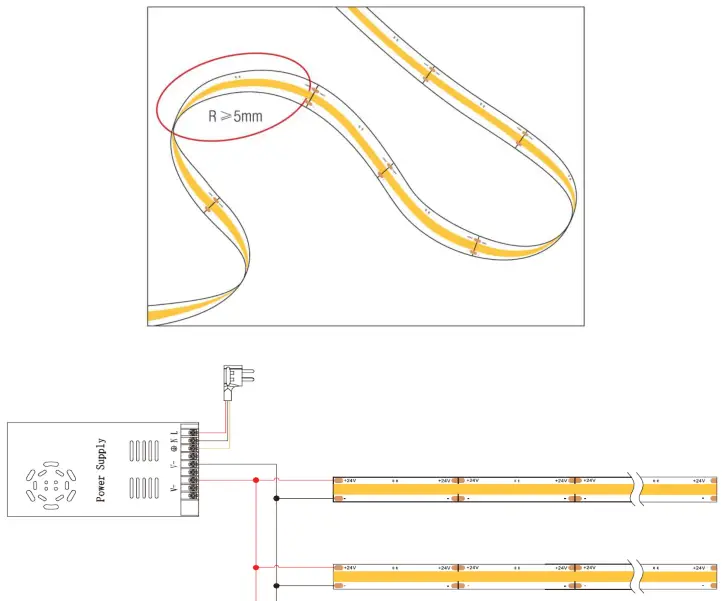

Wiring Diagram

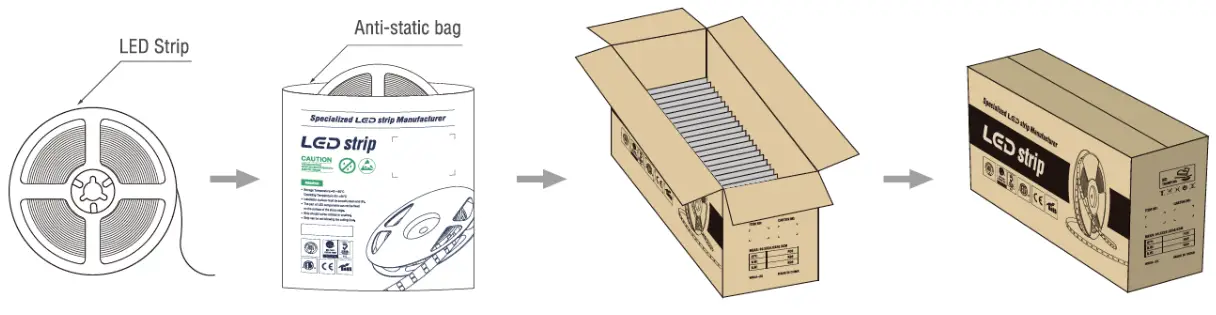

Packaging

Tolerance of Carton Size: ±15 MM, Tolerance of Weight: ±10%.

SKU Number 153840 Inner Box

SKU Number 153841 Inner Box

Outer Box

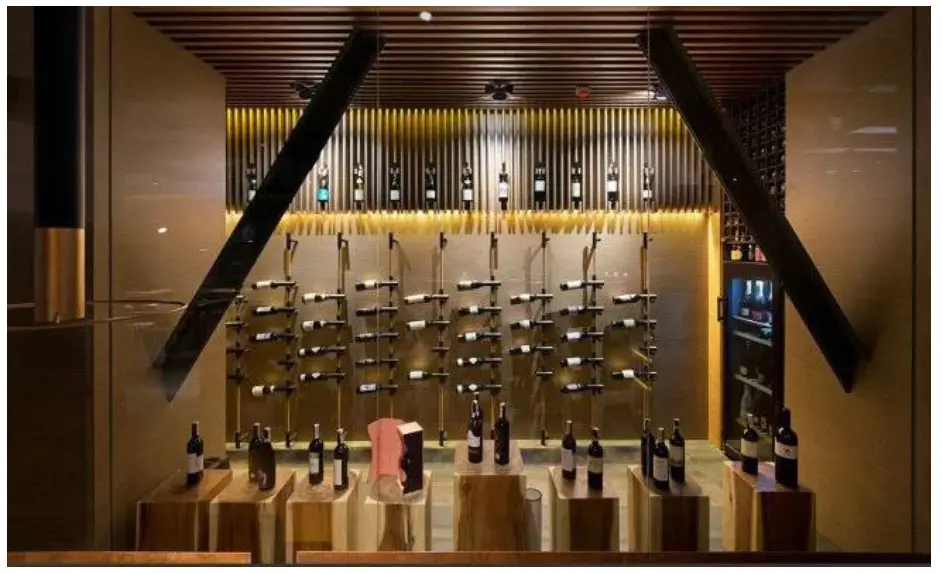

Application

Safety Precautions

To reduce the risk of death, personal injury or property damage from fire, electric shock, falling parts, cuts/abrasions, and other hazards read all warnings and instructions included with and on the fixture box and all fixture labels. Before installing, servicing, or performing routine maintenance upon this equipment, follow these general precautions. Commercial installation, service and maintenance of luminaires should be performed by a qualified licensed electrician.
For the installation: If you are unsure about the installation or maintenance of the luminaires, consult a qualified licensed electrician and check your local electrical code. To prevent wiring damage or abrasion, do not expose wiring to edges of sheet metal or other sharp objects. Do not make or alter any open holes in an enclosure of wiring or electrical components during kit installation.
WARNING: RISK OF FIRE OR ELECTRICAL SHOCK
Turn off electrical power at fuse or circuit breaker box before wiring fixture to the power supply. Turn off the power when you perform any maintenance. Verify that supply voltage is correct by comparing it with the luminaire label information. Make all electrical and grounded connections in accordance with the National Electrical Code and any applicable local code requirements. All wiring connections should be capped with UL approved wire connectors.
CAUTION: RISK OF INJURY
Avoid direct eye exposure to the light source while it is on.
Account for small parts and destroy packing material, as these may be hazardous to children.

Warranty

3 Year Warranty.
