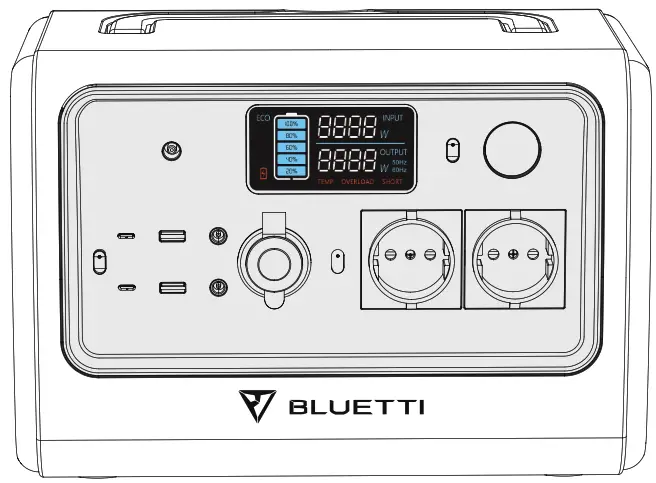

BLUETTI EB70
User Manual
Thank You
Thank you for making BLUETTI a part of your family.
From the very beginning, BLUETTI has tried to stay true to a sustainable future through green energy storage solutions for both indoor and outdoor use while delivering an exceptional eco-friendly experience for our homes and our world.
That’s why BLUETTI makes its presence in 70+ countries and is trusted by millions of customers across the globe.
Before You Begin
The information contained herein is subject to change without notice.
For the latest version, please visit https://www.bluettipower.com/pages/user-guides.
- The user manual contains instructions and notes on the operation and use of this unit.
- BLUETTI recommends that you use genuine accessories from BLUETTI.
- BLUETTI shall not be responsible for any damage or expense that might result from the use of parts other than genuine parts from the BLUETTI.
- For your safety and benefit, please read carefully before using it and keep it handy for future reference.
Safety Instructions
Failure to follow these guidelines may cause damage to your unit and injury to yourself or others.
- Keep this unit away from fire, humidity, and dust.
- Make sure the place where you are using the unit is well-ventilated and spacious.
- DO NOT place the unit on an unstable or tilted surface.
- Turn off the unit IMMEDIATELY in case of malfunction.
- When not using the unit for extended periods of time, power off the unit and disconnect the AC adapter from the outlet.
- Recommended storage temperature: 14-113 O F/-10-45ºC.
- Charge the unit to 80% SOC every 3-6 months for long-term storage.

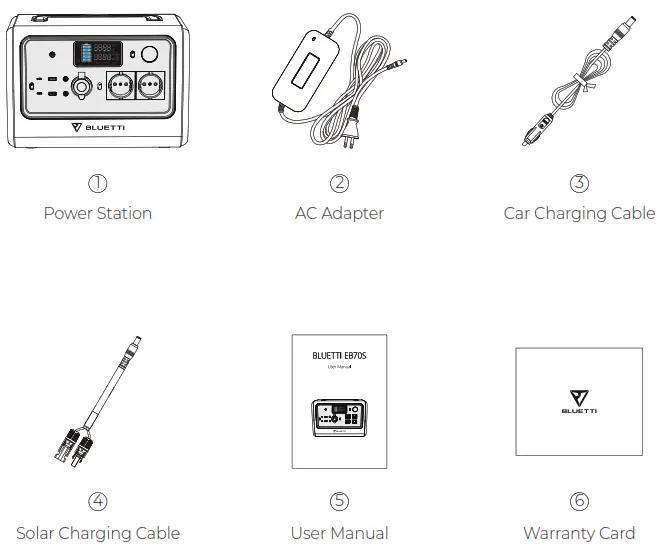

What’s In The Box
Standard Packaging
* AC Adapter: 120cm/47in.
Car Charging Cable: 72cm/28in. Cigarette lighter port to DC7909. Solar Charging Cable: 150cm/59in. MC4 to DC7909.
Note: Package details are subject to change without prior notice.

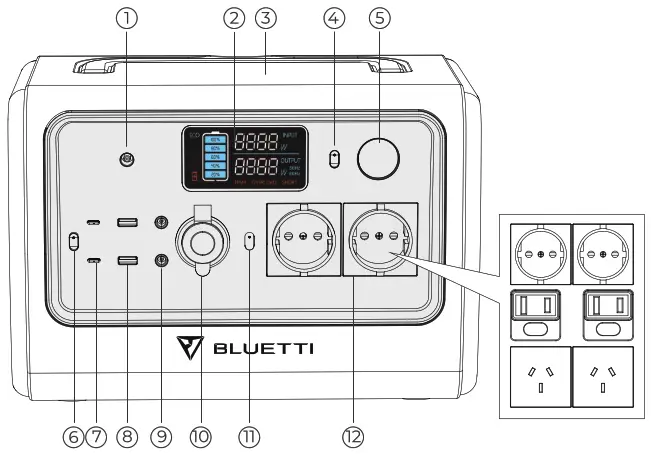

Product Overview
Diagram
| 1. Charging Port 2. LCD Screen 3. Wireless Charging Pad 4. LED Lamp Button 5. LED Lamp 6. DC Power Button | 7. USB-C Port 8. USB-A Port 9. DC5521 Port 10. Cigarette Lighter Port 11. AC Power Button 12. AC Outlet |
Specifications
| EB70 | ||
| Allgemein | ||
| Akku Kapazitht | 716Wh | |
| Zellentyp | LiFePO4 | |
| Abmessungen (1213•H) | 12.6’8.5’871N/3204216’221MM | |
| Gewicht | 21.4 L B/9.7 KG | |
| Entladetemperatur | -4-104°F/-20-40°C | |
| Ladetem peratur | 32-104°F/0-40°C | |
| Arbeitsfeuchtigkeit | 10-90% | |
| Wechselspannung Ausgang | ||
| Leistung | 120V | 800W |
| 220-240V | 1000W | |
| Spitzenleistung | 1400W | |
| Frequenz | 50-60Hz | |
| Gleichspannung-Ausgang | ||
| Zig arettenanzu nder-Anschluss ‘1 | Spannung | 12V Gleichspannung |
| Strom | 10A | |
| DC6621 (Hohlstecker)”2 | Spannung | 12V Gleichspannung |
| Strom | 10A | |
| USB-A ‘2 | Spannung | 5V Gleichspannung |
| Strom | 3A | |
| USB-C PD3.0 ‘2 | Leistung | 100W Max. (s/9/12/5/2ovDC, 3A: 20VDC, SA) |
| Schnurloses Laden ‘1 | Leistung | 15W Max. |
| Wechselspannung-Eingangsleistung | ||
| Leistung | 200W max. | |
| Spannung | 12-28V Wechselspannung | |
| Strom | 8A max. | |
| PV-Eingangsleistung | ||
| Leistung | 200W max. | |
| Leerlaufspannung(OCV) | 12-28V Gleichspannung | |
| Strom | 8A max. | |
| Kfz-Laden | ||
| Spannung | 12-24V Gleichspannung | |
| Strom | 8A max. |
Operation

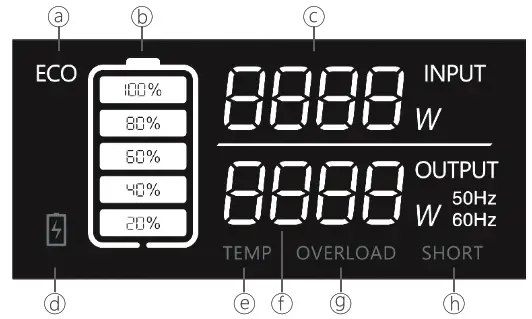

CD Screen
| a: ECO Mode b: Battery Capacity c: Input Power d: Low-battery Alert | e: Temperature Anomaly Alert f: Output Power g: Overload Alert h: Short-circuit Alert |
Powering On/Off
Powering on: Press the AC/DC Power Button to start up the corresponding output.Greenlight(on the button) ON LCD Display ON*
*The LCD screen is on for about 30-60 seconds. Please enable at least one of these ports (AC/DC) if you want the display to stay on longer.
Note: Please turn on the DC power to enable wireless charging.
Powering off: Press and hold power buttons to shut down the corresponding output.
| Greenlight(on the button) | OFF |
| LCD Display | OFF |
Mode
Setting Mode: When the AC output is off, press AC and DC power buttons simultaneously, and the frequency indicator flashes.
ECO Mode 1: Under ‘Setting Mode’, press the DC power button to turn it on/off.
Setting
AC Frequency 2: Under ‘Setting Mode’, press the AC power button to switch.
Charging

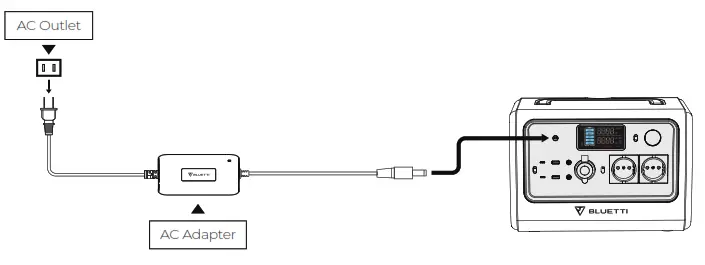

AC Charging
Simply plug the EB70 into a standard wall outlet and start charging.
1 When on this mode, the AC output will automatically turn off after a 4-hour low (≤10W) or no load to save power.
2 AC Frequency: The number of alternating cycles per second in an AC sine wave. The utility frequency is usually 50/60Hz.

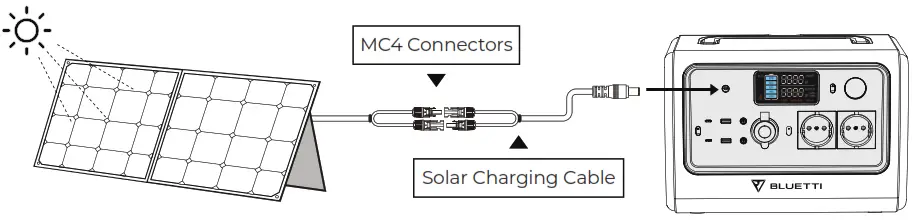

PV Charging
Connect the solar panels (in series or parallel) to EB70 via the solar charging cable.
Note: Please make sure your solar panels comply with: OCV 3 : 12-28V Input Current: 8A Max. Input Power: 200W Max.
Car Charging
Connect the EB70 directly to the vehicle plug-in cigarette lighter port via the car charging cable.
3 OCV: Open circuit voltage. The maximum voltage that the solar panel can produce with no load on it.

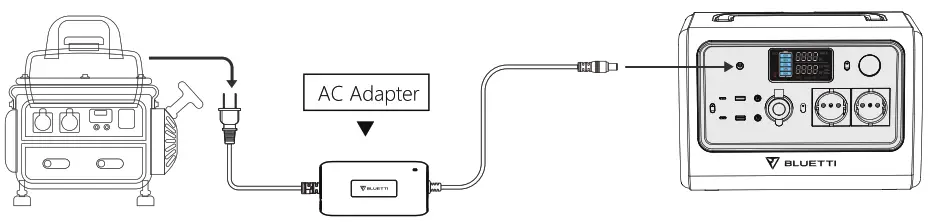

Generator Charging
Connect the AC adapter input plug to the generator while the output plug goes to the charging port of EB70.
Discharging
| Smart Phone Around 50-60 Times 10Wh | LED Light Bulb Around 20-30 Hrs 20W | Television Around 7-8 Hrs 75W |
| Electronic Tools Around 7-8 Hrs 80W | Refrigerator Around 6-7 Hrs 90W | Slow Cooker Around 2-3 Hrs 200W |
716Wh × DoD × η ÷ (load power) = charging time (estimated)
Note: DoD refers to the Depth of Discharge, η is the local inverter efficiency. DoD=90%, η=90%. Load power and charging time are measured in Watt and hours.
Appendix
FAQs (Frequently Asked Questions)
A: Please evaluate the total constant load of your appliances. If it doesn’t exceed the Max. output power of EB70, you can use this power station to charge.
A: Yes, you can. As long as the specs of solar panels you’re using fall in below range:
OCV: 12-28V
– Input Current: 8A Max.
– Input Power: 200W Max.
– With the same power connector (MC4 or Anderson)
A: Yes. Press the DC Power Button to enable wireless charging.
A: Yes. It supports pass-through charging. EB70 comes with the premium LiFePO4 battery and proprietary – Battery Management System to ensure that it can charge and discharge at the same time.
A: Using dry and non-abrasive cloths to wipe will be perfect.
Technical Support
Should you require any further assistance, please do not hesitate to contact the BLUETTI service team.
BLUETT POWER INC
Web: https://www.bluettipower.com/
Tel: 833-988-3663 / 702-463-4792
Mail: [email protected]
Add 6185 S Valley View Blvd Ste D. Las Vegas, NV 89118.
Company: POWEROAK GmbH
Address: Lindwurmstr. 114, 80337 München Germany
Mail: [email protected]
Company: POWEROAK ENERGY UK CO., LTD
Address: Suite 108 Chase Business Center 39-41
Chase Side London United Kingdom N14 5BP
Mail:[email protected]
https://www.bluettipower.com/
