MPF P Metering Panel
Instruction Manual

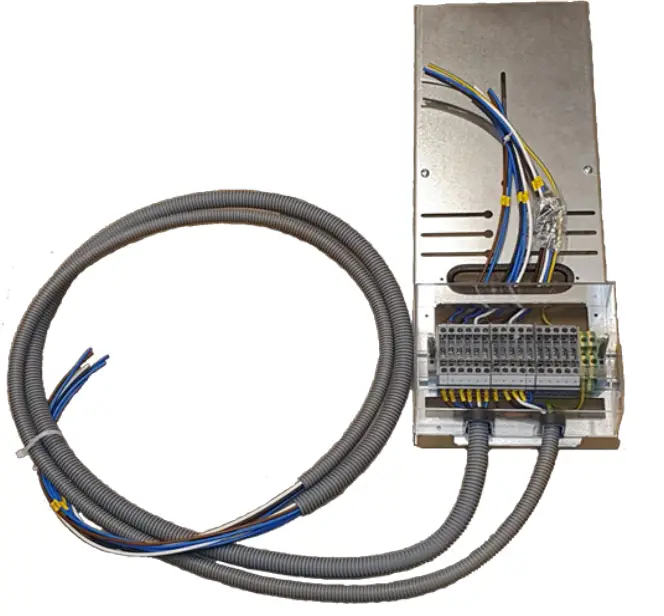

MPF P Metering Panel
Installation Instruction 2CGD001135S1000 – January 2022
PDF P
Metering panel
Warning! Hazardous voltage! Installation by a person with electrotechnical expertise only.
MOUNTING INSTRUCTION

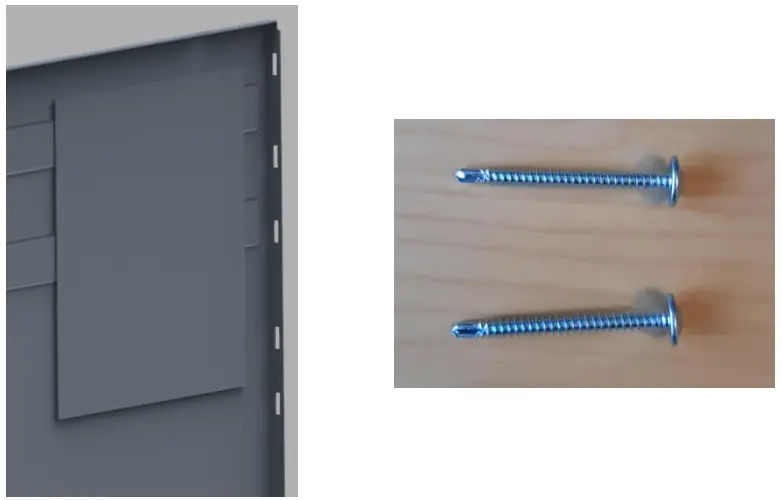

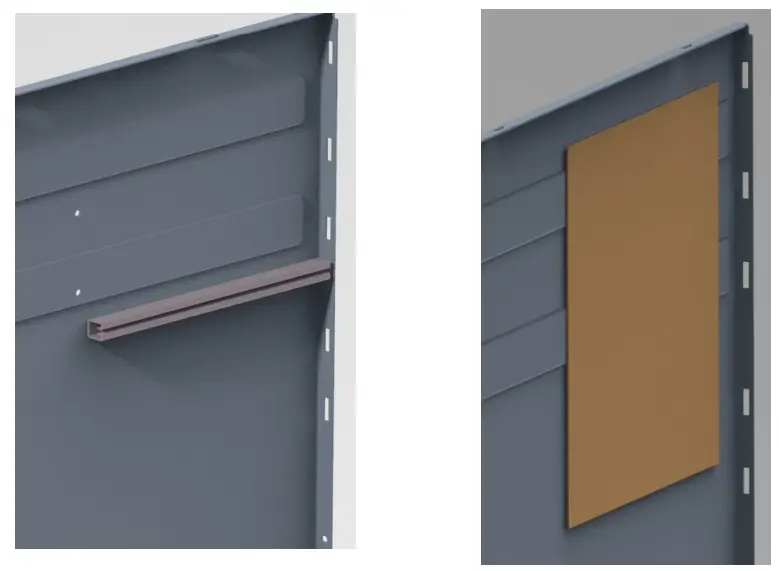

When mounting on an aluminum attachment profile or the wooden mounting plate use the screws which come fixed to the metering plate.
When mounting on a metal mounting plate use the self-drilling screws which come in the package.
Customer/electrician do have to add the earthing of current circuit if needed. A PE connection bar is reserved for this.
Always check connections before voltage energizations.

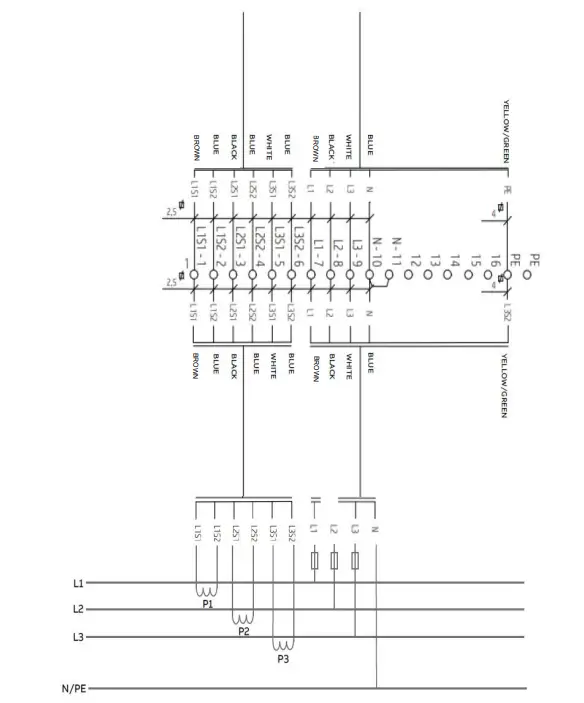

CIRCUIT DIAGRAM
Wire colors
Brown………………..
Black………………….
White…………………..
Blue……………………….
Yellow/Green…………………..
