Delta Dore 6700117 Tydom Pro Smart Home Hub Instruction Manual

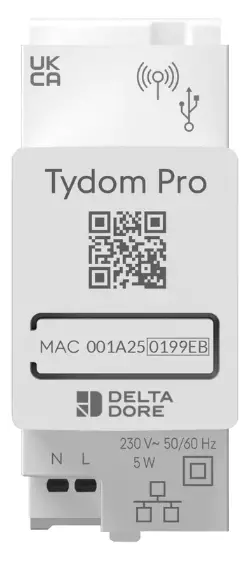

DELTA DORE 6700117 Tydom Pro Smart Home Hub

Box contents

• A. Tydom Pro
• B. Ethernet cable
• C. Important Product Information

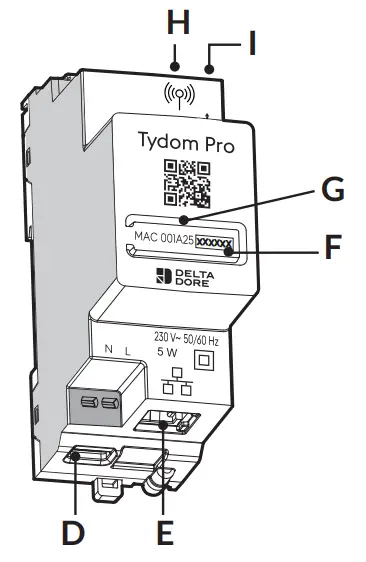

Description

• D. 230 V power supply terminal
• E. Ethernet port
• F. Configuration/Information/MAC address button
• G. System status light
• H. Remote antenna connection (optional)
• I. USB port connection (optional)

Installation

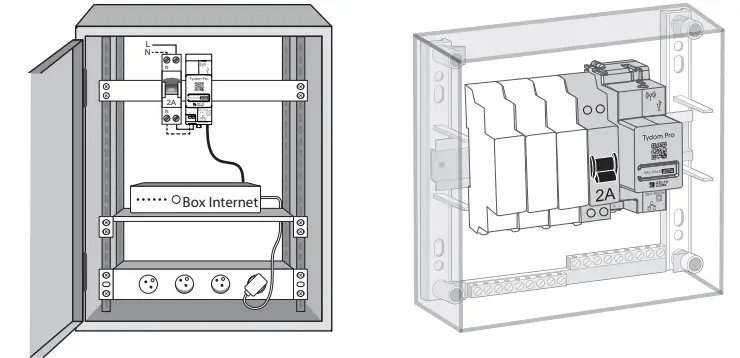

• Tydom Pro must be installed on a DIN rail, either within a consumer unit or in a VDI cabinet.
• The equipment must be installed by a suitably qualified person.
• Tydom Pro must be protected by a 2A circuit breaker, which will also serve as a power switch.
• Avoid proximity with power controls (of the type used for domestic hot water contractors)

1. Disconnect your installation’s 230V power supply.

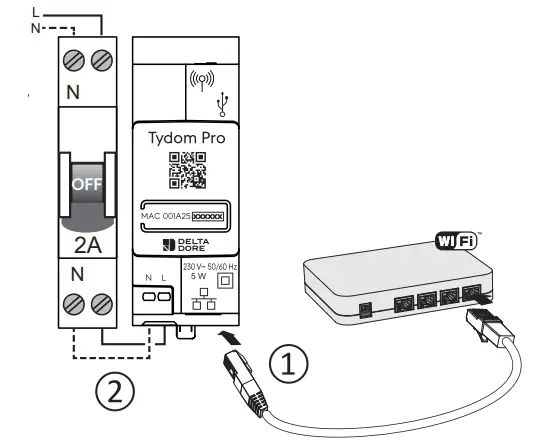

Connect your Tydom Pro

1. connect the Ethernet cable (B).
2. then, connect the main power line.

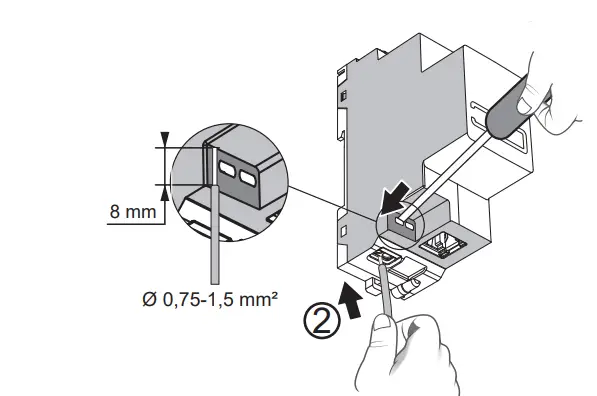

The 230 V power line must be stripped back to a length of 8 mm. To do so, you can make use of the design of the casing as shown below.

1. Restore the power to the installation.
2. Download the Tydom app.
   • Log in to either the Google Play or App Store, depending on your device.
   • Search for and download the free «Tydom» app.
3. Activate the Wi-Fi connection on your smartphone or tablet, and connect to the same local network as your Tydom Pro.
4. Configure the Tydom app.
   • Note the last 6 characters of your Tydom Home’s MAC address (stated on the front).
   • Log in to the app and follow the instructions.

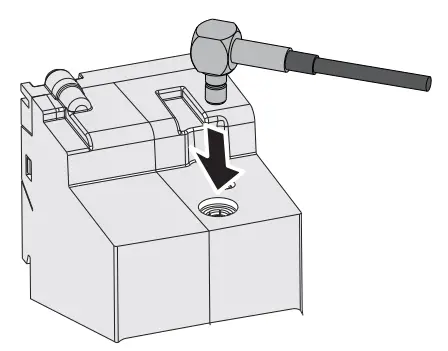

Remote antenna

• Some installation cases will require the use of a remote antenna (available as an accessory)
• The radio range can be adjusted based on the installation conditions.
• This is advised, for example, in the case of installation in a metallic cabinet or in proximity to a metallic mass.

Help

Advanced functions

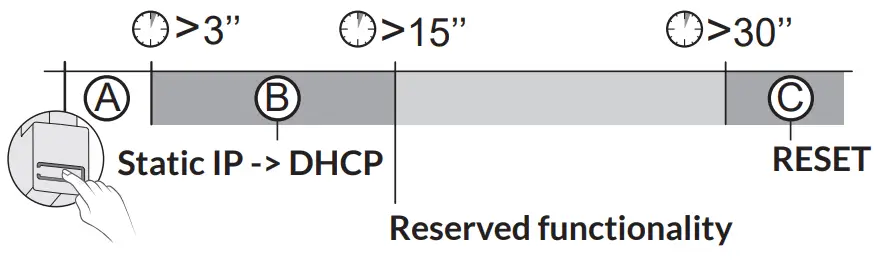

Below are the functions accessible depending on how long the button on the back of your Tydom Home is pressed.

Secure connection and viewing connection status

• Briefly press the button. LED displays for 10 seconds.

Change from static IP to DHCP

• Press the button for 3 seconds until the pink LED flashes slowly. Release.

Reset to factory settings

Press the button for 30 seconds until the LED stops flashing. Release.

System status

• DHCP mode
• Clear product associations

Technical specifications

	230V, 50/60 Hz power supply Class II insulation
	X3D transmission frequency: 868.7 MHz to 879.2 MHz Maximum wireless power < 10mW – Category 2 receiver Zigbee transmission frequency: 2.4 GHz to 2.4835 GHz
	Maximum consumption (without USB connection): 1,1 W
	-20°C / +70°C
	-10°C / +40°C
IP	IP 30
	4-module unit, height = 53 mm Installation in an environment with normal pollution levels

The connection quality of the product may be affected by different modifications of the IP architecture on which it operates. These modifications can be but are not limited to, a change of hardware, a software update or configuration, work conducted on your operator’s equipment or any other multimedia equipment such as tablets, smartphones, etc. IOS is a Cisco trademark or registered trademark in the United States and in other countries and is used under licence. AndroidTM and Google Play are Google LLC registered trademarks. Wi-FiTM is a trademark registered by Wi-Fi Alliance. Because of changes in standards and equipment, the characteristics given in the text and the illustrations in this document are not binding unless confirmed.
