Beghelli PRATICA AT UV-OXY

Contents hide

*TEST:
SHORT TOUCH: FUNCTIONAL TEST
TOUCH> 5 SEC: SWITCH ON / OFF FUNCTION (table opposite)

STEADY BLUE UV LED: UV CARTRIDGE ON

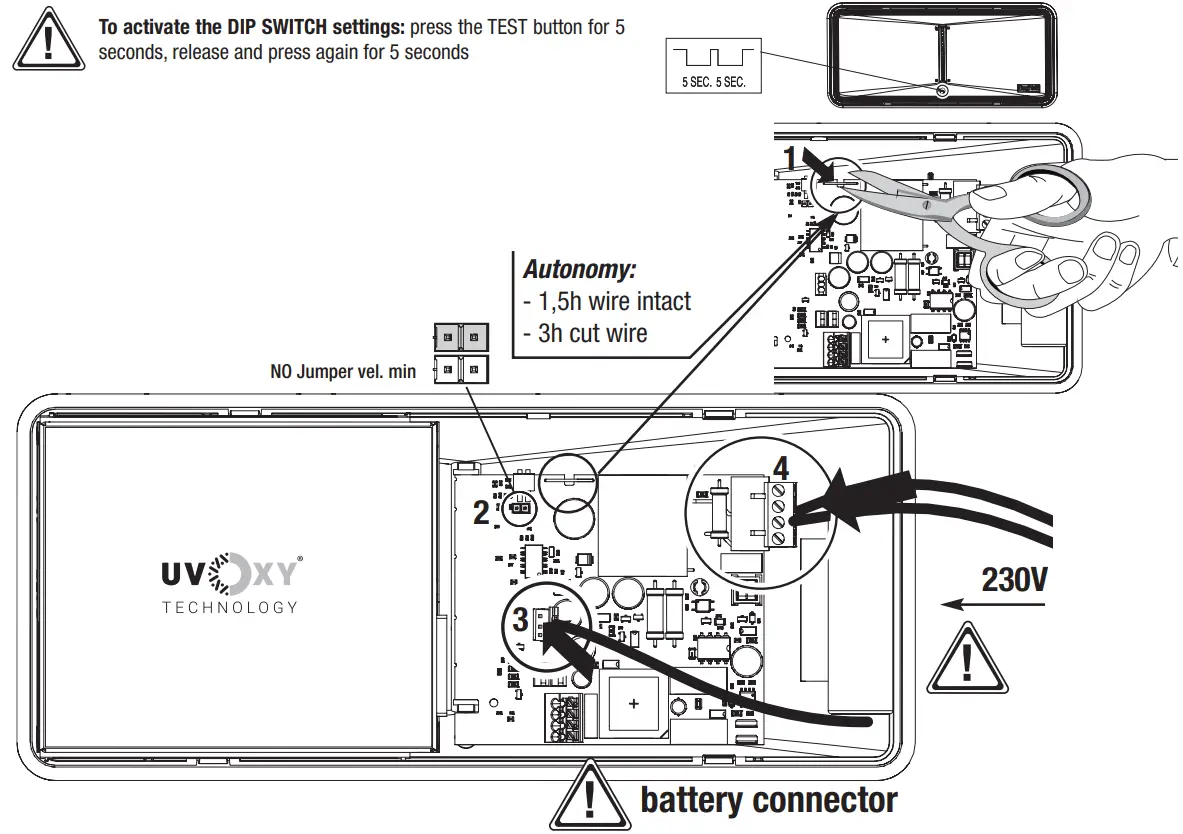

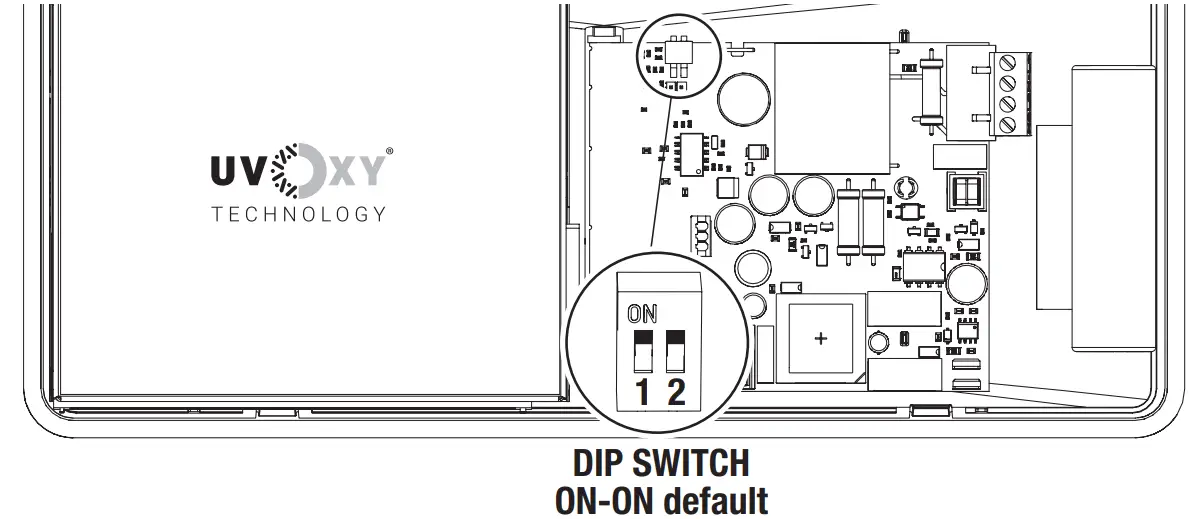

DIP SWITCH		UV LAMP	Test premi/push**	UV cartridge life
1	2
ON	ON	Always on	goes off until pressed again	1 years
DEFAULT
ON	OFF	4h on – 8h off	– if on, it switches off until pressed again – if off, it lights up with synchronization and timer reset	3 years
OFF	ON	6h on – 6h off		2 anni/ 2 years
OFF	OFF	Off	remains off

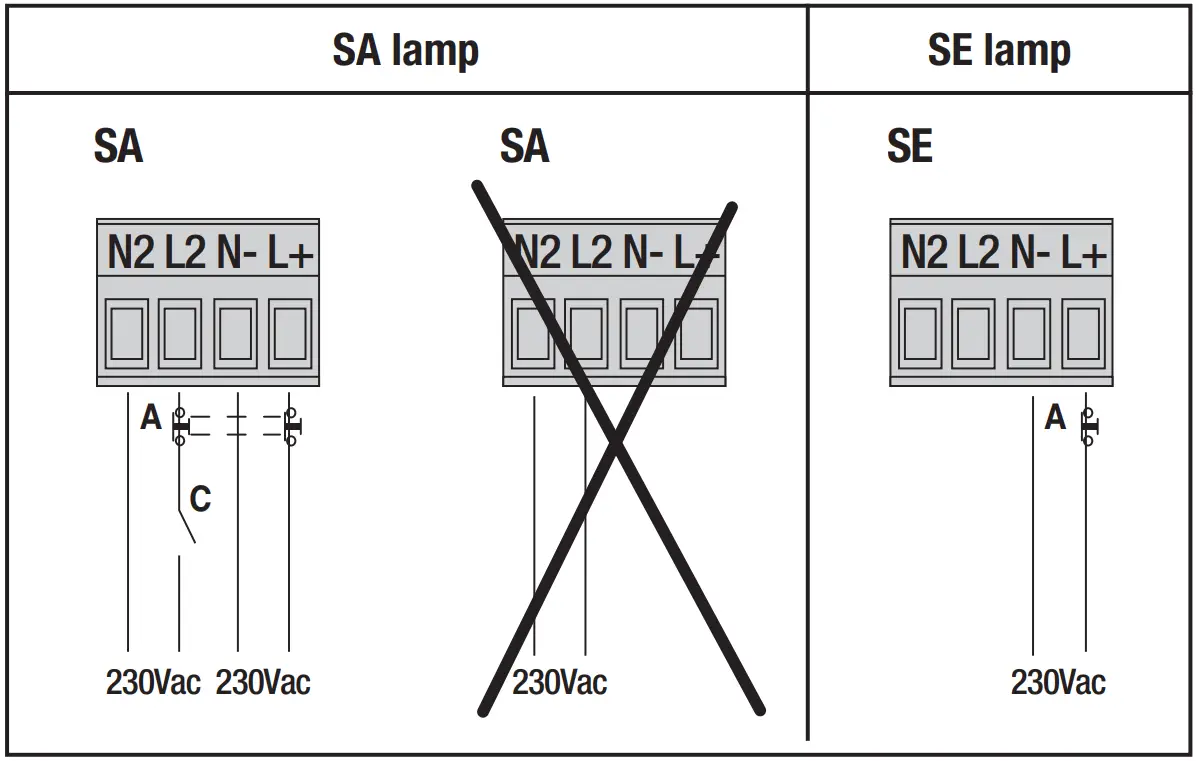

A= Test
C= Light switch

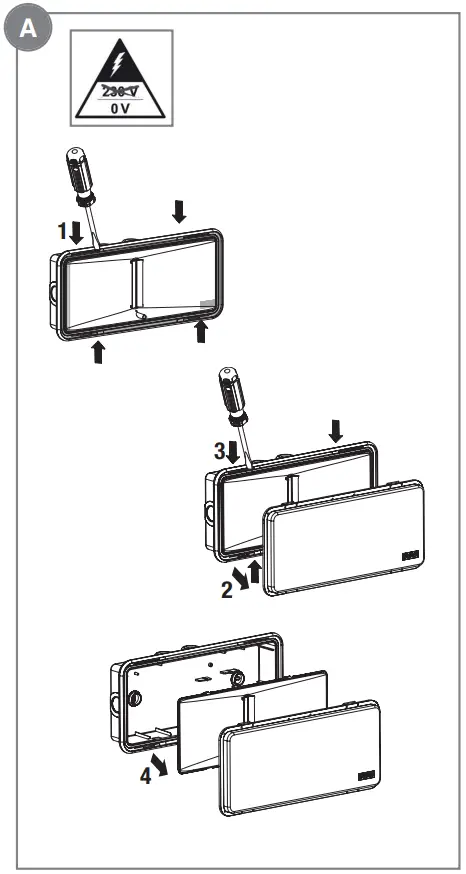

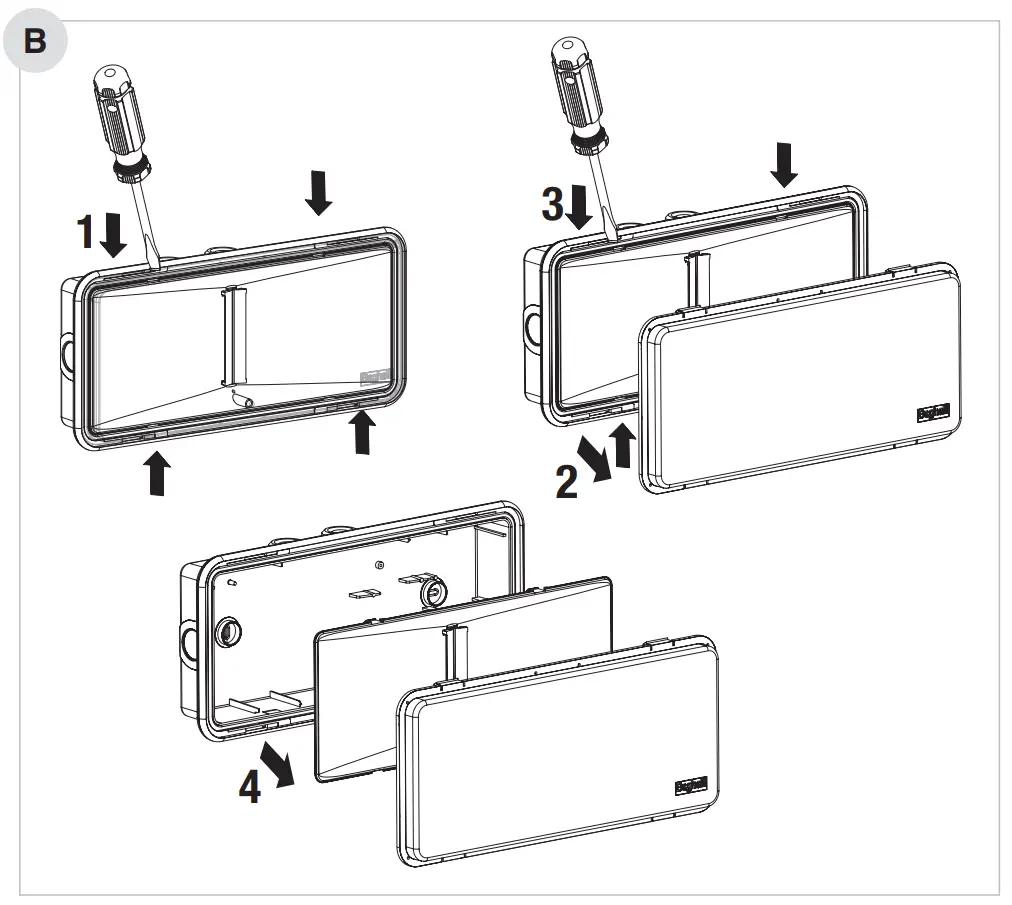

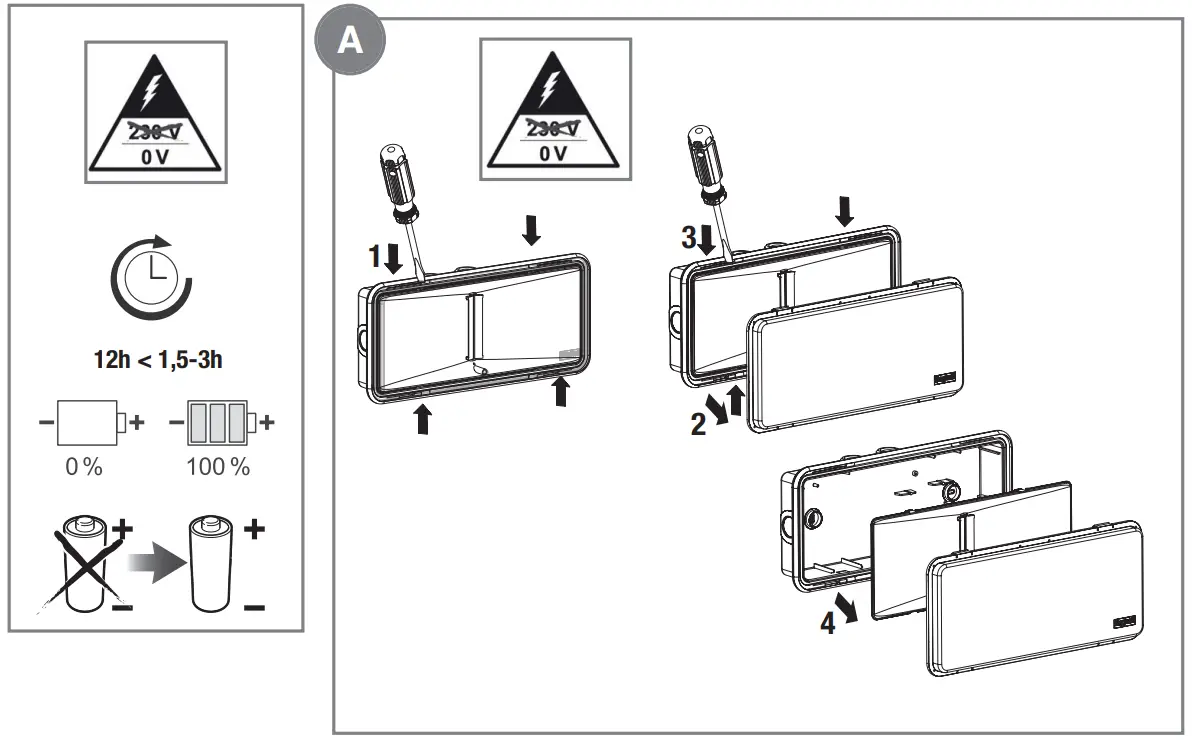

Before cleaning or maintenance, make sure the device is turned off and disconnected from thepower supply

IMPORTANT

The UV cartridge contains a UV-C emitting lamp.
ATTENTION: DO NOT remove the lamp from its housing.
Do not use the UV lamp outside the original product.
This device must only be used for its intended use. Any other use shall be deemed as nonconforming and therefore dangerous.
Using the device otherwise than as described herein or if the housing is damaged can result in UV-C radiation leaks.
Even small doses of UV-C radiation can damage eyes and the skin.
Please read the maintenance instructions before opening the device.

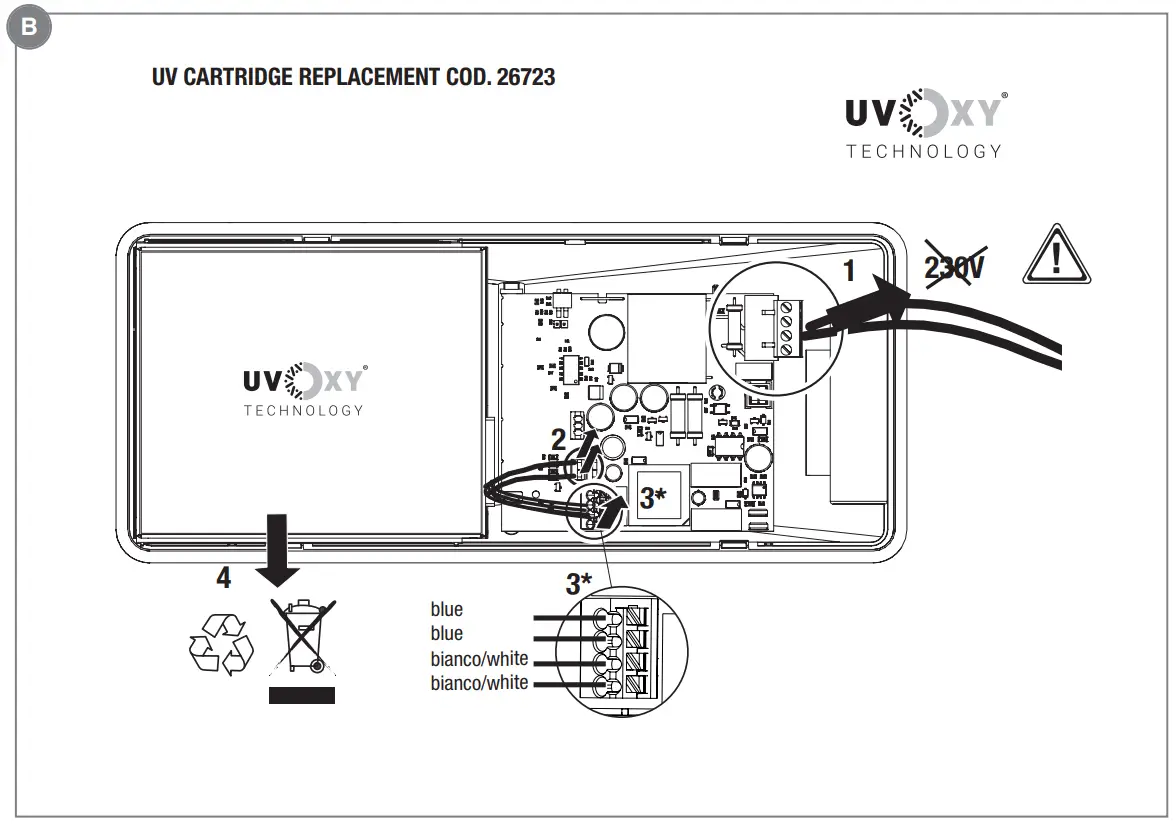

The device must be turned off and disconnected from the power supply before replacing the uvOxy® Beghelli cartridge (code 26723).
Do not insert small objects into the ventilation grid. They could damage the fans and impair the device operation.
If damaged, the device should not be used.

This device shall be used exclusively for the purpose for which it has been designed. Any other use is considered improper and therefore dangerous.
Rechargeable battery and LED source are non-replaceable type.
Contact an authorised technical service centre for any repairs possibly required use only original spare parts.
The lacked respect of the above conditions may compromise the safety of the device.
* Caution: electric shock
