Thermador T24ur905dp Under Counter Double Drawer Refrigerator Owner's Manual

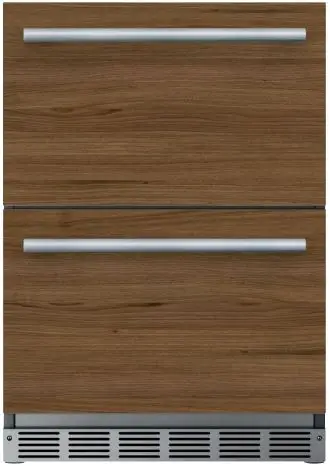

Thermador T24UR905DP Under Counter Double Drawer Refrigerator

Panel-Ready
The T24UR905DP is an under-counter double drawer refrigerator that comes with customizable aluminum dividers and shelving, removable drawer mats, full-extension drawers, and LED lighting. The touch electronic controls enable temperature management, and the refrigerator also has a Drawer Open Alarm and Quick Chill feature. The product is Star-K Certified for Sabbath Mode and has an annual energy consumption of 269 kWh.

Technical Details

• Watts (W): 150 W
• Current (A): 15 Amp
• Volts (V): 115 V
• Frequency (Hz): 60 Hz
• Power Cord Length (in.): 60
• Plug Type: 120V 3-Wire

Capacity

• Total Capacity (cu. ft.): 4.4 cu. ft.

Temperature Ranges

• Refrigerator: Pre-Set Cooling Modes, Quick Chill

Dimensions & Weight

• Appliance Dimensions (H x W x D) (in.): 34 1/8 x 23 7/8 x 23 5/8
• Required Cutout Size (H x W x D) (in.): N/A
• Net / Gross Weight (lbs.): 138 / 149 lbs.

Warranty

• Limited, Entire Appliance, Parts and Labor on any Part of the Refrigerator that Fails Because of a Manufacturing Defect: 2 Year
• Limited Warranty for Sealed Refrigeration System*; Parts and Labor: 3rd to 6th Year
• Limited Warranty for Sealed Refrigeration System*; Parts Only: 7th to 12th Year

Installation Instructions

The T24UR905DP is custom panel-ready. To install the panel, use only the screws included in the Installation Kit. Create the custom overlay panel using the dimensions shown in the user manual.

Usage Instructions

Use the touch electronic controls to manage the temperature of the refrigerator. The customizable aluminum dividers and shelving can be adjusted to fit your needs. The removable drawer mats make cleaning easy. The full-extension drawers enable easy access to your food items. The Drawer Open Alarm alerts you if you accidentally leave the drawer open. The Quick Chill feature can be used to cool items quickly. The product is Star-K Certified for
Sabbath Mode.

Cleaning

Clean the exterior of the refrigerator with a soft, damp cloth.
Do not use abrasive cleaners or solvents. Clean the interior and removable drawer mats with warm water and mild soap. Rinse with clean water and dry thoroughly before replacing the mats.

Also Available:

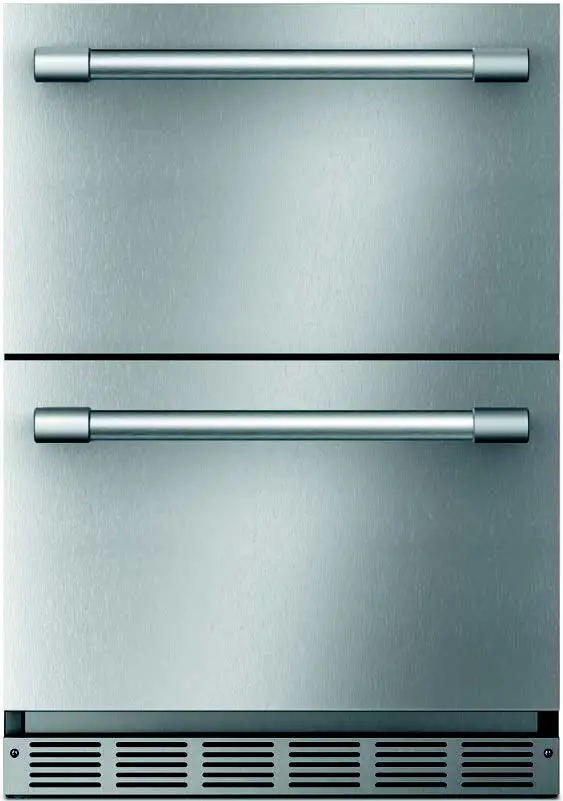

T24UR925DS – With Professional Series Handle T24UR915DS – With Masterpiece® Series Handle

SPECIFICATION

Limited, Entire Appliance, Parts and Labor on any Part of the Refrigerator that Fails Because of a Manufacturing Defect
2 Year
Limited Warranty for Sealed Refrigeration System*; Parts and Labor 3rd to 6th Year
Limited Warranty for Sealed Refrigeration System*; Parts Only 7th to 12th Year
*Height adjustable + 11/22″ (13 mm) with legs fully extended
** Sealed refrigeration system includes compressor, evaporator, condenser, dryer / strainer and connection tubing

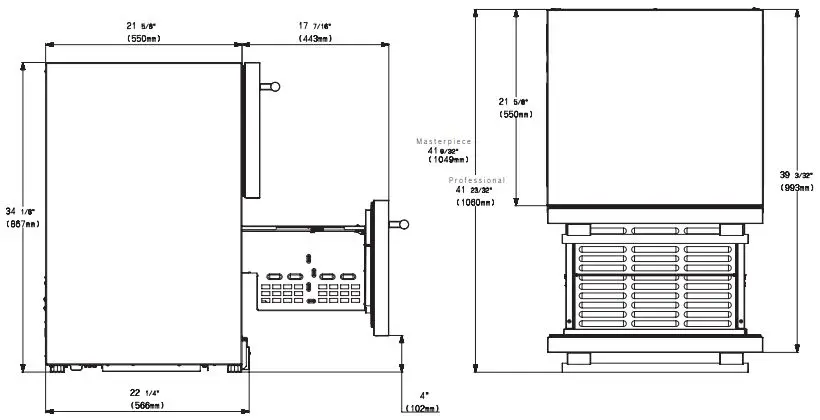

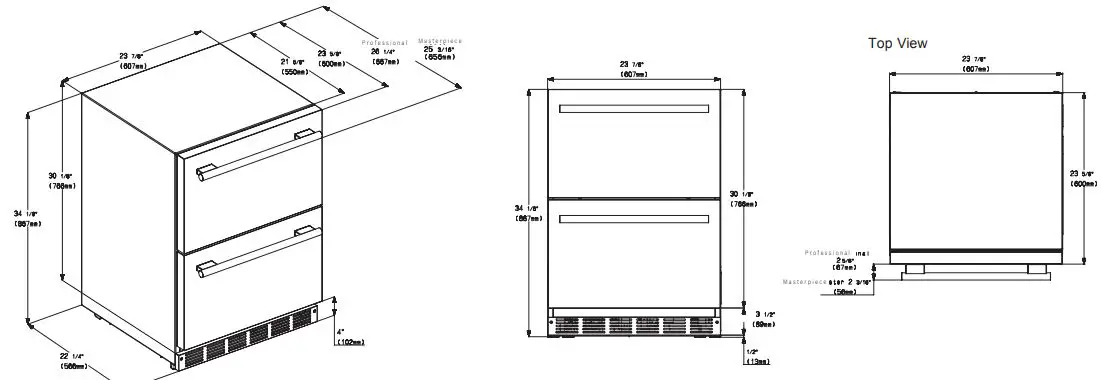

DOUBLE-DRAWER REFRIGERATOR PRODUCT DIMENSIONS

DOUBLE DRAWER REFRIGERATOR CUTOUT DIMENSIONS

DOUBLE DRAWER REFRIGERATOR CLEARANCE DIMENSIONS

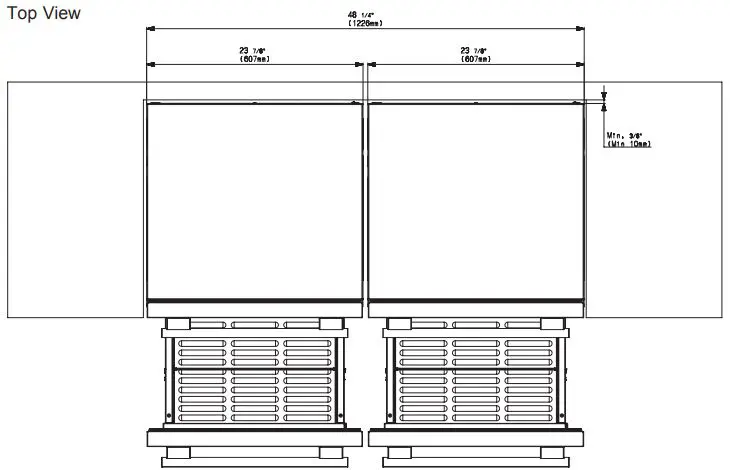

DOUBLE DRAWER REFRIGERATOR SIDE-BY-SIDE INSTALLATION

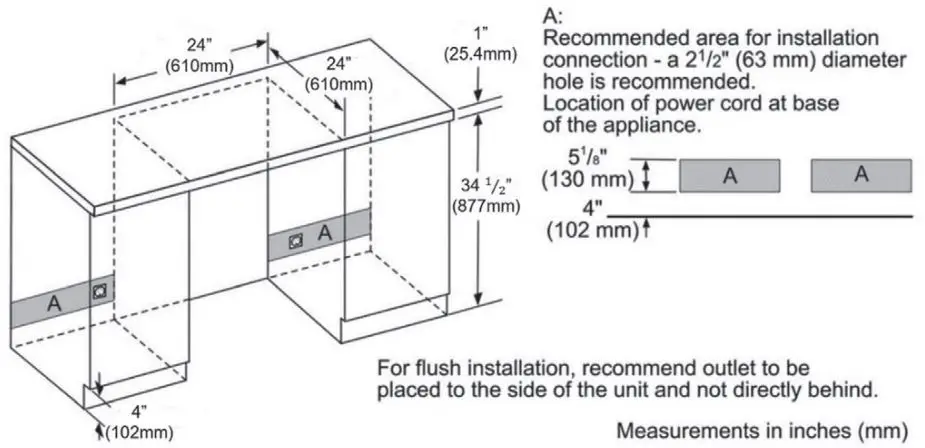

DOUBLE DRAWER REFRIGERATOR CUTOUT DIMENSIONS & ELECTRICAL LOCATION

ACCESSORIES (OPTIONAL)

HANDLES
NOTE: Choose one handle for each glass door model, choose 2 handles for each double drawer model.

• PR20HNDL25
  Professional Series Handle (21 11/1616″ wide)|



• MS20HNDL25
  Masterpiece® Series Handle (20 33/44″ wide)

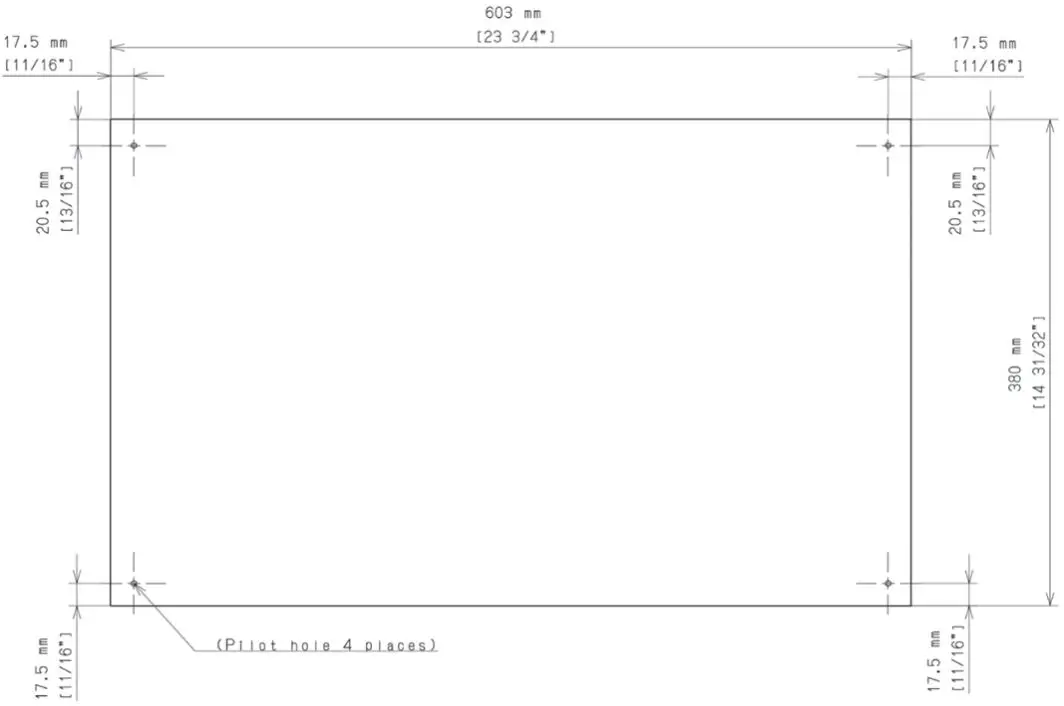

DOUBLE DRAWER REFRIGERATOR CUSTOM PANEL DIMENSIONS – TOP DRAWER PANEL

IMPORTANT

• The thickness of both the overlay panels must be ¾” (19mm).
• Overlay panel must not weigh more than 10lbs (4.54kg) each.
• Overlay panels weighing more than recommended may cause damage to your appliance.
• It is recommended to have the help of a second person to install the panel.
• Use the recommended tools in the installation manual to facilitate the installation of the panel. Failure to use the recommended tools or the help of a second person may result in damage to panel and/or the appliance.
• To install the panel, use only the screws included in the “Installation Kit”.
  Create the custom overlay panel using the dimensions shown.

  Top Drawer Panel



DOUBLE DRAWER REFRIGERATOR CUSTOM PANEL DIMENSIONS – BOTTOM DRAWER PANEL

IMPORTANT

• The thickness of both the overlay panels must be ¾” (19mm).
• Overlay panel must not weigh more than 10lbs (4.54kg) each.
• Overlay panels weighing more than recommended may cause damage to your appliance.
• It is recommended to have the help of a second person to install the panel.
• Use the recommended tools in the installation manual to facilitate the installation of the panel. Failure to use the recommended tools or the help of a second person may result in damage to panel and/or the appliance.
• To install the panel, use only the screws included in the “Installation Kit”.
  Create the custom overlay panel using the dimensions shown.

  Bottom Drawer Panel



These warranties give you specific legal rights and you may have other rights that vary from state to state. Limited warranty from date of purchase. For complete warranty details, refer to your Use & Care manual, or ask your dealer.
Specifications are for planning purposes only. Refer to installation instructions and consult your countertop supplier prior to making counter opening. Consult with a heating and ventilation engineer for your specific ventilation requirements. For the most detailed information, refer to installation instructions accompanying product or write to Thermador indicating the model number. Specifications are correct at time of printing. Thermador reserves the right to change product specifications or design without notice. Some models are certified for use in Canada. Thermador is not responsible for products that are transported from the U.S. for use in Canada.
1 800 735 4328 | USA THERMADOR.COM | CANADA THERMADOR.CA | ©2021 BSH HOME APPLIANCES CORPORATION. ALL RIGHTS RESERVED.
