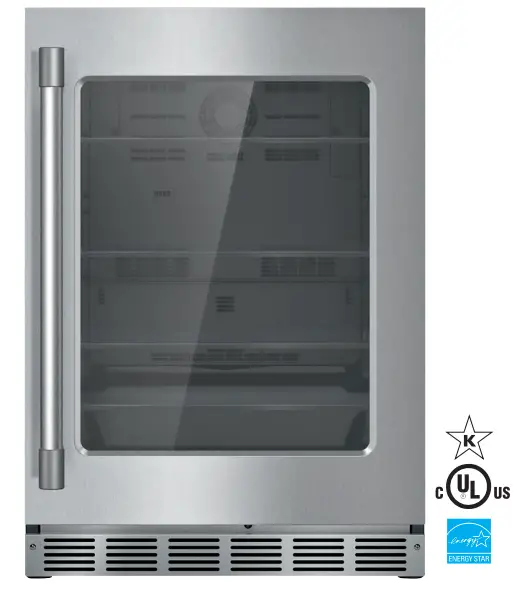

T24UR925LS
UNDER-COUNTER GLASS DOOR REFRIGERATOR
PROFESSIONAL SERIES HANDLE – LEFT HINGED
Also Available:
T24UR925RS – Right Hinged with Professional Series Handle
T24UR915LS – Left Hinged with Masterpiece® Series Handle
T24UR915RS – Right Hinged with Masterpiece® Series Handle
T24UR905LP – Left Hinged Custom Panel-Ready
T24UR905RP – Right Hinged Custom Panel-Ready
FEATURES & BENEFITS
- Customizable cooling modes — Refrigerator, Pantry and Bar
- SoftClose® door hinges for ultra-smooth closing
- Fully adjustable tempered glass shelves
- Door Open Alarm
- LED theater Lighting
- Sabbath Mode
- Touch electronic controls for temperature management
GENERAL PROPERTIES
| SoftClose® Drawers | Yes |
| Lighting | LED Lighting |
| Customizable Aluminum Dividers / Shelving | Yes |
| Removable Drawer Mats | Yes |
| Filtered Automatic Ice Maker | Yes |
| Full Extension Drawers | Yes |
| Drawer Open Alarm | Yes |
| Quick Chill | Yes |
| Touch Electronic Controls | Yes |
| STAR-K Certified Sabbath Mode | Yes |
| CAPACITY | |
| Total Capacity (cu. ft.) | 4.3 cu. ft. |
| TEMPERATURE RANGES | |
| Refrigerator | 33°F (0.5°C) to 47°F (8.5°C) |
| Freezer | 8°F (-22°C) to 6°F (-14.5°C) B115 |
| Pre-Set Cooling Modes | Refrigerator 37°F (3°C) Pantry 44°F (7°C) Bar 34°F (1°C) |
| Quick Chill | Refrigerator 33°F (0.5°C) for approximately 24 hours Freezer -8°F (-22°C) for approximately 24 hours |
| TECHNICAL DETAILS | |
| Watts (W) / Current (A) / Volts (V) | 150 W / 15 Amp / 115 V |
| Frequency (Hz) | 60 Hz |
| Power Cord Length (in.) | 60″ |
| Plug Type | 120V 3-Wire |
| DIMENSIONS & WEIGHT | |
| Appliance Dimensions (H x W x D) (in.) | 34 11 /88″* x 23 77 /88″ x 23 55 /88″ |
| Required Cutout Size (H x W x D) (in.) | 34 11 /22″–35 11 /88″ x 24″ x 24″ |
| Net / Gross Weight (lbs.) | 144.5 / 155.5 lbs. |
| EFFICIENCY | |
| ENERGY STAR® Qualified | Yes |
| Annual Energy Consumption | 442 kWh |
WARRANTY
Limited, Entire Appliance, Parts and Labor on any Part of the Refrigerator that Fails Because of a Manufacturing Defect 2 Year
Limited Warranty for Sealed Refrigeration System*; Parts and Labor 3rd to 6th Year
Limited Warranty for Sealed Refrigeration System*; Parts Only 7th to 12th Year
*Height adjustable + 11/22″ (13 mm) with legs fully extended
** Sealed refrigeration system includes compressor, evaporator, condenser, dryer / strainer and connection tubing
GLASS DOOR REFRIGERATOR PRODUCT DIMENSIONS
GLASS DOOR REFRIGERATOR CUTOUT DIMENSIONS

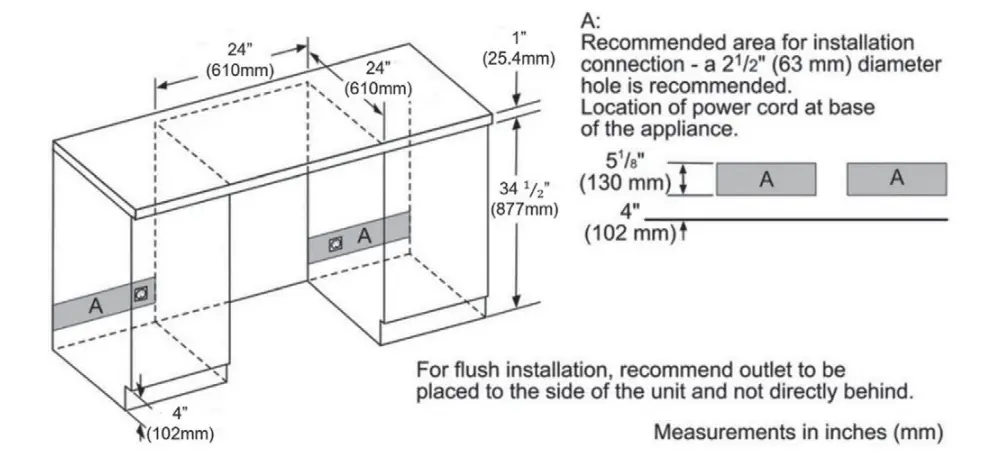

GLASS DOOR REFRIGERATOR CUTOUT DIMENSIONS & ELECTRICAL LOCATION

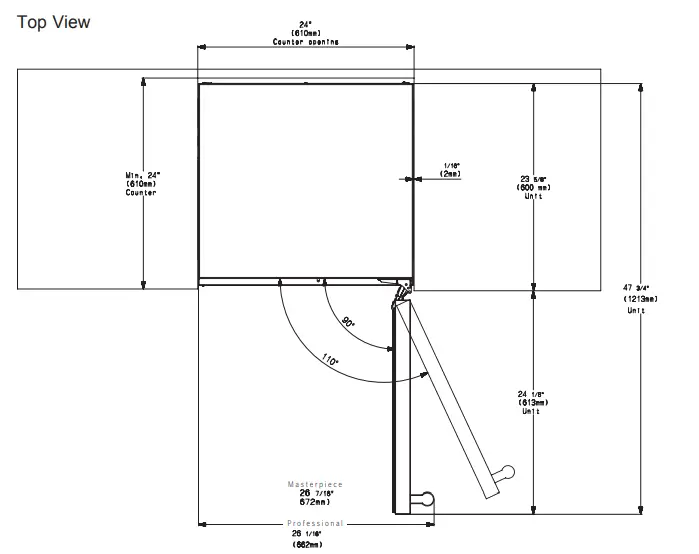

GLASS DOOR REFRIGERATOR CUTOUT & DOOR SWING DIMENSIONS

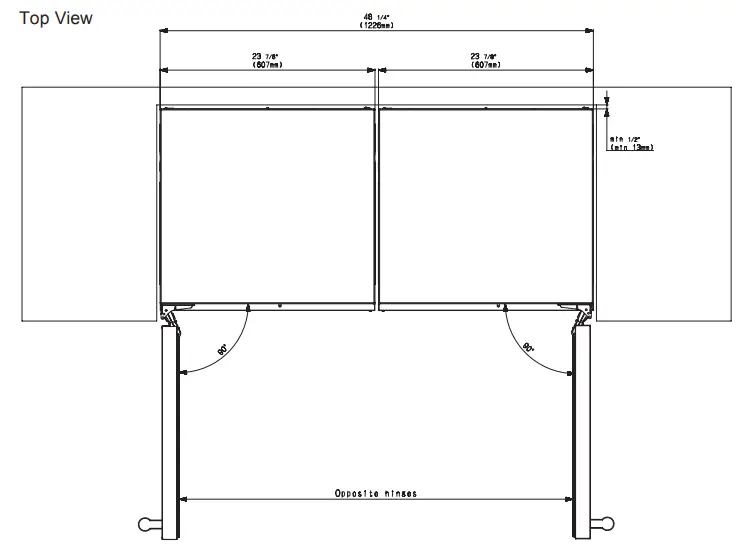

GLASS DOOR REFRIGERATOR SIDE-BY-SIDE INSTALLATION
These warranties give you specific legal rights and you may have other rights that vary from state to state. Limited warranty from date of purchase. For complete warranty details, refer to your Use & Care manual, or ask your dealer.
Specifications are for planning purposes only. Refer to installation instructions and consult your countertop supplier prior to making counter opening. Consult with a heating and ventilation engineer for your specific ventilation requirements. For the most detailed information, refer to installation instructions accompanying product or write to Thermador indicating the model number. Specifications are correct at time of printing. Thermador reserves the right to change product specifications or design without notice. Some models are certified for use in Canada.
Thermador is not responsible for products that are transported from the U.S. for use in Canada.
1 800 735 4328
USA THERMADOR.COM
CANADA THERMADOR.CA
©2021 BSH HOME APPLIANCES CORPORATION.
ALL RIGHTS RESERVED.
