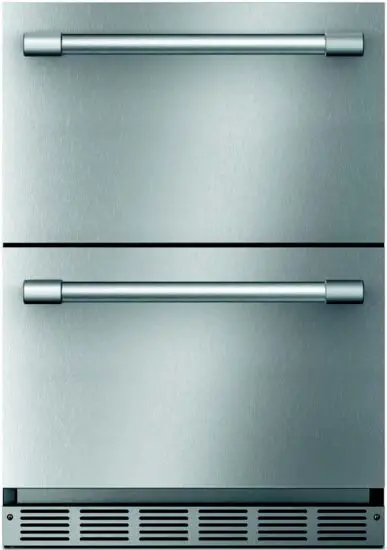

Thermador T24UR925DS Under Counter Double Drawer Refrigerator Owner’s Manual

Also Available:
T24UR915DS – With Masterpiece® Series Handle
T24UR905DP – Custom Panel-Ready

FEATURES & BENEFITS

• Customizable cooling modes — Refrigerator, Pantry and Bar
• SoftClose® drawers for ultra-smooth closing
• Customizable drawer dividers and shelving
• Quick Chill
• LED Lighting
• Drawer mats keep items from sliding and remove for easycleaning
• Touch electronic controls for temperature management

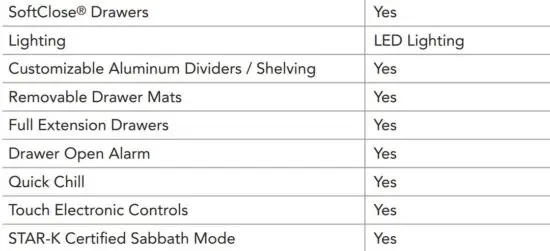

GENERAL PROPERTIES

CAPACITY

Total Capacity (cu. ft.): 4.4 cu. ft.

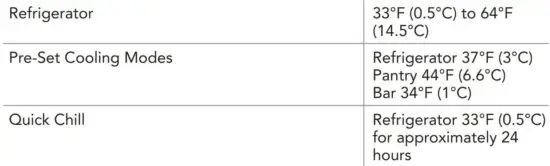

TEMPERATURE RANGES

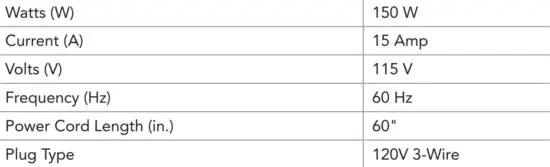

TECHNICAL DETAILS

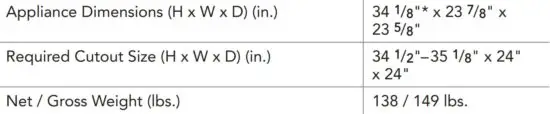

DIMENSIONS & WEIGHT

EFFICIENCY

WARRANTY

Limited, Entire Appliance, Parts and Labor on any Part of the Refrigerator that Fails Because of a Manufacturing Defect
2 Year
Limited Warranty for Sealed Refrigeration System*; Parts and Labor
3rd to 6th Year
Limited Warranty for Sealed Refrigeration System*; Parts Only
7th to 12th Year

*Height adjustable + 11/22″ (13 mm) with legs fully extended
** Sealed refrigeration system includes compressor, evaporator, condenser, dryer / strainer andconnection tubing

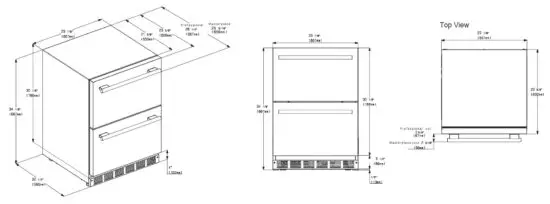

DOUBLE DRAWER REFRIGERATOR PRODUCT DIMENSIONS

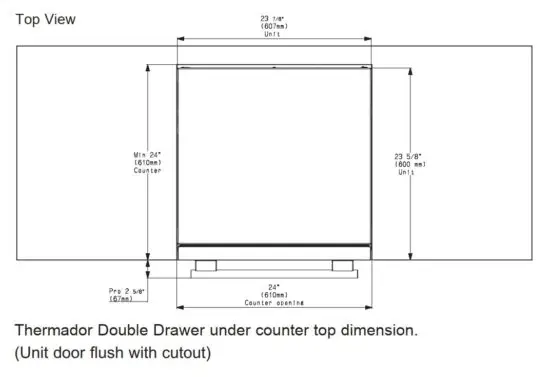

DOUBLE DRAWER REFRIGERATOR CUTOUT DIMENSIONS

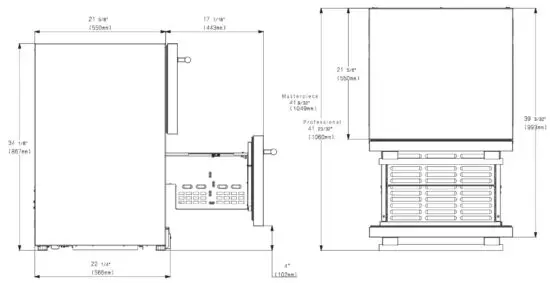

DOUBLE DRAWER REFRIGERATOR CLEARANCE DIMENSIONS

DOUBLE DRAWER REFRIGERATOR SIDE-BY-SIDE INSTALLATION

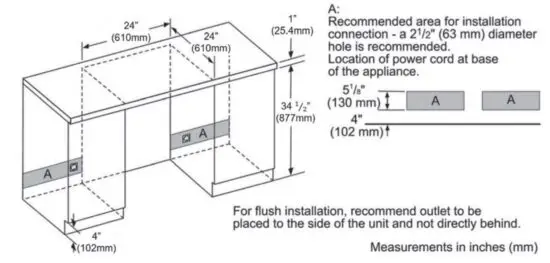

DOUBLE DRAWER REFRIGERATOR CUTOUT DIMENSIONS & ELECTRICAL LOCATION

These warranties give you specific legal rights and you may have other rights that vary from state to state. Limited warranty from date of purchase. For complete warranty details, refer to your Use & Care manual, or ask your dealer.

Specifications are for planning purposes only. Refer to installation instructions and consult your countertop supplier prior to making counter opening. Consult with a heating and ventilation engineer for your specific ventilation requirements. For the most detailed information, refer to installation instructions accompanying product or write to Thermador indicating the model number. Specifications are correct at time of printing. Thermador reserves the right to change product specifications or design without notice. Some models are certified for use in Canada. Thermador is not responsible for products that are transported from the U.S. for use in Canada.
