Advantech Telehealth Cart User Manual (+ PDF)

Features

Highly integrated communication platform and power cart solution for telehealth applications
PTZ Camera with 18X Total Zoom and Full HD 1080p 60fps Resolution
All-In-One Touch Computer with Intel Core i CPU for high performance
Easy-to-use hand-held digital scope with video system used for capturing images of the body and sharing images through the communication platform
30kg load capacity with motorized height adjustment
IPX1 rated for superior infection control

Specifications

Base Cart	Footprint	19.7″ x 18.5″ (500 x 470 mm)
	Casters	125mmx125mm (Anti-Static Medical casters, two locking, two non-locking)
	Height Adjustment Range	34″~45.8″(864~1164mm) Stroke 300mm
	Display Holder	Standard VESA Mount (VESA 75/75; VESA 100/100); Weight capacity: max. 10Kg
	Dashboard	Battery power button Computer power button LED for battery capacity indication
	Worksurface	18.5″ x 19.3″ (469.9 x 489.9 mm) Extra Loading Capacity: Up to 66Ib/30kg
	Keyboard & Mouse Area	Keyboard size: Up to 380 x 140 x 25mm Keyboard LED light Mouse tray
	Accessory Integration Interface	Neck: Dove Tail Work Surface: Din Rail (Right, Left and Rear)
Control AIO PC (POC-W213L)	CPU	Intel Core i5-7300U 2.6GHz
	Memory	4GB
	OS	Win 10 IoT
	HDD	128GB SSD
	Screen	21.5″ 1920 x 1080 FHD P-Cap Touch Screen
	WiFi	Intel® Dual Band Wireless-AC 8265
	IP Rating	Front Panel: IP65 Entire Computer: IPX1
Aver PTZ Cam520	Resolution	Full HD 1080p 60fps Resolution
	Zoom	18X Total Zoom
	Interface	USB
Jabra UC 510	Meeting with	Meeting with up to 4 people
Jabra UC 510	DSP	Digital Signal Processing (DSP) Technology
Battery Manager Software	AMiS_Link	Battery capacity indicator Alerts (battery capacity, temperature, warning) Battery Life cycle statistics Report & log file Client Installation Server Installation (Optional) Multi-language support, including Chinese Traditional, Chinese Simple, English, German and Dutch
Power Module	Battery type	Lithium-ion
	Battery capacity	420Wh
	Power Input Voltage	100-240 VAC, 50-60H, Max 4.5A
	DC Output Voltage	System 1: 19 VDC, Max. 6 A System 2: 12 VDC, Max. 5 A
	Battery Life SPAN	Capacity 80%, 2000cycles or 2 years (Depends on which term come first)
	Battery Runtime (Depends on system configuration	8~10 hours
Certificate		CE, FCC, IEC60601-1 Compliance

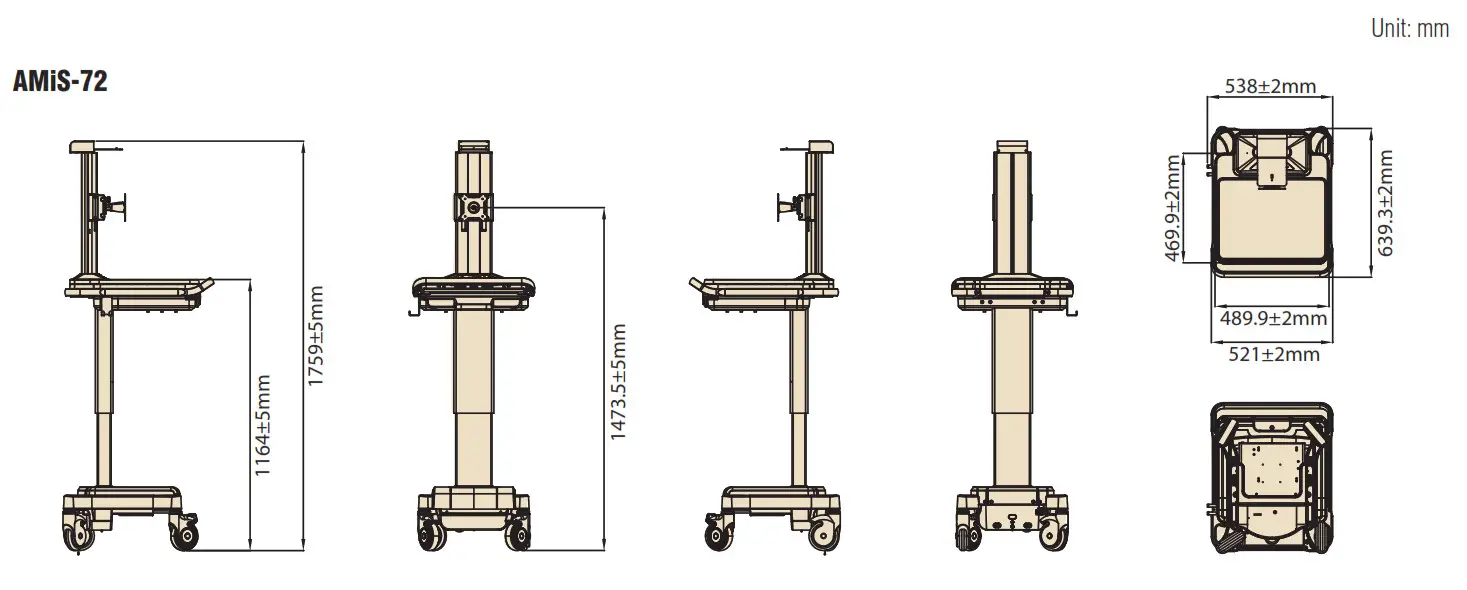

Base cart Dimensions

Order Information

	AIO PC	Camera	Speaker	Drawer	Power Cord (US)	Battery	VSee Mensenger	Digital Diagnostic Set
AMIS-50E72CSLHKN50	Y	Y	Y	Y	Y	Y	Y	Y
AMIS-50E72CSL0KN50	Y	Y	Y	Y	Y	Y	N	N

Peripheral Ordering Information

Power Cord

Part Number	Power Cord Type (Spiral)
1700019822	China
1700019824-11	EU
1700019825	UK
1700020538-01	Australia
1700022626-01	Brazil

Vsee Messenger

Features

Remote PTZ Camera Control
HIPAA Compliant Video Conferencing
Real-time Screen sharing and live annotation
Peripheral streaming (e.g. otoscope, EKG, etc.)
Picture-sending in text chat
Group video

Basic Spec

VSee Messenger download. To sign up,
https://help.vsee.com/kb/articles/create-a-vsee-messenger-account

Compatible Devices and Operating Systems

PC OS : Windows/ Mac OS
Mobile OS : iOS, Android(no remote control the PTZ camera)

Audio

16 KHz audio sampling
Software acoustical echo cancellation
Special digital stethoscope audio mode
Automatic audio over video priority during network congestion

Video

HD up to 720p at 30 fps
Can send up to 4 camera feeds at the same time for sharing medical peripheral cameras such as otoscope, dermatoscope, etc
Low required upload/download speeds at ~200kbps (less than Skype, Vidyo, and Cisco).
Network sensing streaming protocol optimized for 3G, Wifi, satellite, and congested networks
Far-end pan, tilt, zoom camera control
Audio and video lip synchronization based on Dr. Milton Chen’s Stanford PhD research

Internet Connection

Minimum 200 kbps upload and download required (500 kbps recommended)

Instant Message / Text Chat

Send private and group IM
Drag-and-drop picture sending

Screen and Desktop Share

One-click on any application window to privately share that application only
Live annotation/drawing on any shared application
Share multiple desktop screens & select a smaller region of the desktop to share

Security

Encrypted using 256-bit AES
HIPAA Compliant (with signed BAA)

Recording

Record audio and video and save on the desktop
Cloud recording available for VSee Clinic

Architecture

Does not require any video router or MCU, where VSee traffic streams directly between the computers for 1-1 calls, thus not requiring any media server. See VSee firewall rules at https://vsee.com/firewall

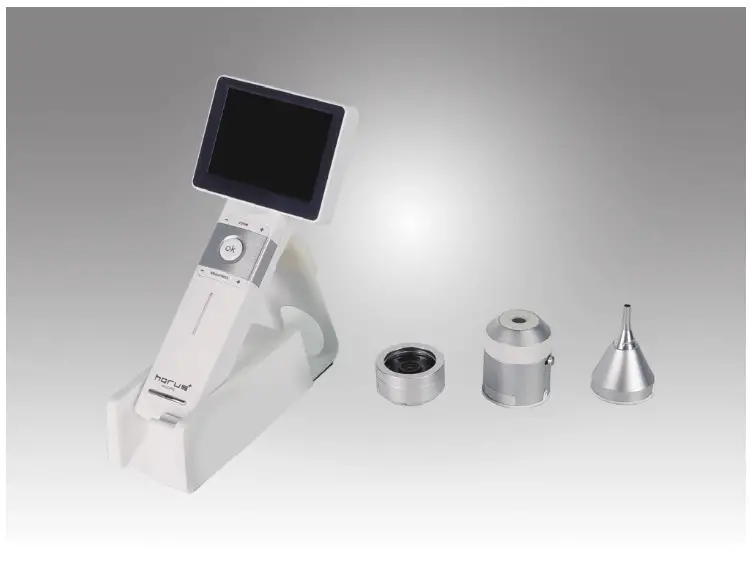

Digital Handheld Diagnostic Set

Features

5Mp HD camera sensor
HDMI and USB live video connections with lockable cables
Manual focus with live image zoom
Integrated lens locking system
Touch Screen operation
Backwards compatibility – works with all existing lenses
Additional lens options

Specifications

Items		DSC 300P
CPU		DM388
Sensor		AR0521
Focus type		Focus wheel
LCD Monitor		3.5″ Projective capacitive touch panel
File storage		Micro SD Card (2~32G)
Interface	Wi-Fi	Embedded
	Bluetooth	Embedded
	Micro HDMI	Ο
	Mini USB	Ο
	Magnetic pogo pin charger	Ο
	AV out	–
Function	Manual Focus	Ο
	Auto Focus	–
	Auto Exposure	Ο
	Auto White Balance	Ο
Lens	Dermatoscope (DDC100)	Dimension Weight Field of view Camera/video flash light Polarization	80 x 90 x 205 mm 370g 10mm Natural white LED Yes
	Otoscope (DOC 300S)	Dimension Weight Field of view Camera/video flashlight	43 x 43 x 70 mm 69g 7~20mm Natural white LED
	General scope (DGC100)	Dimension Weight Field of view Camera/video flashlight	5 x 9 x 20.5 cm 300g 88 m Natural white LED
Picture Resolution		2560 x 1920 (5M pixels)
Video Resolution		2560 x 1920 pixels
