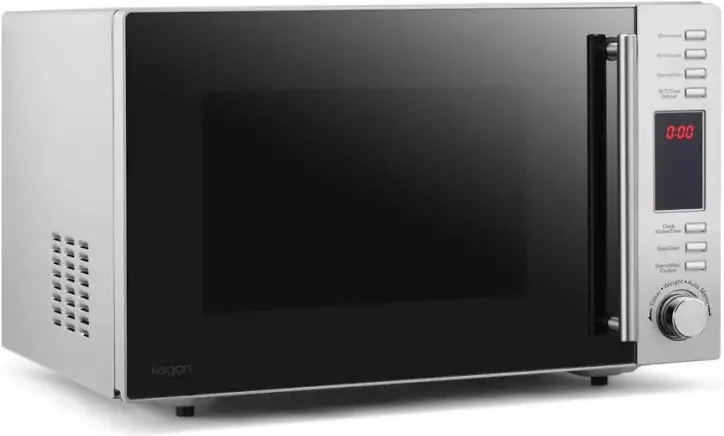

Kogan Kamwo28cssb 28l Stainless Steel Convection User Guide

USER GUIDE

28L STAINLESS STEEL
CONVECTION

MICROWAVE OVEN

KAMWO28CSSB

SAFETY & WARNINGS

Precautions to avoid possible exposure to excessive microwave energy

• Do not attempt to operate this oven with the door open, as this can result in harmful exposure to microwave energy. It is important not to tamper with or break the safety interlocks.
• Do not place any object between the oven front face and the door, nor allow residue to accumulate on the sealing surfaces.
• WARNING: if the door or door seals are damaged, the oven must not be operated. Contact the help.Kogan.com for support before using the unit again.
• If the microwave is not properly maintained and kept in a good state of cleanliness, its surface may degrade affecting the lifespan of the appliance and lead to a dangerous situation.

Basic safety precautions

IMPORTANT SAFETY INSTRUCTIONS. READ CAREFULLY AND RETAIN FOR FUTURE REFERENCE.

• The microwave oven is intended for the heating of food and beverages. Drying of food or clothing or the heating of warming pads, slippers, sponges, damp cloth or similar may lead to risk of injury, ignition or fire.
• The oven must not be operated with the door open.
• Liquids and other foods must NOT be heated in sealed containers as they are liable to explode.
• It is hazardous for anyone other than a Kogan technician to carry out repairs that involve the removal of the cover, which gives protection against microwave energy.
• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge only if they have been given supervision or instruction concerning the use of the product in a safe way and been given an understanding of the dangers involved.
• Children should not play with the appliance. Cleaning and user maintenance must not be carried out by children unless they are older than 8 years old and supervised.
• Keep the appliance and the power cord out of the reach of children.
• Only use utensils suitable for use in microwave ovens.
• The oven should be cleaned regularly and any food deposits should be removed.
• When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
• If smoke is emitted, switch off or unplug the unit and keep the door closed in order to stifle any flames.
• Do not overcook food.
• Do not use the oven cavity for storage purposes. Do not store items such as bread, cookies etc… inside the oven.
• Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.
• Install this oven in accordance with the instructions outlined in this user guide.
• Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens as they may explode, even after the microwave heating has ended.
• This appliance is intended for use in households or similar situations such as:
  o staff kitchen areas in shops, offices or other working environments
  o by clients in hotels, motels or other residential type environments farmhouses
  o bed and breakfast type environments
• If the power cord is damaged, cease use immediately and contact help.Kogan.com for support.
• Do not store or use this appliance outdoors.
• Do not use this oven near water, in a wet basement or near a swimming pool.
• The temperature of accessible surfaces may be high when the appliance is operating. The surfaces are liable to get hot during use. Keep the cord away from heated surfaces and do not cover any vents on the oven.
• Do not let the cord hang down over the edge of the table or counter.
• Failure to maintain the oven in a state of cleanliness may lead to deterioration of the surface that could adversely affect the life of the appliance and/or possibly result in a hazardous situation.
• The contents of feeding bottles and baby food jars should be stirred or shaken, then the temperature checked before consumption in order to avoid burns.
• The microwave heating of beverages can result in delayed eruptive boiling. therefore, care must be taken when handling the container.
• The microwave oven is not designed to be operated by means of an external timer or separate remote-control system.
• Accessible parts may become hot during use. Young children should be kept away from the cooking area while in use.
• Steam cleaners must not be used.

Cleaning

• Be sure to unplug the unit from the power supply before cleaning.
• The door frame, door seal and neighbouring parts should be cleaned carefully with a damp cloth when dirty.
• For easier cleaning, place half a lemon in a bowl, add 300ml of water and heat on 100% microwave power for 10 minutes. Then wipe the internal walls, floor and roof of the oven using a dry, soft cloth

OVERVIEW

Remove the oven and all materials from the carton and oven cavity. Ensure the oven comes with the following accessories:

• 1 x Glass tray
• 1 x Turntable ring assembly
• 1 x User guide

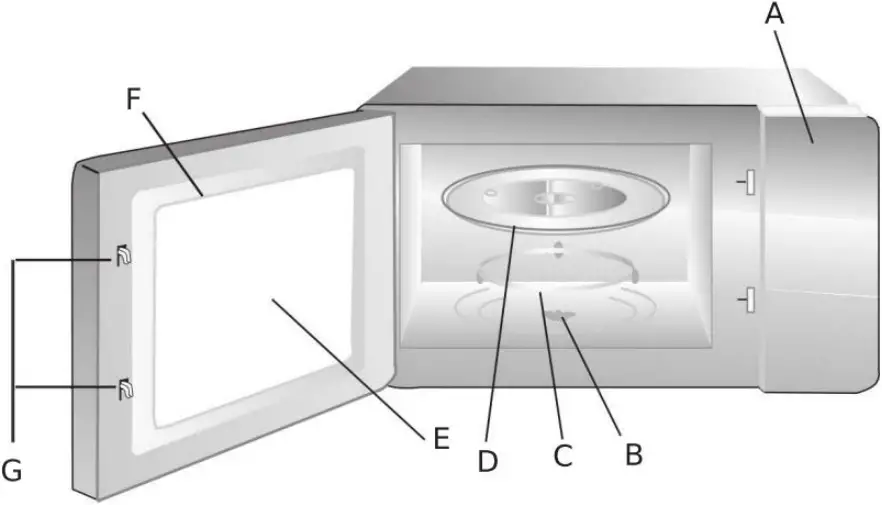

A Control panel                        E Observation window
B Turntable shaft                      F Door assembly
C Turntable ring assembly        G Safety interlock system
D Glass tray

Grill rack

(Only to be used with grill/convection function and be placed on the glass tray).

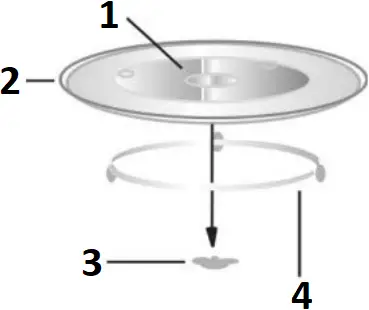

Turntable Installation

1. Hub (underside)
2. Glass tray
3. Turntable shaft
4. Turntable ring assembly

• Never place the glass tray upside down. The glass tray should never be restricted.
• Both glass tray and turntable ring assembly must be used during cooking.
• All food and containers of food should be placed on the glass tray for cooking.
• If the glass tray or turntable ring assembly cracks or breaks, contact the help.Kogan.com.

INSTALLATION

Countertop installation

Remove all packing material and accessories. Examine the oven for any damage such as dents or a broken door. Do not install the oven if it appears to be damaged.

Remove any protective film found on the microwave oven surface.

Note:

Do NOT remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

Installation

1. Select a level surface that provides enough open space for the intake and/or outlet vents.
   o The minimum installation height is 85cm.
   o The rear surface of the microwave oven should be placed close to a wall. Leave a minimum clearance of 30cm above the oven. A minimum clearance of 20cm is required to either side between the oven and any adjacent walls.
   o Do not remove the legs from the bottom of the oven.
   o Blocking the intake and/or outlet openings can damage the oven.
   o Place the oven as far away from radios and TVs as possible. The operation of the microwave can cause interference to your radio or television reception.
2. Plug the microwave oven into a standard household electrical outlet.
3. Do not install over a range cooktop or other heat-producing appliance.

UTENSILS

See the list below of “Materials you can use in a microwave oven” and “Materials to be avoid in a microwave oven”. There may be certain non-metallic utensils that are not safe for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test

1. Fill a microwave-safe container with 1 cup of cold water (250ml), along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.

Never exceed 1-minute cooking time when doing a utensil test.

Materials you can use in a microwave oven

Materials to be avoided in a microwave oven

OPERATION

Clock Setting

When the microwave oven is powered on, the oven will display “0:00” and the buzzer will ring once.

1. Press “CLOCK/KITCHEN TIMER” once. “00:00” displays.
2. Turn “” to adjust the hour figures, the input time should be within 0–23 (24-hour).
3. Press “CLOCK/KITCHEN TIMER”, the minute figures will flash.
4. Turn “” to adjust the minute figures, the input time should be within 0–59.
5. Press “CLOCK/KITCHEN TIMER” to finish clock setting. “:” will flash.

Notes:

• If the clock is not set, it would not function when powered.
• During the process of clock setting, if you press “STOP/CLEAR”, the oven will go back to the previous status automatically.

Kitchen Timer

1. Press “CLOCK/KITCHEN TIMER” twice, the screen will display 00:00.
2. Turn “” to adjust the minute figures, the input time should be within 0–59.
3. Press “START/+30SEC./CONFIRM” to confirm setting.
4. When the kitchen time is reached, the buzzer will ring 5 times.
If the clock has been set to the (24-hour system), the screen will display the current time.

Note:

The kitchen time is different from 24-hour system. Kitchen Timer is a timer.

Microwave Cooking

Press “Microwave” once, the screen will display “P100”. Press “Microwave” repeatedly to choose the power you want and “P100”, “P 80”, “P 50”, “P 30” or “P 10” will display for each added press. Then press “START/+30SEC./CONFIRM” to confirm and turn “” to adjust the cooking time (The maximum cooking time is 95 minutes.)

Press “START/+30SEC./CONFIRM” again to start cooking.

Example: If you want to use 80% microwave power to cook for 20 minutes, you can operate the oven with the following steps.

1. Press “Microwave” once, the screen displays “P100”.
2. Press “Microwave” again to choose 80% microwave power.
3. Press “Start/+30Sec./Confirm” to confirm and the screen displays “P 80”.
4. Turn “” to adjust the cooking time until the oven displays “20:00”.
5. Press “Start/+30Sec./Confirm” to start cooking.

NOTE: The step quantities for the adjustment time of the coding switch are as follow:

• 0—1 min: 5 seconds
• 1—5 min: 10 seconds
• 5—10 min: 30 seconds
• 10—30 min: 1 minute
• 30—95 min: 5 minutes

Microwave Power Chart

Grill or Combi. Cooking

Press “Grill/Combi” once, the screen will display “G-1” and press “Grill/Combi.” repeatedly or turn the “” to choose the power you want and “G-1”, “C-1”, “C-2”, “C-3” or “C-4” will display for each added press. Then press “Start/+30Sec./Confirm” to confirm and turn “” to adjust the cooking time. (The maximum setting time is 95 minutes.) Press “Start/+30Sec./Confirm” again to start cooking.

Example: If you want to use grill power to cook for 10 minutes, you can operate the oven as the following steps.

1. Press “Grill/Combi.” once, the screen displays “G-1”.
2. Press “Start/+30Sec./Confirm” to confirm.
3. Turn “” to adjust the cooking time until the oven displays “10:00”.
4. Press “Start/+30Sec./Confirm” to start cooking.

Note:

If half the grill time passes, the oven sounds twice and this is normal.

In order to have a better effect of grilling food, you should turn the food over, close the door and press “Start/+30Sec./Confirm” to continue cooking. If no operation the oven will continue cooking.

Note: Combination instructions

Instructions	Display	Microwave	Grill	Convection
1	C-1
2	C-2
3	C-3
4	C-4

Convection Cooking (With preheating function)

The convection cooking can let you to cook the food as a traditional oven. Microwave is not used. It is recommended that you should preheat the oven to the appropriate temperature before placing the food in the oven.

1. Press the “CONVECTION” key once, “140” flash.
2. Keep pressing “CONVECTION” or turn “” to select the convection temperature.
Note: The temperature can be chosen from 140 degrees to 230 degrees.
3. Press the “START/+30SEC./CONFIRM” to confirm the temperature.
4. Press the “START/+30SEC./CONFIRM” to start preheating. When the preheating temperature arrives, the buzzer will sound twice to remind you to put the food into the oven. And the preheated temperature is displayed and flashes.
5. Put the food into the oven and close the door. Turn “” to adjust the cooking time. (The maximum setting time is 95 minutes.)
6. Press the “START/+30SEC./CONFIRM” key to start cooking.

Note:

• Cooking time cannot be entered until the preheating temperature is reached.
  If the temperature arrives, door must be opened to input the cooking time.
• If the time is not entered within 5 minutes, the oven will stop preheating. The buzzer sounds five times and returns back to waiting state.

Convection Cooking (Without pre-heating function)

1. Press the “CONVECTION” key once, “140” flash.
2. Keep pressing “CONVECTION” or turn “” to select the convection temperature.
Note: The temperature can be chosen from 140 degrees to 230 degrees.
3. Press the “START/+30SEC./CONFIRM” to confirm the temperature.
4. Turn “” to adjust the cooking time. (The maximum setting time is 95 minutes.)
5. Press the “START/+30SEC./CONFIRM” key to start cooking.

Multi-Stage Cooking

Two stages can be maximally set. If one stage is defrosting, it should be put in the first stage. The buzzer will ring once after each stage and the next stage will begin.

Note: Auto menu and preheating cannot be set as one of the multi-stages.

Example: If you want to defrost the food for 5 minutes, then to cook with 80% microwave power for 7 minutes. The steps are as following:

1. Press “W.T./TIME DEFROST” twice, the screen will display “d-2”;
2. Turn “” to adjust the defrost time of 5 minutes;
3. Press “MICROWAVE” once, “P100” will display;
4. Press “MICROWAVE” again to choose 80% microwave power till “P 80” displays;
5. Press “START/+30SEC./CONFIRM” to confirm;
6. Turn “” to adjust the cooking time of 7 minutes;
7. Press “START/+30SEC./CONFIRM” to start cooking.

Speedy Cooking

1. In waiting state, press “START/+30SEC./CONFIRM” key to cook with 100% power level for 30 seconds. Each press on the same key can increase 30 seconds. The maximum cooking time is 95 minutes.
2. During microwave, grill, convection and combination states, cooking time can be increased by pressing “START/+30SEC./CONFIRM”. Each press can increase 30 seconds.

Note:

This function cannot work under weight defrost, multi-stage and auto menu cooking.

Auto menu Chart

Auto Menu

1. In waiting state, turn “” right to choose the function wanted and “A1″,”A2″,”A3”, “A10” will be displayed.
2. Press “START/ +30 SEC./CONFIRM” to confirm the menu you need.
3. Turn “” to choose the weight of menu and “g” indicator will light.
4. Press “START/ +30 SEC./CONFIRM” to start cooking.

Note:

When you choose A9 cake, please do not put the cake into the oven at the beginning.

The oven needs to be preheated to 160 degree first. After several minutes, the buzzer sounds twice to remind you to put the cake into the oven. After putting the cake in the oven, please press start again. The timer will count down and the cake will be cooked perfectly.

Defrost by W.T.

1. Press “W.T./TIME DEFROST” pad once, the oven will display “d-1”.
2. Turn “” to select the weight of food. At the same time, “g” will light. The weight should be within 100-2000g.
3. Press “START/+30SEC./CONFIRM” key to start defrosting.

Defrost by Time

1. Press “W.T./TIME DEFROST” key twice, the oven will display “d-2”.
2. Turn “” to select the cooking time. The maximum setting time is 95 minutes.
3. Press “START/+30SEC./CONFIRM” key to start defrosting.

Inquiring Function

1. During cooking state, press “CLOCK/KITCHEN TIMER” to check the current time.
It will be displayed for 2-3 seconds.
2. In cooking state, press “MICROWAVE”, “GRILL/ COMBI.” or “CONVECTION”, the current power will be displayed for 2-3 seconds.

Child Lock

Lock: In waiting state, press “STOP/CLEAR” for 3 seconds, there will be a long “beep” denoting entering into the children-lock state and “” indicator will light. The screen will display current time or 0:00.

Unlock: In locked state, press “STOP/CLEAR” for 3 seconds, there will be a long “beep” denoting that the lock is released and “” indicator will disappear.

Specifications

1. The buzzer will sound once when turning the knob at the beginning.
2. “START/+30 SEC./CONFIRM” must be pressed to continue cooking if the door is opened during cooking.
3. Once the cooking programmer has been set, “START/+30 SEC./CONFIRM” is not pressed in 5 minutes. The current time will be displayed. The setting will be cancelled.
4. The buzzer sounds once by efficient press, inefficient press will be no response.
5. The buzzer will sound five times to remind you when cooking is finished.

CLEANING & CARE

• Turn off the microwave and remove the power plug from the wall socket before cleaning.
• Keep the inside of the microwave clean. When food splatters or spilled liquids adhere to microwave walls, wipe with a damp cloth. Mild detergent may be used if the microwave gets very dirty. Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the door surface.
• The outside surfaces should be cleaned with a damp cloth. To prevent damage to the operating parts inside the microwave, ensure water does not seep into the ventilation openings.
• Wipe both sides of the door and window, the door seals and adjacent parts frequently with a damp cloth to remove any spills or spatters. Do not use an abrasive cleaner.
• Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning the control panel, leave microwave open to prevent microwave from accidentally turning on.
• If steam accumulated inside or around the outside of the microwave door, wipe with a soft cloth. This may occur when the microwave is operated under a high humidity condition and it is normal.
• It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm soapy water or in a dishwasher.
• The roller ring and microwave floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the microwave with mild detergent. The roller ring may be washed in mild soapy water or the dishwasher. When removing the roller ring from the floor cavity for cleaning, be sure to replace it in the proper position.
• Remove odours from your microwave by combining a cup of water with the juice and skin of one lemon in a deep, microwave-safe bowl and microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.
• The microwave should be cleaned regularly and any food deposits removed. Failure to maintain the microwave in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation. Health may also be adversely affected.
• Regularly clean the liquid in the groove at the bottom of the cavity to prevent the liquid from immersing into the cavity which may lead to electrical failure.

TROUBLESHOOTING

If you have any other issues, questions or problems with your oven, please contact the help.Kogan.com for further support.

SPECIFICATIONS

Rated Voltage                                    230-240 V – 50Hz
Rated Input Power (Microwave)        1450W
Rated Output Power (Microwave)     900W
Rated Input (Grill)                            1100W
Rated Input (Convection)                 2300W
Oven Capacity                                  28L
Turntable Diameter                          315mm
External Dimensions (L x W x H)   520 x 500 x 326mm
Net Weight Approx.                         18. 5kg

Disposal:

This marking indicates that this appliance should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.

NOTES

Need more information?

We hope that this user guide has given you the assistance needed for a simple set-up.

For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com
