Extol Light Mosquito Killer Lantern Lamp Usb Charging User Manual

Mosquito Killer Lantern Lamp USB Charging
User Manual

Introduction

Dear customer,
Thank you for the confidence you have shown in the Extol® brand by purchasing this product.
This product has been tested for reliability, safety, and quality according to the prescribed norms and regulations of the European Union.
Contact our customer and consulting center for any questions at:

www.extol.eu [email protected]

Manufacturer: Madal Bal a. s., Průmyslová zóna Příluky 244, 76001 Zlín, Czech Republic.
Date of issue: 5. 11. 2020

Description – the purpose of use

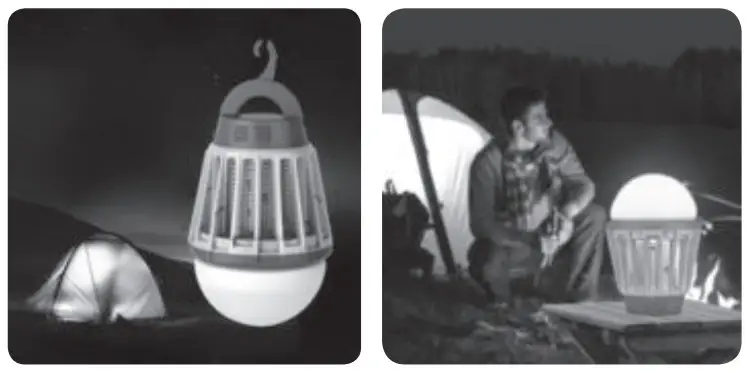

• This insect killer lamp is an ideal accessory for outdoor stays, i.e. for camping, weekend cottage, fishing, etc.
• The lamp can be hung on a hook in a tent or on a branch, put on an underlay (table), held in the hand as a portable light source, or simply placed in the grass.
• The LED lamp has a rubber case with an air cushion for protection against impacts (breakage).

• The lamp includes a UV light insect killer that can be turned on or off independently of the LED light and thus the lamp can be used exclusively as a mosquito (insect)  killer at night for uninterrupted sleep.

• Since it is water-tight (IPX6), the lamp can remain outdoors even in the rain and the insects on the insect killer are washed off using the running water.

• The light intensity can be set to 100% ≥ 180 lm, 50% ≥ 90 lm, or 20% ≥ 30 lm for setting the optimal intensity as required.

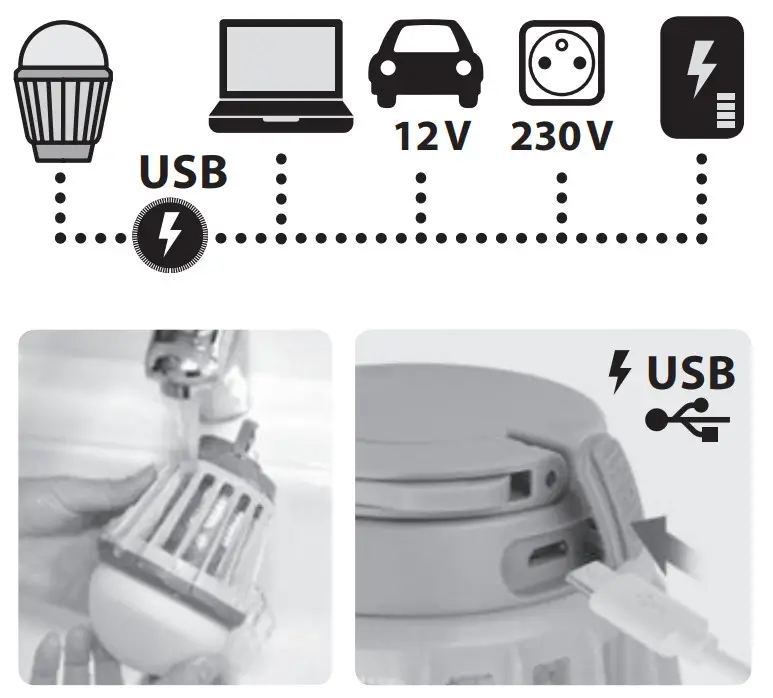

• The lamp is charged via a USB port using the supplied micro-USB cable, which enables multiple ways of charging, since USB ports are available on computers, power banks, USB car chargers, USB power adapters, etc.


Technical specifications

Model/order number	43131
Parameters of the built-in battery	3.7 V /2000 mAh/Li-polymer
Charging method and charging parameters of the lamp	USB / 5 V /1A
Charging time until fully charged	approx. 3 hours
Lighting time of the LED light (without the insect killer light)	100% ≥ 180 lm; ≥ 4 hours 50% ≥ 90 lm; ≥8 hours 20% ≥30 lm; ≥20 hours
Colour temperature of the LED light	6000-6500 K
Parameters of the insect killer
UV light wavelength of the insect killer	360-400 nm
Lighting time of the insect killer (without the LED light)	≥ 15 hours

Note: The specified lighting times apply for a fully charged battery.

Turning the LED light on and off

ATTENTION

• Before turning on the LED light, ensure that the lamp is not being charged since this reduces the lifetime of the battery. To turn on the light, press the button with the  symbol. Repeatedly pressing this button toggles the light intensities 100%/50%/20%. Pressing the button for the fourth time turns off the LED light.

Turning the insect killer on and off

• ATTENTION

• Before turning on the insect killer, ensure that the lamp is not being charged since this reduces the lifetime of the battery.
• The insect killer is controlled using an independent button marked with the symbol and can be controlled independently of the LED light.
• To turn on the insect killer, press the button and press the same button to turn it off.

Charging the lamp

ATTENTION

• Prior to charging the lamp, use the control buttons to turn off the LED light and the insect killer since charging the battery during operation reduces its lifetime.

ATTENTION

• Only charge the product using the prescribed charging method (via a USB port 5 V /1A) in the temperature range of 5-40°C. Using a different charging source may cause a fire or explosion as a result of inappropriate charging parameters.
  Charging at an ambient temperature above 40°C may result in a fire or explosion since heat is generated during the charging process.
  1. Take the cover marked „INPUT“of the USB socket and insert the micro-USB connector of the supplied cable into it.
  2. Insert the connector of the USB cable into a USB port on a computer, power bank, or USB power adapter.
  ATTENTION
• Charge the lamp in a vehicle when the car is running, i.e. while the car‘s engine is running, to prevent the car battery from becoming discharged.
• The charging process is indicated by a lit red indicator light. When charged, the indicator light is lit green.
  3. After charging the lamp, disconnect the USB cable from the lamp and the USB socket of the power source, and properly seat the rubber cover marked „INPUT“onto it.
  ATTENTION
• Properly seating the cover of the charging connector (sealing the connector) is essential for using the lamp in the rain and for washing it under running water.

Cleaning and maintenance

• Wash off the insects on the insect killer under running water. Running water can also be used for washing the rubber case of the LED lamp. Do not use organic solvents for cleaning since they would damage the plastic parts.
  ATTENTION
• Before washing the lamp, check that the cover marked „INPUT“ is properly seated on the charging connector, otherwise the lamp will not be watertight.

Safety Instructions

	• This product is not a toy. Ensure that children do not play with the product. Keep the product in a safe place out of reach of children. • Do not look directly into the light source. • Protect the product against impacts and falls. • The product can be exposed to rain and can be washed under running water, however, the product is not intended for long-term submersion in water. • Do not expose the product to the effects of temperatures above 50°C.
	• It meets all respective harmonization regulations of the EU.
	• Product with protection class III.
	• Read the user’s manual before use.

Waste disposal

PACKAGING MATERIALS

• Throw packaging materials into a container for the respective sorted waste.
• Do not dispose of unserviceable commodities in household waste, but rather hand them over for the ecological disposal of electrical equipment. According to Directive (EU) 2012/19, electrical appliances must not be thrown out with household waste but rather handed over for ecological disposal at an electrical equipment collection point. The device contains a built-in Li-Polymer battery that should be removed from the electrical equipment prior to disposal and should be disposed of separately. You can find information about waste collection points and waste collection conditions for electrical equipment from your vendor or at your local town council office.
