EL192
10W Wireless Charging
LED lamp
User Manual

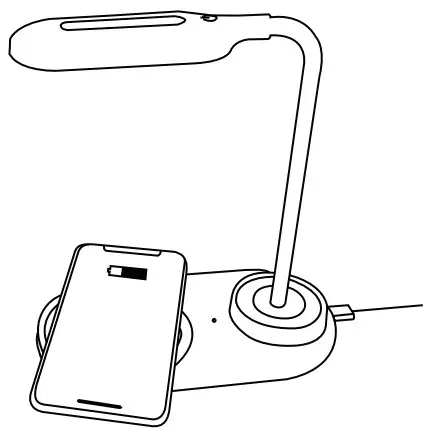

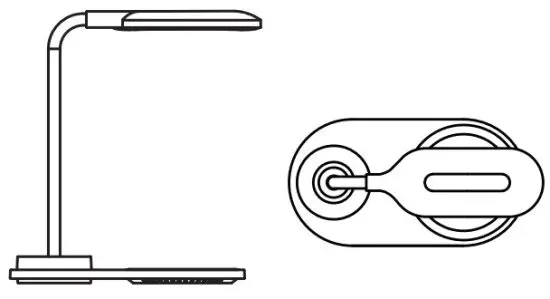

Product Outline
INSTRUCTIONS

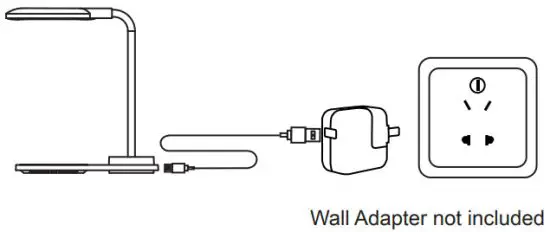

- Connect wireless charger (or with QC 2.0/3.0 Adapter-not included). The GREEN indicator will light up in 3 seconds then turn in BLUE in 15 seconds as Standby Mode.
- Put your phone on the wireless charging area then the phone starts to charge and the indicator flashes in BLUE and the indicator will stop flashing once your device is fully charged.
- Turn the LED lamp on/off by touching the on/off logo switch.
There’re 3 modes, Warm-Cold-Subdued-OFF.
Specifications
Model: EL192
Input: 5V/2A 9V/2A
Charging efficiency: 70%-80%
Input Power: 18W(max)
Output Power: 5V/1A 9V/1.1A
Standard Accessories
1 x Wireless Charging LED Lamp
1 x USB Charging Cable
1 x User Manual
Attention
- Keep the charger dry, do not spill water on the charger.
- Power off when cleaning charger.
- Use on normal temperature 15°C ~ 45°C degrees.
The distance between user and products should be no less than 20cm
FCC Warning Statement
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
