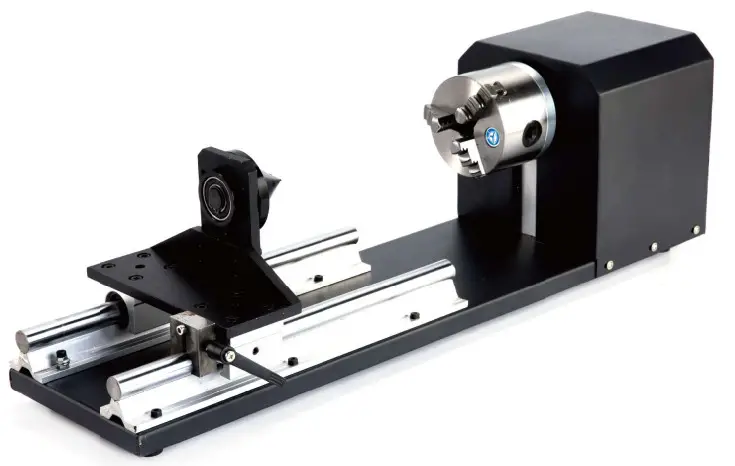

B09BVR8TBC Rotary Axis with Jaw Chuck Laser Engraving Rotary
User Manual
Safety Information
- Keep this device clean and free of potentially flammable or reflective dust and swarf.
- DO NOT place body parts in or near the engraving path.
- ALWAYS wear appropriate personal protective equipment such as protective eyewear when operating your laser. If this device is being used on an open bed, it is also recommended to secure the worksite or erect protective screens around the laser path to prevent injury to passersby.
- DO NOT use this device with items too wide for its chuck or too long for its rail.
- DO NOT assemble or disassemble this device without proper training.
Specifications
| Input Voltage | 24 V |
| Rated Power | 46 W |
| Swing over Bed | 3.7 in. (9.5 cm) |
| Bed Length | 22.8 in. (58 cm) |
| Bed Width | 6 in. (15 cm) |
| Carriage Travel Range | 0–11.8 in. (0–30 cm) |
| Chuck Diameter | 3.1 in. (7.9 cm) |
| Chuck Clamping Range | 0–1.1 in. (0–3 cm) |
| Spindle Bore Diameter | 0.6 in. (1.5 cm) |
| Product Dimensions | 6×22.8×7 in. (15×58×18 cm) |
| Net Weight | 19.8 lb. (9 kg) |
Installation
- Place this rotary axis on the workbed. Ensure that the placement allows the laser head to move along the full range of its X axis without obstruction.
- Connect the rotary device’s connection to the Y-axis port inside the engraver or the rotary axis port behind your engraver.
Maintenance
- Clean this device with a soft moist cloth to remove any dust or debris that may accumulate. Allow time for any moisture to air dry before further use.
- Apply a thin layer of lubricant to the chuck and spindle bore after cleaning.
Contact Us
Thank you for choosing our products! If you have any questions or comments, contact us at [email protected] and we’ll resolve your issue ASAP!
For a .pdf copy of the latest version of these instructions, use the appropriate app on your smartphone to scan the QR code to the right.
https://sp9c.com/TjCWp
LRA-KP58-00 Rev. 11 Feb. 2022
