Riley Ramps H3EA0EI DESKTOP Portable Bike Ramps
PARTS
| ITEM LIST | |
| ITEM | QTY |
| A | 2 |

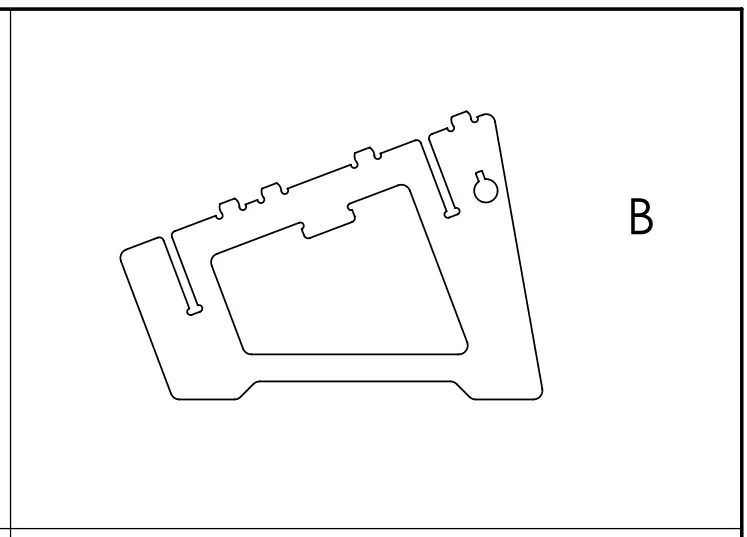

| B | 2 |
| C | 3 |
| D | 2 |
| E | 1 |
| F | 1 |
| G | 4 |
ASSEMBLY

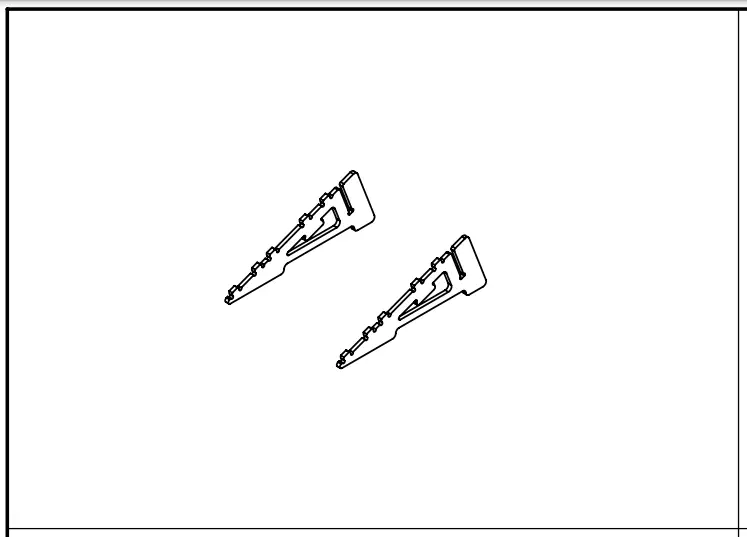

- Place both A pieces about 16 inches apart with slots facing up with slots facing up.

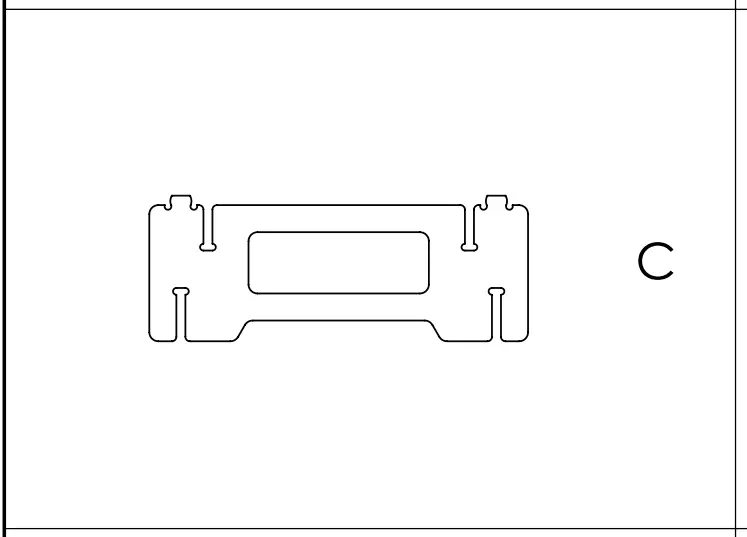

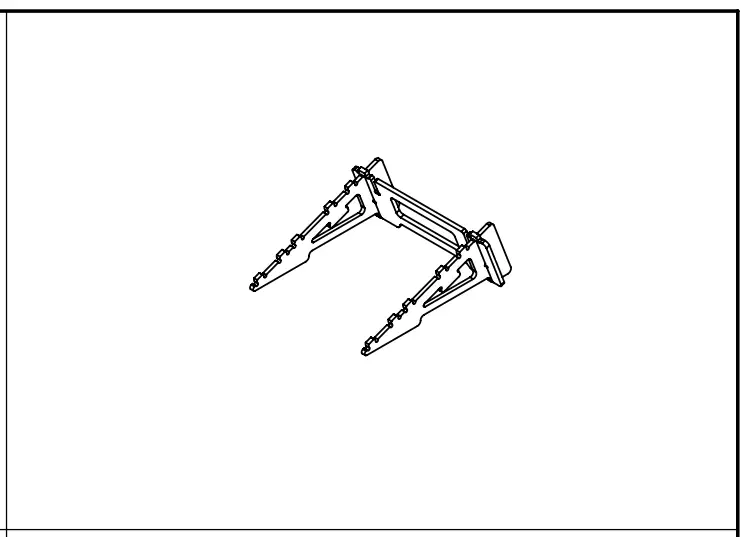

- Slide the bottom outside slot of 1 part C into the slot on both part A’s.

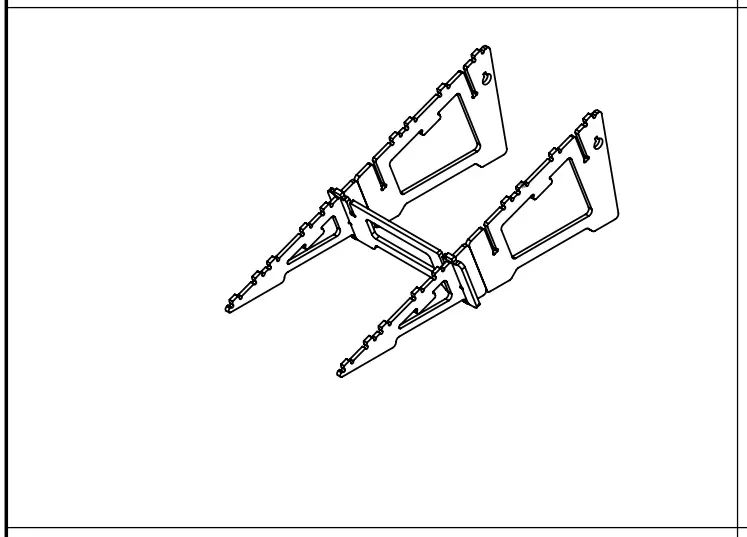

- Place both part B’s behind parts A with slots facing up.

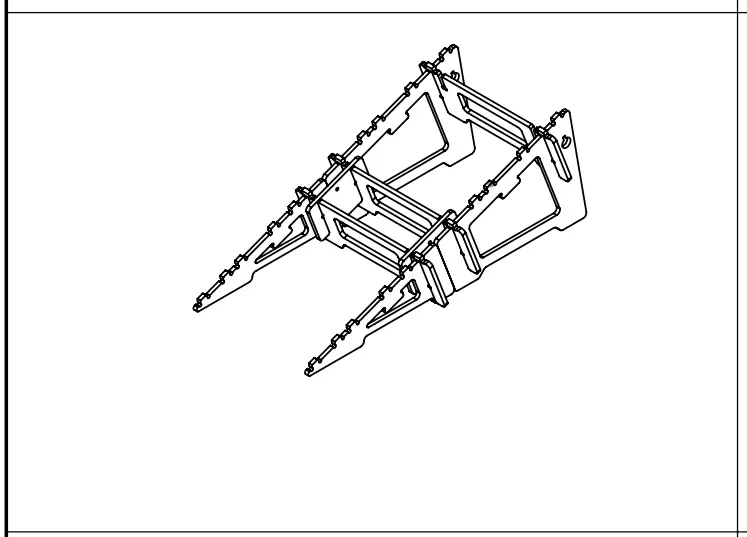

- Slide the bottom outside slot of 2 part C’s into the slots at both ends of part’s B.

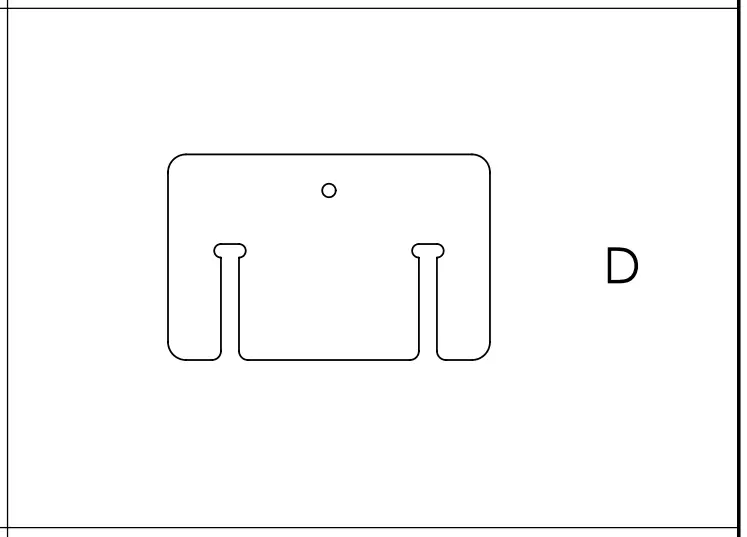

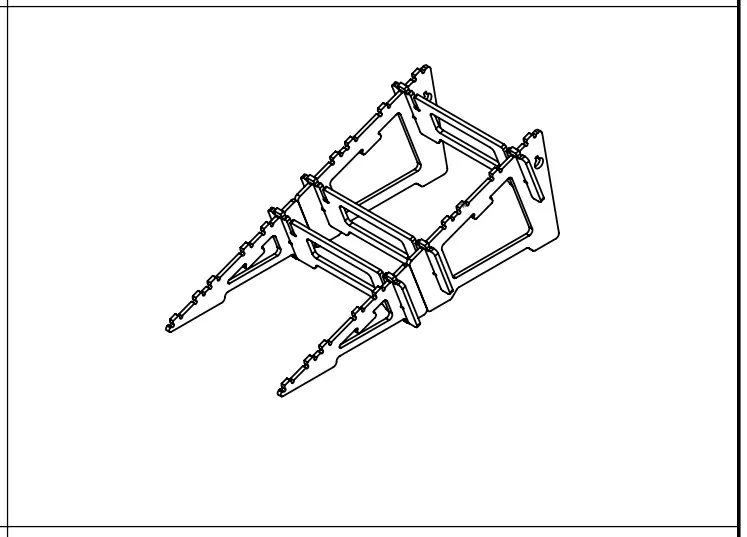

- Connect the portions of the ramp by sliding both parts D into the slots on parts C that are in both parts A and B.

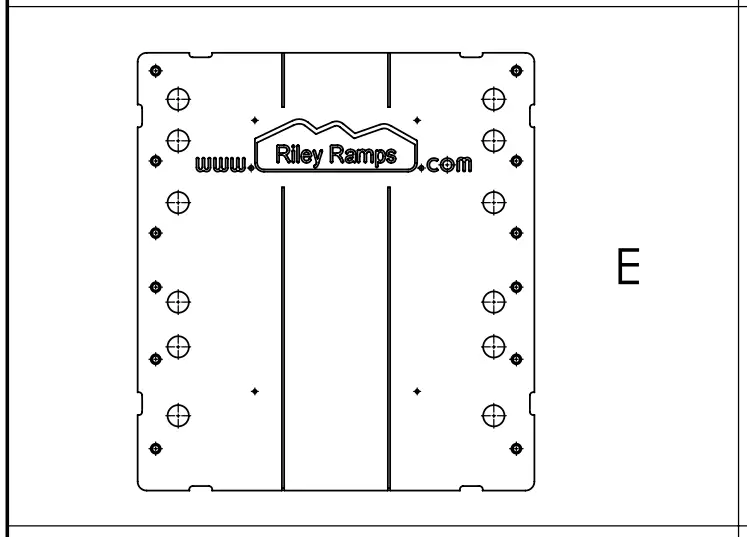

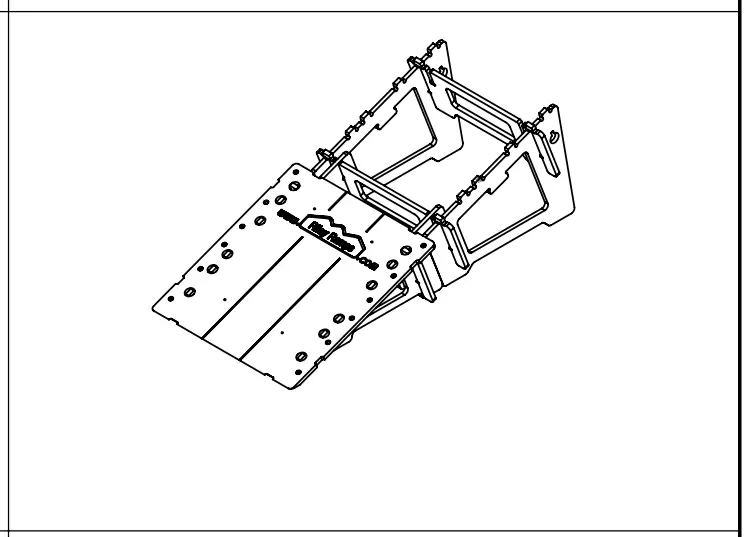

- Place part E (deck with logo) on both part A’s. Making sure the nodules go into the holes.

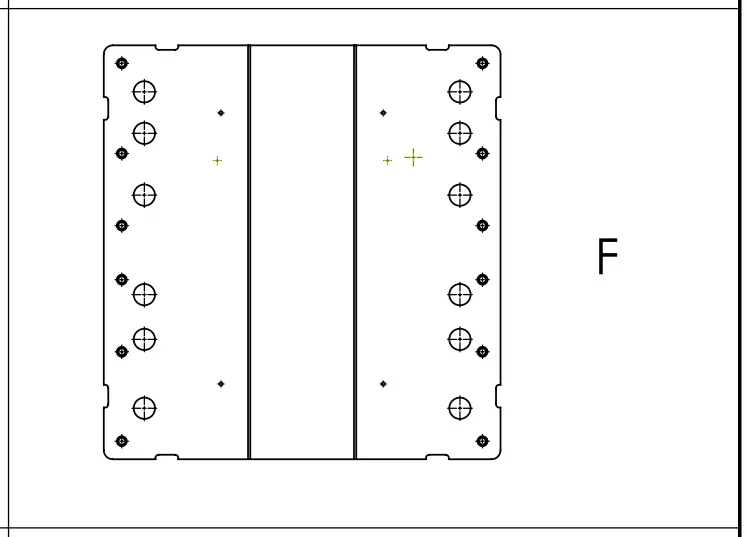

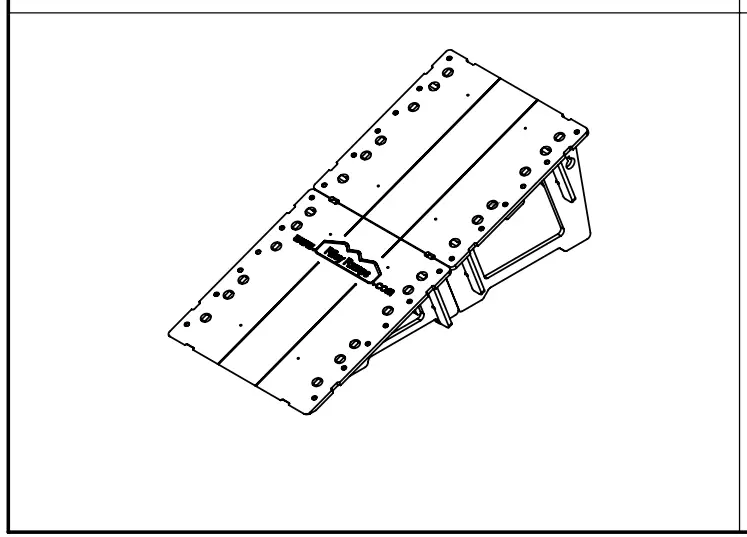

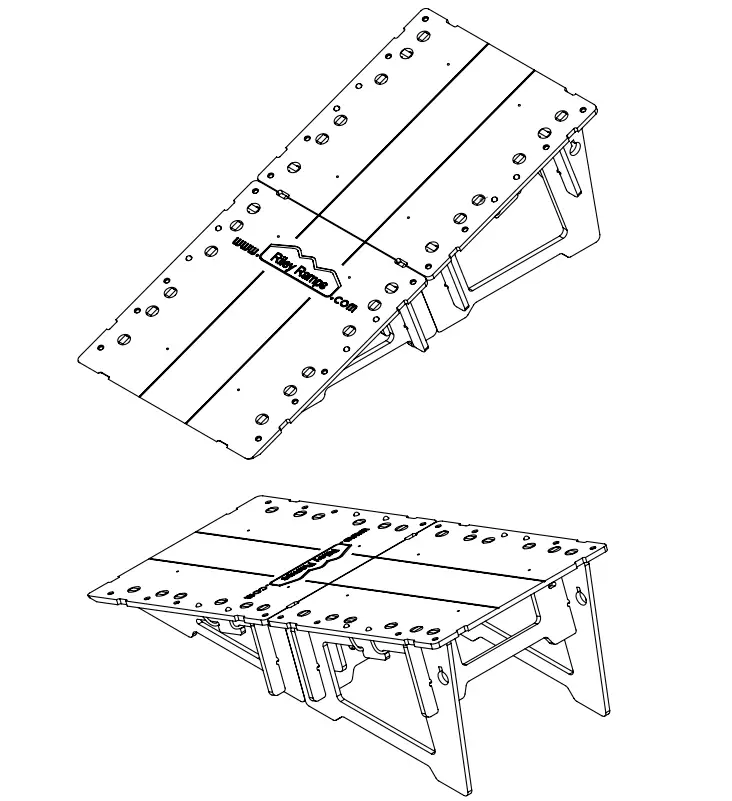

- Place part F on both parts B’s making sure the nodules go into the holes.

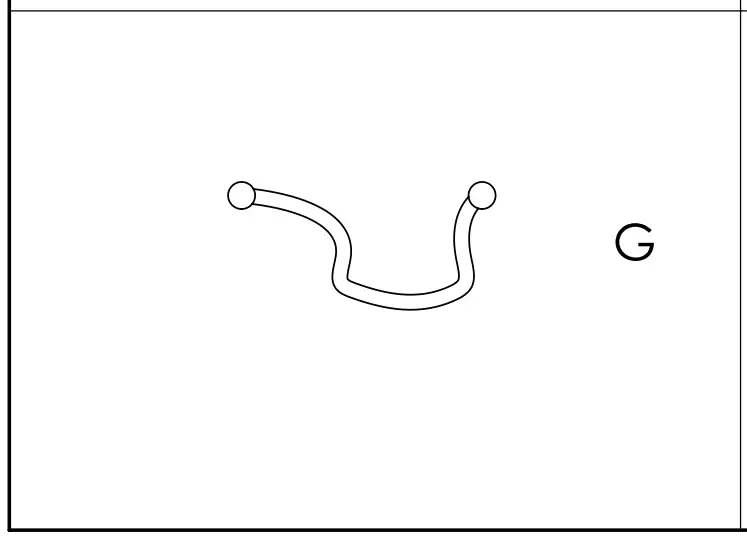

- Secure items using cord item G on both sides.
