Mobilex 306040-306601 Rubber Ramps User Manual (+ PDF)

306040-306601 Rubber Ramps
User Manual
Rubber ramps
With non-slip surface for Indoor and outdoor use
Made of rubber (TPE) – PVC free
Available w/without glue on the back side
Mobilex A/S
Grønlandsvej 5
DK-8660 Skanderborg
www.mobilex.dk

Contents hide

1 306040-306601 Rubber Ramps

2 Introduction

3 Safety requirements

4 Description

5 Technical Data:

6 Care & Maintenance

7 Most common problems and solutions

8 Disposal of the product

9 Guarantee terms

10 Documents / Resources

10.1 References

11 Related Posts

306040-306601 Rubber Ramps


Rubber ramps Available in heights from 4 mm to 60 mm Widths 700 – 900 – 1000 mm	Accessories Glue tape for adhere to floor Adhesive removal Mounting brackets	Customization Multiple possibilities for height and width adjustments

Introduction

We are pleased that you have purchased a quality product from Mobilex. This user manual contains a detailedproduct description and essential instructions for the correct use of the product. Therefore, please read this manual carefully before using the product. Please pay attention to all precautions, especially the safety instructions, and always comply with them in order to achieve a safe and long-lasting use of the product.
Intended use of the product
The product is a medical device used by elderly people or people with mobility impairments who need equipment to overcome obstacles, such as steps, with or without the assistance of a caregiver. The ramps are designed to compensate for level differences down to 4 mm and up to 60 mm. With the additional option of modular construction.
The ramps can be used indoors as well as outdoors. No other use than that described in the purpose statement is permitted.
Indications
Ramps are indicated for people with mobility limitations who due to problems with walking, standing or sitting are forced to use mobility devices such as wheelchairs, scooters, rollators etc. Ramps are indicated for elimination of architectural obstacles by smooth connection of the level differences that a wheelchair user has to overcome and thus they allow the wheelchair user to reach places normally inaccessible to him/her.
The ramp is intended for use independently or with the help of an attendant. Using the ramp for purposes other than those indicated above, is prohibited.
Contraindications
Contraindications cannot be tied to a specific clinical picture. The choice of a suitable ramp type and length must always be made with the help of a specialist doctor or physiotherapist. Observe the safety information in chapter 2.
If you have any questions, please contact your dealer or Mobilex A/S

Mobilex A/S
Grønlandsvej 5
DK-8660 Skanderborg
Denmark
Phone: +45 87 93 22 20
Telefax: +45 87 93 17 77
Email: [email protected]

Safety requirements

Only use the product in perfect condition.
If any defects or faults are found in the product, the dealer should be contacted immediately.
Pay attention to the information on the product label.
Use the product only for the stated purpose.
Make sure that this user manual is read by all persons using the ramp. Damage caused by not following the user manual will not be compensated.
Use the ramp only for its intended purpose.
Only use ramps that are in good technical condition.
The ramp may only be used on a stable surface.
The product must never be subjected to loads exceeding a total of 350 kg.

Description

Product description

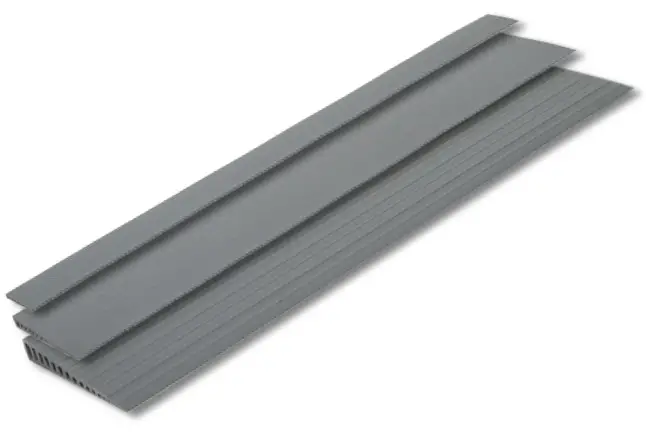

Mobilex rubber ramps are made of TPE and contain no toxic substances (PVC free). The product has a grooved surface which makes it slip-resistant. The ramps can be used both indoors and outdoors.
Parts supplied:
✔ This instruction manual
✔ 1 or more rubberramps

First control
Check above that nothing is missing. If anything is missing, contact the retailer of the product immediately.

Mounting and assembly instructions
The rubber ramp mounting kit consists of two mounting brackets that are installed in the doorstep. It is then possible to mount rubber ramps without gluing the ramp to the substrate (item no. 306910).

Cutting of rubber ramps

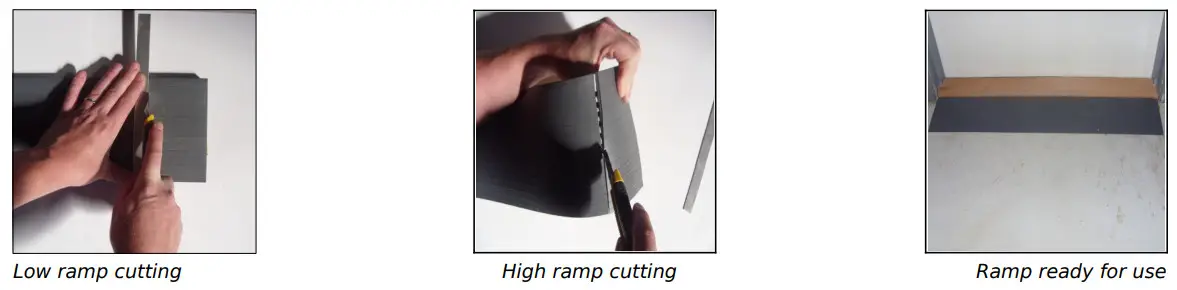

The rubber ramps are easily adjusted in width with a sharp hobby knife or saw blade from Mobilex (art. no. 306904).
For higher ramps, it is necessary to cut several times in the same groove. After each cut, break the ramp backwards to facilitate the next cut.

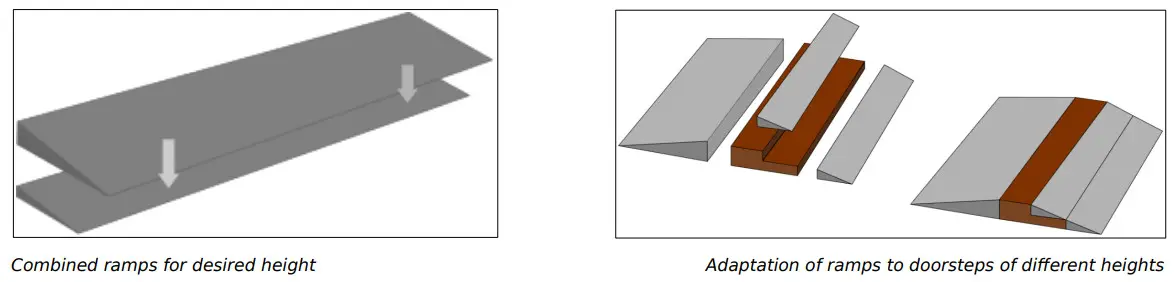

Possibility to combine the ramps with modular construction
Measurements on the outside, inside and possibly the height of a rubber ramp. Choose suitable ramps.

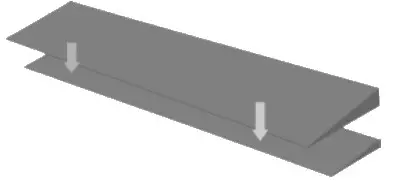

Can also be built on top of each other.

Accessories

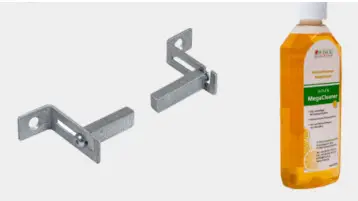

The following accessories are available for the rubber ramps:
Mounting set for rubber ramp zinc plated, 28-60 mm height (306910)
Jigsaw blade for rubber ramp (306904)
Double adhesive tape, width 20 mm, length 50 meter (306911)
Double adhesive tape, width 35 mm, length 50 meter (306912)
Degreaser for removal of glue 1/2 L (306905)

Transport recommendations
The ramps are removable if not glued and can therefore be easily moved to a new location if necessary

Technical Data:

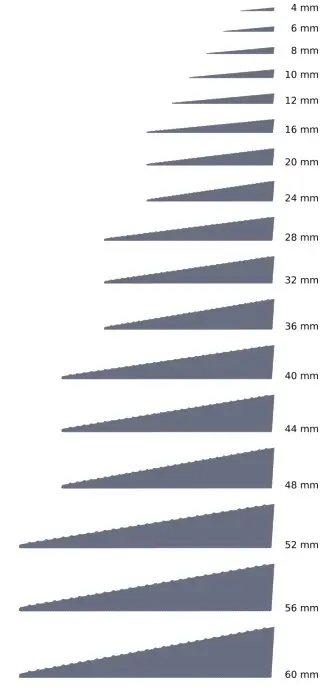

Height	Depth	Width	Weight
4 mm	40 mm	900 mm	130 g
4 mm	40 mm	1000 mm	150 g
6 mm	60 mm	900 mm	310 g
6 mm	60 mm	1000 mm	350 g
8 mm	80 mm	900 mm	490 g
8 mm	80 mm	1000 mm	540 g
10 mm	100 mm	900 mm	770 g
10 mm	100 mm	1000 mm	860 g
12 mm	120 mm	900 mm	1070 g
12 mm	120 mm	1000 mm	1190 g
16 mm	150 mm	900 mm	1230 g
16 mm	150 mm	1000 mm	1370 g
20 mm	150 mm	900 mm	1850 g
20 mm	150 mm	1000 mm	2050 g
24 mm	150 mm	900 mm	1950 g
24 mm	150 mm	1000 mm	2170 g
28 mm	200 mm	900 mm	2180 g
32 mm	200 mm	900 mm	2960 g
36 mm	200 mm	900 mm	3990 g
40 mm	250 mm	900 mm	3550 g
44 mm	250 mm	900 mm	4250 g
48 mm	250 mm	900 mm	5190 g
52 mm	300 mm	900 mm	5800 g
56 mm	300 mm	900 mm	6500 g
60 mm	300 mm	900 mm	7700 g

Rubber ramps are also available in length 700 mm in sizes 10-48 mm (all models with self-adhesive tape).
NOTE! Dimensions and weight of rubber ramps may vary.
Product label

MOBILEX A/S
Grønlandsvej 5
DK – 8660 Skanderborg
Tel: +45 87 93 22 20
www.mobilex.dk

Rubber ramps
with glue 4 x 40 x 900mm
Image of the product label

Overview icon meaning

	QR-code link to homepage		Manufacturing date
	Manufacturer		Max load
	Observe the user manual		Max width
	To be used indoor and outdoor		serial no
	CE marked product		Item Number
	Max load basket		Medical Device
	Only to be used indoor

Care & Maintenance

The rubber ramps are maintenance-free and can be easily cleaned with ordinary detergents. Machine washable according to The Danish Serum Institute guidelines for MRSA in home care and in nursing homes.
✔ Cleaning and disinfection of the product
Recommended service life: Normally 10 years depending on use.
Storage
We recommend storage in a dry place.
Reuse
The product is suitable for reuse. Before reusing, where a new user is to take over the product, the product must be checked according to point 5.

Most common problems and solutions

Symptoms	possible cause	what to do?
The rubber ramp is unstable or does not stay in the desired position	The surface is not level	Use the mounting kit to attach the ramp to the doorstep or seek alternative attachment methods*

* On delicate surfaces such as carpets and wooden floors, it is not recommended to attach rubber ramps with adhesive tape.

Disposal of the product

The device cannot be deposited with normal garbage. It must be delivered to the public station for re-use.

Guarantee terms

Mobilex A/S offers 2 years of warranty for damages caused by errors in production or material errors. The warranty is not valid by not-intended repair or usage of the product. Parts subject to normal wear are not covered by the warranty, unless wear is caused by a manufacturing fault. If product changes are made without our written acceptance the CEmarking and product warranty will not be valid. In the event of product damages covered by this warranty, please notify your dealer or Mobilex A/S directly.
The warranty does not cover transport costs and does not include compensation for personal injuries or non-use of the product during repair. The warranty does not cover damages due to the user manual not being followed.

https://mobilex.dk/en/aids/threshold-ramps/

In case of unintended incidents or suspected faults, failures or defects of the product, the dealer or Mobilex A/S must be contacted

Declaration of Conformity (CE)
Mobilex A/S, Grønlandsvej 5, DK-8660 Skanderborg, Denmark, SRN: DK-MF-000021885
Hereby declare under our sole responsibility as a legal manufacturer that the product specified on the product list below, meet the essential health and safety requirements and is in conformance with the provisions of the Regulation (EU) 2017/745 OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL on medical devices.
The product specified on the product list below is “technical aid for the disabled”, classified as Class I, medical device.
The CE marking has been affixed on the product according to Annex V of the Regulation (EU) 2017/745.

PRODUCT LIST

REF/item no.	30610L	30612L	30616L	30620L	30624L
UDI-DI	5740001430004	5740001430011	5740001430028	5740001430035	5740001430042
REF/item no.	30628L	30632L	30636L	30640L	30644L
UDI-DI	5740001430059	5740001430066	5740001430073	5740001430080	5740001430097
REF/item no.	30648L	306040	306041	306042	306060
UDI-DI	5740001430103	5740001430110	5740001430127	5740001430134	5740001430141
REF/item no.	306061	306062	306080	306081	306082
UDI-DI	5740001430158	5740001430165	5740001430172	5740001430189	5740001430196
REF/item no.	306100	306101	306102	306120	306121
UDI-DI	5740001430202	5740001430219	5740001430226	5740001430233	5740001430240
REF/item no.	306122	306160	306161	306162	306200
UDI-DI	5740001430257	5740001430264	5740001430271	5740001430288	5740001430295
REF/item no.	306201	306202	306240	306241	306242
UDI-DI	5740001430301	5740001430318	5740001430325	5740001430332	5740001430349
REF/item no.	306280	306281	306282	306320	306321
UDI-DI	5740001430356	5740001430363	5740001430370	5740001430387	5740001430394
REF/item no.	306321	306322	306360	306361	306362
UDI-DI	5740001430394	5740001430400	5740001430417	5740001430424	5740001430431
REF/item no.	306400	306401	306402	306440	306441
UDI-DI	5740001430448	5740001430455	5740001430462	5740001430479	5740001430486
REF/item no.	306442	306480	306481	306482	306520
UDI-DI	5740001430493	5740001430509	5740001430516	5740001430523	5740001430530
REF/item no.	306521	306522	306560	306561	306562
UDI-DI	5740001430547	5740001430554	5740001430561	5740001430578	5740001430585
REF/item no.	306600	3066601	306602
UDI-DI	5740001430592	5740001430608	5740001430615

ACCESSORIES LIST

Item no	Accessories item no.
30610L- 306602	306904: Jigsaw blade for rubber ramp 306911+12: Double adhesive tape 306905: Degreaser for removal of glue 306910: Mounting set for rubber ramp zinc plated

Harmonized norms used during conformity estimation: PN-EN ISO 11199-3:2008; EN ISO 14971:2011, EN 1041:2009
In case of unintended incidents or suspected faults, failures or defects of the product, the dealer or Mobilex A/S must be contacted
EU2017/745 for Medical Equipment

Managing Director

Serial number / notes
