PRO & PURE
Instruction Manual
CONGRATULATIONS
I am very happy that you have chosen this Supernova high performance product! My development team has spared no effort and our product testers have ridden thousands of kilometers in adverse conditions to offer you a product you will enjoy for a long time.
I wish you a great ride at all times!

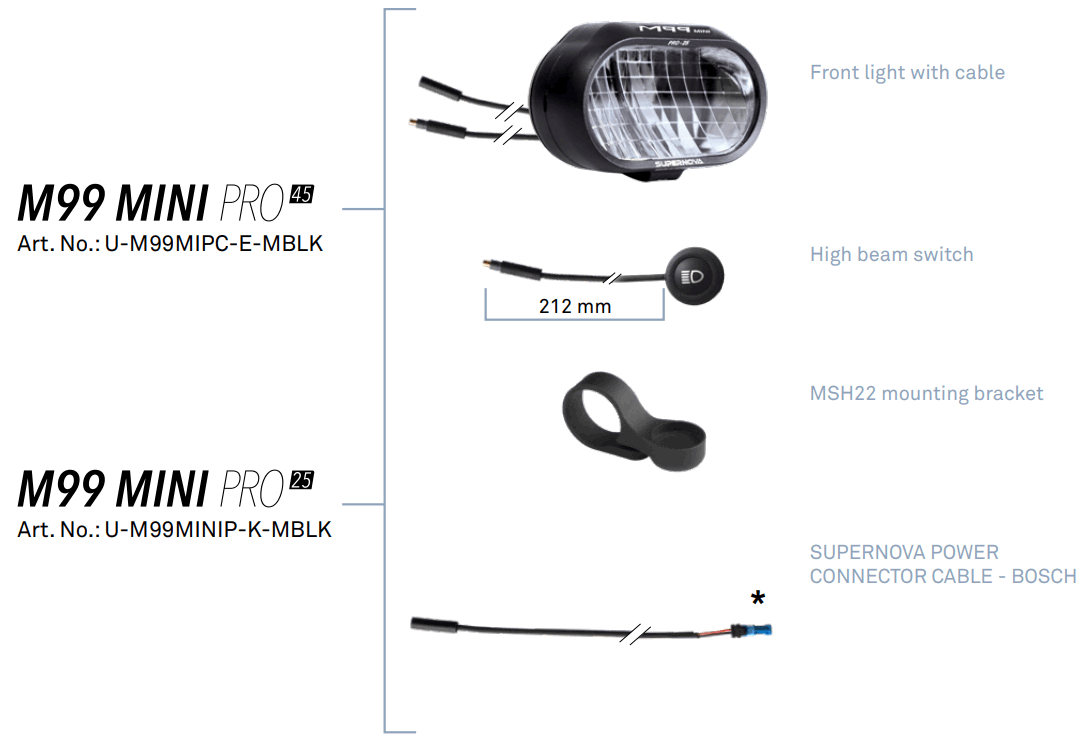

PRODUCT CONTENT
TECHNICAL DATA
| Low beam | 700 lm, 250 lx |
| High beam | 1.300 lm, 270 lx |
| Wattage | 8.6 – 16 W |
| Input voltage | 12 V DC |
| Approvals |  ECE 113C – 014695 |
| Illuminant | 10 x HIGH POWER LEDs |
| L x W x H | 38 x 78 x 50 mm |
| Weight | 120g |
| Color | Matte black |
| Warranty | 3 year |
| Low beam | 450 lm, 150 lx |
| High beam | 1. 150 lm, 260 lx |
| Max. wattage | 5V: 10 W / 6 V: 8 W / 12 V: 16 W* |
| Input voltage | 5 V – 13.5 V DC |
| Approvals | ~ K 1456 |
| Illuminant | 10 x HIGH POWER LEDs |
| L x W x H | 38 x 78x 50 mm |
| Weight | 120 g |
| Color | Matte black |
| Warranty | 3 year |
Automatic power adaption to the port power. This means that the light will have more power on a 12 V port than on a 6 V port.
| Low beam | 400 lm, 150 lx |
| Wattage | 5.2 W |
| Input voltage | 5 V – 13.5 V DC |
| Approvals | ~ K 1456 |
| Illuminant | 5 x HIGH POWER LEDs |
| L x W x H | 38 x 78 x 50 mm |
| Weight | 110 g |
| Color | Matte black |
| Warranty | 3 year |
Information on compatibility with e-bike drives & mounting options can be found in our download area under:
https://supernova-lights.com/service/downloads/
INSTALLATIO
Link to all video tutorials
http://www.supernova-lights.com/page/tutorials

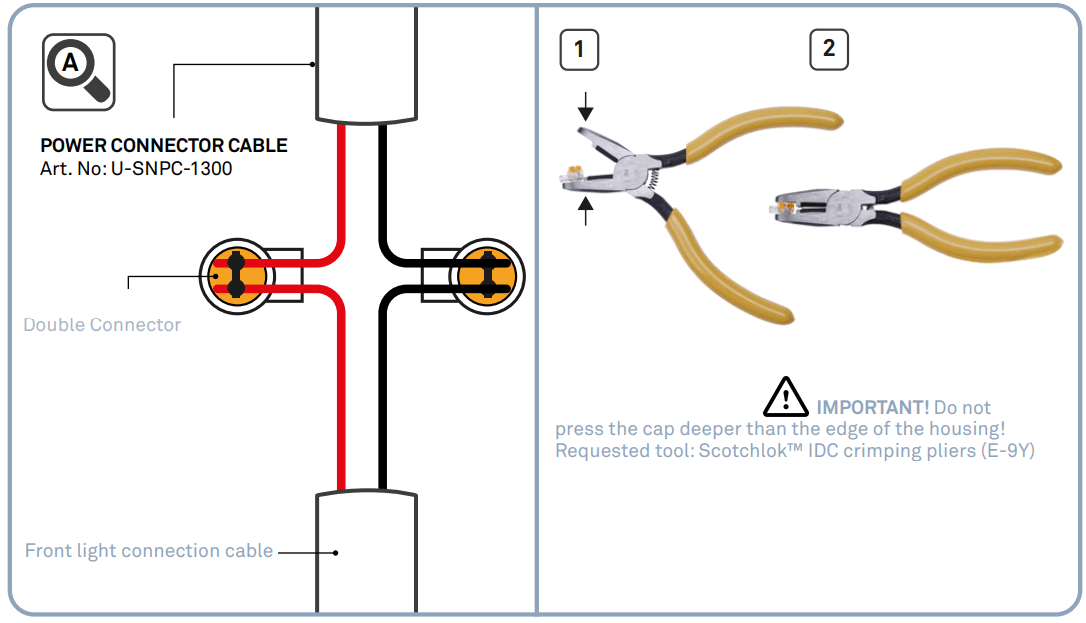

INSTALLATION

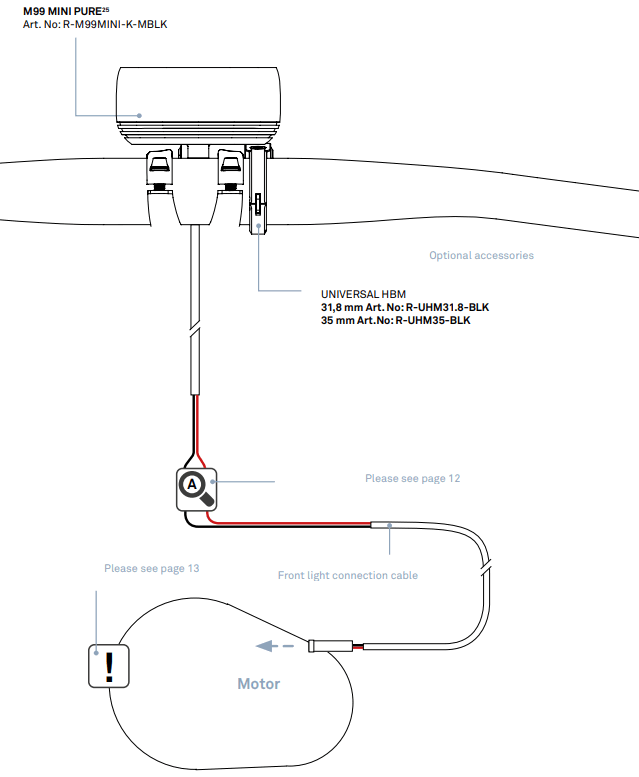

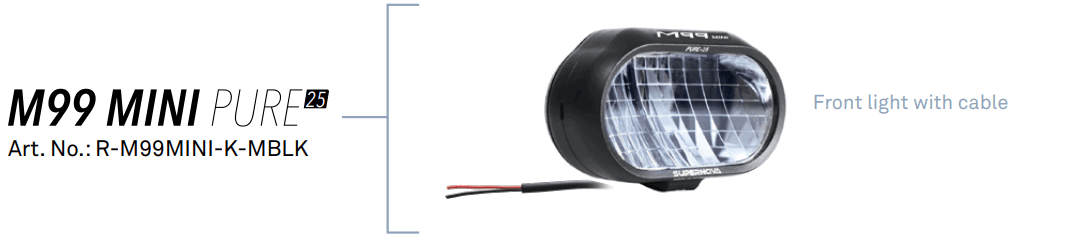

M99 MINI
IMPORTANT! Please check if the light port is set to 6 V or 12 V or if it is activated at all. A certified e-bike dealer can check this for you. If another light was installed before, you can use that as voltage reference.

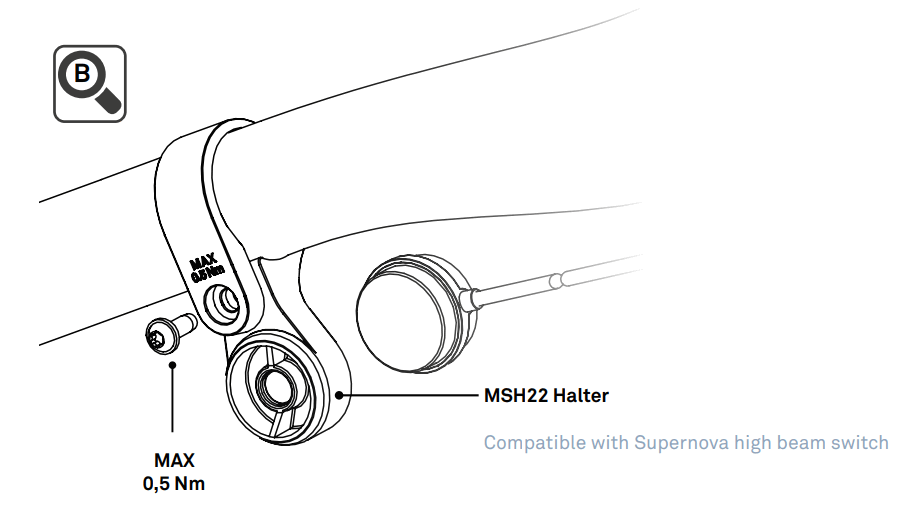

HIGH BEAM SWITCH
M99 MINI PRO45 / M99 MINI PRO25

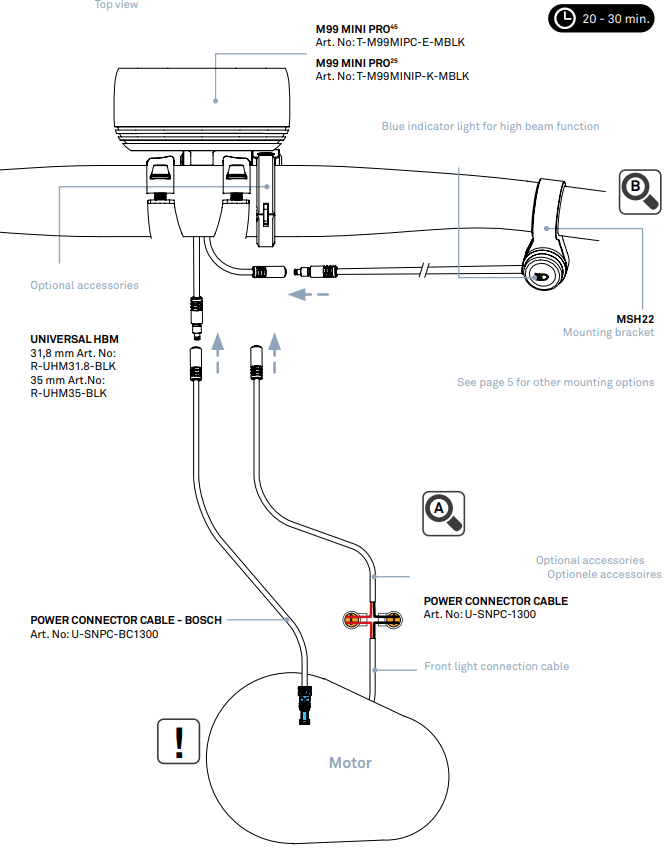

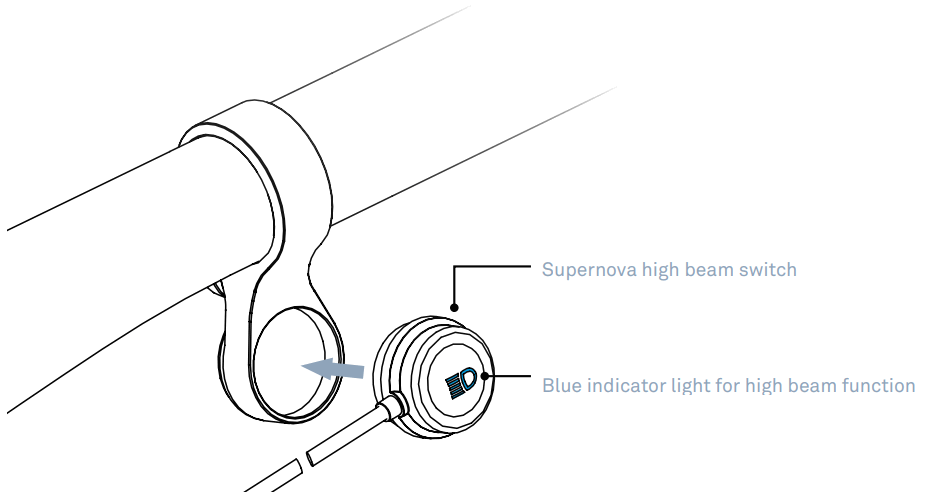

High beam switch installation
Gold contact plug
In order to protect the gold coating, we recommend not to disconnect the plug connection to the high beam switch frequently.
MANUAL SWITCHING FUNCTION
MANUAL SWITCHING FUNCTION FOR M99 MINI PRO25 CAN NOW BE ACTIVATED
The newest generation of the M99 MINI PRO-25 can be set to be manually switchable with the high beam switch. This function is intended for e-bikes like the Specialized
Turbo Levo that constantly supply the light port with power when the bike is switched on.
Please refer to the enclosed instructions to activate the manual or automatic mode.
Top view
Link to all video tutorials
http://www.supernova-lights.com/page/tutorials
ADJUSTMENT

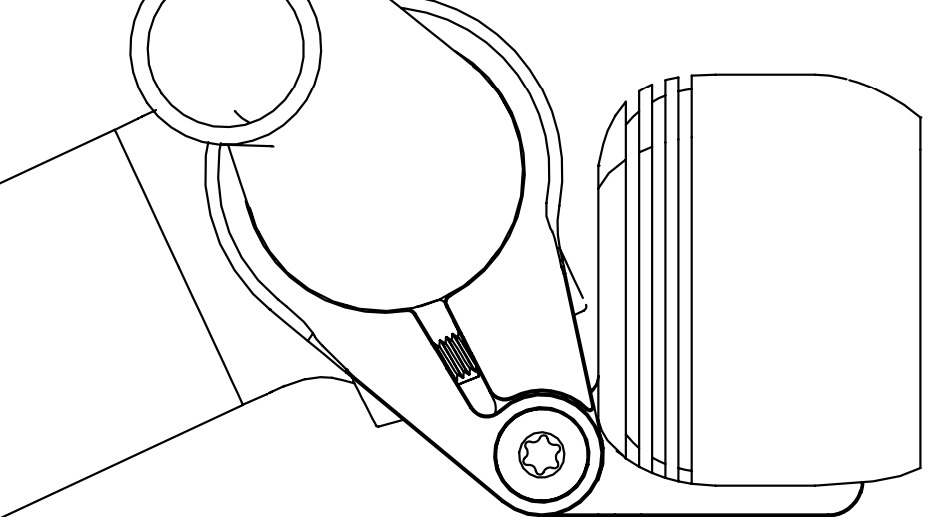

IMPORTANT! HORIZONTAL INSTALLATION The reflector is installed in the lamp body with a 1° downward angle, as required.
Horizonta
Distance to the wall 2 m

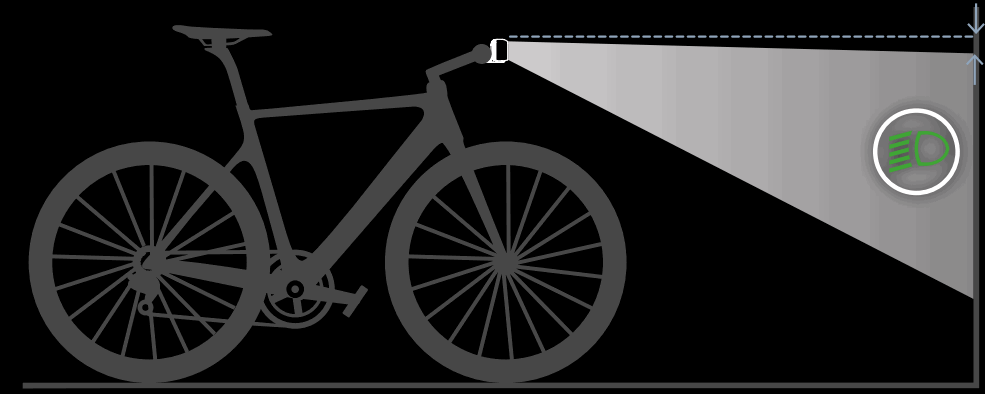

Top edge front light
Suggested adjustment approximatly 7 cm under the top edge of the front light.
German road law
GENERAL INFORMATION
CARE INSTRUCTIONS
- Never use a high-pressure hose
- Clean with water and a soft, clean cloth
- Do not use aggressive cleaning agents (also no alcohol!)
- Check the mounting bolts from time to time
GARANTIE & SERVICE
3 year warranty*
The warranty is void if the housing is opened and in case of unqualified repairs. Registration and information can be found at: supernova-lights.com/register
More and more E-Bike motor manufacturers work with us to become Supernova-compatible. This means that we will regularly update this manual. Please compare the version number on the cover with the latest version on our website: supernova-lights.com/en/service/downloads/
Register your Supernova product at www.supernova-lights.com/register and extend the standard 2-year warranty to 3 years!
SUPERNOVA DESIGN GmbH
Industriestr. 26 • 79194 Gundelfingen
Germany
+49 (0) 761 600 629 – 0
[email protected]
www.supernova-lights.com
Marcus Wallmeyer, CEO & Chief Designer
