aafeurope COMPACT FILTER FOR EXPLOSION HAZARD ZONES
Features and Benefits
aafeurope COMPACT FILTER FOR EXPLOSION HAZARD ZONES
Features and Benefits- ISO 16890: ePM10 and ePM1
- Lightweight and easy to install
- Water repellent filter media
- Required ATEX documentation supplied with filters
- Grounding cables and fastening hardware provided with each filter
Applications
The VariCel V EX air filter provides directive-compliant safety over the entire range of ATEX hazardous zones. Combined with its high filtration efficiency the VariCel V EX filter is ideally suited for use in potentially explosive environments.
Configurations
| Filter media | Glass fibre |
| Pack design | Mini-pleat V-shape |
| Separator | Hot-melt |
| Gasket (optional) | Polyurethane foamed endless gasket |
| Header | Lightweight plastic frames made of electrically dissipative plastic |
| Max. operating temperature | 80 oC |
| Recom. final pressure drop | Subject to optimization of lifecycle costs, max 450 Pa |
| Recom. airflow range | 75% – 125% (of nominal airflow) |
| Moisture resistance | 100% relative humidity |
| Ex protection characterization according 2014/34/EU | II 1G Ex h IIC Ga II 1D Ex h IIIB Da |
Performance VariCel V EX
TECHNICAL DATA
TECHNICAL DATA
|
Filter name |

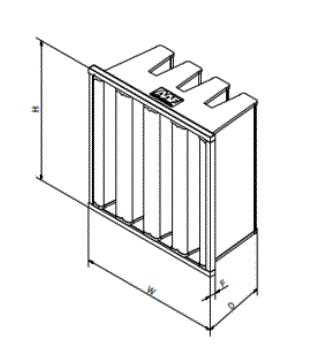

Dimensions (mm) W x H x D | Filter area (m2) | Number of V’s | Initial dp @ nominal airflow (Pa) | Nominal airflow (m³/h) | Prev. rated EN779:2012 |
ISO 16890 Classification | Average values | ||
| ePM1 (%) | ePM2,5 (%) | ePM10 (%) | ||||||||
|
VariCel V EX ePM10 75% | 287x287x296 | 2 | 1 | 50 | 390 | M6 | ePM10 75% | 30% | 42% | 75% |
| 287x592x296 | 8,5 | 2 | 80 | 1600 | M6 | ePM10 75% | 30% | 42% | 75% | |
| 490x592x296 | 12,8 | 3 | 80 | 2450 | M6 | ePM10 75% | 30% | 42% | 75% | |
| 592x287x296 | 7,3 | 4 | 75 | 1450 | M6 | ePM10 75% | 30% | 42% | 75% | |
| 592x592x296 | 17,6 | 4 | 80 | 3400 | M6 | ePM10 75% | 30% | 42% | 75% | |
|
VariCel V EX ePM1 55% | 287x287x296 | 2 | 1 | 60 | 390 | F7 | ePM1 55% | 56% | 67% | 88% |
| 287x592x296 | 8,5 | 2 | 90 | 1600 | F7 | ePM1 55% | 56% | 67% | 88% | |
| 490x592x296 | 12,8 | 3 | 90 | 2450 | F7 | ePM1 55% | 56% | 67% | 88% | |
| 592x287x296 | 7,3 | 4 | 90 | 1450 | F7 | ePM1 55% | 56% | 67% | 88% | |
| 592x592x296 | 17,6 | 4 | 90 | 3400 | F7 | ePM1 55% | 56% | 67% | 88% | |
|
VariCel V EX ePM1 65% | 287x287x296 | 2 | 1 | 80 | 390 | F8 | ePM1 65% | 67% | 76% | 92% |
| 287x592x296 | 8,5 | 2 | 100 | 1600 | F8 | ePM1 65% | 67% | 76% | 92% | |
| 490x592x296 | 12,8 | 3 | 100 | 2450 | F8 | ePM1 65% | 67% | 76% | 92% | |
| 592x287x296 | 7,3 | 4 | 100 | 1400 | F7 | ePM1 55% | 55% | 65% | 85% | |
| 592x592x296 | 17,6 | 4 | 100 | 3400 | F8 | ePM1 65% | 67% | 76% | 92% | |
|
VariCel V EX ePM1 80% | 287x287x296 | 2 | 1 | 95 | 390 | F9 | ePM1 80% | 81% | 86% | 96% |
| 287x592x296 | 8,5 | 2 | 105 | 1600 | F9 | ePM1 80% | 81% | 86% | 96% | |
| 490x592x296 | 12,8 | 3 | 115 | 2450 | F9 | ePM1 80% | 81% | 86% | 96% | |
| 592x287x296 | 7,3 | 4 | 105 | 1400 | F9 | ePM1 80% | 81% | 86% | 96% | |
| 592x592x296 | 17,6 | 4 | 105 | 3400 | F9 | ePM1 80% | 81% | 86% | 96% | |
American Air Filter Company, Inc. has a policy of continuous product improvement. This document is provided for informal review and es-tablishes no commitment or contract. We reserve the right to change any designs, specifications and products without notice, and we make no warranties regarding the subject matter of this document. Any use, copying or distribution of this document or any part of this document without our permission is prohibited.
