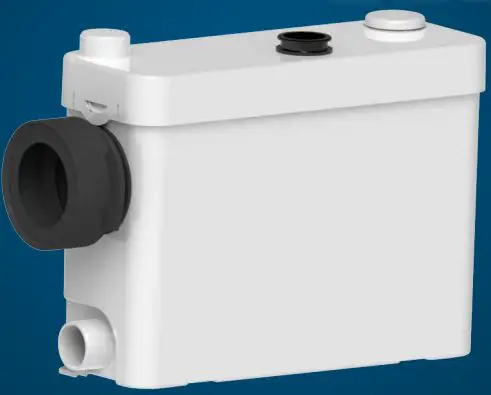

SFA SANIPACK SANINSIDE

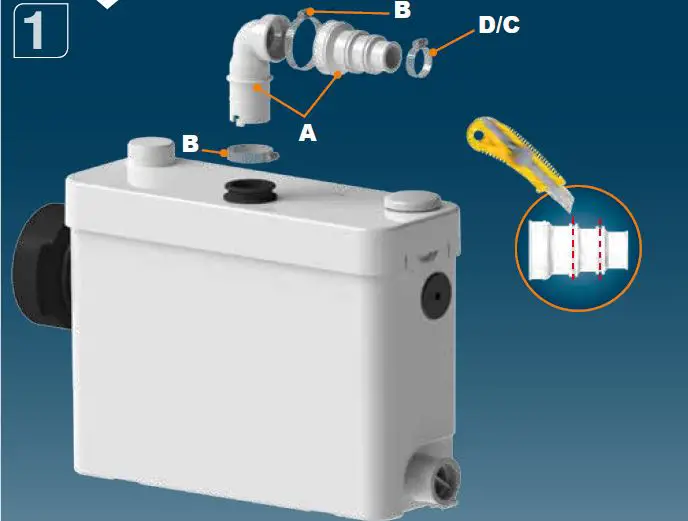

PARTS OVERVIEW

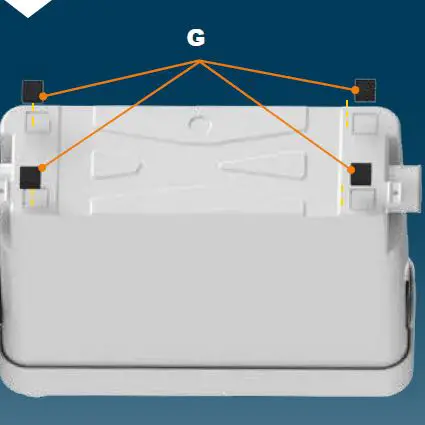

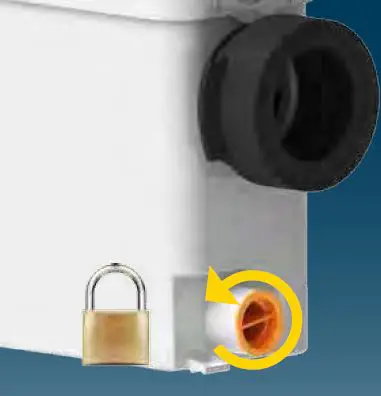

FIXATION PROCEDURE
DESCRIPTION
This macerator is manufactured in a fac-tory which is quality certified to ISO 9001. Installed and used correctly, the unit will give consistent and reliable service.This device is not designed for persons including children with limited physical, sensory or mental abilities, or those with minimal experience and knowledge, unless they are monitored and are given the necessary instructions for using the device, with the help of a person responsible for their safety. Monitor children and make sure they do not play with the device.
APPLICATIONS

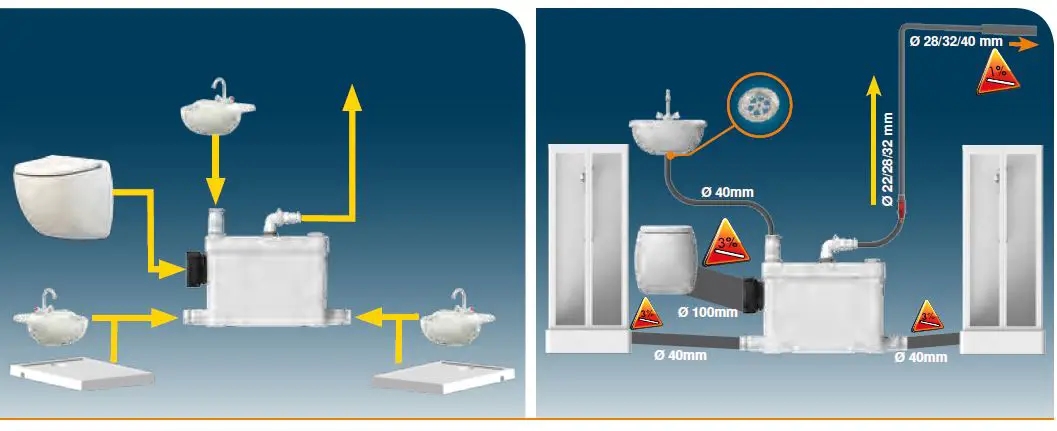

This appliance is a compact lift pump unit designed for removing waste water from a horizontal outlet toilet, shower, bidet or washbasin depending on the model. This appliance conforms to EN 12050-3 and the European standards concerning electrical safety and electromagnetic compatibility.

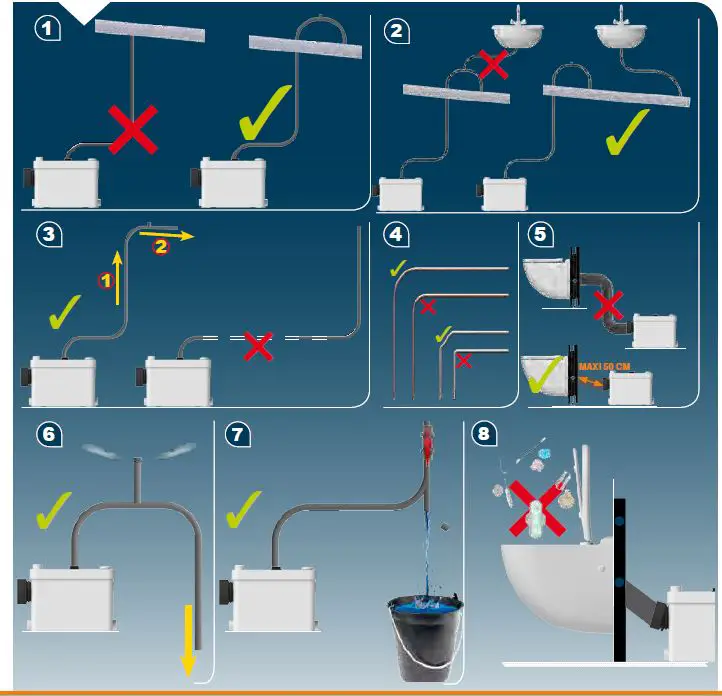

INSTALLATION
The unit should be accessible for possible service. The fitting and working of your appliance must meet local regulations and the EN 12056-4 standard. To optimise the latest technical develop ments concerning soundproofing incorpo-rated into this unit, it is important to contact with a partition or wall of the room surface to ensure that the resilient mounts are fully efficient distances of not more than one metre between the fastenings.
CONNECTION TO THE ELECTRICAL SUPPLY
The electrical installation should be carried out by a qualified person. The unit requires a 220/240V single phase AC 50 Hz supply (UK specification).
The power supply circuit of the ap-pliance must be earthed Class I and protected by a GFCI high sensitivity 30mA
Warning
Ensure the electri-city is turned OFF at the main switch board before wiring to connector. All wiring must conform to BS7671 connect the unit to a conventional plug and socket. It must be wired into a fused, unswitched, fixed wiring connector fitted with a 5 amp fuse. The wires in the mains lead are coloured in accordance with the following code
- Brown Live.
- Blue Neutral.
- Green/Yellow Earth.
The connection must be used exclusively to power the device. All work on cable, pressure chamber and motor should only be carried out by a qualified Saniflo servicing agent, as special tools are required. Please do not cut/shorten the electrical supply cable which can make it very difficult to remove in the event of a service requirement.
COMMISSIONING THE UNIT
Flush the WC checking that all seals, and connections are watertight. Check both the discharge pipework from the unit and the other sanitary appliances connections. Check the watertightness of connections to sanitary appliances toilet, shower, bidet or washbasin depending on the model.
MAINTENANCE
WARNING
In the event of prolonged absence it is essential to turn off the water supply to protect the installation against sub zero temperatures.
CARE OF YOUR UNIT
In order to remove scale and clean the macerator and the bowl, use the SANIFLO Pour an amount of cleanser into the pan.
- Leave it to stand for 1 or 2 hours.
- Re connect the macerator power supply.
- Rinse by operating the flushing system twice.
- Carry out the operation once every 3 months on average but the frequency may need to be changed depending on the hardness of the water.
FAULT FINDING / REMEDIES
IN ALL CASES, YOU MUST DISCONNECT THE MACERATOR FROM THE POWER SUPPLY
SYMPTOMS
| SYMPTOMS |
| MOTOR DOES NOT ACTIVATE |
| MOTOR EMITS A RATTLING OR crunching sound, hums, but does not run |
| MOTOR INTERMITTENTLY activates |
| MOTOR OPERATES NORMALLY BUT continues to run for a long time |
| UNIT STOPS |
| OTOR IS SURGING AND WATER in the WC pan goes down very slowly |
| LOUDY WATER COMES UP INTO the shower basin units with side inlets |
PROBABLE CAUSES
| PROBABLE CAUSES |
| ELECTRICAL POWER SUPPLY IS NOT ACTIVE ELECTRICAL POWER SUPPLY IS DEFECTIVE MOTOR OR THE CONTROL SYSTEM IS DEFECTIVE |
| Foreign object into the box PROBLEM WITH THE MOTOR OR THE CONTROL SYSTEM |
| CONNECTED SANITARY DEVICES ARE DRIPPING WATER NON RETURN VALVE IS FAULTY |
| LENGTH OR HEIGHT OF THE INSTALLATION IS OVER THE SPECIlCATION, OR THERE ARE TOO MANY BENDS!ELBOWS PUMP COVER PLATE IS PARTIALLY OBSCURED!BLOCKED |
| UNIT HAS BEEN RUNNING FOR TOO LONG (THERMAL CUT OUT |
| AIR DISPENSER IS CLOGGED UP s 0ROBLEM WITH MOTOR |
| HOWER INSTALLED TOO LOW AS COMPARED WITH THE MACERATOR UNIT INGED SIDE INLET DISCS CLOGGED UP |
REMEDIES
| REMEDIES |
| RESTORE THE ELECTRICAL SUPPLY
CHECK THE ELECTRICAL POWER supply OTHERWISE ASK AN APPROVED repair agent to intervene |
| REMOVE THE FOREIGN BODY OTHERWISE ASK AN APPROVED repair agent to intervene |
| OHECK THE INSTALLATION UPSTREAM
LEAN OR REPLACE THE NON RETURN valve |
| CHECK THE INSTALLATION
OTHERWISE ASK AN APPROVED repair agent to intervene |
| AIT FOR RESET THEN ASK AN approved repair agent to intervene |
| CLEAR THE AIR RELIEF HOLE OTHERWISE ASK AN APPROVED repair agent to intervene |
| CHECK THE INSTALLATION
CLEAN THE HINGED DISCS OTHERWISE ASK AN APPROVED repair agent to intervene |
GUARANTEE
2 years guarantee as from its date of purchase subject to correct installation and correct use.Only the disposal of toilet paper, faecal matter, and waste water will be under guarantee. Any damage due to foreign bodies such as cotton, condoms, sani-tary towels, wet wipes, food, hair, metal, wood or plastic objects, will not be under guarantee. Solvents, acids and other chemicals can also cause damage to the unit, and will invalidate the guarantee.
