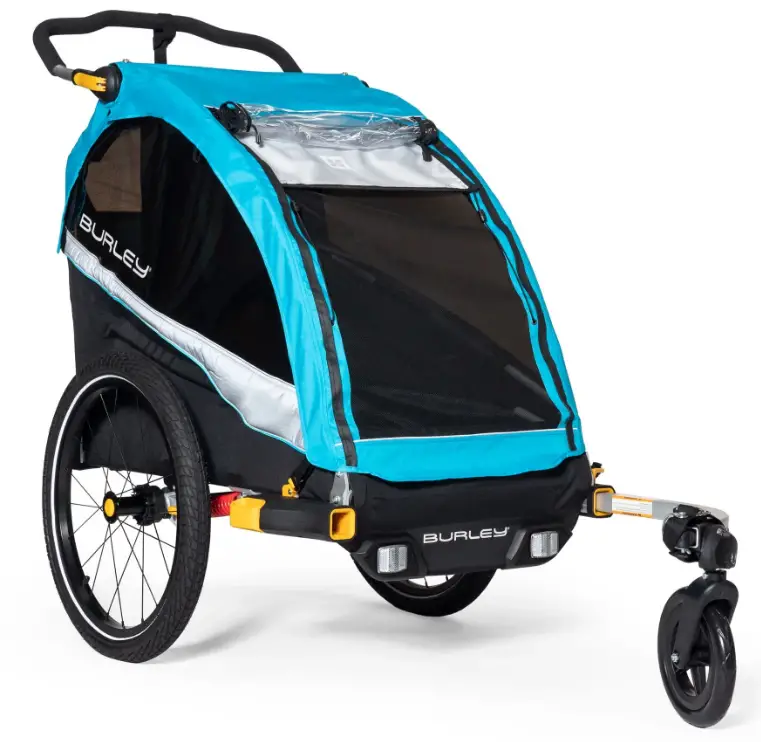

BURLEY 170555 D’Lite X Spare Parts
2019 Spare Parts

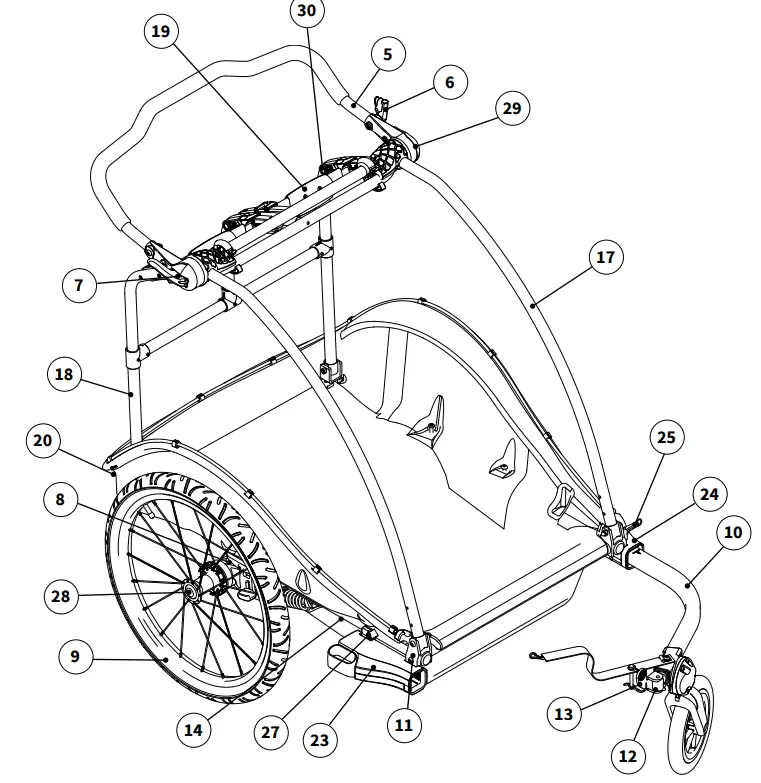

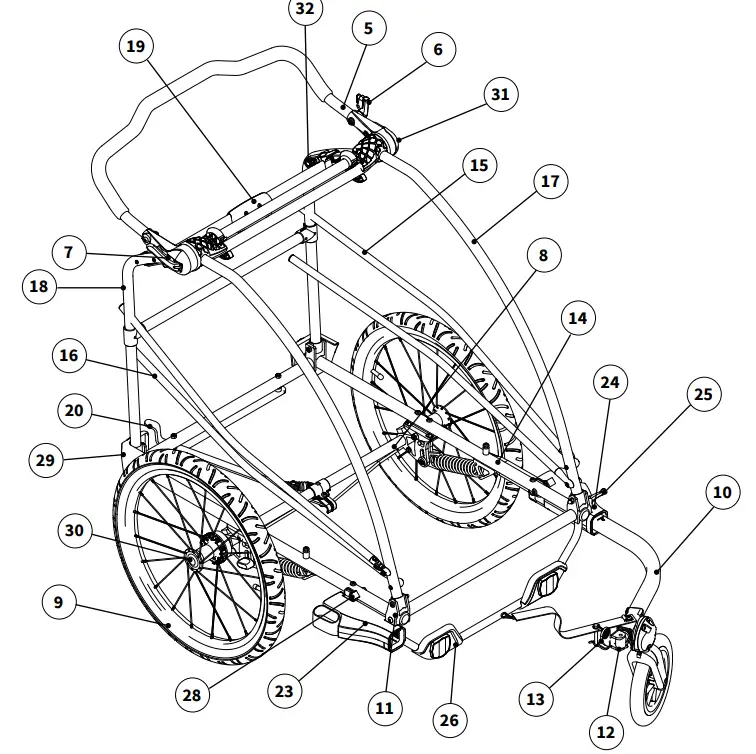

D’Lite Single, D’Lite, D’Lite X
| Number | Description | D’Lite Single | D’Lite | D’Lite X |
| 1 | Cover | 960309 | 960308 | 960307 |
| 2 | Safety Flag | 960009 | ||
| 3 | Shoulder Strap | 950326 | ||
| 4 | Pad Set | 960134 | 950328 | |
| 5 | Handlebar | 120444 | 120443 | |
| 6 | Flag Holder | 250530 | ||
| 7 | Handlebar Lever/Rod | 950325 | 950324 | |
| 8 | Axle Assembly | 250638 | 250637 | |
| 9 | Wheel | 160094 | ||
| 10 | Tow Bar Assembly | 250641 | 250640 | |
| 11 | Receiver Mounts | 250642 | ||
| 12 | Flex Connector | 950038 | ||
| 13 | Steel Hitch | 960116 | ||
| 14 | Lower Frame Kit | 250643 | 250644 | |
| 15 | Batten Kit Upper (pair) | 950163 | ||
| 16 | Batten Kit Lower (pair) | 950164 | ||
| 17 | Frame Assembly, Front | 950323 | 950322 | |
| 18 | Frame Assembly, Rear | 250646 | 250647 | 250645 |
| 19 | Recline Replacement | 250649 | 250648 | 250650 |
| 20 | Brake Kit | 250652 | 250651 | |
| 21 | Seat | 250624 | 250625 | 250626 |
| 22 | Floor/Bag | 250631 | 250632 | 250633 |
| 23 | Wheel Guard/Receiver Right | 250659 | ||
| 24 | Wheel Guard Left | 250658 | ||
| 25 | Secondary Pin | 250654 | ||
| 26 | Front Corner/Skid Guard | 250656 | ||
| 27 | Cover Attachment Hook | 250660 | ||
| 28 | Cover Attachment Loop | 250661 | ||
| 29 | Rear Corner | 250657 | ||
| 30 | Dust Cap | 950320 | ||
| 31 | Handlebar Covers | 250655 | ||
| 32 | Recline End Stop | 250662 | ||
| 33 | Jogging Tether | 240524 | ||

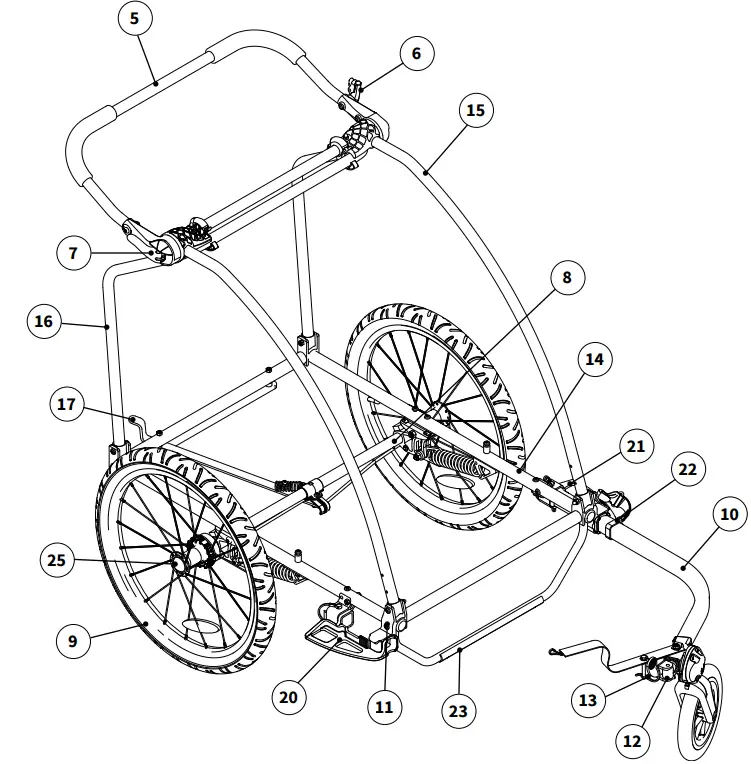

Encore, Encore X
| Number | Description | Encore | Encore X |
| 1 | Cover | 960311 | 960310 |
| 2 | Safety Flag | 960009 | |
| 3 | Shoulder Strap | 950326 | |
| 4 | Pad Set | 950329 | |
| 5 | Handlebar | 120442 | |
| 6 | Flag Holder | 250530 | |
| 7 | Handlebar Lever/Rod | 950324 | |
| 8 | Axle Assembly | 950088 | 250639 |
| 9 | Wheel | 160091 | |
| 10 | Tow Bar Assembly | 250486 | |
| 11 | Receiver Mounts | 950305 | |
| 12 | Flex Connector | 950038 | |
| 13 | Steel Hitch | 960116 | |
| 14 | Lower Frame Kit | 950309 | 950306 |
| 15 | Frame Assembly, Front | 950321 | |
| 16 | Frame Assembly, Rear | 950196 | |
| 17 | Brake Kit | 250651 | |
| 18 | Seat | 250622 | 250623 |
| 19 | Floor/Bag | 250630 | |
| 20 | Wheel Guard/Receiver Right | 250538 | |
| 21 | Wheel Guard Left | 250539 | |
| 22 | Receiver Safety Strap Kit | 250436 | |
| 23 | Front Corner/Skid Guard | 250214 | |
| 24 | Cover Attachment Hook | 240523 | |
| 25 | Dust Cap | 950319 | |
| 26 | Jogging Tether | 240524 | |
Cub X
| Number | Description | Cub X |
| 1 | Cover | 960306 |
| 2 | Safety Flag | 960009 |
| 3 | Shoulder Strap | 950326 |
| 4 | Pad Set | 950327 |
| 5 | Handlebar | 120443 |
| 6 | Flag Holder | 250530 |
| 7 | Handlebar Lever/Rod | 950324 |
| 8 | Axle Assembly | 250637 |
| 9 | Wheel | 160094 |
| 10 | Tow Bar Assembly | 250640 |
| 11 | Receiver Mounts | 250642 |
| 12 | Flex Connector | 950038 |
| 13 | Steel Hitch | 960116 |
| 14 | Lower Frame Kit | 950307 |
| 15 | Batten Kit Upper (pair) | 950163 |
| 16 | Batten Kit Lower (pair) | 950164 |
| 17 | Frame Assembly, Front | 950322 |
| 18 | Frame Assembly, Rear | 250645 |
| 19 | Recline Replacement | 250650 |
| 20 | Brake Kit | 250653 |
| 21 | Seat | 250626 |
| 22 | Floor/Bag | 250634 |
| 23 | Wheel Guard/Receiver Right | 250659 |
| 24 | Wheel Guard Left | 250658 |
| 25 | Secondary Pin | 250654 |
| 26 | Cover Attachment Hook | 250660 |
| 27 | Cover Attachment Loop | 250661 |
| 28 | Dust Cap | 950320 |
| 29 | Handlebar Covers | 250655 |
| 30 | Recline End Stop | 250662 |
| 31 | Jogging Tether | 240524 |

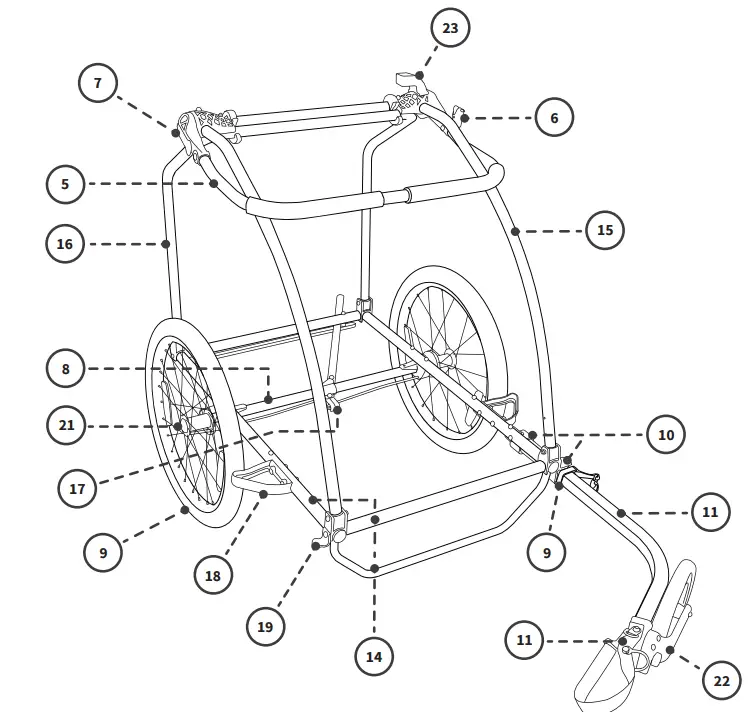

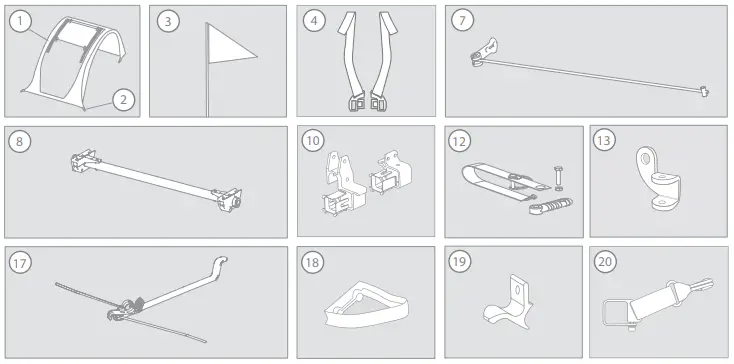

Honey Bee
| Number | Description | SKU |
| 1 | Cover | 960112 (red) |
| 2 | Cover Pull Tab | 240421 |
| 3 | Safety flag | 960009 |
| 4 | Shoulder strap (one pair for each child) | 950303 |
| 5 | Handle Bar ( Handle Bar tube, outer handle bar clamps & flag holder ) | 120075 |
| 6 | Flag holder (includes bolt & nut) | 250530 |
| 7 | Handlebar lever, rod & barrel nuts | 950154 |
| 8 | Axle assembly | 950088 |
| 9 | Wheel (includes push button axle, tire & reflectors) (sold individually) | 160041 |
| 10 | Tow Bar Receiver Kit, one side | 950005 |
| 11 | Tow bar assembly (tow bar, hitch safety strap & flex connector) | 250486 |
| 12 | Flex connector with safety strap | 950038 |
| 13 | Steel Hitch, 12.2mm | 960116 |
| 14 | Lower Frame Kit (L & R main frame tubes, front & rear cross frames, bag holder, hinges & hardware) | 950147 |
| 15 | Frame assembly, front (tubes & latches) | 950194 |
| 16 | Frame assembly, rear (tube) | 950196 |
| 17 | Brake Kit | 950188 |
| Seat (not shown) | 250454 | |
| Floor/side panels (not shown) | 250479 | |
| 18 | Wheel Guard Kit L/R | 250160 |
| 19 | Right front cover hook | 120119 |
| 20 | Receiver Safety Strap Kit | 250436 |
| 21 | Wheel Dustcap | 950123 |
| 22 | 1-Wheel Stroller Kit | 960047 |
| 23 | Light Holder | 960066 |
