BURLEY 170338 Nomad Spare Parts
2008-Present Replacement Parts
Nomad

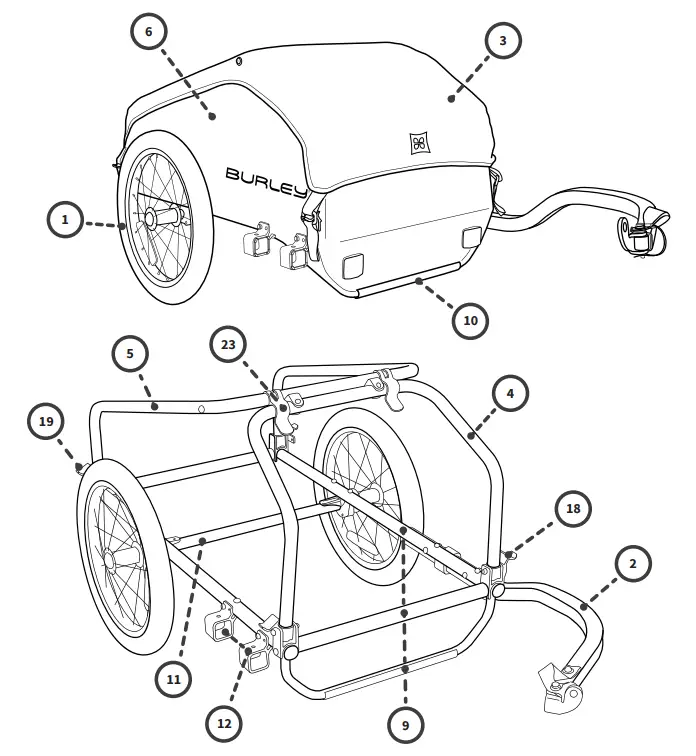

| Number | Description | Part Number | ||
| 2008 | 2009-13 | 2014- | ||
| 1 | 16” Wheel Assembly | 160015 | 160050 | |
| 2 | Tow Bar Assembly | 250072 | 250122 | |
| 3 | Cover | 4325401 | 960110 | |
| 4 | Front Frame | n/a | 250366 | |
| 5 | Rear Frame | n/a | 250367 | |
| 6 | Floor and Side Panels | n/a | 250323 | |
| 7 | Floor | 4326502 | n/a | |
| 8 | Right Side Panel w/ Frame | 950023 | n/a | |
| Left Side Panel w/ Frame | 950022 | n/a | ||
| 9 | Main Frame Assembly | 950028 | 950072 | 250344 |
| 10 | Skid Guard Kit | n/a | 250214 | |
| 11 | Axle Tube Assembly | 950029 | 950203 | |
| 12 | Tow Arm Reciever Kit | 950025 | 950019 | |
| 13 | Flex Connector w/ Hitch Safety Strap | 950037 | 950038 | |
| 14 | Steel Hitch, 12.2mm | 960116 | ||
| 15 | Safety Flag | 960009 | ||
| 16 | Dust Cap for Push Button Wheels | n/a | 950123 | |
| 17 | Cover Pull Tab | n/a | 240421 | |
| 18 | Front Cover Hook | n/a | 120119 | |
| 19 | Right Rear Cover Hook | n/a | 120214 | |
| Left Rear Cover Hook | n/a | 120200 | ||
| 20 | Side Rail Posts | 950026 | n/a | |
| 21 | Roll Bar with Knobs | 4310007 | n/a | |
| 22 | Snap Coupling Kit | 950027 | n/a | |
| 23 | Frame Latch (Single) | n/a | 250176 | |
| Frame Latch (Pair) | n/a | 950193 | ||
| 24 | Reflector Brackets | 950118 | ||
