Sena Sf4 Bluetooth Small Group Communication User Guide (+ PDF)

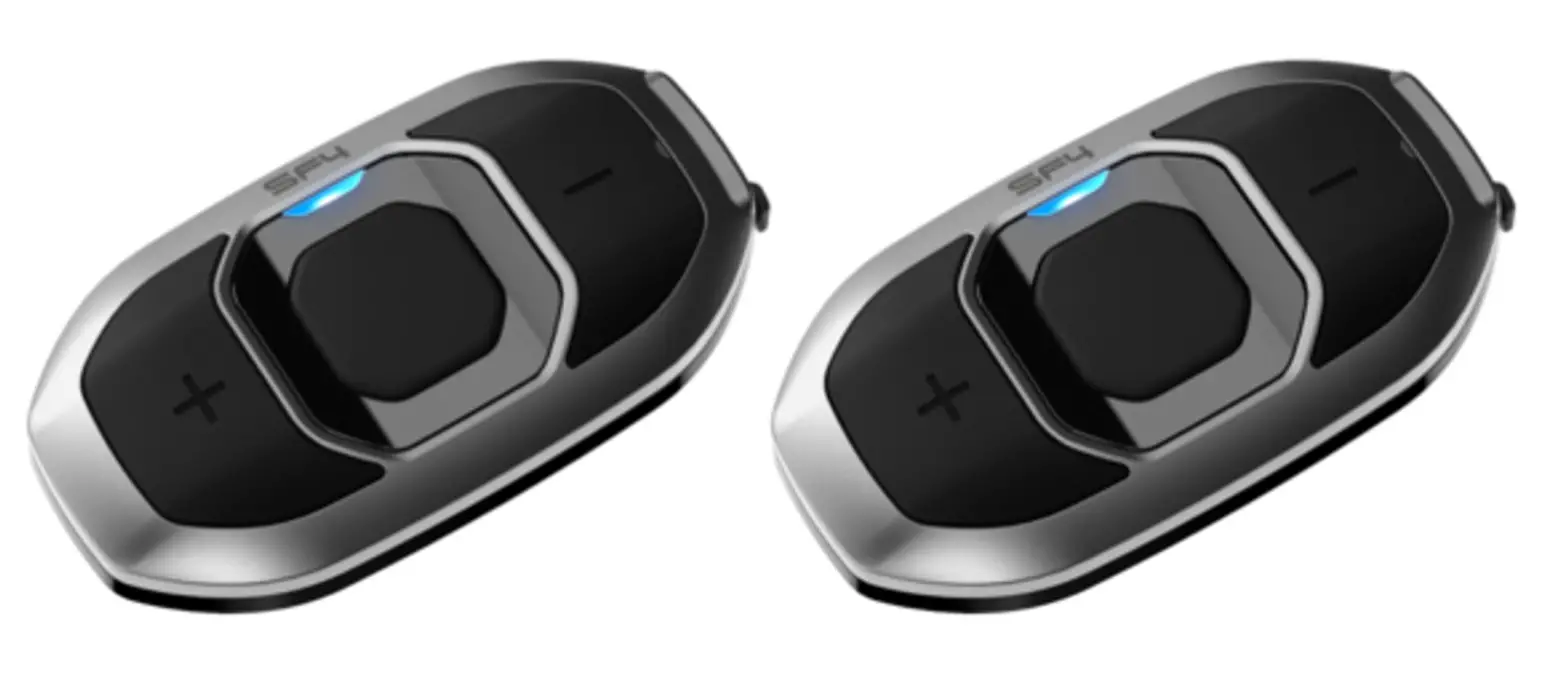

SENA SF4 Bluetooth Small Group Communication

OVERVIEW

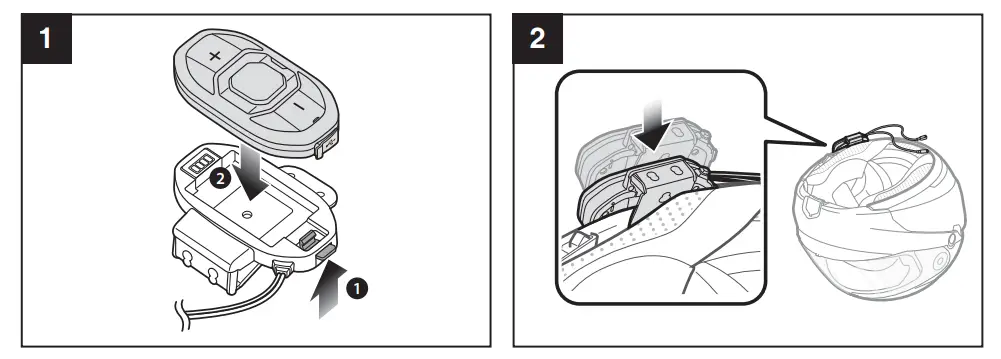

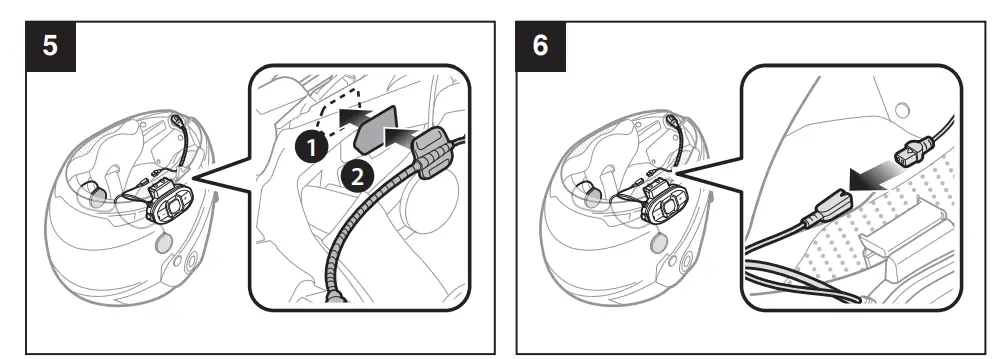

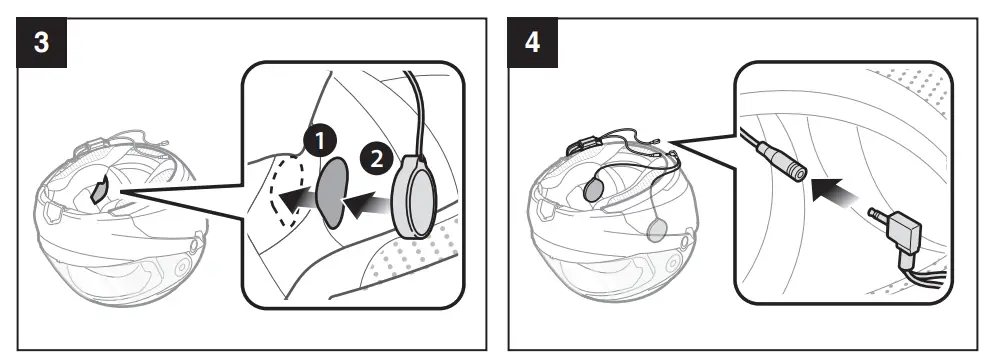

Installation

Sena Motorcycles App

Download
- Android: Google Play Store > Sena Motorcycles
- iOS: App Store > Sena Motorcycles

Sena Device Manager

The Sena Device Manager allows you to upgrade the firmware and configure its settings directly from your PC or Apple computer. Download the Sena Device Manager from sena.com.

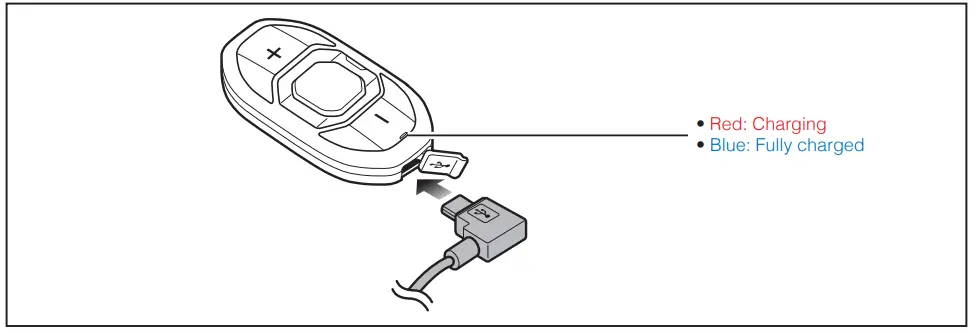

Charging

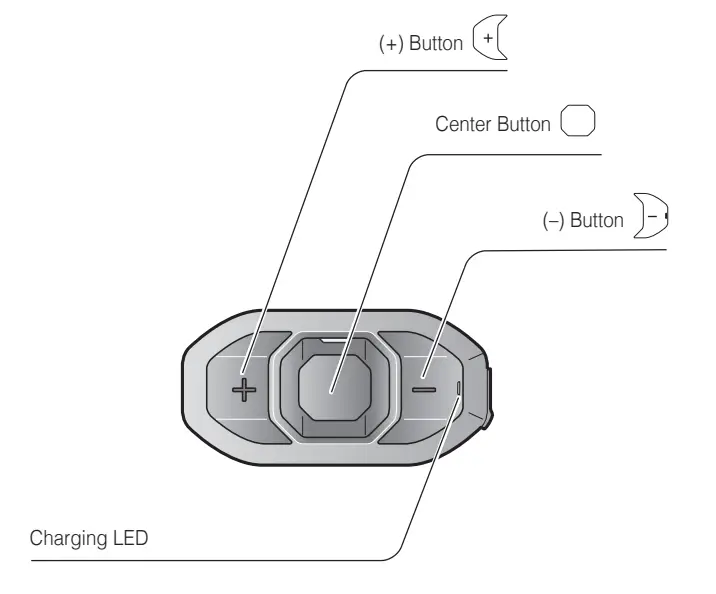

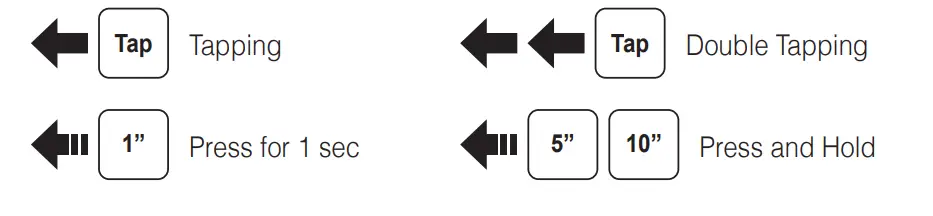

Button Operation

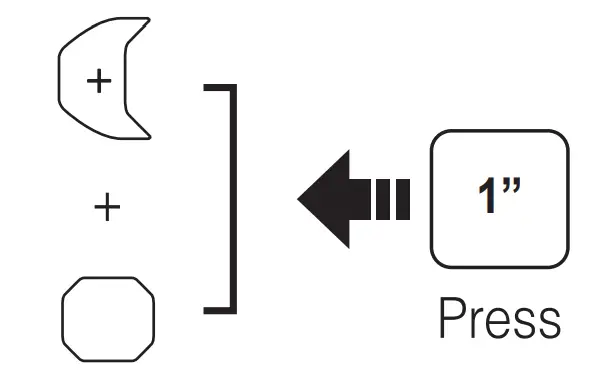

Power On/Off

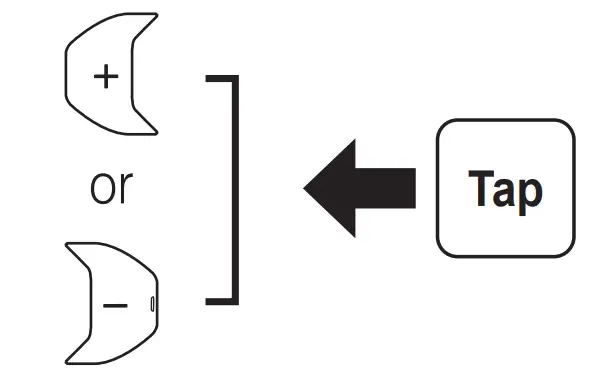

Volume Adjustment

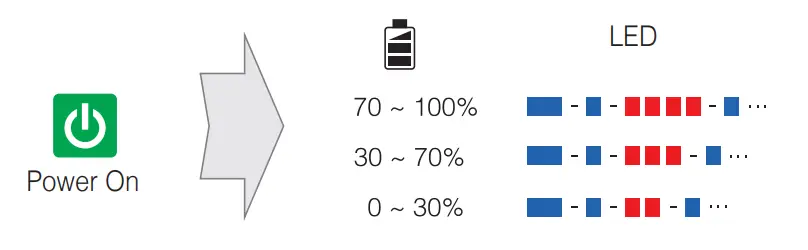

Battery Check

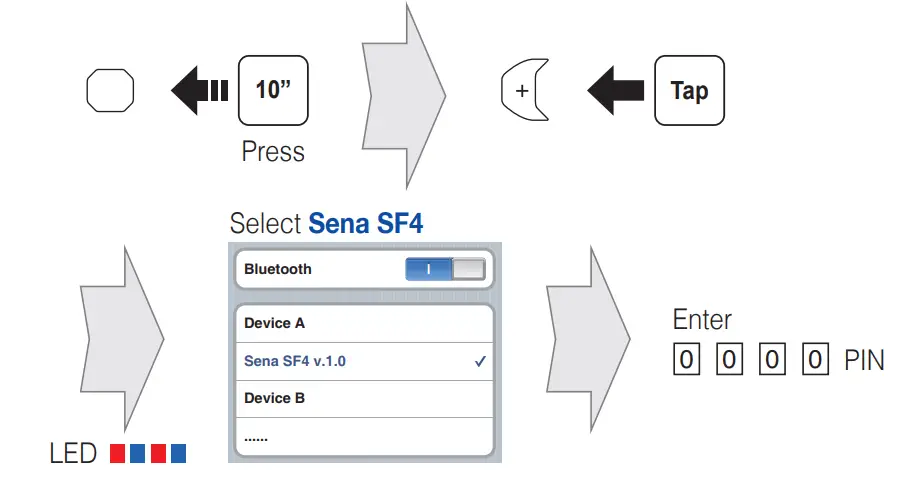

Phone, Music Pairing

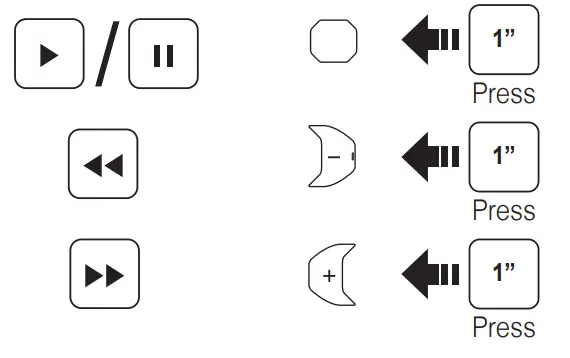

Music Operation

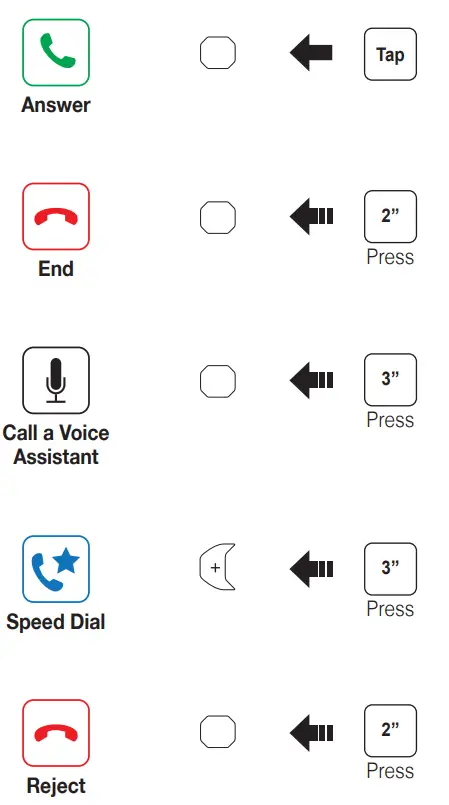

Mobile Phone Call Making and Answering

Intercom Pairing

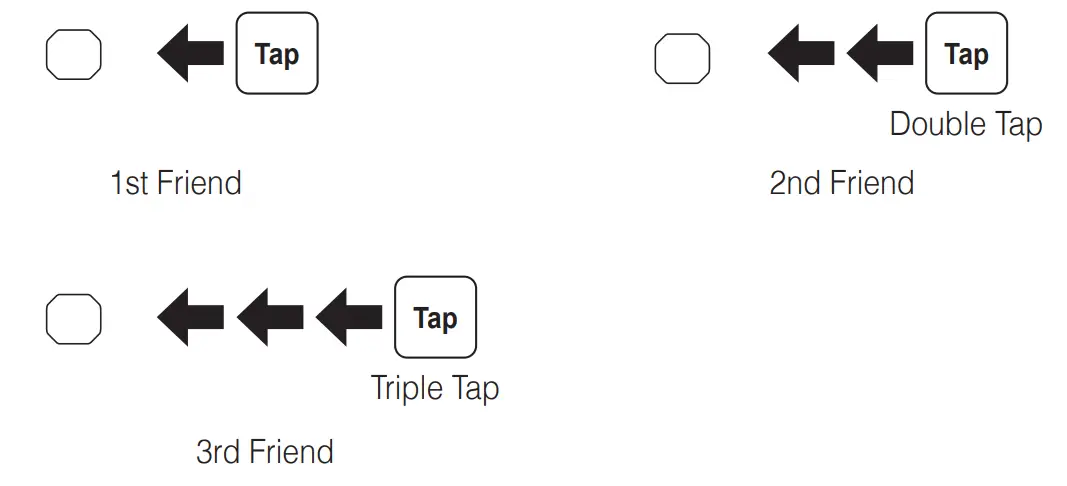

Intercom Start/End

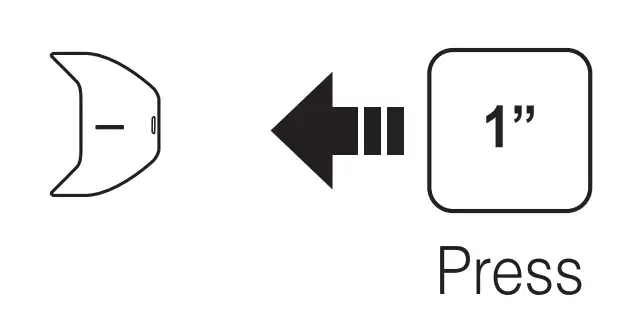

Radio On/Off

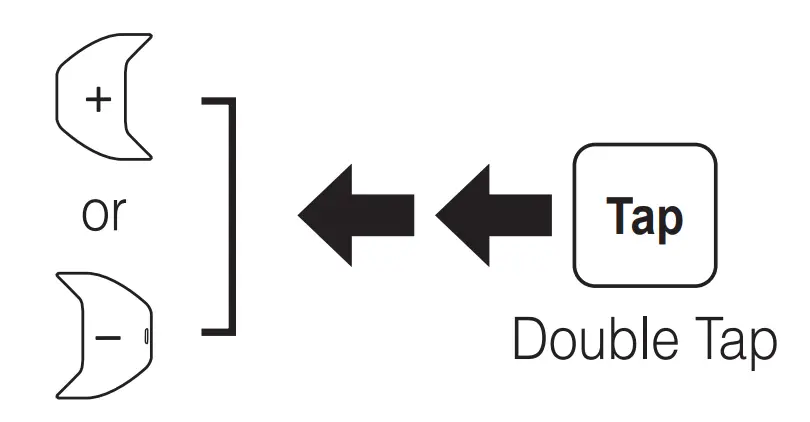

Radio Seek Stations

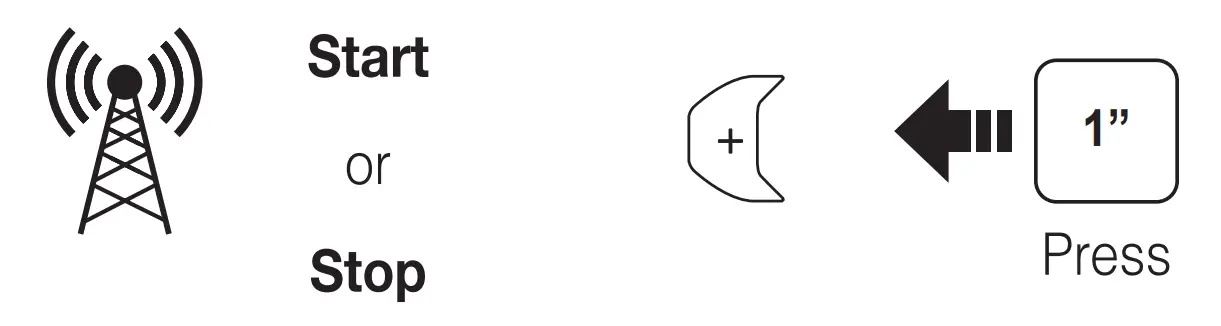

Radio Scan Up FM Band

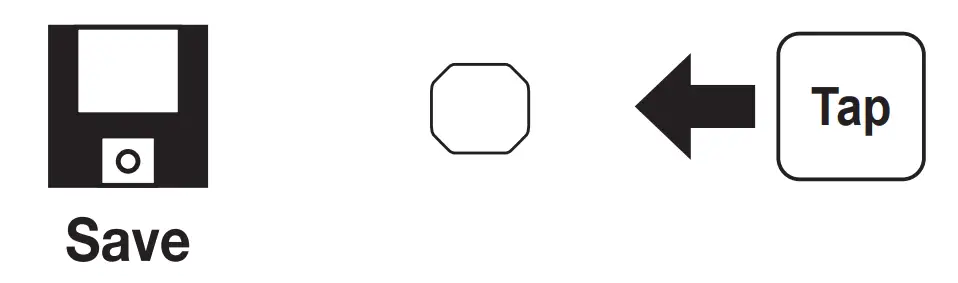

Save to preset while scanning

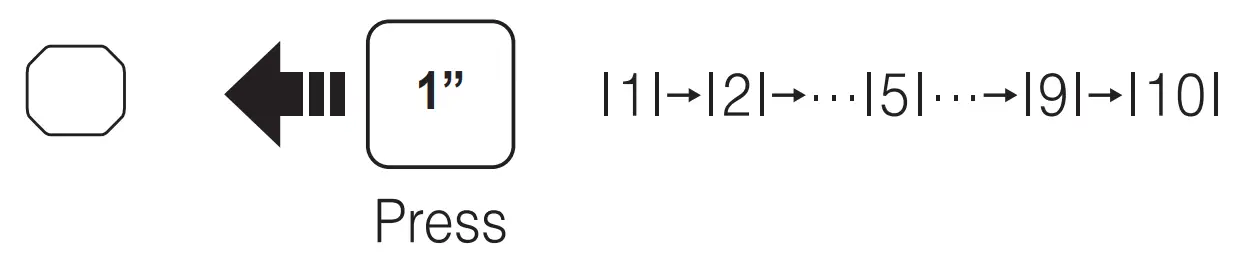

Radio Move to Preset Station

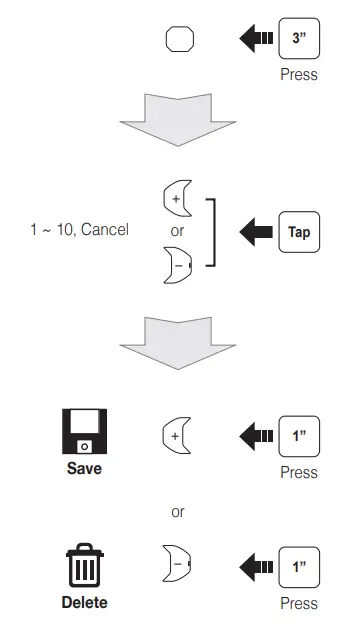

Radio Save or Delete Preset

Setting

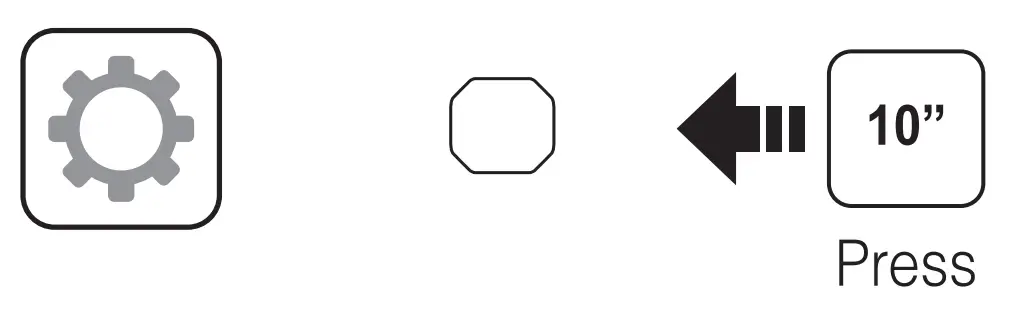

Configuration Menu

Troubleshooting

Factory Reset
If you want to restore the Sena SF4 to factory default settings, use the Factory Reset in the configuration menu. The headset automatically restores the default settings and turns off.

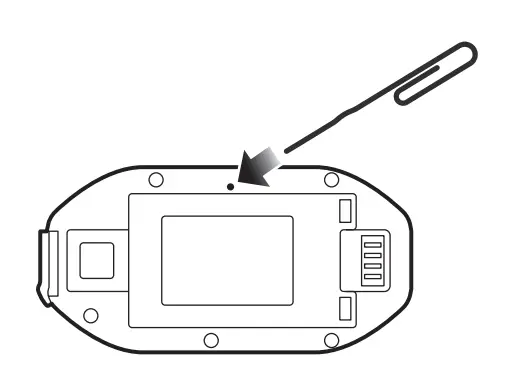

Fault Reset
If the Sena SF4 is not working properly for any reason, reset by gently pushing the pin-hole reset button on the back of the main unit.

SF Series Quick Reference

Type	Operation	Button Command	LED
Basic Function	Power on	Press the Center Button and the (+) Button for 1 second	Solid blue
	Power off	Tap the Center Button and the (+) Button	Solid red
	Volume adjustment	Tap the(+) Button or the (-) Button	–
	Microphone Mute	Press the Center Button and the (-) Button for 1 second	–
Mobile Phone	Answer mobile phone call	Tap the Center Button	–
	End mobile phone call	Press the Center Button for 2 seconds	–
	Call a Voice Assistant	Press the Center Button for 3 seconds	–
	Speed dial	Press the (+) Button for 3 seconds	–
	Reject incoming call	Press the Center Button for 2 seconds	–
Intercom	Intercom pairing	Press the Center Button for 5 seconds	Hed flashing
	Intercom pairing	Tap the Center Button of any one of the two headsets
	Start/End each intercom	Tap the Center Button	–
	End all intercoms**	Press the Center Button for 3 seconds	–
	Start Group Intercom-	Tap the(+) Button and the(-) Button at the same time	Green flashing
	End Group Int ercom * *	Press the Center Button for 3 seconds	–
Music	Play/Pause Bluetooth music	Press the Center Button for 1 second	–
Music	Track forward/back	Press the (+) Button or the (-) Button for 1 second	–
FM Radio**	FM radio on/off	Press the(-) Button for 1 second	–
	Select preset	Press the Center Button for 1 second	–
	Seek stations	Double tap the(+) Button or the H Button	–
	Scan up FM band	Press the(+) Button for 1 second	–
	Stop scanning	Press the(+) Button for 1 second	–
	Save preset while scanning	Tap the center Button	–
