Scame Be-w Series Wall Box Instruction Manual

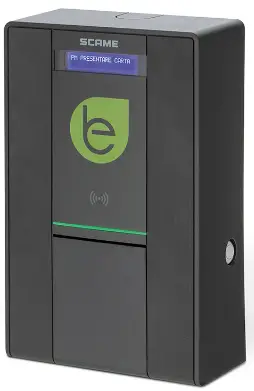

SCAME BE-W Series Wall Box

Product Information

Product Usage Instructions

1. For mounting the product, refer to the instructions provided for.

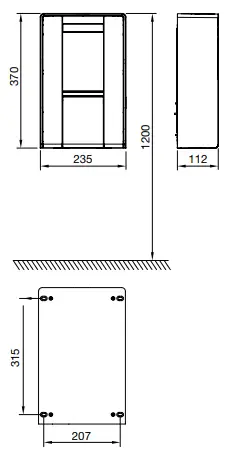

2. Ensure the dimensions of the product match the required space: 1200 mm x 235 mm x 112 mm.

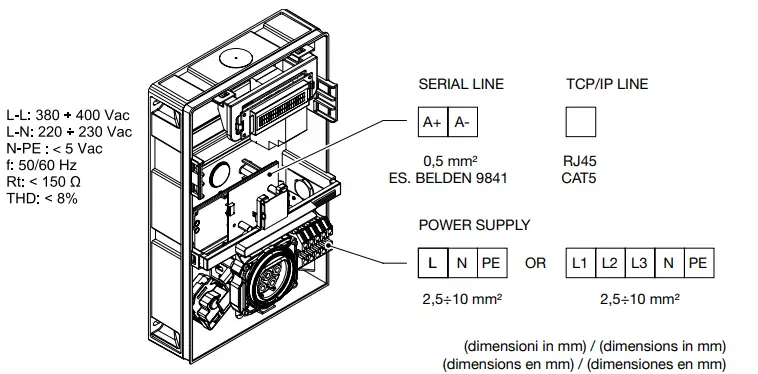

3. Depending on the desired mode of operation, connect the product to either TCP/IP LINE or SERIAL LINE using the appropriate connectors.
4. For TCP/IP LINE connection, use an RJ45 CAT5 cable.
5. For power supply, connect the product to either L N PE or L1 L2 L3 N PE using the provided connectors.

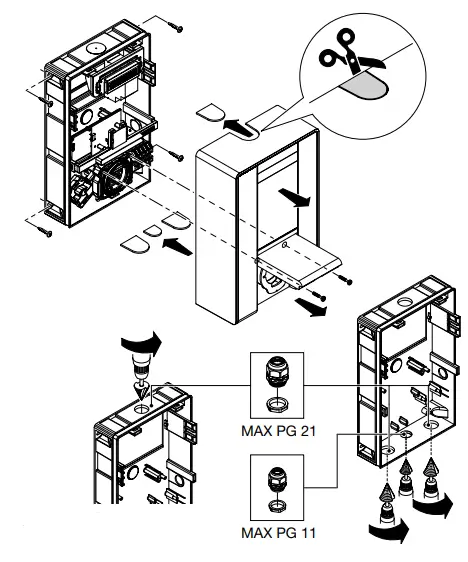

6. Make sure the maximum PG (Protection Grade) is not exceeded. For TCP/IP LINE, the maximum PG is 21, and for SERIAL LINE, it is 11.

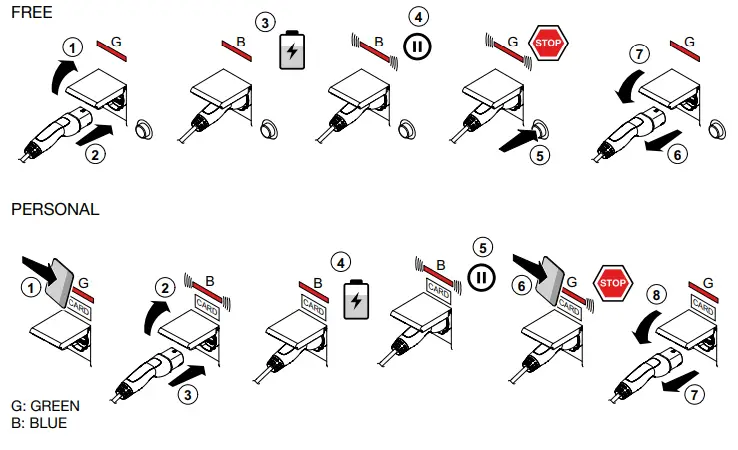

7. Refer to the table for the color codes of the G (GREEN) and B (BLUE) cards.
8. To change the mode from Personal to Free or vice versa, follow these steps:
   • Press the button on the product.
   • Swipe the master card on the reader while keeping the button pressed down.
9. For additional information or support, visit ScameOnLine at www.scame.com or contact [email protected]

DIMENSIO

MOUNTING

WIRING

WORKING

• CHANGE MODE
  PersonalFree
• With button pressed down, switch the master card on reader.
• Free Personal
• With button pressed down, switch the master card on reader

NOTES

• This device shall be installed and maintained by qualified personnel.
• The manufacturer can not be held responsible for any failure to comply with these instructions.
• To download the user manual of charging stations visit our website: https://e-mobility.scame.com/download

CONTACT

• ITALY
• 800-018009
• WORLDWIDE
• ScameOnLine
• www.scame.com
• [email protected]
