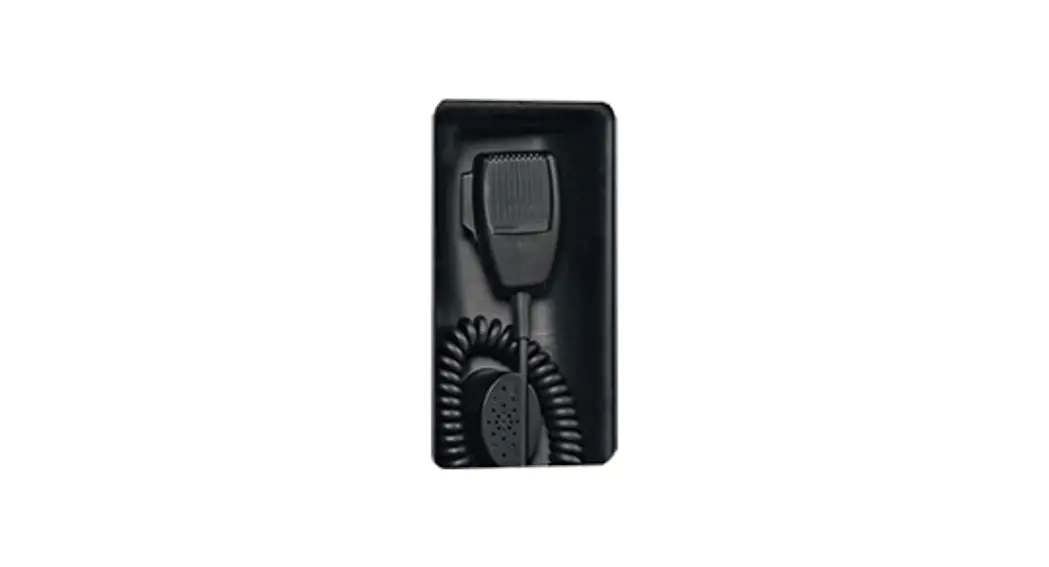

RM-1 Series Remote Microphone and Cabinets
Owner’s Manual
RM-1 Series
Remote Microphone and Cabinets
RM-1, RM-1SA, CAB-RM, CAB-RMR
GENERAL

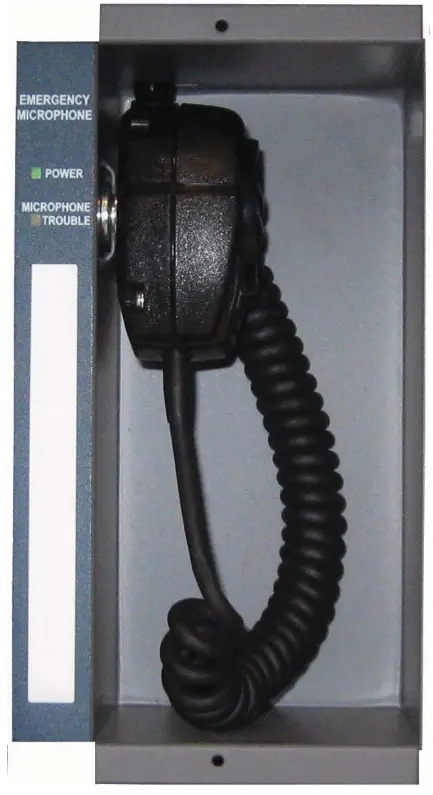

The RM-1 Series Remote Microphone provides a cost-effective microphone interface for paging to selected speaker zones. The Power and Trouble LEDs provide easy-to- understand visual indications of its status. Various mounting options are available. The microphone assembly can be mounted in a small, compact enclosure or located in a comprehensive paging command center.
The RM-1 Series remote microphone can be utilized with the DVC Digital Voice Command Center and DAA2 amplifiers, or to expand a legacy installation.
FEATURES
- Automatic gain control circuit.
- Supervised microphone.
- Form-C trouble contacts.
- Form-C contacts activated when microphone is in use.
- Power On LED.
- Trouble LED.
- Pluggable terminal blocks.
- Low-level audio (LLA) IN and THRU screws.
CAB-3/CAB-4 SERIES INSTALLATION
The RM-1 can mount to the back of an ADP-4B dress panel inside a CAB-3 or CAB-4 Series cabinet. It can be mounted in any of the four positions on the dress panel, with the following exception:
- Do NOT mount the RM-1 in front of a CHS-4L chassis. See page 2 for illustrations of mounted units.
SPECIFICATIONS
Power requirements: 20 mA primary, non-fire alarm current; 66 mA when microphone is activated; 20 mA secondary, non-fire alarm current.
Operating voltage: 17 to 26.4 volts.
PRODUCT LINE INFORMATION
RM-1: Remote microphone assembly for mounting on an ADP-4B dress panel.

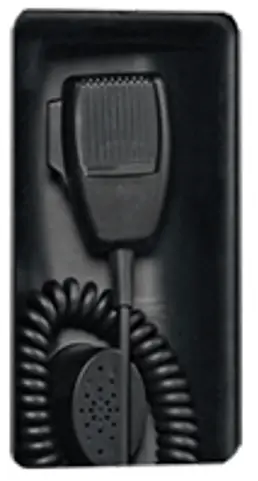

RM-1SA: Remote microphone assembly for mounting in a CAB-RM(R), for remote applications.
CAB-RM: Stand-alone cabinet, black.
CAB-RMR: Stand-alone cabinet, red.
AGENCY LISTINGS AND APPROVALS
These listings and approvals apply to the RM-1 Series Remote Microphone. In some cases, certain modules may not be listed by certain approval agencies, or listing may be in process. Consult factory for latest listing status.
- UL: S635
- ULC: CS118/CS733 Vol. 12
- MEA: 327-94-E Vol.III
- CSFM: 7165-0028:0224 (NFS-3030/NFS2-3030)
- FM: Approved (RM-1, RM-1SA)
- FDNY: #6058 (NFS2-3030)

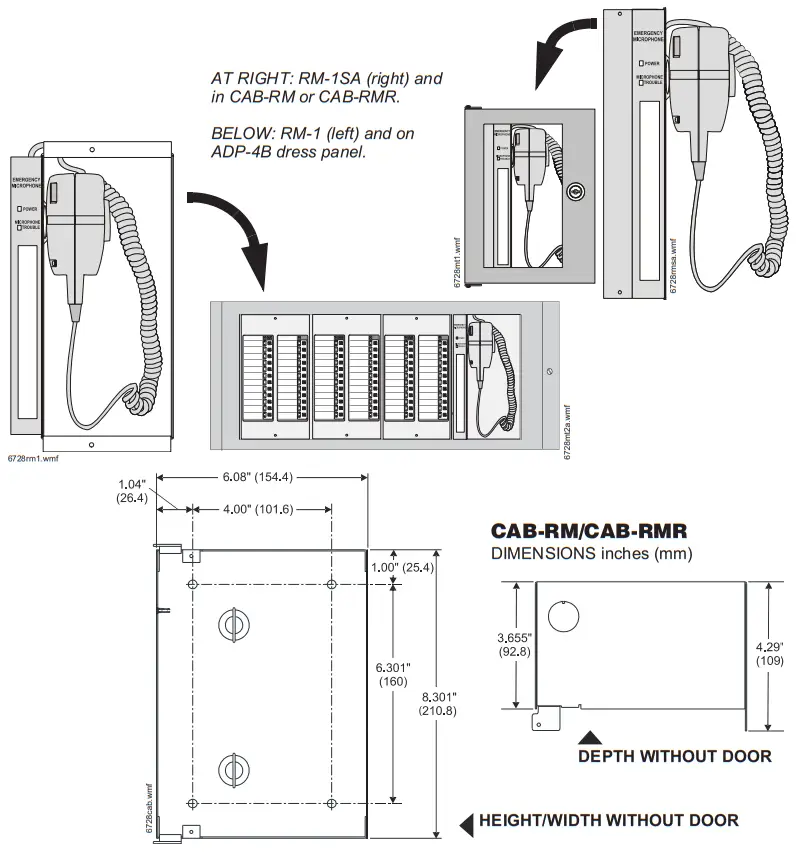

RM-1 MOUNTING & CABINET DIMENSIONS
NOTIFIER® is a registered trademark of Honeywell International Inc.
©2010 by Honeywell International Inc. All rights reserved. Unauthorized use of this document is strictly prohibited.
This document is not intended to be used for installation purposes.
