Disco Light
Instruction Manual
DISCOLAMPA
OPERATING INSTRUCTIONS
Important! Read the user instructions carefully before use. Save them for future reference. (Translation of the original instructions)
Jula reserves the right to make changes.
For latest version of operating instructions, see www.jula.com
SAFETY INSTRUCTIONS
- Carefully read the instructions before use! Save them for future reference.
- Do not use the product as general lighting.
- Do not connect the light to the mains while it is still in the pack.
- The bulbs are not replaceable.
- The power cord for this lamp is not replaceable, if damaged discard the complete lamp.
- For indoor use only.
SYMBOLS
 | Read the instructions. |
 | For indoor use only. |
 | Safety class III. |
 | Approved in accordance with the relevant directives. |
 | Recycle discarded product in accordance with local regulations. |
TECHNICAL DATA
| Rated voltage | 7.2 V ~ 50 Hz |
| Output | 8 W |
| Protection rating | IP20 |
| Size | H14 x Ø18 cm |
| Weight | 0.35 kg |
DESCRIPTION

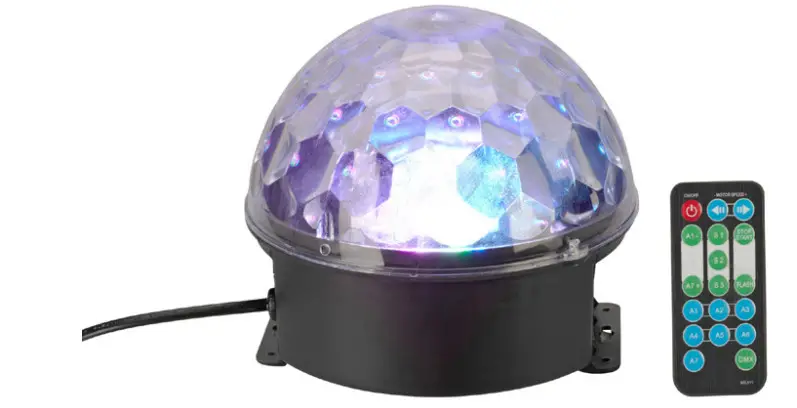

Disco lamp with remote control for convenient control of the different functions and sound mode.

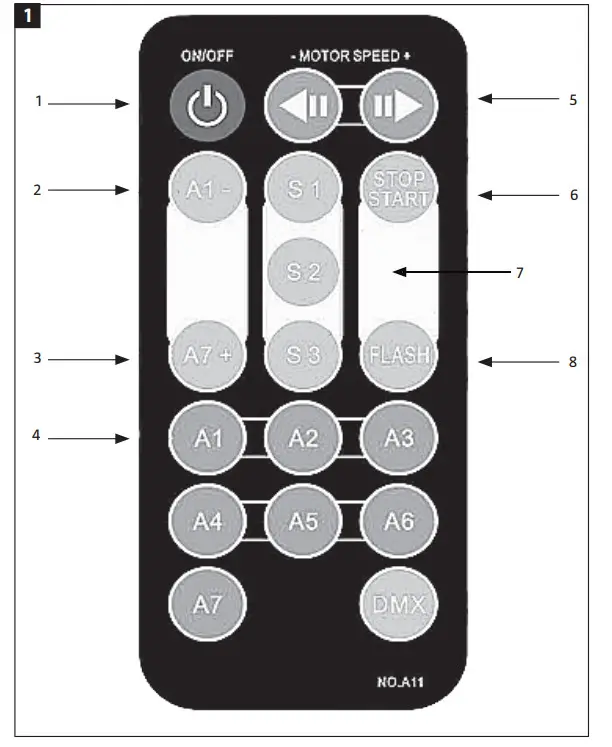

- Power switch
- Last light setting
- Next light setting
- Light settings
- Speed
- Stops the light setting (so that S1, S2 and S3 can be used)
- Sound matching motion setting (S1-S3)
- Stops the light setting and starts flashing
LIGHT SETTINGS (4)
| A1 | Red + Orange |
| A2 | Green + Violet |
| A3 | White + Blue |
| A4 | 6 colours |
| A5 | 2-colour mix |
| A6 | 4-colour mix |
| A7 | Random |
SOUND MATCHING MOTION SETTING (7)
| S1 | Flashes at high volume. |
| S2 | Slow motion at low volume and quicker motion at high volume. |
| S3 | Extra slow motion at low volume and quicker motion at high volume. |
