OREI UHD18 HDBaseT Splitter

OREI UHD18 HDBaseT Splitter product image

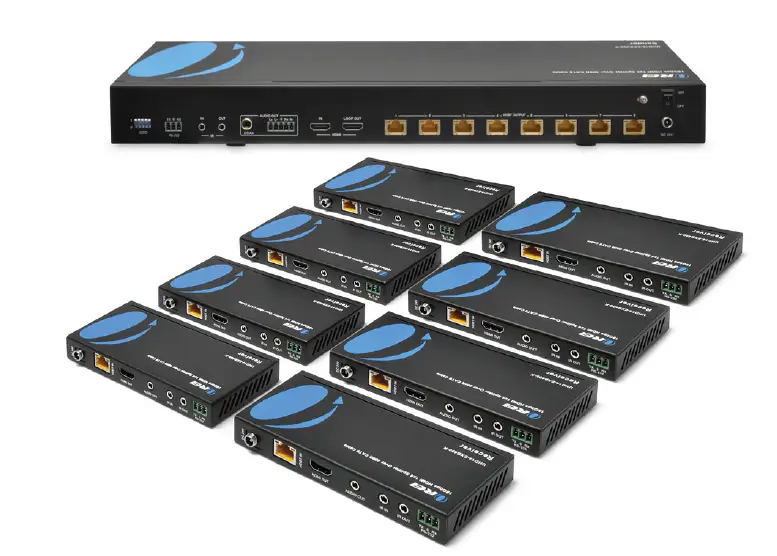

This 18Gbps HDMI 1×8 HDBaseT Splitter can distribute 1 source signal to any 8 display devices. Support video resolution up to 4K2K@60Hz 4:4:4. It is designed with 1 HDMI loop output and 8 HDBaseT outputs. The HDMI signal transmission distance can be extended up to 120 meters at the resolution of 4K2K@60Hz, or 150 meters at 1080P@60Hz via a single CAT6/ 6a/7 cable. The product supports IR and RS-232 signal pass-through, audio extract function and advanced EDID management.

introduction

Features

  1. HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
  2. Support 18Gbps video bandwidth
  3. Support video resolution up to 4K2K@60Hz 4:4:4
  4. Support HDR, HDR10+, HLG and Dolby vision
  5. Support up to 7.1CH HD audio pass-through
  6. Support digital and analog audio de-embedded output
  7. Extend the signal transmission distance up to 120 meters at the resolution of 4K2K@60Hz, 150 meters at 1080P@60Hz via a single CAT6/6a/7 cable
  8. Support 1 HDMI input, 1 HDMI loop output and 8 HDBaseT outputs.
  9. IR, RS-232 routed to HDBaseT output
  10. Advanced EDID management
  11.  Support one-way POC function (only from transmitter to receiver)
  12. Compact design for easy and flexible installation

Package Contents

1.18Gbps HDMI 1×8 HDBaseT Splitter1pcs
2.HDBaseT Receiver8pcs
3.IR Blaster Cable (1.5 meters)9 pcs
4.20K~60KHz IR Receiver Cable (1.5 meters)9 pcs
5.3-pin Phoenix Connector9 pcs
6.5-pin Phoenix Connector1pcs
7.Mounting Ear18 pcs
8.24V/2.7A DC Locking Power Adapter1pcs
9.User Manaul1Pcs

SPECIFICATION

Technical
HDMI ComplianceHDMI 2.0b
HDCP ComplianceHDCP 2.2/1.x
Video Bandwidth594MHz/18Gbps
Video ResolutionUp to 4k2k@60Hz 4:4:4
Color Depth8-bit,10-bit,12-bit(1080p@60Hz) 8-bit (4K2K@60Hz YUV4:4:4) 8-bit,10-bit,12-bit(4K2K@60Hz YCbCr 4:2:2/4:2:0)
Color SpaceRGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0
HDRSupport HDR, HDR10+, HLG, Dolby vision
HDMI Audio FormatsLPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
Coaxial Audio FormatsPCM2.0, Dolby Digital / Plus, DTS 2.0/5.1
Analog Audio FormatsPCM 2.0CH
ESD ProtectionHuman body model—±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Connection
Input1×HDMI Type A (19-pin female)
Output1×HDMI Type A (19-pin female) 8x HDBaseT OUT [RJ45]
1x Coaxial Audio OUT [RCA]
1x L/R Audio OUT [5-pin phoenix connector]
Control1×RS-232 (3-pin phoenix connector) 1x EDID DIP switch [5-pin]
1x IR IN [3.5mm Stereo Mini-jack]
1x IR OUT [3.5mm Stereo Mini-jack]
Mechanical
HousingMetal Enclosure
Silkscreen ColorBlack
DimensionsTransmitter: 440mm (W) × 130mm (D) × 44mm (H) Receiver: 140mm (W) × 65mm (D) × 18mm (H)
WeightTransmitter: 1.62kg, Receiver: 246g
Power SupplyInput: AC100 – 240V 50/60Hz, Output: DC 24V/3.75A (US/EU standards, CE/FCC/UL certified)
Power Consumption72W
Operation Temperature0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity20~90% RH (non-condensing)

Operation controls and functions

Transmitter

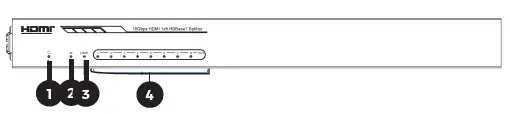

Front Panel

front panel

No.NameFunction Description
1.POWER LEDWhen the device is powered on, the red power LED will be on.
2.IN LEDWhen the HDMI IN port connects an active source device, the green LED will be on.
3.LOOP LEDWhen the HDMI LOOP OUT port connects an active display device, the green LED will be on.
4.OUT(1~8) LEDWhen the HDBT OUTPUT port connects an HDBaseT Receiver, the corresponding green OUT LED will be on.

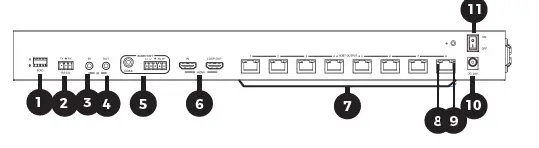

Rear Panel

rea panel

No.NameFunction Description
1.EDID DIP switchUsed to set EDID mode. Please refer to Section “6. EDID Mode” for details
2.RS-232Connect to a PC or control system via a 3-pin phoenix connector cable for three functions:
1, Firmware update;
2, Control the Splitter via RS-232 commands;
3, RS-232 signal pass-through (from transmitter to receiver or from receiver to transmitter).
3.IR INConnect to IR receiver cable, the IR receive signal will emit to “IR OUT” port of the HDBaseT Receiver.
4.IR OUTConnect to IR blaster cable, the IR emit signal is from “IR IN” port of the HDBaseT Receiver
5.AUDIO OUT (COAX, L/R)Coaxial/balanced audio output port, connect to amplifer or speaker.
6.HDMI portIN: HDMI input port, connect to HDMI source device such as DVD or set- top box with an HDMI cable.
LOOP OUT: HDMI loop output port, connect to the HDMI display device such as TV or Monitor with an HDMI cable.
7.HDBT OUTPUT port(1~8)Connect to the HDBT IN port of the HDBaseT receiver with a CAT cable.
8.Connection Signal Indi- cator lamp (Green)Illuminating: Transmitter and Receiver are in good connection status.
Flashing: Transmitter and Receiver are in poor connection status.
Dark: Transmitter and Receiver are not connected.
9.Data Signal Indicator lamp (Orange)Illuminating: HDMI signal with HDCP. Flashing: HDMI signal without HDCP. Dark: No HDMI signal.
10.DC 24VPlug the DC 24V power supply into the unit and connect the adaptor to an AC outlet. (Note: The transmitter can power the receiver via a CAT cable.)
11.POWER switch Press this switch to power on/off the device.
HDBaseT Receiver

reciever

No.NameFunction Description
1.Power IndicatorWhen the receiver is powered on, the power indicator will be on.
2.SERVICE portUsed for firmware update.
3.DC 24VPlug DC 24V/1A power supply into the unit and connect the adapter to an AC outlet. (Note: The HDBaseT receiver also can be powered by the transmitter via a CAT cable.)
4.HDBT INConnect to the HDBT OUTPUT port on the transmitter with a CAT cable.
5.Connection Signal Indicator lamp (Green)Illuminating: Transmitter and Receiver are in good connection status. Flashing: Transmitter and Receiver are in poor connection status.
Dark: Transmitter and Receiver are not connected.
6.Data Signal Indicator lamp (Orange)Illuminating: HDMI signal with HDCP. Flashing: HDMI signal without HDCP. Dark: No HDMI signal.
7.HDMI OUTHDMI output port, connect to HDMI display device such as TV or Projec- tor with an HDMI cable.
8.AUDIO OUTAudio output port, connect to amplifer or speaker.
9.IR INConnect to the IR Receiver cable. The IR signal will send to the IR OUT port of the transmitter.
10.IR OUTConnect to the IR blaster cable, the IR signal is from IR IN port of the transmitter
11.RS-2323-pin Phoenix connector for RS-232 command transmission. The RS-232 command will pass-through from transmitter to receiver or from receiver to transmitter.

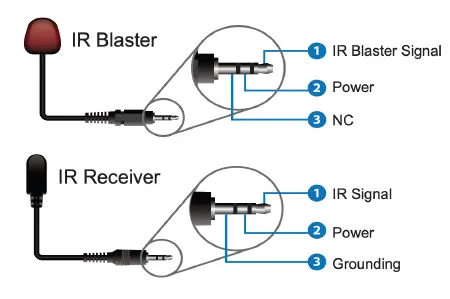

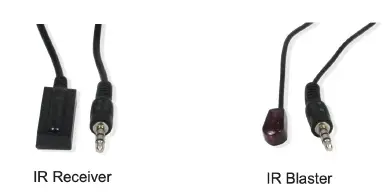

IR Pin Definition

IR defination

IR defination 2

Note: When the angle between the IR receiver and the remote control is ± 45 °, the transmission distance is 0-5 meters; when the angle between the IR receiver and the remote control is ± 90 °, the transmission distance is 0-8 meters.

EDID Mode

EDID ModeEDID Description
111111080P, Stereo Audio 2.0
111101080P, Dolby/DTS 5.1
111011080P, HD Audio 7.1
111001080I, Stereo Audio 2.0
110111080I, Dolby/DTS 5.1
110101080I, HD Audio 7.1
110011080P 3D, Stereo Audio 2.0
110001080P 3D, Dolby/DTS 5.1
101111080P 3D, HD Audio 7.1
101104K2K30Hz_444, Stereo Audio 2.0
101014K2K30Hz_444, Dolby/DTS 5.1
101004K2K30Hz_444, HD Audio 7.1
100114K2K60Hz_420, Stereo Audio 2.0
100104K2K60Hz_420, Dolby/DTS 5.1
100014K2K60Hz_420, HD Audio 7.1
100004K2K60Hz_444, Stereo Audio 2.0
011114K2K60Hz_444, Dolby/DTS 5.1
011104K2K60Hz_444, HD Audio 7.1
EDID ModeEDID Description
011014K2K60Hz_444, Stereo Audio 2.0 HDR
011004K2K60Hz_444, Dolby/DTS 5.1 HDR
010114K2K60Hz_444, HD Audio 7.1HDR
01010COPY_FROM_LOOP OUT
01001COPY_FROM_HDBT OUT1
01000COPY_FROM_HDBT OUT2
00111COPY_FROM_HDBT OUT3
00110COPY_FROM_HDBT OUT4
001011080P, Stereo Audio 2.0
001001080P, Stereo Audio 2.0
000111080P, Stereo Audio 2.0
00001PC control mode

ASCII Commands

The product also supports ASCII command control. Connect the RS-232 port of the product to a PC with a 3-pin phoenix connector cable. Then, open a Serial Command tool on PC to send ASCII commands to control the product. The ASCII command list about the product is as shown below.

ASCII Commands
Serial port protocol. Baud rate: 115200, Data bits: 8bit, Stop bits:1, Check bit: 0
x – Parameter 1 y – Parameter 2 ! – Delimiter
Command CodeFunction DescriptionExampleFeedbackDefault Setting
Power
s power z!Power on/off the device,z=0~1 (z=0 power off, z=1 power on)s power 1!Power on

System Initializing… Initialization Finished! FW version x.xx.xx

power on
r power!Get current power stater power!power on/power off
s reboot!Reboot the devices reboot!Reboot…

System Initializing… Initialization Finished! FW version x.xx.xx



Command Code

Function Description

Example



Feedback

Default Setting
System Setup
help!List all commandshelp!
r type!Get device modelr type!HDC-SPB18H150
r status!Get device current statusr status!Get the unit all status: power, in/out connec- tion, edid mode
r fw version!Get Firmware versionr fw version!MCU BOOT: Vx.xx.xx MCU APP: Vx.xx.xx
r link in!Get the connection status of the input portr link in!HDMI IN: connect
r link out y!Get the connection status of the y out- put port, y=0~9(0=all, 1~8=HDBT 1~8,

9=loop out)

r link out 1!hdmi loop out: connect hdbt output 1: connect
s reset!Reset to factory defaultss reset!Reset to factory defaults System Initializing…
Initialization Finished! FW version x.xx.xx


Command Code

Function Description

Example



Feedback

Default Setting
Output Setting
s hdmi stream z!Set hdmi loop output stream on/off z=0~1(0:dis- able,1:enable)s hdmi stream 1 !Enable hdmi loop out stream Disable hdmi loop out streamenable
s hdmi hdcp z!Set hdmi loop output hdcp on/ off z=0~1(0:dis- able,1:enable)s hdmi hdcp 1!Enable hdmi loop out hdcp Disable hdmi loop out hdcpenable
s hdbt y hdcp z!Set hdbt output y hdcp on/ off, y=0~8(0=all) z=0~1(0:disable, 1:enable)s hdbt 1 hdcp 1 !

s hdbt 0 hdcp 1 !

Enable hdbt output 1 hdcp Disable hdbt output 1 hdcp Enable hdbt all outputs hdcp Disable hdbt all outputs hdcpenable
s hdbt y stream z!Set hdbt output y stream on/ off, y=0~8(0=all) z=0~1

(0:disable,1:enable)

s hdbt 1 stream 1 !

s hdbt 0 stream 1 !

Enable hdbt output 1 stream Disable hdbt output 1 stream Enable hdbt all outputs stream Disable hdbt all outputs streamenable
r hdmi stream!Get hdmi loop out stream statusr hdmi stream!Enable hdmi output stream
r hdmi hdcp!Get hdmi loop out hdcp statusr hdmi hdcp!Enable hdmi output hdcp
r hdbt y hdcp!Get hdbt output y hdcp status, y=0~8(0=all)r hdbt 1 hdcp!Enable hdbt output 1 hdcp
r hdbt stream!Get hdbt output y stream status, y=0~8(0=all)r hdbt 1 stream!Enable hdbt output 1 stream
Command Code

Function Description



Example



Feedback

Default Setting
EDID Setting


























s edid in from z!

Set input EDID from default EDID z, z=1~321, 1080p,Stereo Audio 2.02, 1080p,Dolby/DTS 5.13, 1080p,HD Audio 7.14, 1080i,Stereo Audio 2.05, 1080i,Dolby/DTS 5.16, 1080i,HD Audio 7.17, 3D,Stereo Audio 2.08, 3D,Dolby/DTS 5.19, 3D,HD Audio 7.110, 4K2K30_444, Stereo Audio 2.011, 4K2K30_444, Dolby/DTS 5.112,4K2K30_444,HD Audio 7.113, 4K2K60_420, Stereo Audio 2.014, 4K2K60_420, Dolby/DTS 5.1 15,4K2K60_420,HD Audio 7.1 16, 4K2K60_444, Stereo Audio 2.0 17, 4K2K60_444, Dolby/DTS 5.1 18, 4K2K60_444,HD Audio 7.1 19, 4K2K60_444, Stereo Audio 2.0 HDR 20, 4K2K60_444, Dolby/DTS 5.1 HDR 21, 4K2K60_444, HD Audio 7.1 HDR22, copy from hdmi loop out 23, copy from hdbt output 124, copy from hdbt output 225, copy from hdbt output 326, copy from hdbt output 427, copy from hdmi output 528, copy from hdbt output 629, copy from hdbt output 730, copy from hdbt output 831, 1080p,Stereo Audio 2.0 32, use user1 EDID

























s edid in from 1!





















input EDID:1080p,

Stereo Audio 2.0



Please toggle EDID

dip switch to 00000!





























1080p,Stereo Audio 2.0



Command Code

Function Description

Example



Feedback

Default Setting
s edid user1 00 FF FF FF FF …!Set user1 EDID datas edid user1 00 ff ff ff ff …. !user1 EDID data: 00 FF FF ….
r edid user1!Get user1 EDID datar edid user1!user1 EDID data : 00 FF FF FF FF FF FF

00 ………


r edid in!Get EDID status of the inputr edid in!input EDID: 4K2K60_ 444,Stereo Audio 2.0
r edid in data!Get the EDID data of the hdmi inputr edid in data!EDID data : 00 FF FF FF FF FF FF 00 ……
RS-232 BYPASS Setting
s rs232 bypass hdbt y!Set RS-232 port con- nect to HDBT out1 Receiver RS-232 port, y=0~5( 0=all, 1~4= hdbt out 1~4 5=NC)s rs232 bypass hdbt 1!RS-232 connect to HDBT OUT1 RS-232 not

connect to HDBT OUT

y=0
r rs232 bypass!Get RS-232 port connect to HDBT out receiver RS-232 portr rs232 bypass!RS-232 connect to HDBT OUT1 RS-232

connect to all HDBT OUT RS-232 not connect to HDBT OUT


s device baud w size x stop y parity z!Set receiver control device COM port setting, w=2400, 4800, 9600,s device baud 57600 size 8

stop 1 parity none!

receiver device COM port setting baudrate: 57600 data size :8, stop:1 parity: none
s rs232 time x!set send RS232 command wait time x=200~5000mss rs232 time 200!send RS-232 command wait time 200ms200ms

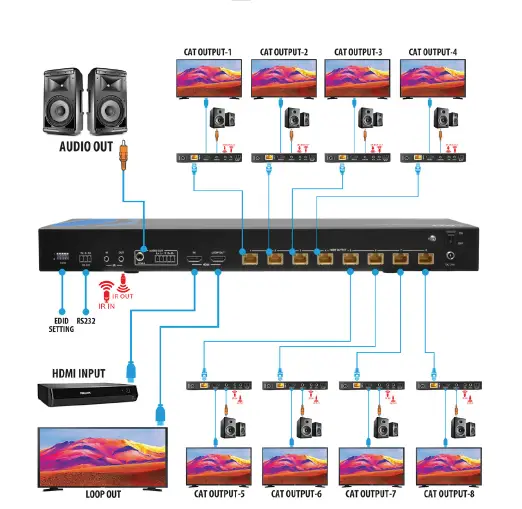

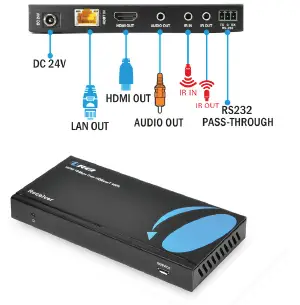

Application Example

application example

RECIEVER

application example 2

SENDER

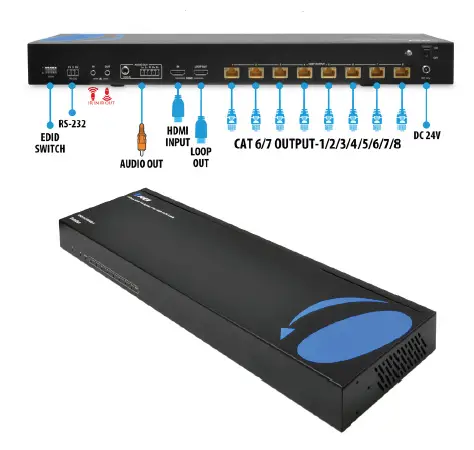

application example 3
