SHINEX DCPC02 VRV System
Please refer the following information for setting up
| Control, Operation, Settings |
| 1) Login settings |
| 2) Individual control |
| 3) Collective starting/stopping and settings for control group |
| 4) Schedule control |
| 5) Interlocking control |
| 6) Emergency stop control for fires |
| 7) Power failure and recovery processing control |
| 8) Centralized control of air conditioners |

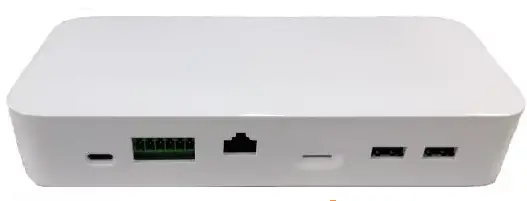

| Parameter | Description |
| USB2 | USB_ACDK |
| USB1 | USB_ACDK |
| Micro SD | Micro SD Solt |
| LAN | Network |
| RS485 | RS485 D1+、D1-、D2+、D2- |
| Type C | Power In 5V3A |
| CPU | Dual-Core | i.MX6 DualLITE,1GHz,MCIMX6U5DVM10AC,NXP |
| Memory | RAM System | Single Channel DDR3L,up to 1GB |
| Storage | Emmc | 16GB eMMC |
| Input Power Range | Type C | 5VDC power input, +-5% tolerance
Use USB type C as power connector on rear I/O |
| M/B Form Factor | PCB dimension 168 x 82mm | |
| Other Components | Battery | CR2032 coin cell,by on board socket |
| Interface | LAN | 1 GbE speed LAN on rear I/O,by AR8033 Ethernet transceiver.
CPU has Iimitation note on full speed throughput |
| USB 2.0 | 2 x USB 2.0 Type A on rear I/O | |
| RS485 | 2 x RS485 on rear I/O
6 pin terminal block connector | |
| I2C | One I2C header for touch control | |
| SD Card | 1 x Micro SD card on rear I/O | |
| M.2 2230 | M.2 socket E key,support type 2230
With Wi-Fi M.2 2230 Moudule Card RTL8822CE(ENLI) on M.2 socket | |
| Test port | Debug UART | |
| USB OTG | USB2 OTG,micro USB,for service purpose | |
| Other | Thermal sensor | One thermal sensor |
| Auto power on | Auto power on | |
| Other Jumper | Dip switch | Dip switch for system setting |
| OS Support | OS Support | Support Linux NXP i.MX6 Yocto 2.5 |
| Temperature | Store
Operating | 0 to 60 °C 0 to 40 °C |
| Weight
Size | Host bady | 280g ± 10g
(W) 192 ± 0.5mm (D) 88 ± 0.5mm (H) 34 ± 0.5mm |
Federal Communication Commission Interference Statement
Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
FCC Caution:
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
Note, Supplier’s Declaration of Conformity §2.1077(a)(3) Name: SHINEX SCDK Address: @USA Telephone number or Internet contact
