APO-DG1 USB-C Casting Dongle for Apollo and Presentation Switchers

Product Information: USB-C Casting Dongle for Apollo & Presentation Switchers

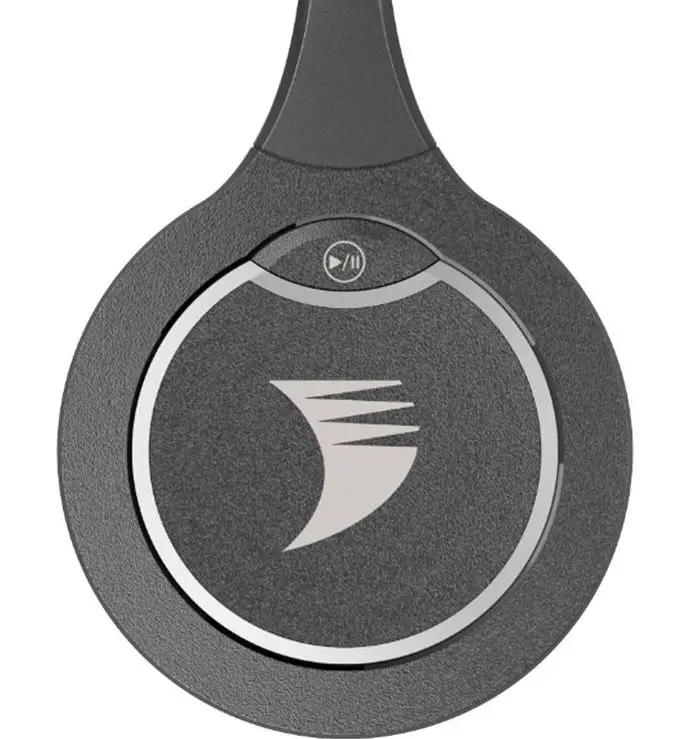

The APO-DG1 is a USB-C casting dongle designed for use with Apollo and Presentation Switchers. It allows users to share content from their source device to a connected display. The dongle supports video resolutions of up to 1920x1080p at 30Hz and operates on dual-band 5GHz and 2.4GHz wireless frequencies using the 802.11ac protocol.

In the Box

• 1x APO-DG1 USB-C Dongle
• 1x USB-C to USB-A Pairing Adapter

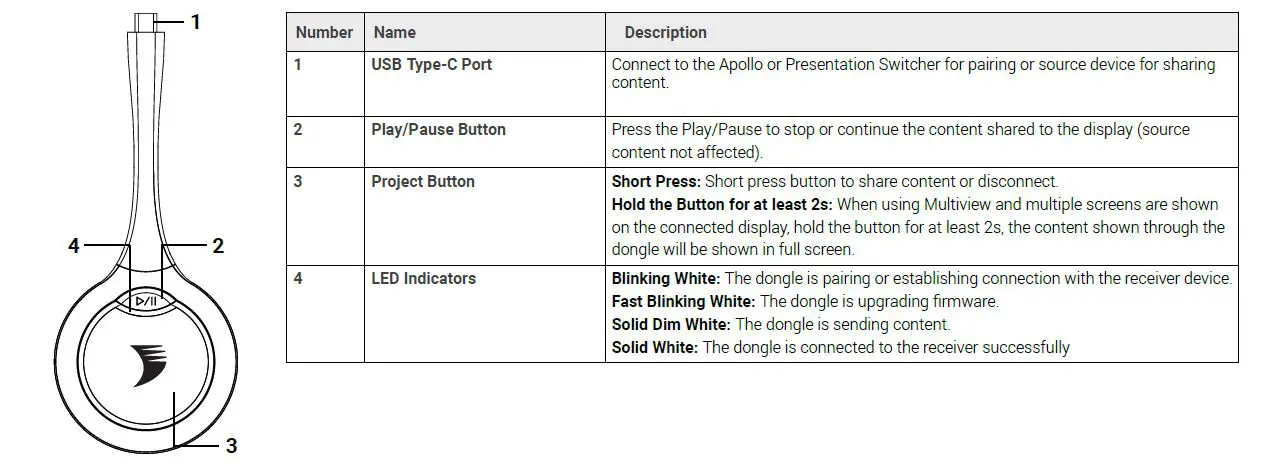

Panel Description

Installation Requirements

WyreStorm recommends reading through the entire quickstart guide before beginning the installation process. The APO-DG1 requires a USB-C port on the Apollo or Presentation Switcher for pairing or a source device for sharing content.

Product Usage Instructions

Pair with APO-VX20-UC

1. Insert the USB-C connector of the dongle into the USB-C port on the right side of the video bar.
2. A message will appear on the display connected to the VX20 saying Pairing Dongle. Wait for the pairing process to complete before disconnecting the APODG1.
3. Note: Up to two dongles can be paired with a VX20.

Pair with APO-200/210-UC

1. Insert the USB-C connector of the dongle into the USB-C port on the side of the Apollo device.
2. A message will appear on the display connected to the Apollo device saying Pairing Dongle. Wait for the pairing process to complete before disconnecting the APODG1.
   Note: Up to two dongles can be paired with an Apollo.

Pair with SW-220/540-TX-W

1. Attach the included USB-A to USB-C adapter to the APO-DG1.
2. Connect the APO-DG1 to the ‘Pairing’ USB-A port on the front of the switcher.
3. A message will appear on the display connected to the Switcher saying Pairing Dongle. Wait for the pairing process to complete before disconnecting the APODG1.
   Note: Up to two dongles can be paired with a Switcher.

Pair with APO-200/210-UC

1. Insert the USB-C connector of the dongle into the USB-C port on the side of the Apollo device.
2. A message will appear on the display connected to the Apollo device saying “Pairing Dongle”. Wait for the pairing process to complete before disconnecting the APO-DG1.
   Note: Up to two dongles can be paired with an Apollo.

Troubleshooting

If you encounter any issues with your APO-DG1, please contact WyreStorm support at
INT: +44 (0) 1793 230 343
US: 844.280.WYRE (9973) or
email [email protected].

Specifications

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation.

WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the installation process.

IMPORTANT! Installation Requirements

• Visit the product page to download the latest firmware, document version, additional documentation, and configuration tools.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
• Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Manufacturer: Shen Zhen Proitav Technology Co.,Ltd
Address: 301-401,Building 16,Hejing Industrial Park,No.87,Hexiu west Road,Zhancheng Community,Fuhai street,Baoan District,Shenzhen, China
Operating temperature：0℃ to 45℃

We declare that this device is in compliance with the essential repuirements and other relevant provisions of Directive 2014/53/EU.

Operation Frequency: 2412~2462MHz; 5150~5250MHz; 5725~5850MHz
Maximum Power:
RED: 2.4G: 12.32dbm; 5G: 16.42dbm; 5.8G: 13.18dbm
FCC: 2.4G: 18.24dbm; 5G: 13.80dbm; 5.8G: 11.67dbm

Warranty Information

WyreStorm Technologies ProAV Corporation warrants that its products to be free from defects in material and workmanship under normal use for a period of five (5) years from the date of purchase. Refer to the Product Warranty page on wyrestorm.com for more details on our limited product warranty.

Warnings of SAR

For body worn operation, the device has been tested and meets the FCC RF exposure. Guidelines when used with an accessory designated for this product or when used with an accessory that Contains no metal and that positions the handset a minimum of 5mm from the body.

Copyright © 2022 WyreStorm Technologies wyrestorm.com APO-DG1 Quickstart Guide
