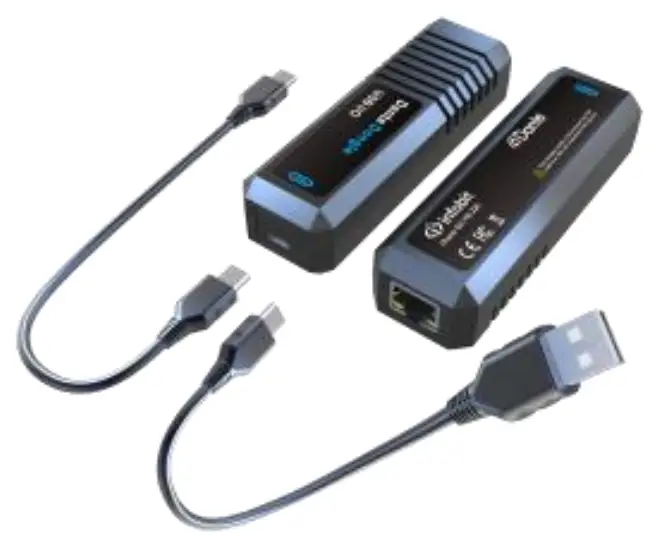

infobit iTrans DU-TR-22C Dante USB Input and Output Transceiver
Product Introduction
Thanks for choosing the iTrans DUTR-22C. It connects to your Dante network and supports 2X2 channels of bidirectional audio, allowing PC and mobile device to playout and receive audio with your Dante devices using a USB-A/C connection.
Features
- Plug and Play
- 24-bit audio support
- 2X2 audio channel
- Supports 802.3af PoE
Packing List
- 1 x iTrans DU-TR-22C
- 1 x Type-C to Type-C cable
- 1 x Type-C to Type-A cable
- 1 x User Manual
Note: Please contact your distributor immediately if any damage or defect in the components is found
Panel Description
- RJ45: Dante network communication port. Green steady light indicates system ready; yellow flashing light indicates link/data traffic. The green light will flash to identify the device when clicking the Dante Controller “Identify” button (an eye-shaped symbol) on the host computer.
- USB-C: 1 x USB-C, compliant USB 2.0 device
Technical Specification
| Dante | |
| Power | 802.3af PoE |
| Sample Rate | 48 kHz |
| Bit Depth | 24 |
| Channels | USB 2X2 |
| General | |
| Operation Temperature | -5 to +55℃ |
| Storage Temperature | -25 to +70℃ |
| Power Consumption | 9W(Max) |
| Dimension (W*H*D) | 115x 34 x 28 mm |
| Cable length | 20cm |
| Net Weight | 70g |
Customer Service
www.infobitav.com
[email protected]
