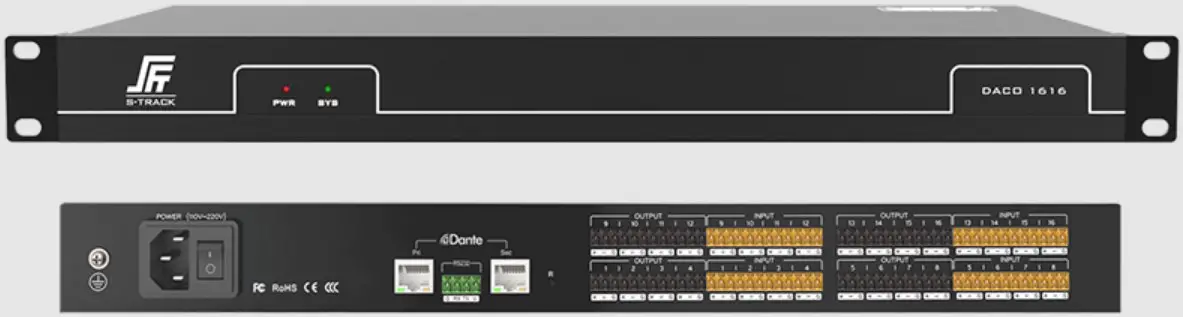

S-TRACK DACO 1616 Multi CH Dante Interface Owner’s Manual
- Provide a simple web-based control and configuration interface to facilitate the transfer and adjustment of analog signals to Dante digital signals.
- Built-in Dante module can achieve the high quality and low latency requirements of network audio transmission.
- Support web control, browsing and adjustment.
- Built-in RS232 bi-directional interface, can receive responses to third party control commands, configuration dante main and backup RJ45 network interface.
- 16-Way analog input channels support 48v phantom power supply.
| Number of Analog Channels | 16-channel analog input + 16-channel analog output | Digital-analog Dynamic Range | 120dB |
| Dante Channels | 16 channels Dante input + 16 channels Dante output | Analog-digital Dynamic Range | 114dB |
| Input Gain Amplification | -6～36dB, 6dB Level 1 total 7 levels | Input Impedance (Balanced) | 20 KΩ |
| Frequency Response | 20-20KHz,±0.5dB | Output Impedance (Balanced) | 100Ω |
| Background Noise | -90dBu | EIN (A-weighted) | ≤-125 dBu |
| Operating Power Supply | AC110V/220V,50Hz/60Hz | Channel Isolation | 107dB@1kHz |
| Enclosure size (WxDxH) | 483*258*45(mm) | Common Mode Rejection | 70dB@80Hz |
| THD +N | ≤0.004% @ 4dBu | Shipping Weight | 3Kg |
| Maximum Output Level | 18dBu, Balanced | Power Consumption | <40W |
