XPOtool 61305 Garden Tipping Cart
Product Information
The product is a loading trolley with the following parts:
- Front frame (C)
- Rear axle assembly (D)
- Front axle assembly (E)
- Wheels (F)
- Handle (G)
- Rear struts (H)
- Loading area (A)
- Lock (B)
- M12 nylon nut (E)
- M12 flat washer (F)
- Plastic coupling (G)
The product is manufactured by WilTec Wildanger Technik GmbH and more information can be found on their website: https://www.XPOtool.com.
Product Usage
- Begin by laying out all the parts and ensuring that you have all the necessary screws and nuts.
- Attach the front frame (C) to the rear axle assembly (D) using the screws provided.
- Attach the front axle assembly (E) to the front of the frame using the screws provided.
- Attach the wheels (F) to the front and rear axles using the nuts and washers provided.
- Attach the handle (G) to the front of the frame using the screws provided.
- Attach the rear struts (H) to the rear of the frame using the screws provided.
- Insert the plastic coupling (G) into the loading area (A) and attach the lock (B) to the coupling.
- Ensure that all screws and nuts are tightened securely before use.
Always follow the manufacturer’s instructions when using the product and never exceed the recommended load capacity. If you have any questions or concerns about the product, contact WilTec Wildanger Technik GmbH for assistance.

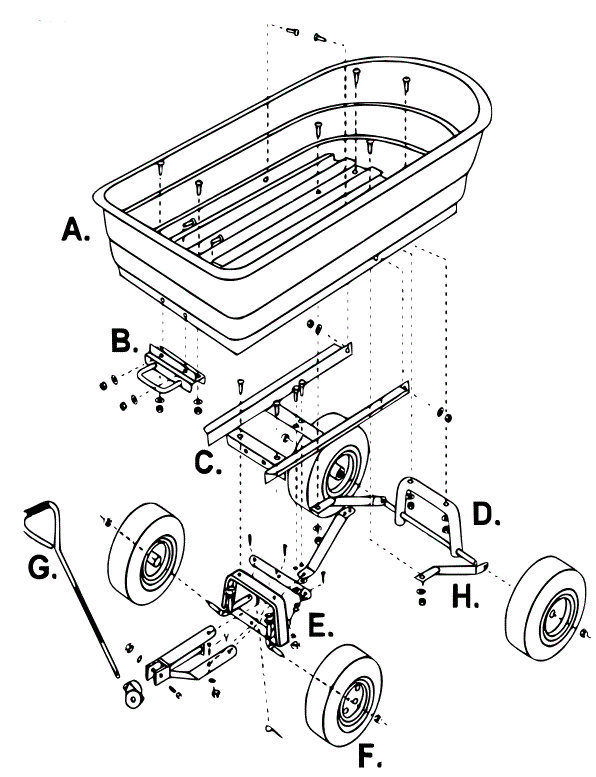

Exploded view

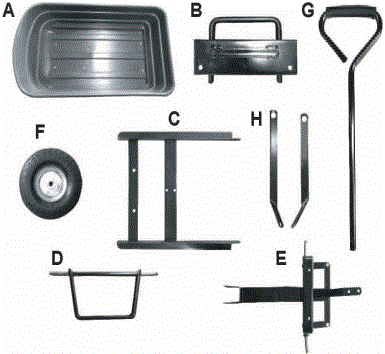

Parts lis
- A Loading area (1)
- B Lock (1)
- C Front frame (1)
- D Rear axle assembly (1)
- E Front axle assembly (1)
- F Wheels (4)
- G Handle (1)
- H Rear struts (2)

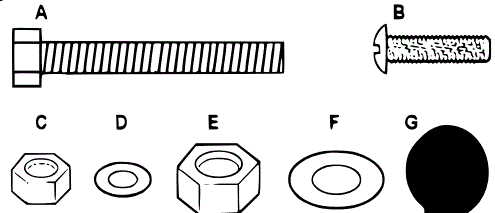

Screwing parts
- A M8×60 hex bolt (1)
- B M8×20 bolt (14)
- C M8 nylon nut (15)
- D M8 flat washer (15)
- E M12 nylon nut (4)
- F M12 flat washer (4)
- G Plastic coupling (1)
Important Note: Reproduction and any commercial use (of parts) of this operating manual, requires a written permission of WilTec Wildanger Technik GmbH.
