Bestargot Spliced Stove Bracket Installation Guide

Bestargot Spliced Stove Bracket Installation Guide

BESTARGOT Spliced Stove Bracket-logo

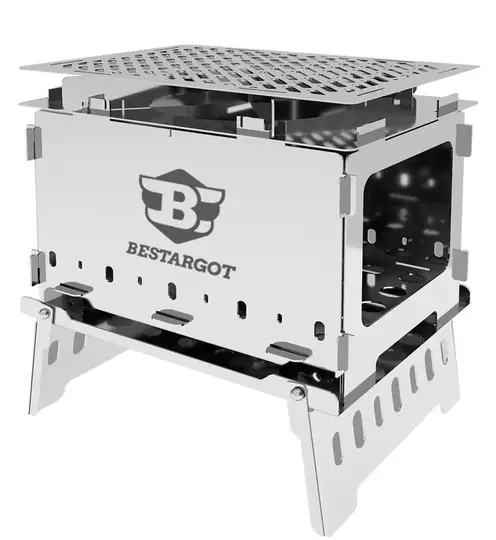

BESTARGOT Spliced Stove Bracket

BESTARGOT Spliced Stove Bracket-prod

The Bestargot believes gathering with others outdoors is an antidote to the stresses of modern life, and provides an opportunity to reconnect with each other and ourselves. As a company we have been in the outdoor accessories niche for a long time, so we knew exactly what actions we had to take in order do to make the outdoor accessories of the highest quality with the best options for you as a consumer. We aim to offer our customers the best experience possible.

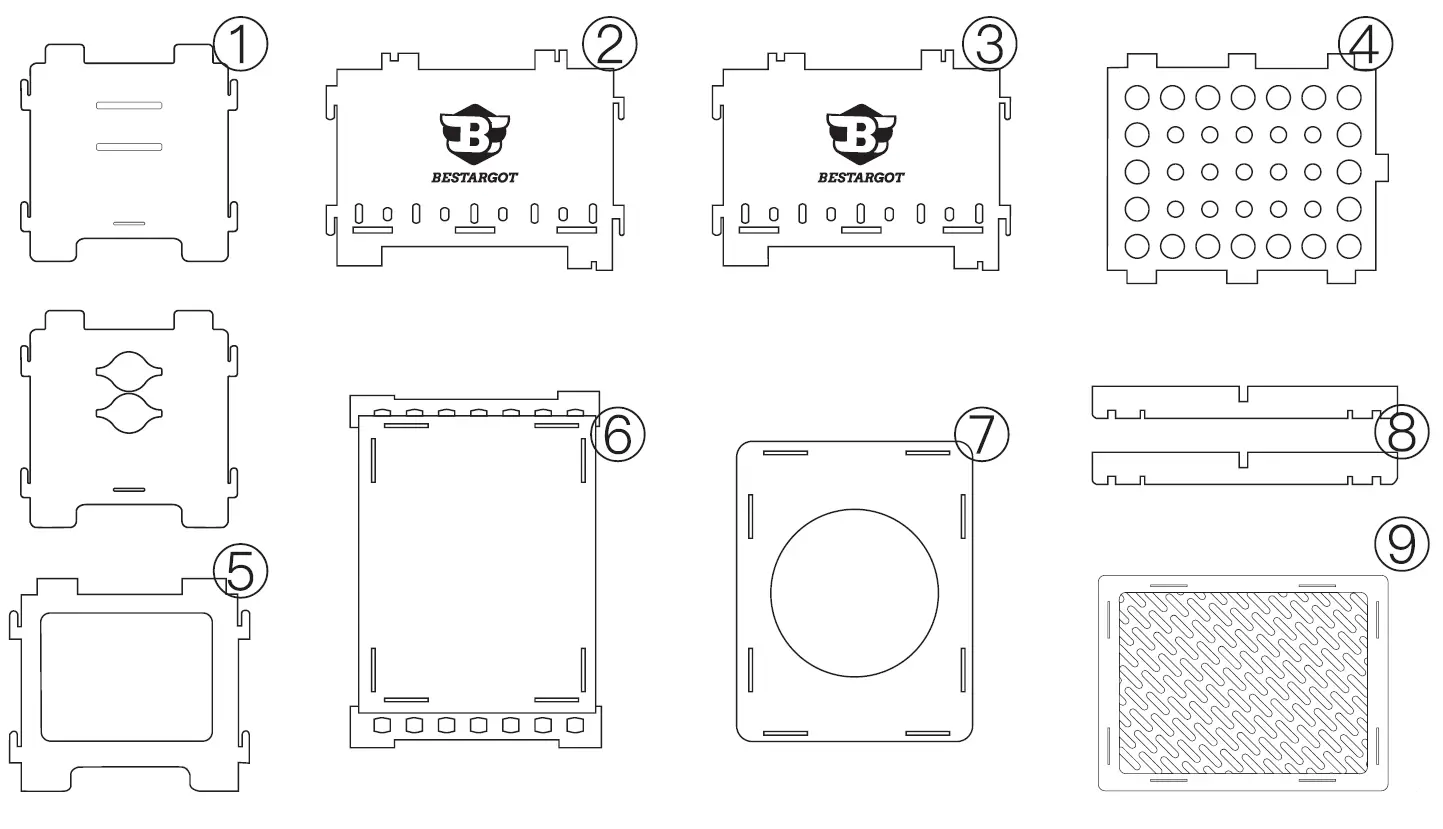

InstallationBESTARGOT Spliced Stove Bracket-fig1

  1. Wind-Break Board-A
  2. Wind-Break Board-B
  3. Wind-Break Board-C
  4. Charcoal Net
  5. Charcoal Adding Board
  6. Fixed Base
  7. Gather Fire Board
  8. Spliced Stove Bracket
  9. Grill Net

Parts

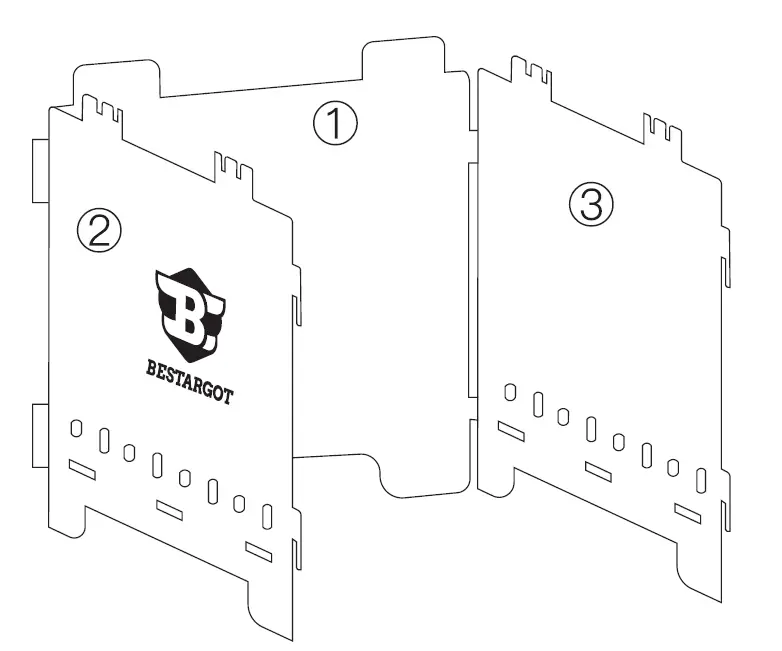

Connect up partsBESTARGOT Spliced Stove Bracket-fig2

Connect up parts①②③

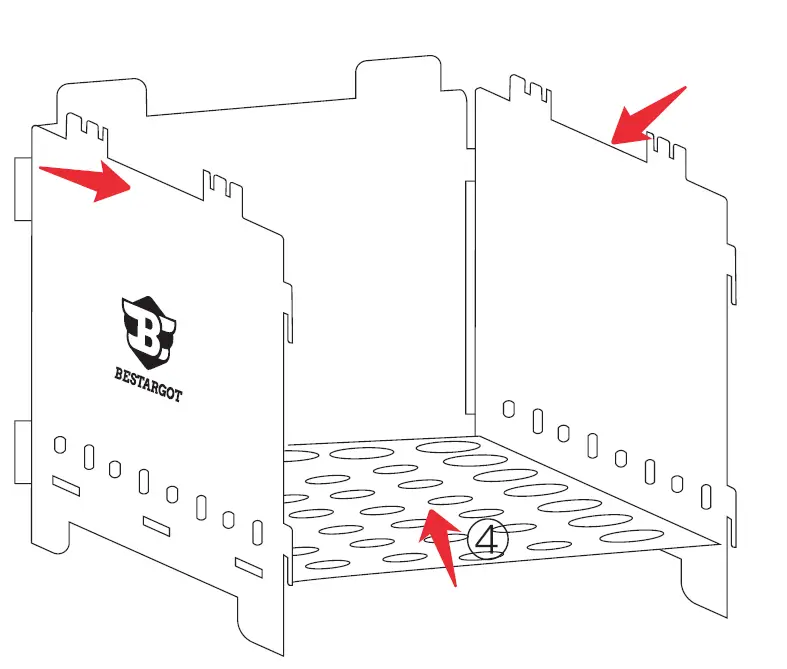

Insert partsBESTARGOT Spliced Stove Bracket-fig3

Insert parts④

Install parts, and put the kit on partsBESTARGOT Spliced Stove Bracket-fig4

Install parts⑤, and put the kit on parts⑥

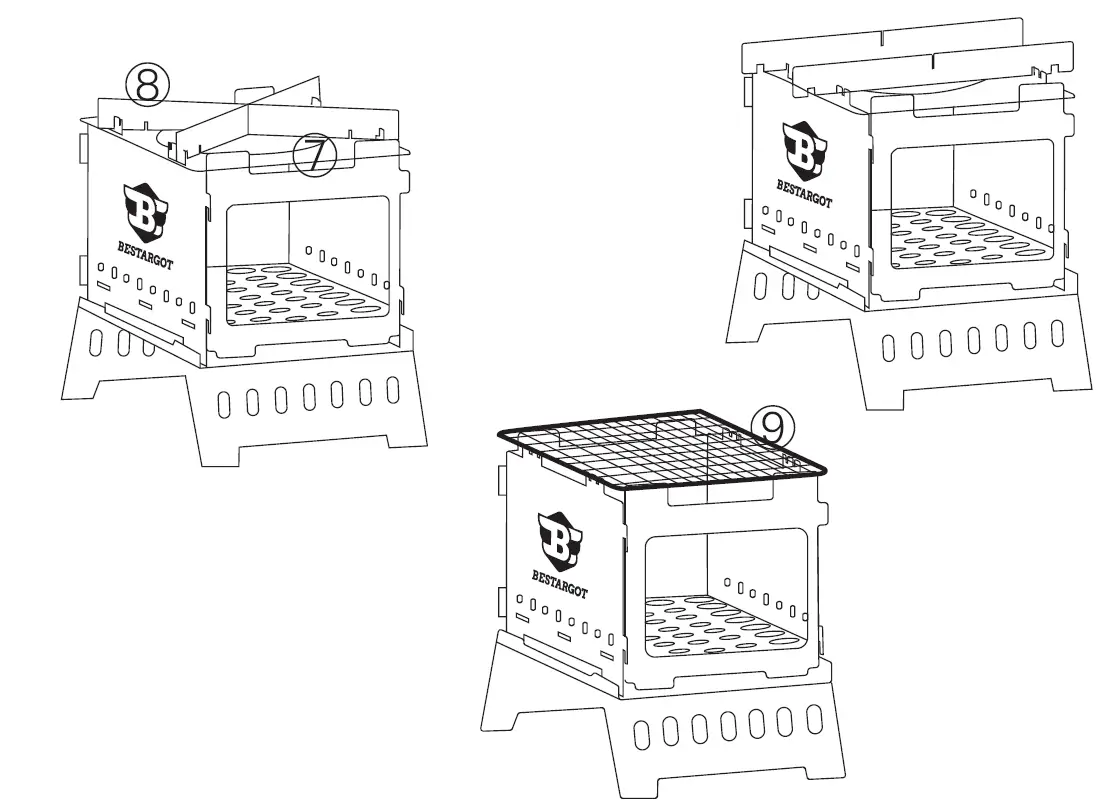

Place up the parts or parts as neededBESTARGOT Spliced Stove Bracket-fig5

Place up the parts⑦⑧ or parts⑨ as needed
