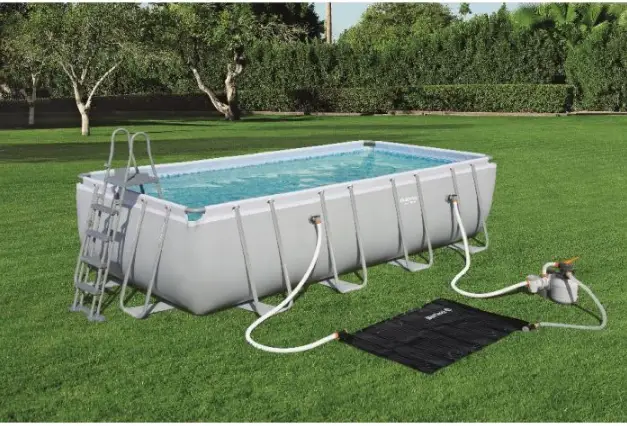

Bestway 58423 Clean Sun Powered Pool Pad

Installation

Pool	Pool Size	Recommend QTY of mat
	2.21 m x 1.50 m x 43 cm (7’3″ x 59″ x 17″)	1
	2.59 m x 1.70 m x 61 cm (8’6″ x 67″ x 24″)	1
	3.00 m x 2.01 m x 66 cm (9’10” x 6’7″ x 26″)	1
	4.00 m x 2.11 m x 81 cm (13’1″ x 6’11” x 32″)	1
	2.44 m x 51 cm (8′ x 20″)	1
	3.05 m x 76 cm (10′ x 30″)	1
	3.66 m x 76 cm (12′ x 30″)	1
	3.66 m x 1.00 m (12′ x 39.5″)	1
	3.66 m x 1.22 m (12′ x 48″)	1
	4.27 m x 84 cm (14′ x 33″)	1
	4.57 m x 1.07 m (15′ x 42″)	2
	4.57 m x 1.22 m (15′ x 48″)	2
	5.49 m x 1.22 m (18′ x 48″)	3
	2.82 m x 1.96 m x 84 cm (9’3″ x 6’5″ x 33″)	1
	4.04 m x 2.01 m x 1.00 m (13’3″ x 6’7″ x 39.5″)	1
	4.12 m x 2.01 m x 1.22 m (13’6″ x 6’7″ x 48″)	1
	4.88 m x 2.44 m x 1.22 m (16′ x 8′ x 48″)	2
	4.88 m x 4.88 m x 1.22 m (16′ x 16′ x 48″)	3
	5.49 m x 2.74 m x 1.22 m (18′ x 9′ x 48″)	3
	6.71 m x 3.66 m x 1.32 m (22′ x 12′ x 52″)	3
	7.32 m x 3.66 m x 1.32 m (24′ x 12′ x 52″)	3
	9.56 m x 4.88 m x 1.32 m (31’4″ x 16′ x 52″)	3
	4.27 m x 1.07 m (14′ x 42″)	2
	4.27 m x 1.22 m (14′ x 48″)	2
	4.88 m x 1.22 m (16′ x 48″)	3
	5.49 m x 1.22 m (18′ x 48″)	3
	5.49 m x 1.32 m (18′ x 52″)	3
	6.10 m x 1.22 m (20′ x 48″)	3
	6.71 m x 1.32 m (22′ x 52″)	3
	7.32 m x 1.32 m (24′ x 52″)	3
	7.93 m x 1.32 m (26′ x 52″)	3
	4.88 m x 3.05 m x 1.07 m (16′ x 10′ x 42″)	2
	5.49 m x 3.66 m x 1.22 m (18′ x 12′ x 48″)	2
	2.44 m x 66 cm (8′ x 26″)	1
	2.74 m x 76 cm (9′ x 30″)	1
	3.05 m x 76 cm (10′ x 30″)	1
	3.66 m x 76 cm (12′ x 30″)	1
	3.96 m x 84 cm (13′ x 33″)	1
	4.57 m x 84 cm (15′ x 33″)	1
	4.57 m x 1.07 m (15′ x 42″)	1
	3.00 m x 2.00 m x 84 cm (9’10” x 6’7″ x 33″)	1
	4.24 m x 2.50 m x 1.00 m (13’11” x 8’2″ x 39.5″)	1
	4.88 m x 3.05 m x 1.07 m (16′ x 10′ x 42″)	2

	Pump flow rate		Recommend number of solar heater mat
	gal/h	L/h
Filter Pump	330	1,249	1
	530	2,006	1
	800	3,028	2
	1,000	3,785	2
	1,500	5,678	3
	2,500	9,463	3
Sand Filter	800	3,028	2
	1,500	5,678	3
	2,200	8,327	3

Instructions

WARNING

READ AND FOLLOW ALL INSTRUCTIONS
WARNING-TO REDUCE THE RISK OF INJURY, do not permit children to use this product unless they are closely supervised at all times. CAUTION- This product is for use with storable pools only. Do not use with permanently-installed pools. A storable pool is constructed so that it is capable of being readily disassembled for storage and reassembled to its original integrity. A permanently-installed pool is constructed in or on the ground or in a building such that it cannot be readily disassembled for storage.
CAUTION- Do not touch the panel surface when the product is working or you may get hurt.
NOTE: Do not sit, stand or jump on this product.
NOTE: Weather conditions can affect the performance and life span of your solar water heater.
NOTE: This product must be set up in a flat and clean location; the ground must be cleared of all objects and debris including stones and twigs. NOTE: Grass or other vegetation under the product will die and may cause odors and slime to develop, therefore we recommend removing all grass from the selected location. Avoid locating the item beside areas prone to aggressive plant and weed species as they may damage the item when they grow.
NOTE: This product must be placed in direct sunlight to ensure proper performance.
NOTE: Drawings for illustration purposes only. May not reflect the actual product. Not to scale.

SPECIFICATIONS

Surface(m2)	1.88
Length(m)	1.71
Width(m)	1.1
Max Pressure(Psi)	10
Material	PVC
Channel System	S-channel
Installation	On Lawn/On Flat
Characteristic	50-100% of the swimming pool surface (Increase swimming pool water temperatures by approximately 3-5OC (5-9OF) Depending on the weather condition

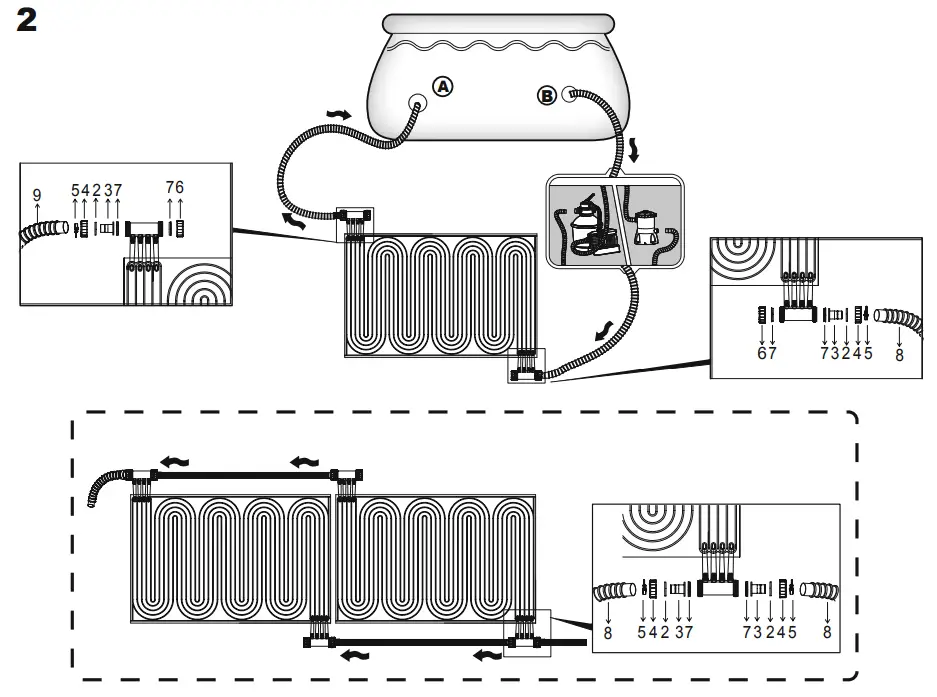

NO.	DESCRIPTION	QTY.
1	Heat Panel	1
2	O-ring (Φ24 mm)	4
3	Hose Adapter	4
4	Adapter Nut	4
5	Hose Clamps	4
6	Adapter Cap	2
7	O-ring (Φ56 mm)	4
8	Hose (Φ32 mm x 2 m)	1
9	Hose (Φ32 mm x 3 m)	1

SOLAR HEATER MAT QUANTITY FOR BESTWAY POOLS

A number of solar heater mats recommended for larger pools. Based on 8 hours of sunshine exposure per day; heating performance varies depending on weather and ambient conditions, and whether the pool is covered or not at night.

MAINTENANCE

CAUTION: YOU MUST ENSURE THE SAND FILTER IS UNPLUGGED BEFORE ANY MAINTENANCE BEGINS OR A SEVERE RISK OF INJURY OR DEATH EXISTS.

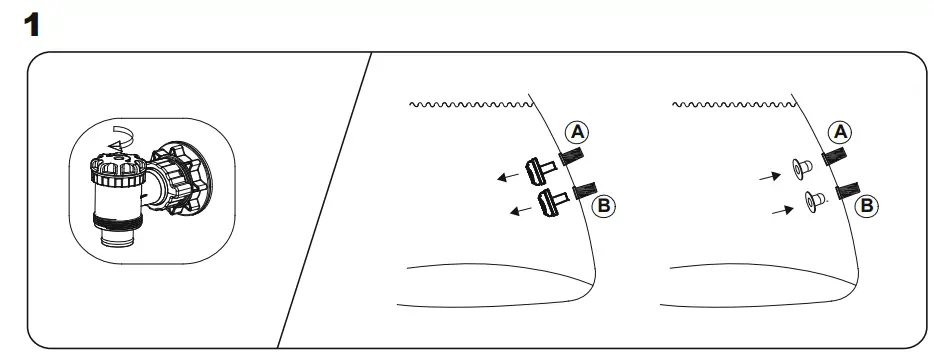

Unplug the sand filter.
Loosen all the hose clamps.

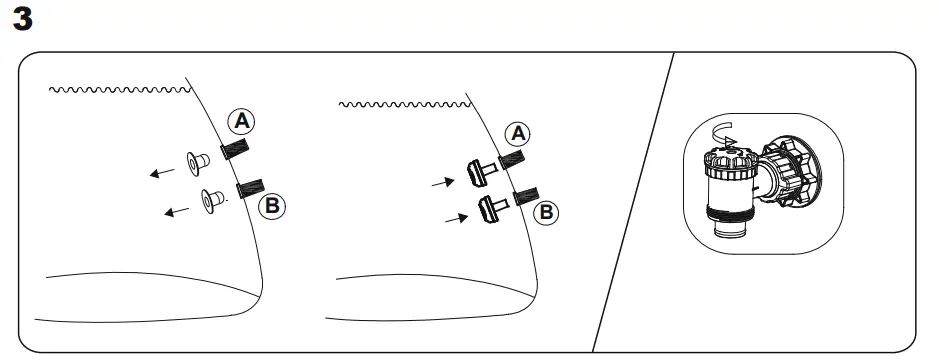

Remove debris screens from inside of pool. Replace the debris screens with the stopper plugs in the pool’s inlet and outlet valves. (Or close the connection valves A.)
Clean the panels with a garden hose carefully.

STORAGE

Unplug the filter pump or sand filter.
Follow the instructions as previously outline to stop water from flowing to the filter pump or sand filter.
Detach all hoses.
Dry all components thoroughly.
Roll all the panels.
Store the product in a dry warm location out of the child’s reach.
