Bestway 58665E Automatic Pool Vacuum Cleaner
OPERATING WARNING
IMPORTANT SAFETY INSTRUCTIONS READ AND FOLLOW ALL INSTRUCTIONS.
WARNING: To reduce the risk of injury, do not permit children to use this product.
WARNING: Assembly and disassembly of this product should only be performed by adult.
WARNING: Do not remove or obstruct the float opening while the filter pump/sand filter is operating.
WARNING: Keep hands and hair away from the Pool Vacuum while the filter pump/sand filter is operating.
WARNING: Do not use the filter pump/sand filter while the pool is occupied.
WARNING: Ensure the filter pump/sand filter is unplugged before any maintenance begins or severe risk of injury or death exists. NOTE: Remove the product from the pool before placing a cover over the pool.
NOTE: Drawings for illustration purpose only. May not reflect actual product. Not to scale.

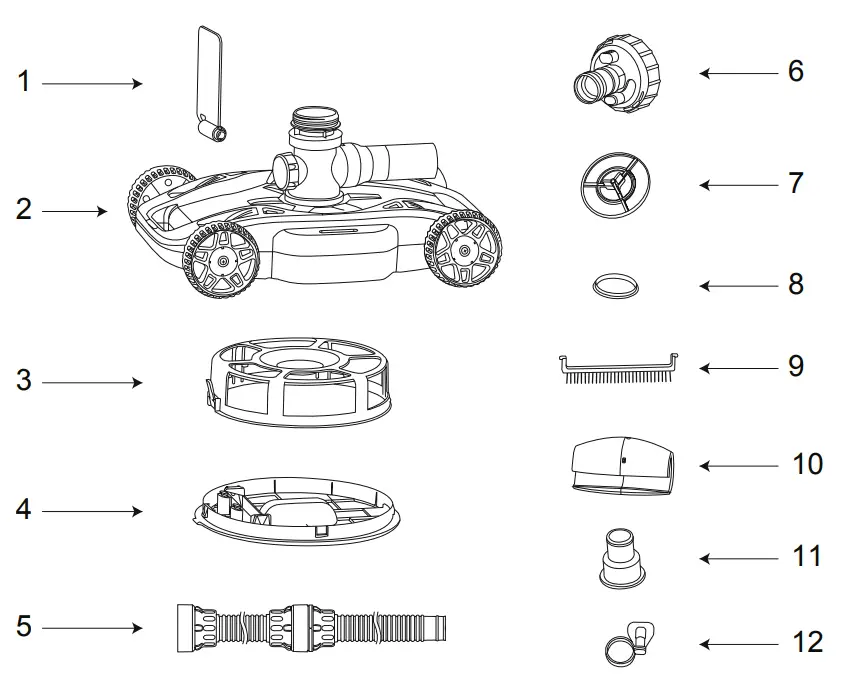

PART LIST
| ITEM | NAME | QTY |
| 1 | Flap | 1 |
| 2 | Main Body | 1 |
| 3 | Debris Compartment | 1 |
| 4 | Bottom Cover | 1 |
| 5 | Hose | 1 |
| 6 | Pressure Relief Valve | 1 |
| 7 | Pressure Relief Valve Filter | 1 |
| 8 | Seal | 1 |
| 9 | Brush | 1 |
| 10 | Float | 2 |
| 11 | Hose Adapter | 1 |
| 12 | Hose Clamp | 1 |
Applicable Pump: 1,500-3,200 gal./h Filter Pump or Sand Filter Applicable Pool: 22 ft. (6.7 m) and below Above Ground Pool

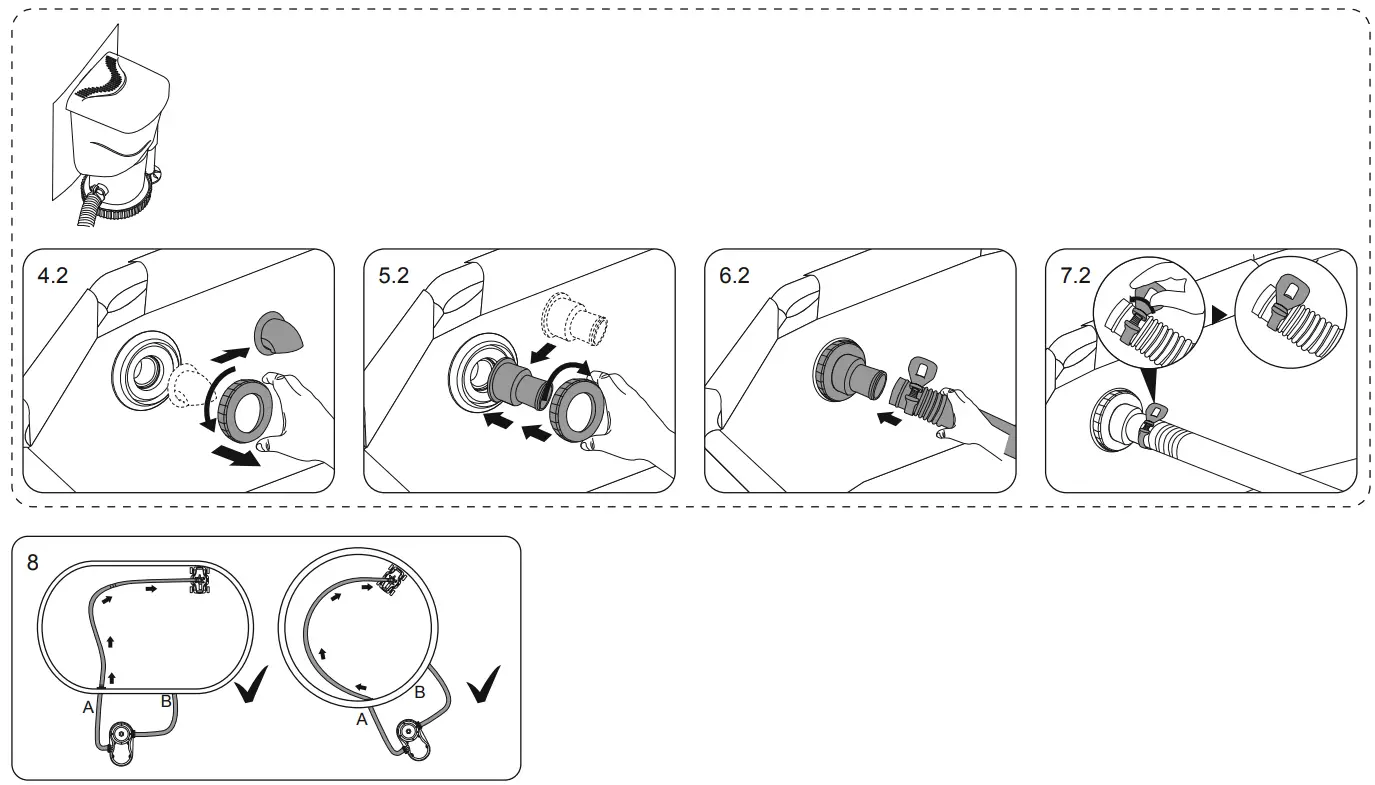

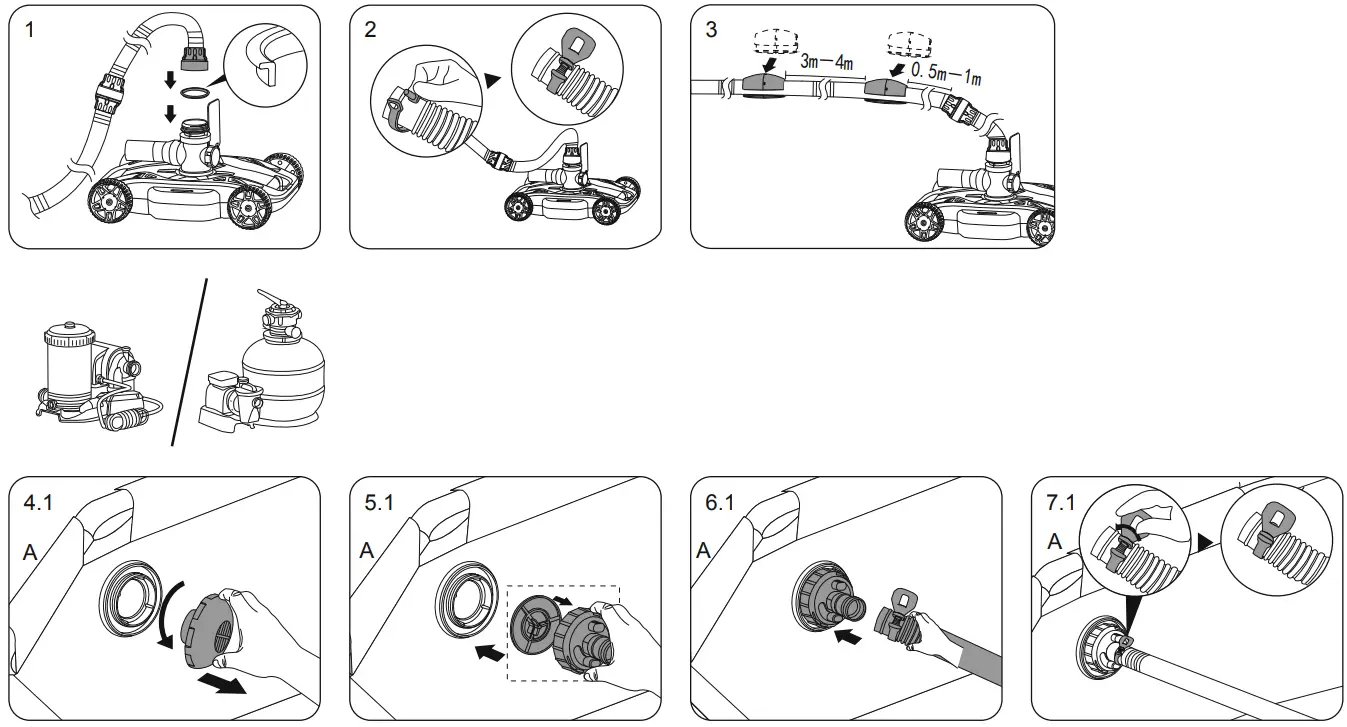

INSTALLATION

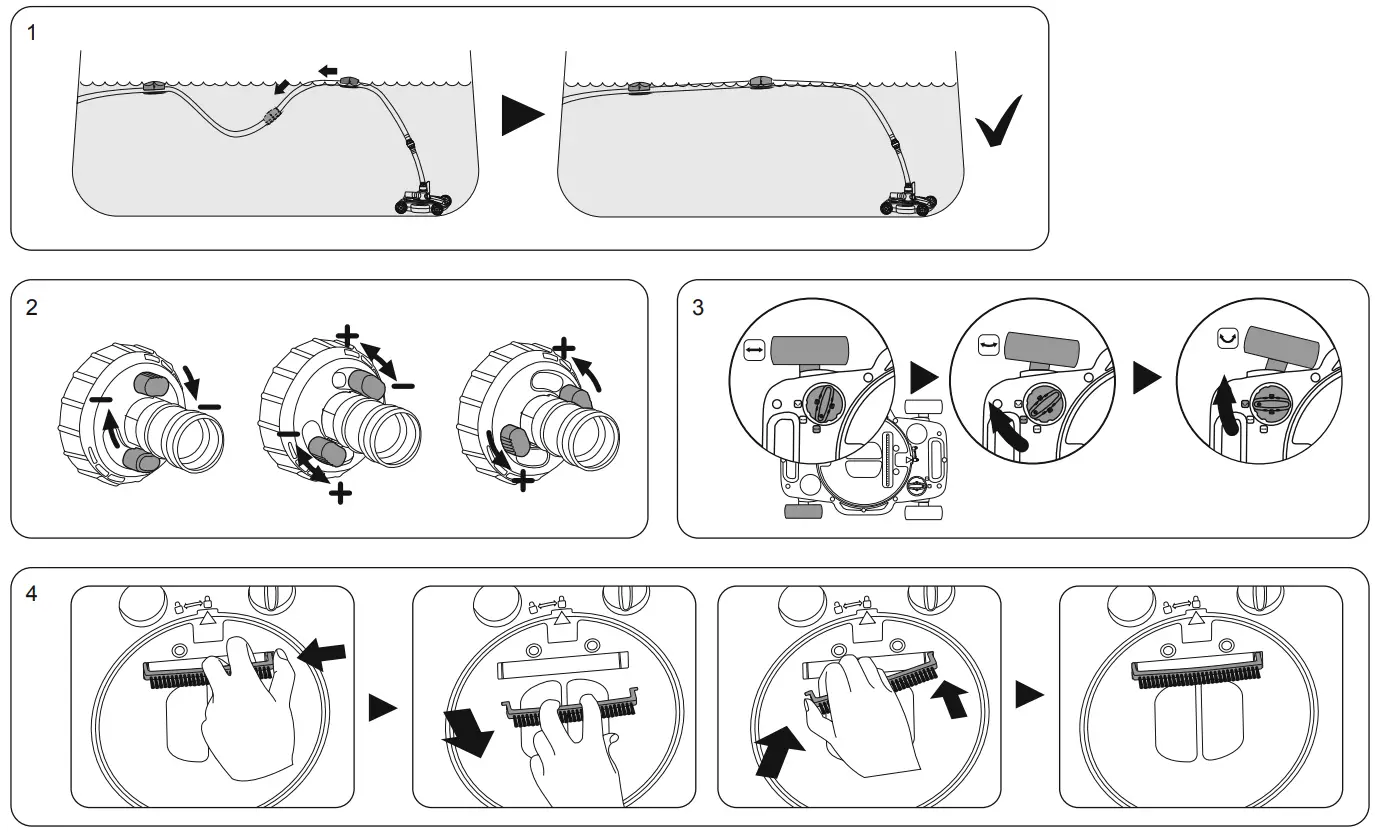

HOW TO USE THE PRODUCT
If the following situations occur during operation, please operate as shown to keep the robot in the best working condition.
- During operation, if the hose sinks below the water surface, please adjust the position of the float.
- When adapting to a high-flow pump, if the following situations occur, please refer to the operation diagram, and adjust the pressure relief valve knob to appropriately reduce the running speed of the cleaner:
- After the hoses are straightened out, serious hose entanglement occurred in continuous long-term operation;
- The robot runs too fast, the wheels tip over or the wheels do not move along the bottom of the pool.
- When the robot runs for a long time, if the running track does not cover most of the pool area, or the running track is repeated. Please adjust the wheel angle knob appropriately.
- When adapting to 1500 gal. filter pump, please remove the brush.
NOTE: It is normal for the robot to leak water at the water pipe joints during the water supply process.

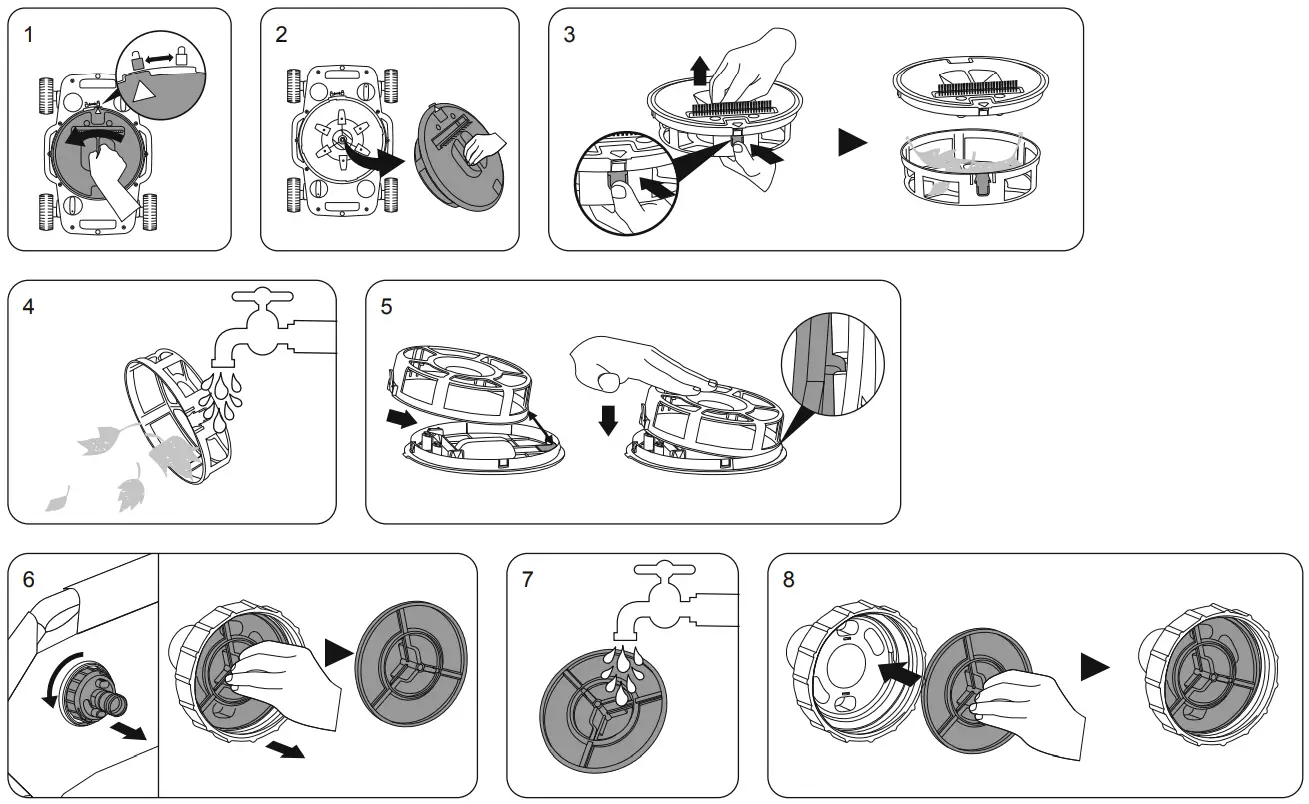

HOW TO CLEAN THE PRODUCT
TROUBLESHOOTING
| Problem | Possible Cause | Solution |
|
Robot does not capture the debris, moves slowly or does not move at all. | Debris compartment is full | Clean the debris compartment. Rinse with water to remove debris. |
| Pressure relief valve filter is clogged | Clean the pressure relief valve filter. Rinse with water to remove debris. | |
| Pool suction fitting is clogged | Clean the pool suction fitting. Rinse with water to remove debris. | |
|
The filter cartridge or sand is too dirty | Filter pump – Stop the pump, block the connector A and B to avoid water flowing out from the pool, and clean the filter cartridge or replace if necessary. Sand filter pump – Disconnect the cleaner from the pool, perform backwash and rinse to clean the sand. | |
| Air inside the pump | Stop the filter pump or sand filter, purge the air and start again. | |
| The robot is stuck on wrinkles | Check the bottom of the pool. If there are wrinkles, level the pool to reduce them. Check to see if the debris screen inside of the head is dirty. Clean the debris screen. Check to see if the filter cartridge or filter sand is dirty. Clean the filter cartridge or back wash the filter sand. | |
| Wheel is jammed | Check and remove debris from the wheel. | |
| The water valve did not open | Open the water valve | |
| Damaged debris compartment or pressure relief valve filter | Return to the shop to get assistance | |
|
The hoses are entangled | Hose not straightened out | Turn off the pump, reconnect the product at the diagonal position of the pool, the water hose should be in a C shape, the product should be placed into the water in the direction of the water hose. |
| The hose sinks into the water | Adjust the position of the float to make the hose float on the water. | |
| The robot running speed is too fast | Regulating pressure relief valve | |
| The driving path of the robot cannot cover the entire pool | The wheels are not in the correct position | Adjust the wheel driving angle |
