Jaxpety Hg61t1224 Industrial Wood Nightstand Accent End Table User Manual

JAXPETY HG61T1224 Industrial Wood Nightstand Accent End Table

Product Information

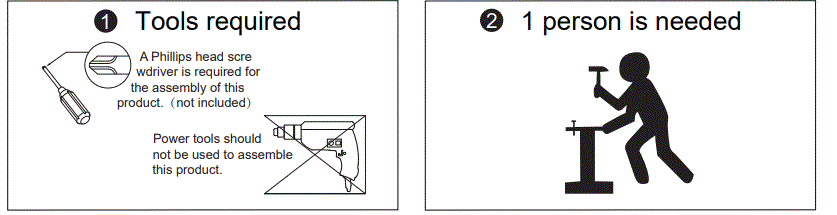

This product requires assembly using a Phillips head screwdriver (not included). Power tools should not be used for assembly. One person is needed for assembly.
The hardware list includes:

• A, B, C, D, E, F, H, I, J, K, L, M, N, O, P – 1 piece each
• G – 2 pieces
• 1 – 25 pieces
• 2 – 25 pieces
• 3 – 12 pieces
• 4 – 1 piece
• 5 – 4 pieces
• 6 – 8 pieces
• 7 – 2 pieces
• 8 – 8 pieces
• 9 – 2 pieces
• 10 – 1 piece

Product Usage Instructions

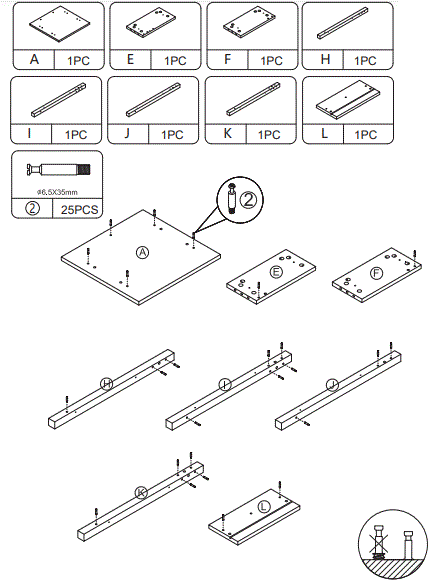

• Step 1:
  Use A, E, F, H, I, J, K and L along with 25 pieces of hardware (type 2) to assemble the first part.

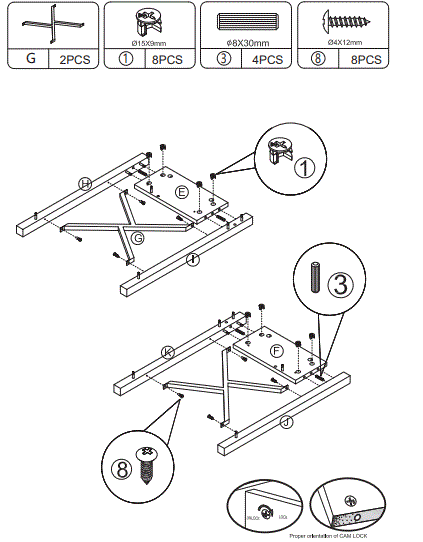

• Step 2:
  Attach G (2 pieces) and use 8 pieces of hardware (type 1) and 4 pieces of hardware (type 3) to assemble the second part.

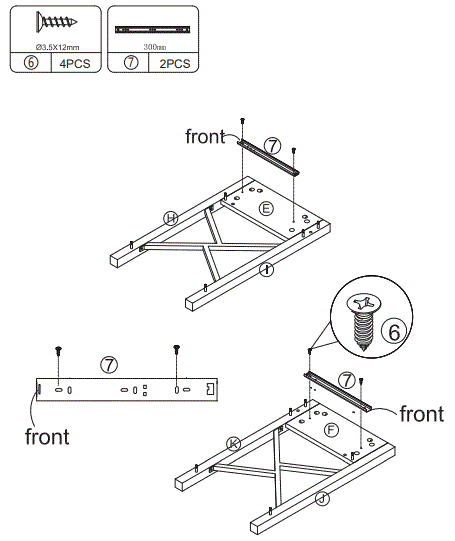

• Step 3:
  Use 4 pieces of hardware (type 6) and 2 pieces of hardware (type 7) to assemble the third part.
• Step 4:

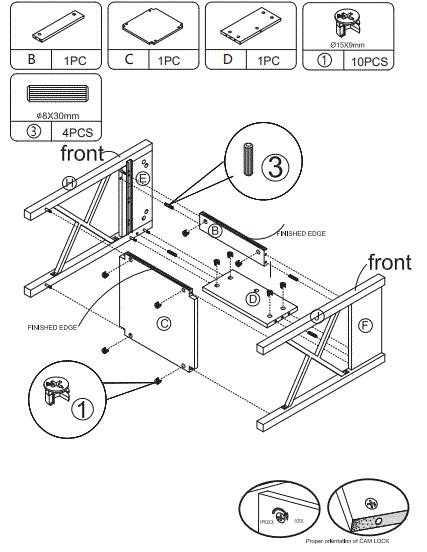

  Use B, C and D along with 10 pieces of hardware (type 1) and 4 pieces of hardware (type 3) to assemble the fourth part.

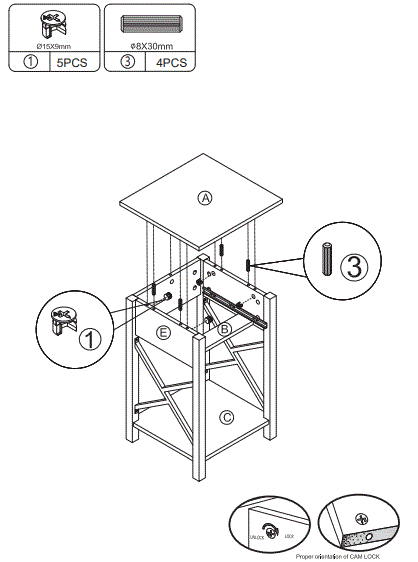

• Step 5:
  Use 5 pieces of hardware (type 1), 4 pieces of hardware (type 3), 1 piece of hardware (type 7) and 1 piece of hardware (type 8) to assemble the fifth part.

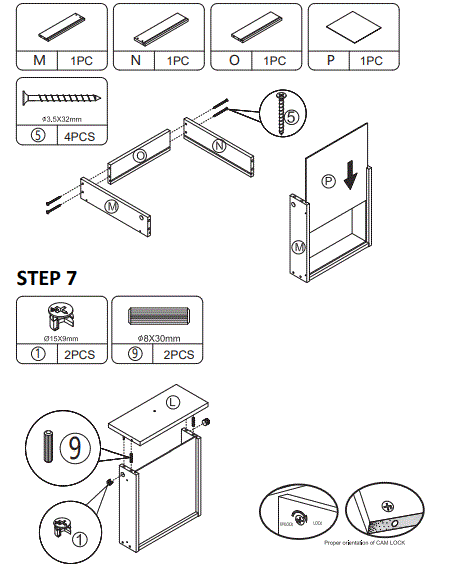

• Step 6:
  Use M, N, O and P along with 4 pieces of hardware (type 5) to assemble the sixth part.
• Step 7:
  Use 2 pieces of hardware (type 1) and 2 pieces of hardware (type 9) to assemble the seventh part.
• Step 8:

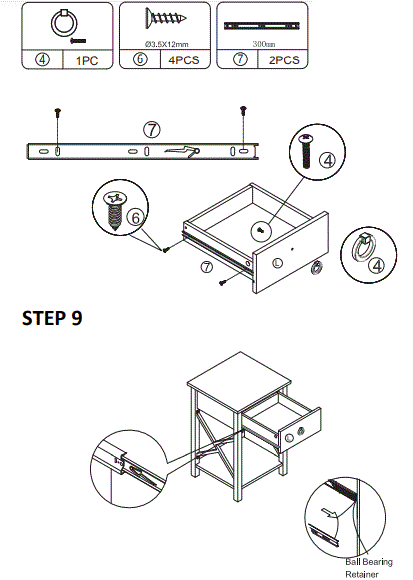

  Use 1 piece of hardware (type 4), 4 pieces of hardware (type 6) and 2 pieces of hardware (type 7) to assemble the eighth part.
• Step 9:
  Assemble the tenth and final part.

You need

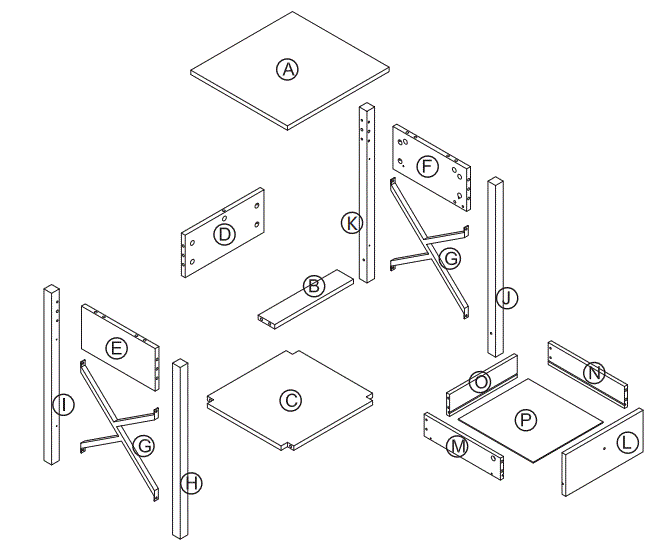

Hardware List

PRODUCT ASSEMBLY

WARNING
Check the _packagecontents before getting started

WARNING

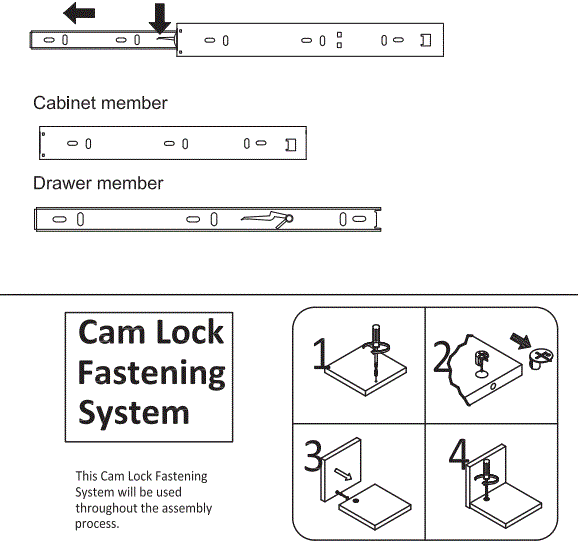

How To SEPARATE BALL BEARING SLIDE.

1. Pull toward arrow to open the slide until its stops and then flip it over.
2. Push plastic lever down and pull apart.

• STEP 1
• STEP 2
• STEP 3
• STEP 4
• STEP 5
• STEP 6
• STEP 7
