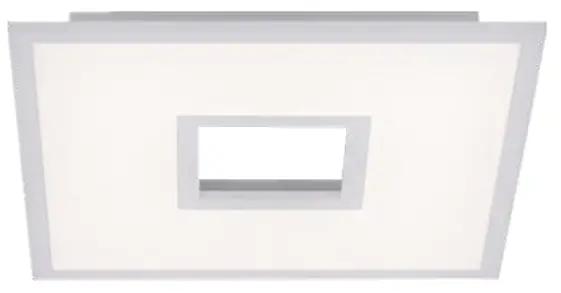

RECESS 996755 LED Panel Celling Light

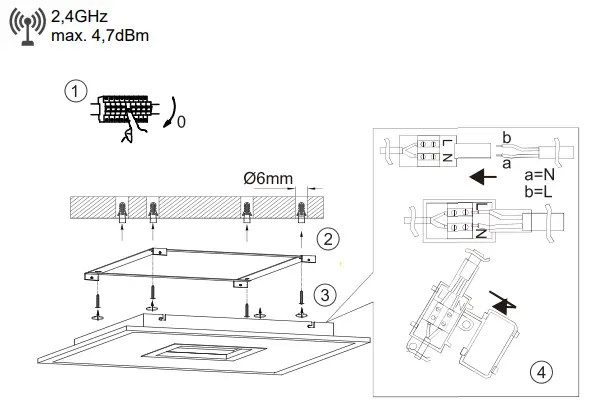

Installation Guide
996755-RECESS
RECESS 996755 LED Panel Celling Light
This product contains a light source of energy efficiency class <E>.
| Description | Operation data |

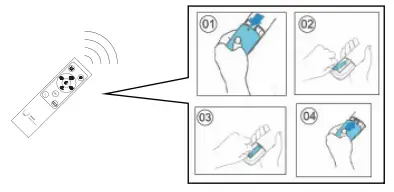

| Battery | 2x 1,5V AAA |
| Transmission frequency | 2,4 GHz |
| Transmission power | max. 4,7 dBm |
| No-load current | max. 10 auk |
| Operating current | max. 10 mA |
| Range of the remote control | ≤20m |

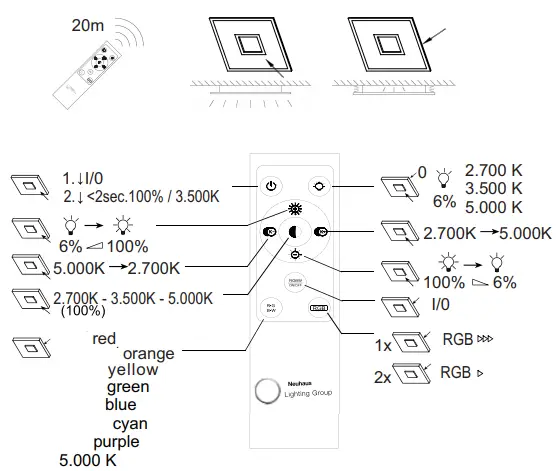

Instruction for use
If your light is not assigned to the enclosed remote control , assign the remote control to the light as follow :
Assigning and grouping the remote control to the light

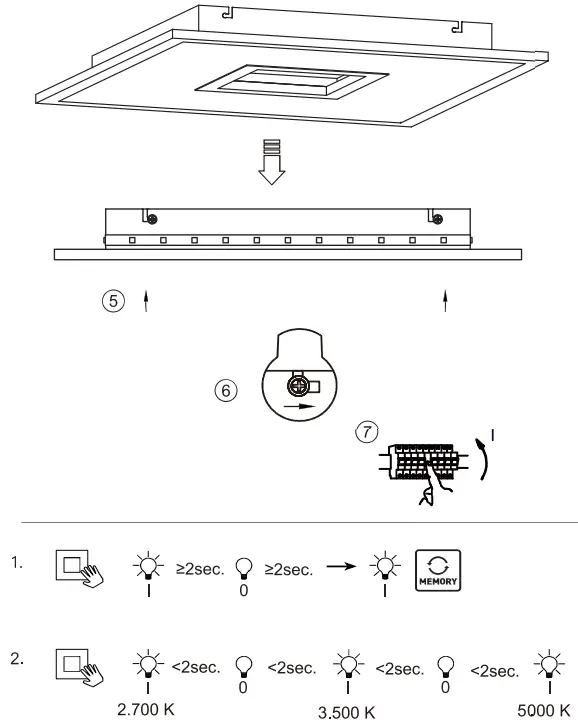

Turn on the light within 6 sec. and long press for 2 sec.. If the light flicker three times , matching is successful. If not , turn off the light 10sec., then repeat the above process. After the light has been assigned , it can be controlled using the remote control.
