Panasonic F-ZXRP35Z Air Purifiers
| Filter Type | Filter model name | Device model name | |

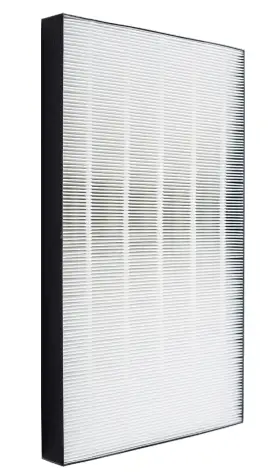

| HEPA | F-ZXRP35Z | F-VXR35G | |
| DEO | F-ZXFD35X | F-VXR35G | |
| HUM | F-ZXCE50X | F-VXR35G | |
| HEPA | F-ZXRP50Z | F-VXR50G | |
| DEO | F-ZXHD55Z | F-VXR50G | |
| HUM | F-ZXHE50Z | F-VXR50G | |
| HEPA | F-ZXRP90Z | F-VXR70G | F-VXR90G |
| DEO | F-ZXFD70Z | F-VXR70G | F-VXR90G |
| HUM | F-ZXKE90Z | F-VXR70G | F-VXR90G |
Device model
Information included in OI, also on a AirPurifier sticker
F-VXR35G
F-VXR50G
F-VXR70G
F-VXR90G
Shape of the Humidifying filters – similar for 50, 70, 90, different for model 35
Device model
Information included in OI – humidifying filter
F-VXR35G
Notice
For installation and removal methods of front panel, filters and tank, please see p. 1-~12.

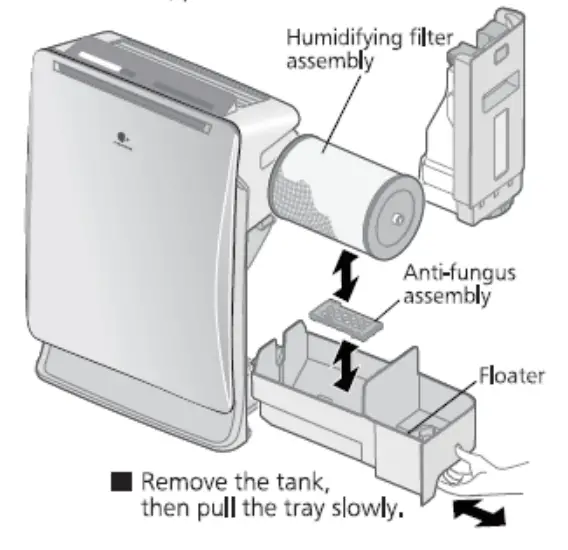

Humidifying filter assembly < about once a month >
- Disassembly

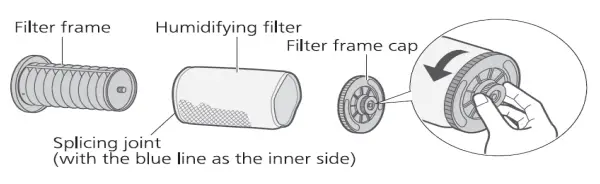

Remove the filter frame cap and then the hum.
F-VXR50G
F-VXR70G
F-VXR90G

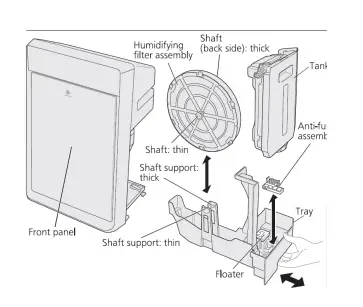

Humidifying filter assembly < about once a month >
- Disassembly
Remove the 6 hooks from the filter frame.
names of parts available at Panasonic Authorized Service Centers
F-VXR70G – F-VXR90G
FFE48101401S – Pre Filter Unit – spare part
FFE41801811S – HEPA Air Filter Assembly
FFE41701707S – Deodorizing Filter Assembly
FFE06131702S – Humidifying Filter Set
F-VXR50G
FFE06131705S – Hum.Filter Set
FFE41801810S – HEPA. Filter Assy.
FFE41701708S – Deo.Filter
F-VXR35G
FFE41801809S – HEPA Filter Assy
FFE41701706S – Deo. Filter Assy
FFE05331701S – Hum. Filter
