Airpura C700 Dlx Air Purifier Instruction Manual

C700 DLX Air Purifier Instruction
Manual

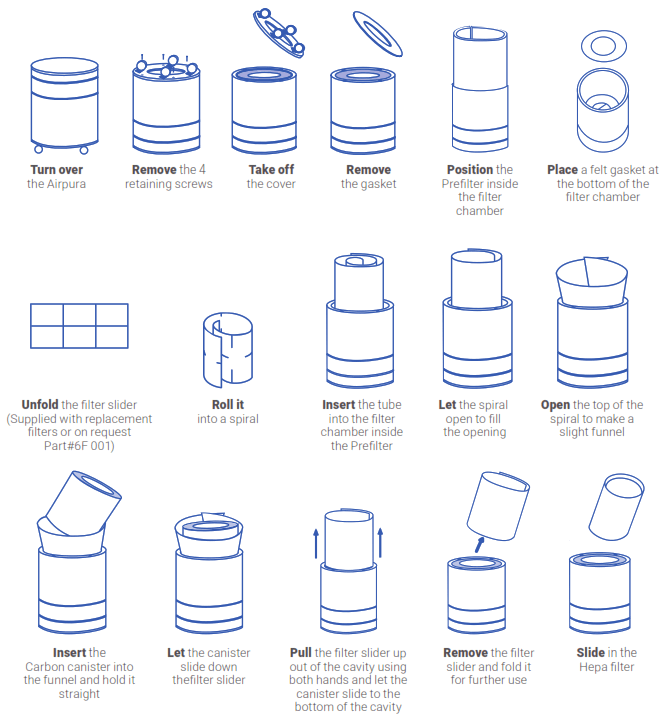

To open the filter chamber

TO BEGIN USING YOUR
AIRPURA
Inspect the exterior of your Airpura to verify there is no damage from shipping. If any damage is noted, please follow the instructions from the distributor returns policy.
Wipe the unit with a damp cloth to remove any dust from the packaging
Plug the unit into a regular grounded 110-volt outlet
Turn on the unit to MAX and allow it to run for at least 30 minutes
Set the variable speed control to the level you wish
The most efficient way to use your Airpura for regular air quality maintenance is to run it at a low speed 24 hours a day 7 days a week.
Always maintain a humidity level of approximately 40% to ensure the unit is operating at optimal levels.
When using a purifier with a dehumidifier, please keep dehumidifier at least 6 feet away.

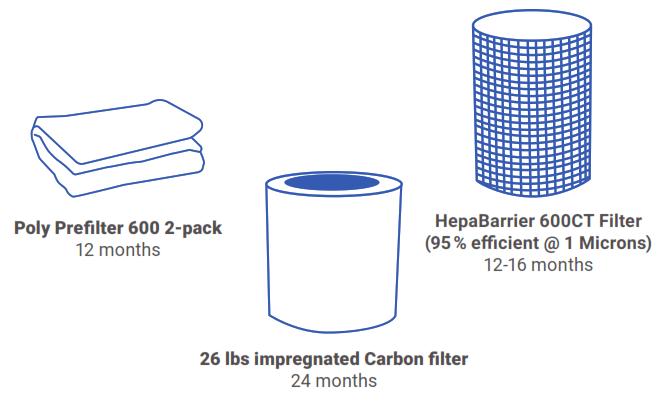

FILTER MAINTENANCE AND REPLACEMENT

The Prefilter
Can be vacuumed from the exterior of the unit once a month or more often. Should be replaced at least after 12 months of use
To vacuum the Prefilter
Use the brush attachment on your vacuum cleaner Vacuum slowly around the mesh surface of the filter chamber

IMPORTANT SAFETY NOTE

Please ensure the air purifier is turned OFF when plugging into a power source. Failure to do so may result in motor potentially stalling and/or burning.

Technical specifications

Odors, airborne chemical control
26 lbs activated Carbon
13″H in x 13.25″OD in x 7″ID
Particle removal
HepaBarrier
Air Flow 635 cfm
More cfm than any other
home unit available
Prefilter
570 in 2 x 1 in Housing
Powder coat steel
Size
23 in x 15 in
Weight
45 lbs total
Watts
120 on high / 40 on low
Sound Level
30.2 *DB on low (at 6 feet)
60.3 dB on high (635 cm)
*at test conditions
