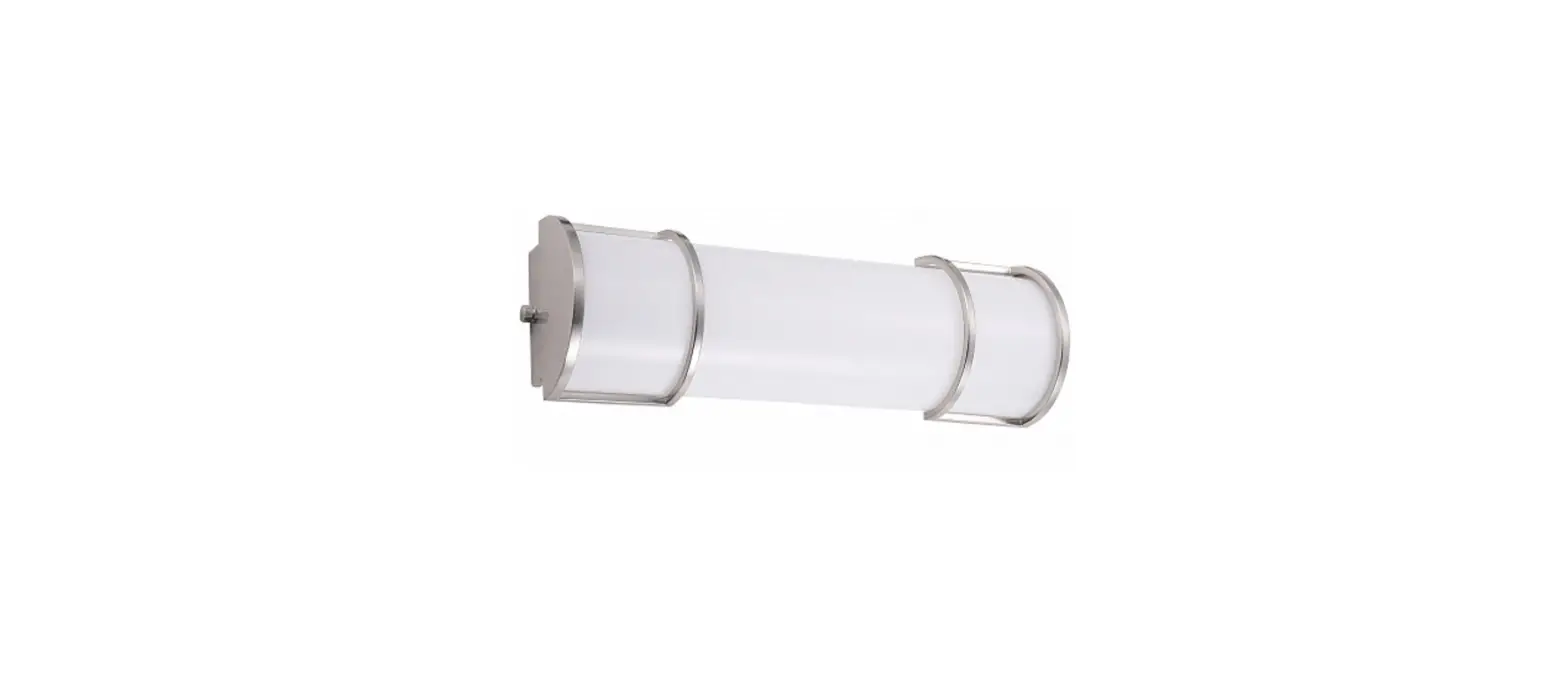

ASD-LVF21-18D20CC-NK LED Vanity Linear

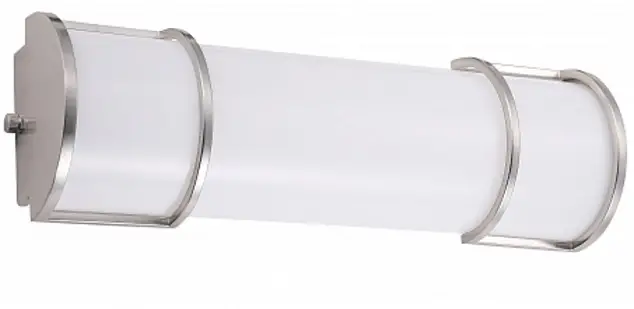

Product Information

The LED Vanity Linear is a lighting fixture for use in bathrooms or dressing rooms. It is available in multiple sizes and finishes to fit different decor styles. The fixture is constructed with a steel housing and an acrylic lens. It has a maximum input voltage of 120V and is dimmable using a TRIAC dimmer switch. The Lumens output ranges from 1,400-3,205 lm depending on the model selected. The Color temperature options are 3,000/4,000/5,000 K and the Color Rendering Index (CRI) is greater than 80. The LED lights have a life span of over 50,000 hours and the fixture is suitable for damp locations.

Product Usage

Select the appropriate size and finish for your bathroom or dressing room.
Install the fixture according to the provided instructions and appropriate electrical codes.
Connect the fixture to a 120V power source.
Control the brightness using a TRIAC dimmer switch.
Clean the fixture regularly with a soft cloth to maintain its appearance.

Note: If you are not familiar with electrical work, it is recommended that you hire a licensed electrician to install the fixture. Do not attempt to modify or alter the fixture in any way as this may cause damage or injury.

DESIGN – LED VANITY LINEAR LIGHT: has a sleek, modern design that allows you to have a stylish look with efficient lighting. Durable housing resistant to rust and impact provides many years of service. The acrylic lens with a 120° beam angle grants you even light distribution. It is designed to operate on 120V circuits.
COLOR SELECTABLE: You can choose either a 3,000K warm white, 4,000K cool white or 5,000K daylight color temperature.
DIMMING: Smooth triac dimming capabilities ranging from 10% to 100% with modern LED dimmers allow you to control the look and feel of your space.
APPLICATION:This fixture creates a bright light that is perfect for bathroom spaces or any other common areas. It is also Damp Locations rated. Can be installed vertically and horizontally.
ADVANTAGES: With a lifespan of 50,000 hours, these fixtures are made to last decades under normal operation! ASD provides a 5-year limited warranty along with ETL and Energy Star certifications to guarantee top quality products and safety.

Model	Size	Watts	Voltage	Dimmable	Lumens	CCT	Finish	Dimensions (LxWxH)
ASD-LVF21-18D20CC-NK	18 inch	20W	120 V	TRIAC	1,400/1,620/1,570 lm	3CCT (3,000/4,000/5,000 K)	Brushed nickel	19-1/8″ x 5-7/8″ x 4″
ASD-LVF21-18D20CC-BZ	18 inch	20W	120 V	TRIAC	1,400/1,620/1,570 lm	3CCT (3,000/4,000/5,000 K)	Oil rubbed bronze	19-1/8″ x 5-7/8″ x 4″
ASD-LVF21-24D25CC-NK	24 inch	25W	120 V	TRIAC	1,750/1,950/1,900 lm	3CCT (3,000/4,000/5,000 K)	Brushed nickel	25-9/16″ x 5-7/8″ x 4″
ASD-LVF21-24D25CC-NK-2PACK	24 inch	25W	120 V	TRIAC	1,750/1,950/1,900 lm	3CCT (3,000/4,000/5,000 K)	Brushed nickel	25-9/16″ x 5-7/8″ x 4″
ASD-LVF21-24D25CC-BZ	24 inch	25W	120 V	TRIAC	1,750/1,950/1,900 lm	3CCT (3,000/4,000/5,000 K)	Oil rubbed bronze	25-9/16″ x 5-7/8″ x 4″
ASD-LVF21-36D30CC-NK	36 inch	30W	120 V	TRIAC	2,400/2,640/2,535 lm	3CCT (3,000/4,000/5,000 K)	Brushed nickel	37-3/16″ x 5-7/8″ x 4″
ASD-LVF21-48D35CC-NK	48 inch	35W	120 V	TRIAC	2,975/3,205/3,125 lm	3CCT (3,000/4,000/5,000 K)	Brushed nickel	49″ x 5-7/8″ x 4″

ORDERING INFORMATION

Model	UPC	Pcs. per carton	Carton size	Carton weight	GTIN 14
ASD-LVF21-18D20CC-NK	819201028214	4	20.5″ x 16.3″ x 12.6″	23 lb	30819201028215
ASD-LVF21-18D20CC-BZ	819201028221	4	20.5″ x 16.3″ x 12.6″	23 lb	30819201028222
ASD-LVF21-24D25CC-NK	819201028238	4	27.2″ x 16.3″ x 12.6″	24.2 lb	30819201028239
ASD-LVF21-24D25CC-NK-2PACK	810050733663	1	27.2″ x 8.5″ x 12.6″	12.3 lb	–
ASD-LVF21-24D25CC-BZ	819201028252	4	27.2″ x 16.3″ x 12.6″	24.2 lb	30819201028253
ASD-LVF21-36D30CC-NK	810050731898	4	38.8″ x 16.3″ x 12.6″	32.2 lb	50810050731893
ASD-LVF21-48D35CC-NK	810050732833	4	50.6″ x 16.3″ x 12.6″	40.5 lb	30810050732834

PRODUCT SPECIFICATIONS

Construction & Materials
Housing	Steel
Lens	Acrylic
Finish	Brushed nickel, Oil rubbed bronze
Weight	ASD-LVF21-18D20CC-NK		4 lb (1.8 kg)
	ASD-LVF21-18D20CC-BZ
	ASD-LVF21-24D25CC-NK		4.6 lb (2.1 kg)
	ASD-LVF21-24D25CC-NK-2PACK		9.3 lb (4.2 kg)
	ASD-LVF21-24D25CC-BZ		4.6 lb (2.1 kg)
	ASD-LVF21-36D30CC-NK		6.3 lb (2.9 kg)
	ASD-LVF21-48D35CC-NK		8 lb (3.6 kg)
Environmental system
Work environment	Suitable for Damp Locations
Operating temperature	-4℉ to 122℉ (-20℃ to 50℃)
L-70 life	> 50,000 hrs
Optical system
Luminous flux	ASD-LVF21-18D20CC-NK		1,400/1,620/1,570 lm
	ASD-LVF21-18D20CC-BZ
	ASD-LVF21-24D25CC-NK		1,750/1,950/1,900 lm
	ASD-LVF21-24D25CC-NK-2PACK
	ASD-LVF21-24D25CC-BZ
	ASD-LVF21-36D30CC-NK		2,400/2,640/2,535 lm
	ASD-LVF21-48D35CC-NK		2,975/3,205/3,125 lm
Color temperature	3CCT (3,000/4,000/5,000 K)
CRI	> 80
Electrical system
Input voltage	120 V
Max input current	ASD-LVF21-18D20CC-NK		0.19 A
	ASD-LVF21-18D20CC-BZ
	ASD-LVF21-24D25CC-NK		0.28 A
	ASD-LVF21-24D25CC-NK-2PACK
	ASD-LVF21-24D25CC-BZ
	ASD-LVF21-36D30CC-NK		0.27 A
	ASD-LVF21-48D35CC-NK		0.4 A
Inrush current (Action time)	ASD-LVF21-18D20CC-NK		0.16 A (0.1 S)
	ASD-LVF21-18D20CC-BZ
	ASD-LVF21-24D25CC-NK		0.2 A (0.1 S)
	ASD-LVF21-24D25CC-NK-2PACK
	ASD-LVF21-24D25CC-BZ
	ASD-LVF21-36D30CC-NK		0.25 A (0.1 S)
	ASD-LVF21-48D35CC-NK		0.3 A (0.1 S)
Off state power	0W
Power consumption	ASD-LVF21-18D20CC-NK		20W
	ASD-LVF21-18D20CC-BZ
	ASD-LVF21-24D25CC-NK		25W
	ASD-LVF21-24D25CC-NK-2PACK
	ASD-LVF21-24D25CC-BZ
	ASD-LVF21-36D30CC-NK		30W
	ASD-LVF21-48D35CC-NK		35W
Power factor	> 0.9

Surge protection DM/CM	1.25 kV / 1.25 kV
Dimming range
10-100%
Dimming compatible controls
Brand	Lutron			Leviton
Models	TGCL-153P	MACL-153MLH		DSL06
	CTCL-153P	DVCL-153PR		RNL06
	P-PKG1W	STCL-153PH
	PD-6WCL
Regular and voluntary certifications
5-year limited warranty
Energy Star listed
cETLus certified 4001256

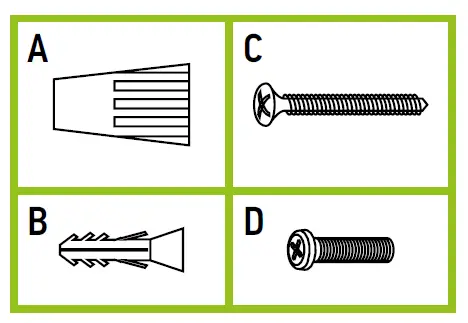

PACKAGE CONTENTS

Description Q-ty

LED Vanity Linear 1 (2 for 2 pack)
Wire nut (A) 3
Anchor (B) 2
13/18″ Screw (C) 2
13/16″ Screw (D) 2
Box 1

INSTALLATION GUIDE

IMPORTANT SAFETY INFORMATION:
Please read all the instructions below before installation.

Make sure that the supply voltage corresponds to the rated product voltage.
The product must be installed by a qualified electrician in accordance with the National Electrical Code and corresponding local codes.
If the product is damaged, do not use it.

WARNING

RISK OF PERSONAL INJURY – READ and follow all WARNINGS and installation instructions. Keep or give to the owner for future reference. Risk of cuts: Wear gloves to prevent cuts or abrasions when removing from carton, handling, installing, and maintaining this product. Risk of electric shock: This product must be installed in accordance with the applicable installation code by a person familiar with the construction and operation of the product and the hazards involved. Risk of Fire: Minimum 194°F supply conductors. Consult a qualified electrician to ensure correct branch circuit conductor. ASD® assumes no responsibility for claims arising out of improper or careless Installation or handling of this product.

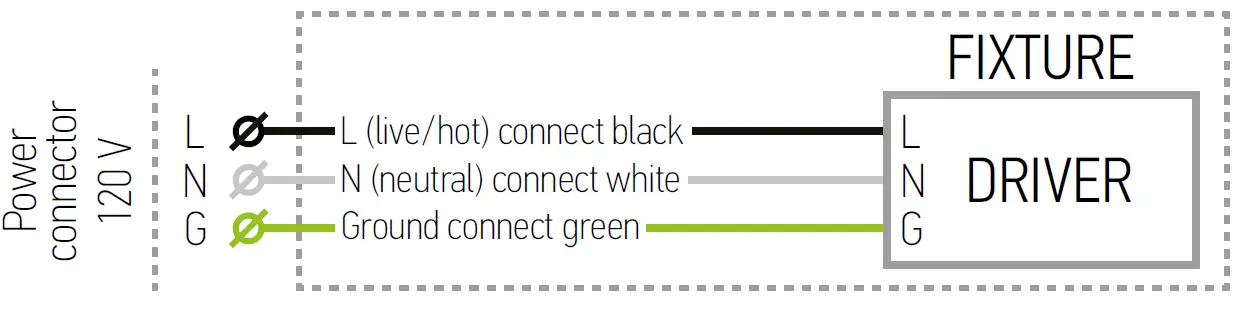

ELECTRICAL SCHEMATIC DIAGRAM

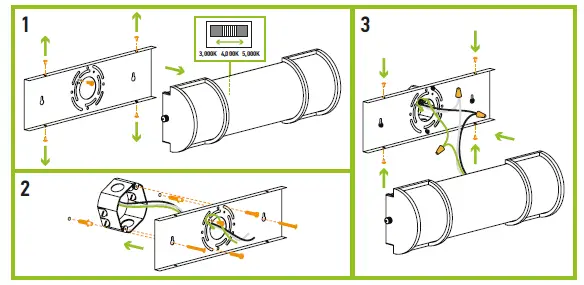

INSTALLATION STEPS

Detach the fixture body from the back plate. Choose needed color temperature by adjusting the switch position on the back of the fixture.
Place the back plate against the wall covering the outlet box, mark placement of the mounting keyhole slots and drill appropriate sized holes for wall anchors. Attach the back plate to the wall with two outlet box screws and two anchor screws.
Connect the wires: Black to Black, White to White, Green to Green. Secure the connection with wire nuts. Attach the fixture body to the back plate using four small screws.
