Canarmn Lvl229a24 Led Vanity Instruction Manual

LED VANITY LVL
229A24/36 10/21

INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS READ ALL INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS

TOOLS AND MATERIALS REQUIRED:

SAFETY PRECAUTIONS

1. TURN OFF ELECTRICAL POWER BEFORE STARTING THE INSTALLATION OF THE LIGHT FIXTURE.
2. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
3. CONNECT THE GROUND WIRES (BARE COPPER OR GREEN) FROM YOUR FIXTURE TO THE GROUND WIRE (BARE COPPER OR GREEN) OR GROUND SCREW IN THE ELECTRICAL BOX.
4. TO CLEAN THE FIXTURE, TURN OFF THE POWER, WAIT FOR IT TO COOL, AND WIPE THE FIXTURE WITH A CLEAN, SOFT CLOTH.

NOTE: Product may not look exactly as shown in figures.

INSTALLATION

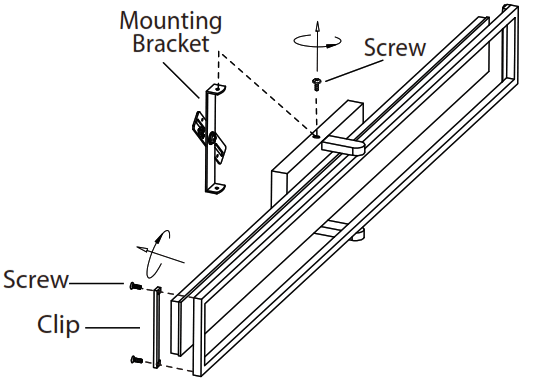

1. Remove the mounting bracket from the fixture by unscrewing the 2 screws.
2. Remove the clip at one end of the frame by unscrewing the 2 screws.

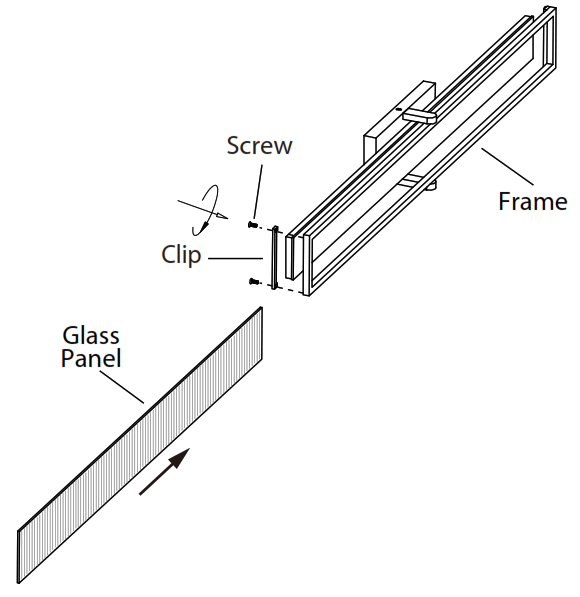

3. Insert the glass panel (frosted side facing out) into the other end of the frame. Ensure the glass panel is in the groove between the clip and the frame.
4. Re-install the clip onto the frame by tightening the 2 screws. Ensure the clips at both ends are secured.

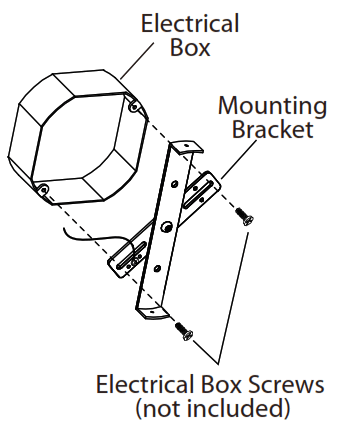

5. Mount the mounting bracket to the electrical box using electrical box screws (not included).

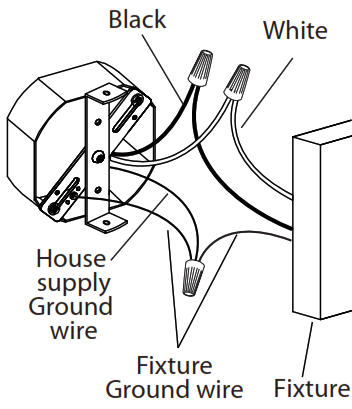

6. Connect the ground wires (bare copper or green) from your fixture to the ground wire (bare copper or green) or ground screw in the electrical box. Attach the black wire from the light fixture to the black wire in the electrical box. Attach the white wire from the light fixture to the white wire in the electrical
   box.
   NOTE: Do not disconnect any pre-wired connections.

7. Re-tighten the two screws to install the fixture.

These LED lights are compatible with the dimmers:

NEED HELP?
Call or Email us first
Tel: (613) 342-5424,
Fax: (800) 263-4598
Our service team is ready to answer your questions…
1-800-265-1833 (English) / 1-800-567-2513 (French)
 IN CANADA – [email protected]
IN USA – [email protected]
Monday -Friday
8 am-5 pm E.S.T
