Ceotis Cl20s Usb Rechargeable Under Cabinet Lights Wireless User Manual

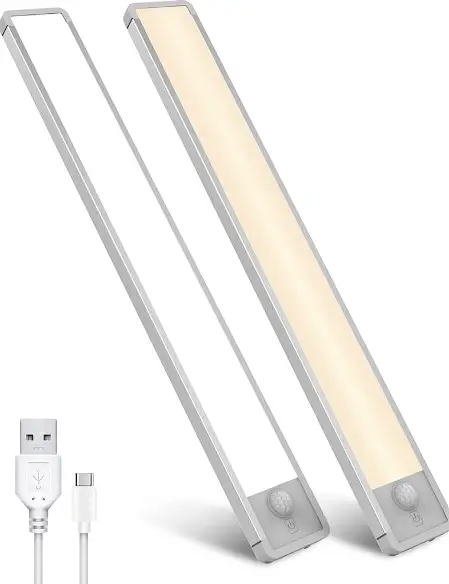

CEOTIS CL20S USB Rechargeable Under Cabinet Lights Wireless

Product Information

• This product is a cabinet light with a motion sensor.
• The product contains small parts that can be hazardous to children if ingested.
• Disassembling the product is not recommended as it may cause the product to become unusable.
• The product contains batteries and is not resistant to high temperatures, so it should be kept away from fire sources.
• The product should not be immersed in water as it may damage the built-in components.
• The motion sensor can only be activated in low light conditions.
• The product comes with a 1.5W LED bulb and has a model type of CL20S.
• The voltage of the product is 5V, and it has a color temperature of 3000K/4500K/6500K with a CRI greater than 80.
• The product has 60 LED lamp beads and a size of 7.8 inches.

Product Usage Instructions

• Ensure that the product is kept away from children to avoid accidental ingestion of small parts.
• Do not attempt to disassemble the product as this may cause it to become unusable.
• Keep the product away from fire sources as it contains batteries that are not resistant to high temperatures.
• Avoid immersing the product in water to prevent damage to its built-in components.
• The motion sensor will only work in low light conditions, so ensure that the area is dimly lit before use.
• To extend the life of the product, charge it before the battery runs out.
• If the cabinet light does not come on, ensure that there is sufficient power and use a USB cable to charge it.
• If the PIR sensor does not work, wait for the light to dim near the cabinet light or check if the sensing distance is too far.
• If unable to troubleshoot the problem, contact customer service for assistance.
• The product comes with a warm white (3000K), nature white (4500K), and cool white (6500K) color temperature, and a sensing distance of 11.5ft.

Manufacturer Information:

• The manufacturer of this product is Meko Lighting Company Limited.
• The manufacturer’s address is No. 2 Songlin East Road, ZengTian Village, Xin An District, Chang An Town, Dongguan City, Guangdong Province, China.
• The manufacturer’s email address is [email protected].

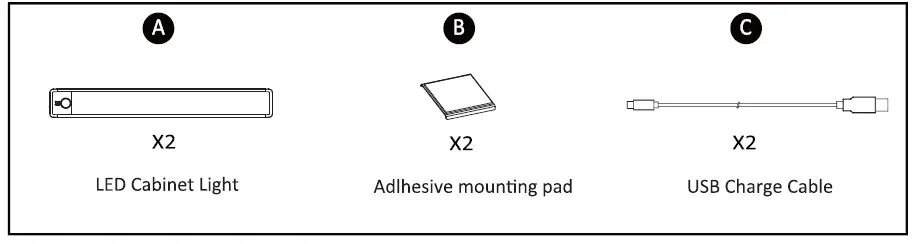

Remove the fixture and mounting package from the box and make sure that no parts are missing by referencing the illustration on the installation instructions.

Warning

• This product contains small parts, please take care of children to avoid accidental ingestion.
• This device does not support disassembly, improper disassembly will cause the product to be unusable.
• The product contains batteries and is not resistant to high temperature, please keep away from fire sources.
• Do not immerse the product in water, otherwise the built-in components will be damaged.
• The motion sensor can only be activated in low light conditions.
• Charging before the battery runs out will extend the life of the product.

Tools

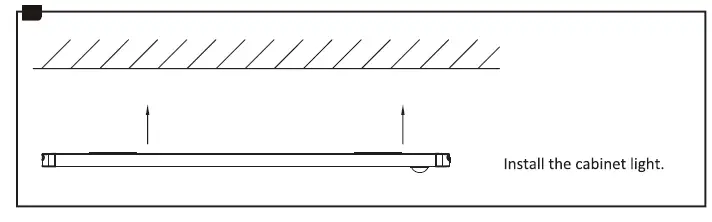

Assembly

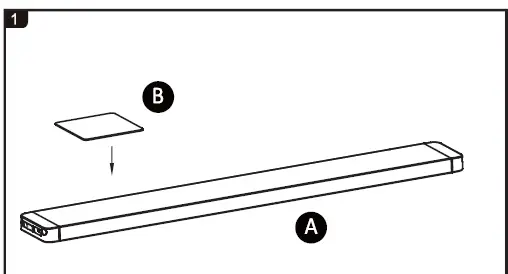

1. Install the adhesive mounting pad(B) to the cabinet light(Magnetic attraction).

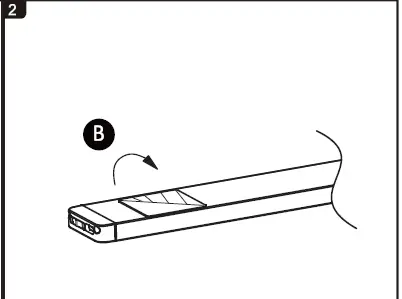

2. Tear off the protective film of 3M tape.

LED Under Cabinet With PIR Sensor USB Charging Cable

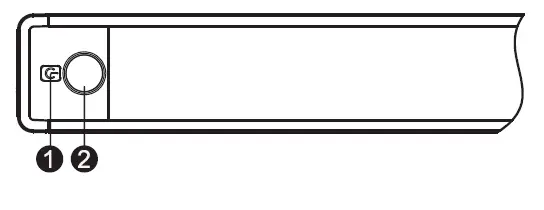

1. First short press: turn on always-on mode Second short press: turn on automatic night mode (light flashing prompt)
   1. Third short press: shutdown
   2. Long press: control brightness

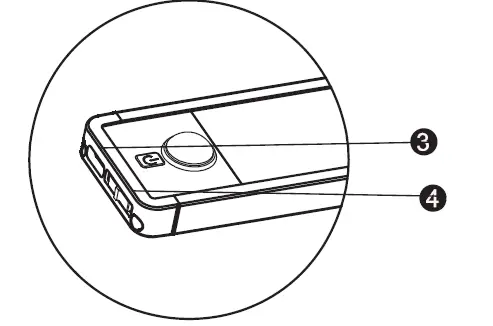

2. LED indicator light introduction
   1. Red light (Low battery)
   2. Green light (Charging completed)

3. USB charging port
4. Colour temperature adjusting:
   1. 3000K warm white
   2. 4500K nature white
   3. 6500K cool white

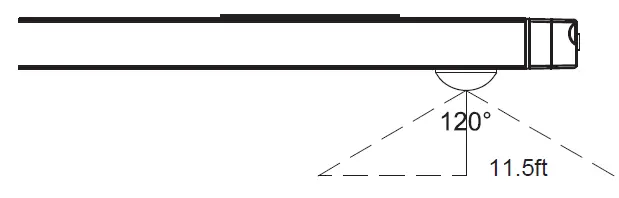

PIR Sensor

• Induction range:120° and 11.5ft

Specification

Troubleshooting

Manufacturer: Meko Lighting Company Limited Manufacturer Address: No. 2 Songlin East Road, ZengTian Village, Xin An District, Chang An Town, Dongguan City, Guangdong Province, China. Email: [email protected]
